AV08010011

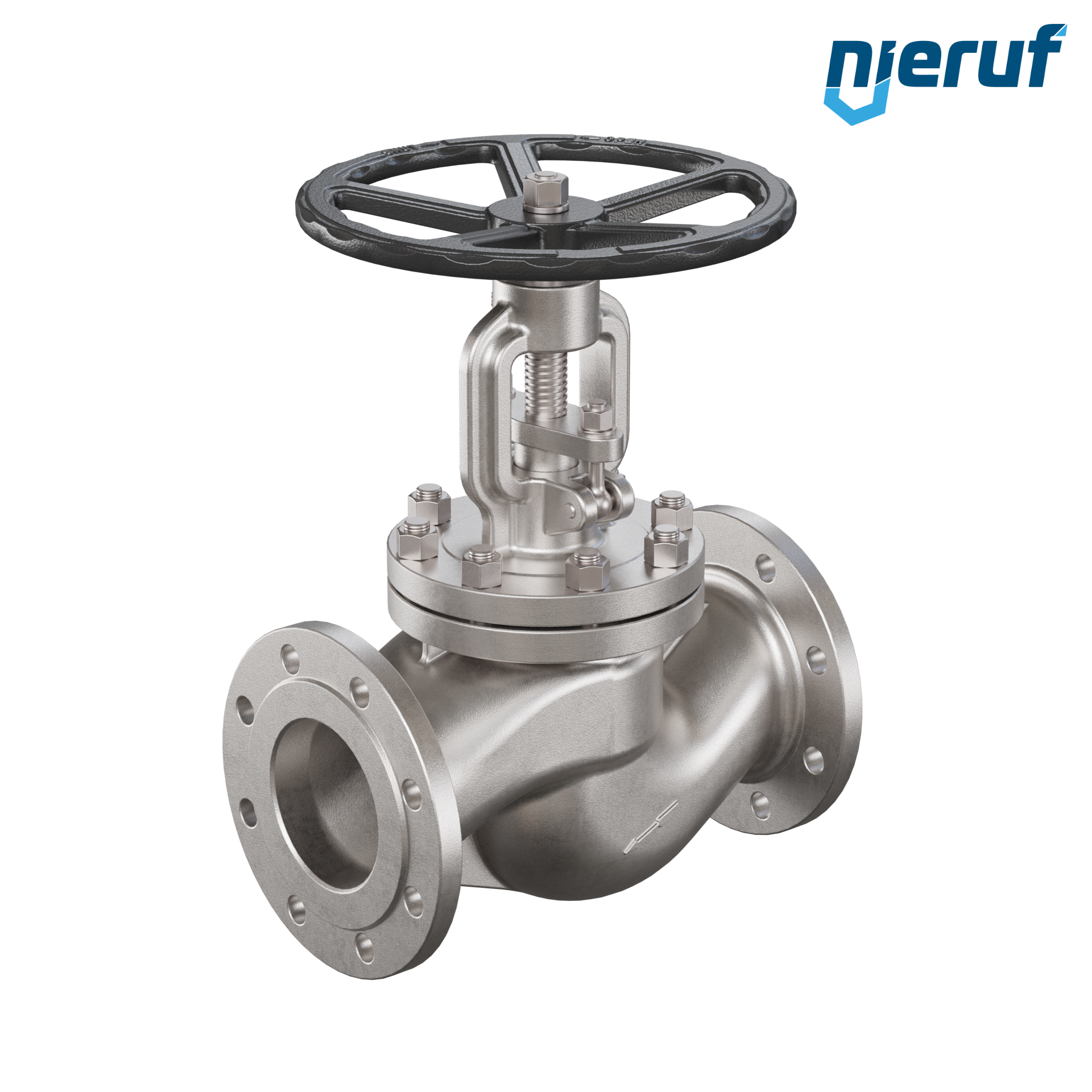

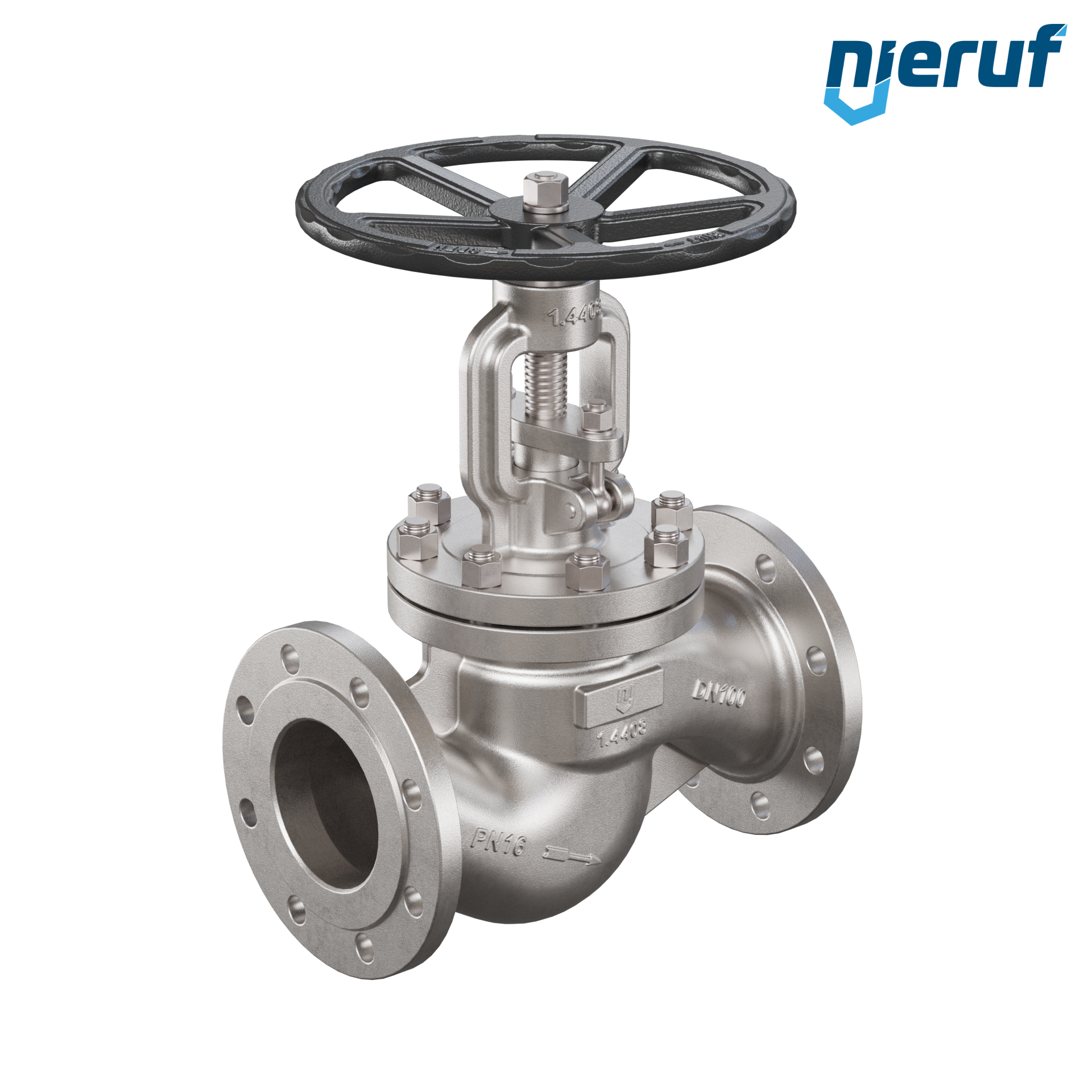

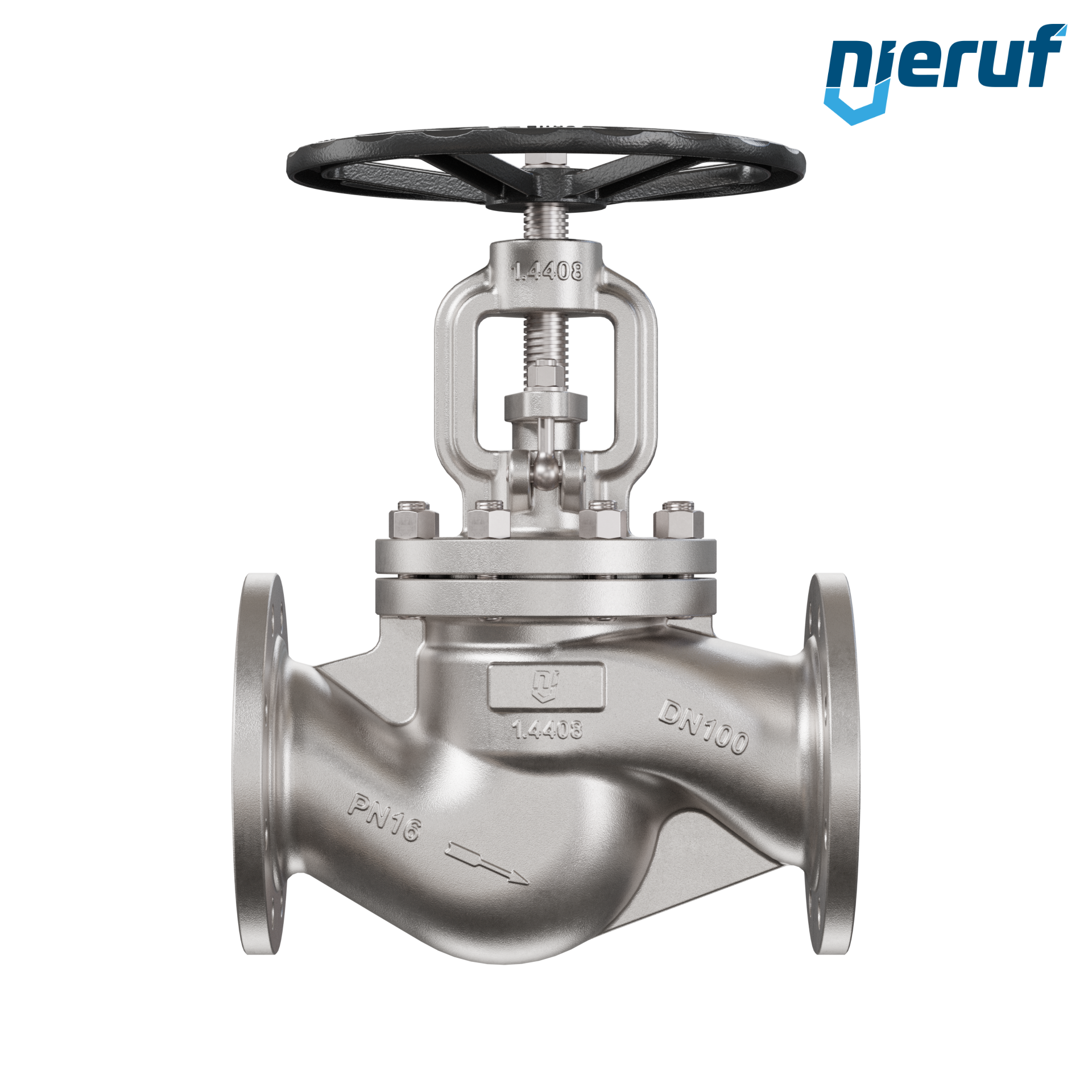

Globe valve DN100 PN16 AV08 stainless steel 1.4408 / CF8M
- Lead time
- 3 - 5 working days
Equipment
flange seal DN100 PN10/16 115x162x2 Klingersil C 4400
€4.88 VAT included.
joint set flange/flange DN100 - 4" Inch for flange PN10/16/25 stainless steel
€16.18 VAT included.
Welding neck flange DN100 PN10/16 EN1092-1 11 B1 1.4541
€82.23 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
Globe valve DN100 PN16 AV08 stainless steel 1.4408 / CF8M
Globe valve AV08 DN100 PN16 in straightway form flange acc. DIN EN 1092 material stainless steel 1.4408 / CF8M
| Product | globe valve |
|---|---|
| Type | AV08 |
| Manufacturer | NieRuf |
| Diameter | DN100 |
| Flange | flange acc. DIN EN 1092 |
| Pressure | PN16 |
| Seal | graphite |
| Media | liquid, gaseous media and steam |
| Temperature | -10°C up to +400°C - depending on operating pressure |
| Pressure range | 0 up to 16 bar - depending on temperature |
| Design | straightway form |
| Body material | stainless steel 1.4408 / CF8M |
| Bonnet material | stainless steel 1.4408 / CF8M |
| Handwheel | carbon steel 1.0036 (rising) |
| Length | acc. DIN EN 558-1 series 1 |
| Testing | final testing according to DIN EN 12266 |
| Approval | TA-Luft 2021 |
| Installation position | any position, spindle preferably vertical |
| Standard | DIN EN 13709:2010-10 |
| Product feature | globe valve in straightway form with flange connection and rising stem as well as rising handwheel. Valve according to TA-Luft 2021, tested according to DIN EN ISO 15848. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Globe valve DN100 PN16 AV08 stainless steel 1.4408 / CF8M
Article no.
: AV08010011
Product:
globe valve
Type:
AV08
Manufacturer:
NieRuf
Diameter:
DN100
Flange:
flange acc. DIN EN 1092
Pressure:
PN16
Seal:
graphite
Media:
liquid, gaseous media and steam
Temperature:
-10°C up to +400°C - depending on operating pressure
Pressure range:
0 up to 16 bar - depending on temperature
Design:
straightway form
Body material:
stainless steel 1.4408 / CF8M
Bonnet material:
stainless steel 1.4408 / CF8M
Handwheel:
carbon steel 1.0036 (rising)
Length:
acc. DIN EN 558-1 series 1
Testing:
final testing according to DIN EN 12266
Approval:
TA-Luft 2021
Installation position:
any position, spindle preferably vertical
Standard:
DIN EN 13709:2010-10
Product feature:
globe valve in straightway form with flange connection and rising stem as well as rising handwheel. Valve according to TA-Luft 2021, tested according to DIN EN ISO 15848.
Equipment
flange seal DN100 PN10/16 115x162x2 Klingersil C 4400
Lead time: in stock
joint set flange/flange DN100 - 4" Inch for flange PN10/16/25 stainless steel
Lead time: in stock
