AV02020004
Globe valve DN 20 AV02 SG iron EN-JS1049 regulation cone
- Lead time
- 1 - 2 weeks
Equipment
joint set flange/flange DN20 - 3/4" Inch for flange PN10/16/25/40 steel
€4.28 VAT included.
Flange DN20 PN10/16/25/40 EN1092-1 11 B1 C22.8 / P250GH bare
€14.40 VAT included.
flange seal DN20 PN10/16/25/40 27x61x2 Klingersil C 4400
€2.14 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

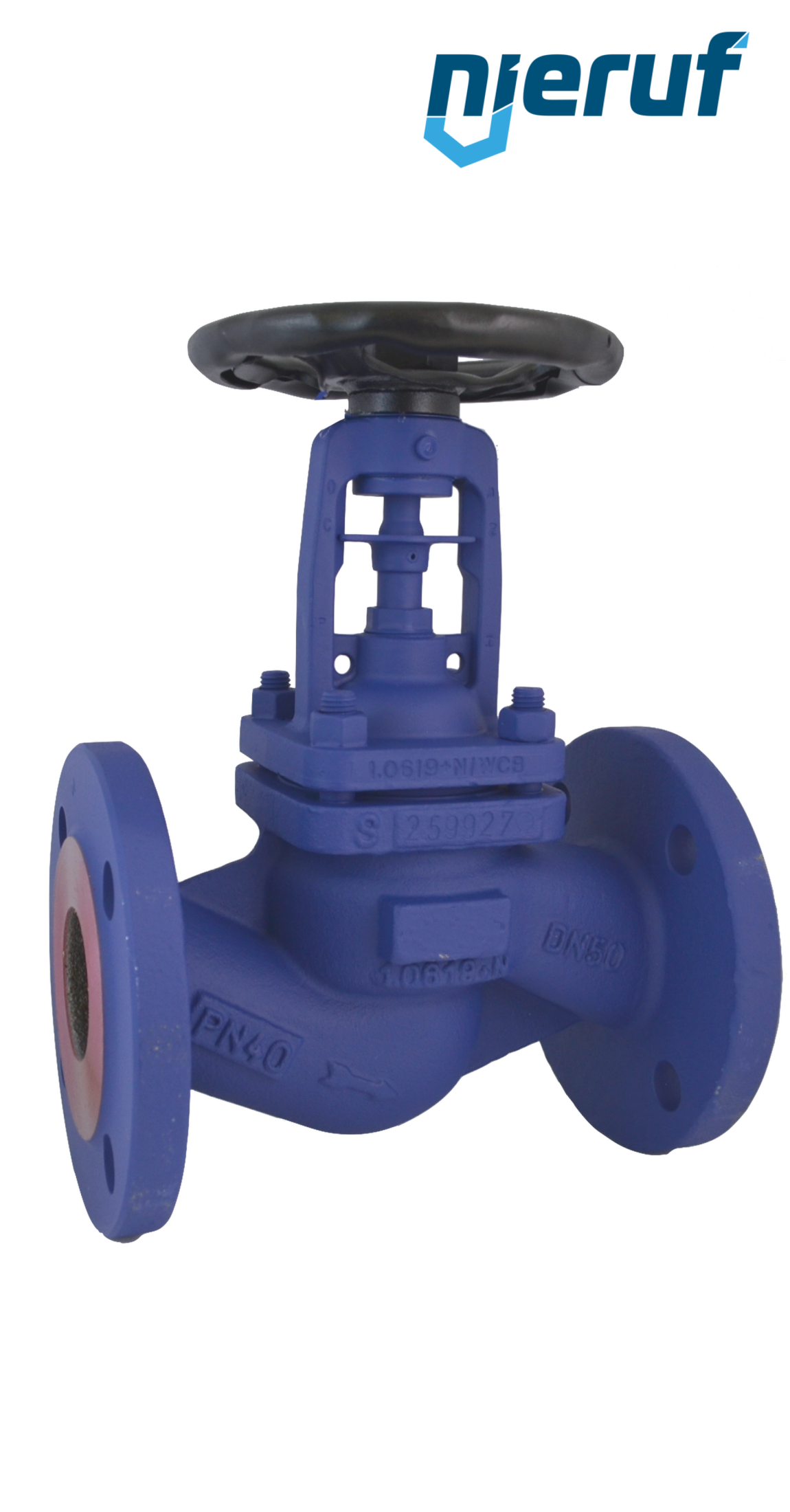

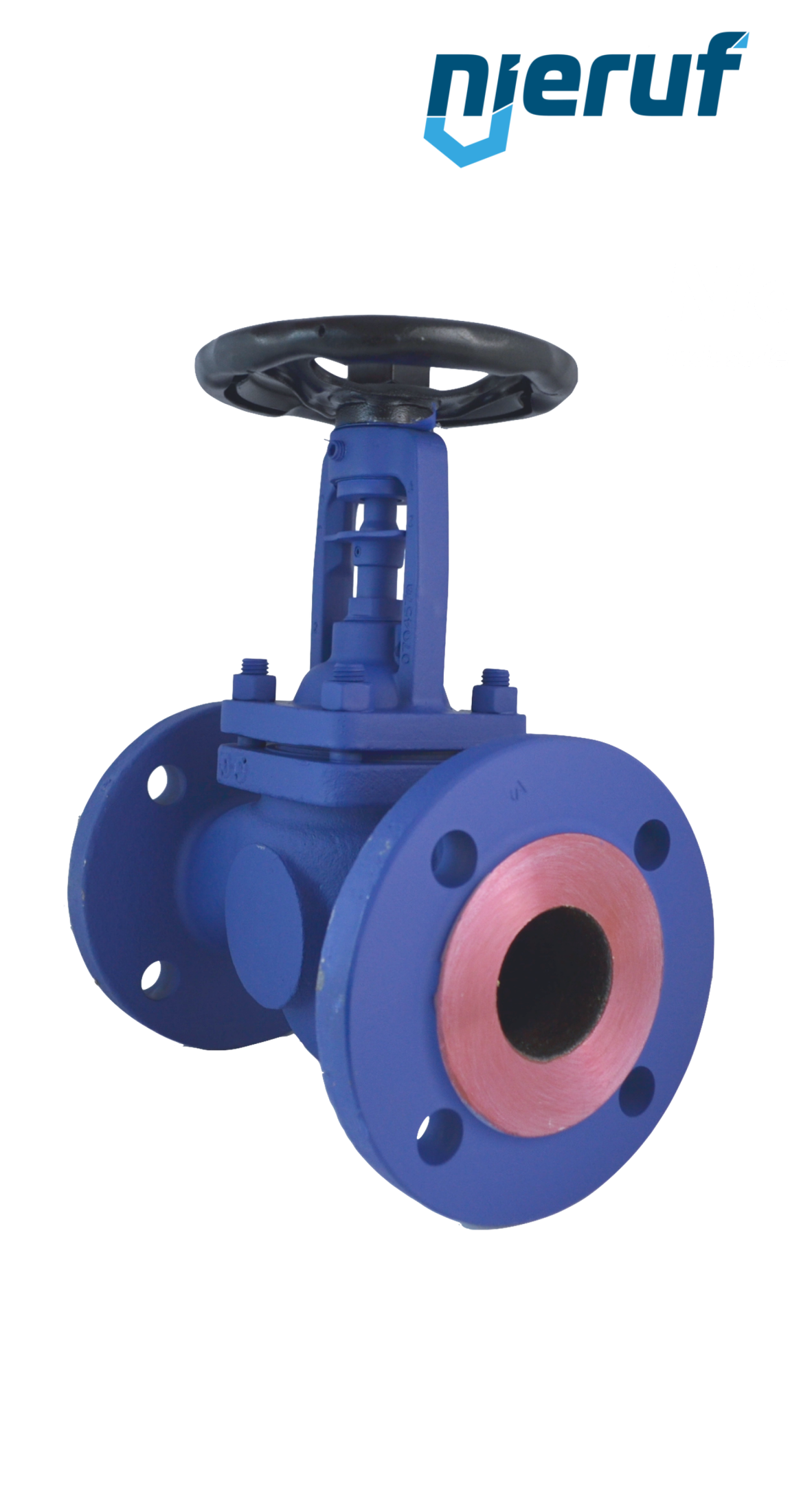

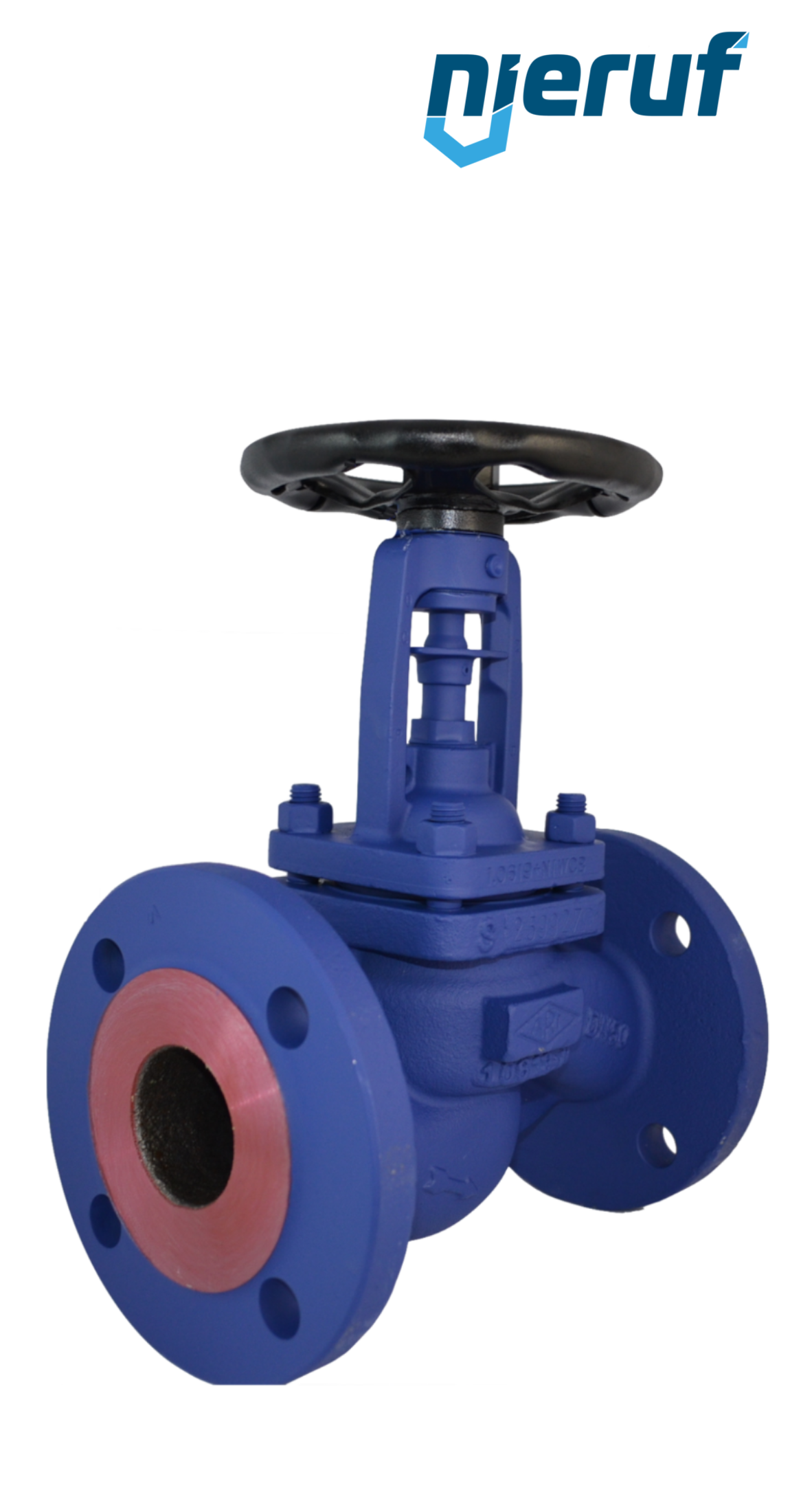

Globe valve DN 20 AV02 SG iron EN-JS1049 regulation cone

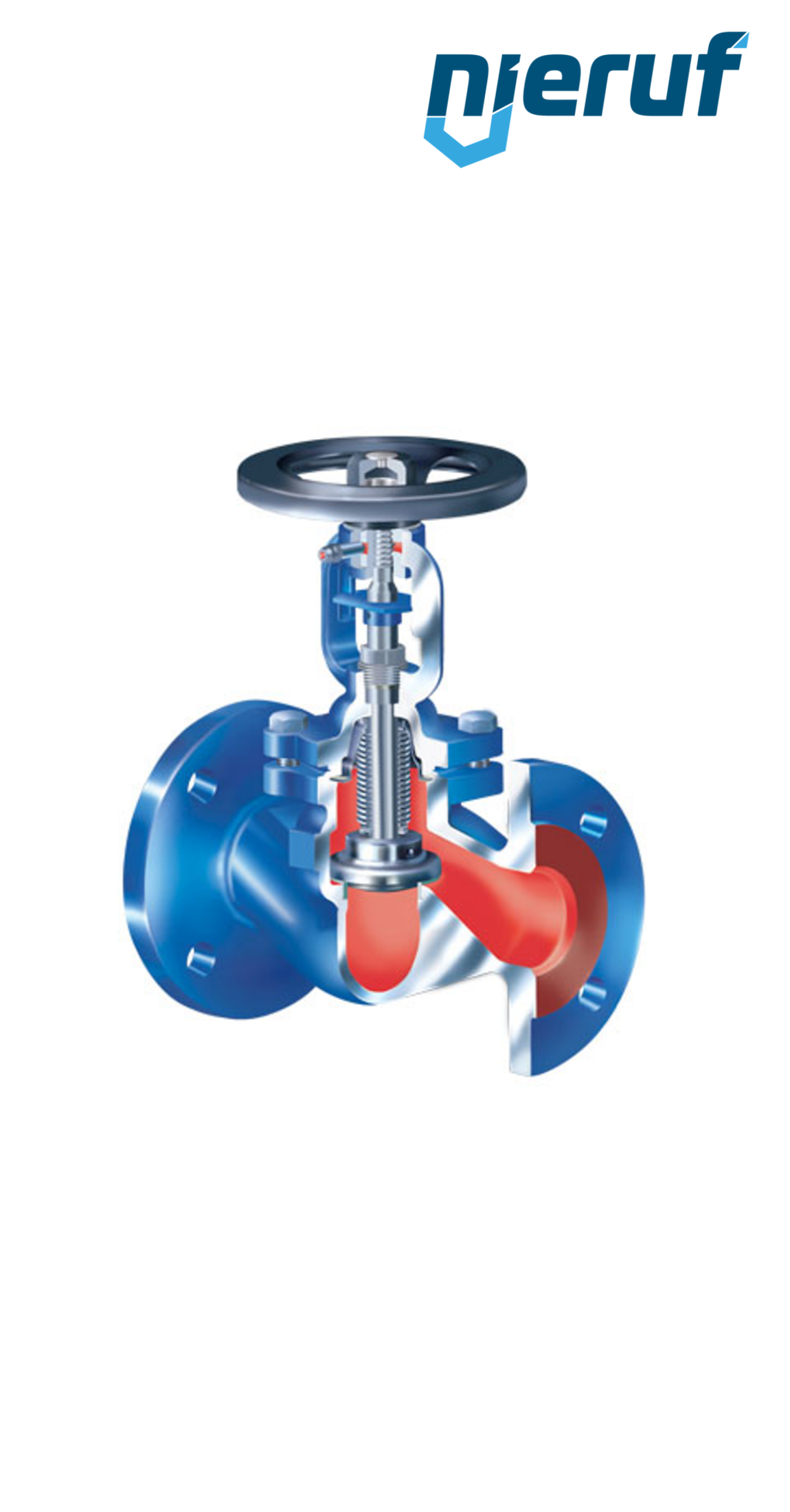

Bellow-Globe valve DN 20 in straight through with bellow with authorization DVGW-Gas regulation cone
| product | Globe valve |
|---|---|
| type | AV02 |
| manufacturer | NieRuf |
| diameter | DN20 |
| flange | flange acc. DIN EN 1092 |
| pressure | PN16 |
| seal | metal |
| media | liquid and gaseous media |
| temperature | -10°C up to +350°C - depending on working pressure |
| pressure range | 0 up to 16 bar - depending on operating temperature |
| design | straight through with bellow |
| body material | SG iron EN-JS1049 |
| material spindel unit | SG iron EN-JS1049 |
| handwheel | steel with cataphoretic-coating (non-rising) |
| plug | regulation cone |
| bellow | stainless steel 1.4571 |
| length | acc DIN EN 558 series 1 |
| authorized for | DIN DVGW-Reg. NG-4313AO 0772 |
| installation position | any position, spindle preferably vertical |
| product feature | Stop valve - straight through with flanges and bellows seal additionally with non-rotation lock, flat lubricating nipple and position indicator as standard - CLOSED / OPEN. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Globe valve DN 20 AV02 SG iron EN-JS1049 regulation cone
Article no.
: AV02020004
product:
Globe valve
type:
AV02
manufacturer:
NieRuf
diameter:
DN20
flange:
flange acc. DIN EN 1092
pressure:
PN16
seal:
metal
media:
liquid and gaseous media
temperature:
-10°C up to +350°C - depending on working pressure
pressure range:
0 up to 16 bar - depending on operating temperature
design:
straight through with bellow
body material:
SG iron EN-JS1049
material spindel unit:
SG iron EN-JS1049
handwheel:
steel with cataphoretic-coating (non-rising)
plug:
regulation cone
bellow:
stainless steel 1.4571
length:
acc DIN EN 558 series 1
authorized for:
DIN DVGW-Reg. NG-4313AO 0772
installation position:
any position, spindle preferably vertical
product feature:
Stop valve - straight through with flanges and bellows seal additionally with non-rotation lock, flat lubricating nipple and position indicator as standard - CLOSED / OPEN.
Equipment
flange seal DN20 PN10/16/25/40 27x61x2 Klingersil C 4400
Lead time: in stock
Flange DN20 PN10/16/25/40 EN1092-1 11 B1 C22.8 / P250GH bare
Lead time: in stock
joint set flange/flange DN20 - 3/4" Inch for flange PN10/16/25/40 steel
Lead time: 3 - 5 working days
pipe bend (welded) 90° 26,9 x 2,0 stainless steel 1.4571
Lead time: in stock
reducing bush (welded) 33,7 x 2,0 to 21,3 x 1,6 stainless steel 1.4571
Lead time: in stock
