- Delivery time
- 1 - 2 weeks
Equipment
Flange DN20 PN10/16/25/40 EN1092-1 11 B1 C22.8 / P250GH bare
€14.40 VAT included.
joint set flange/flange DN20 - 3/4" Inch for flange PN10/16/25/40 steel
€4.28 VAT included.
Questions about the article?

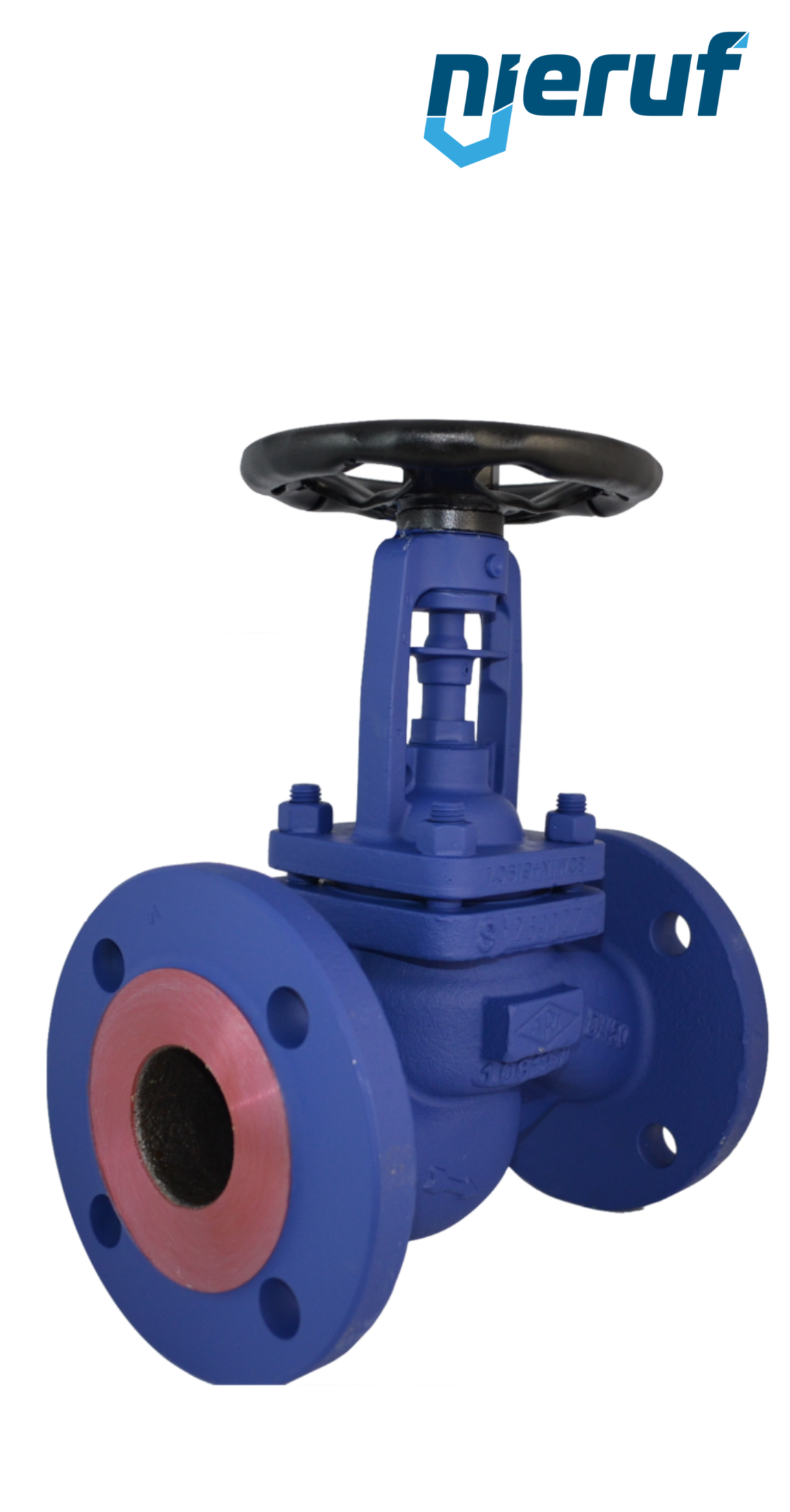

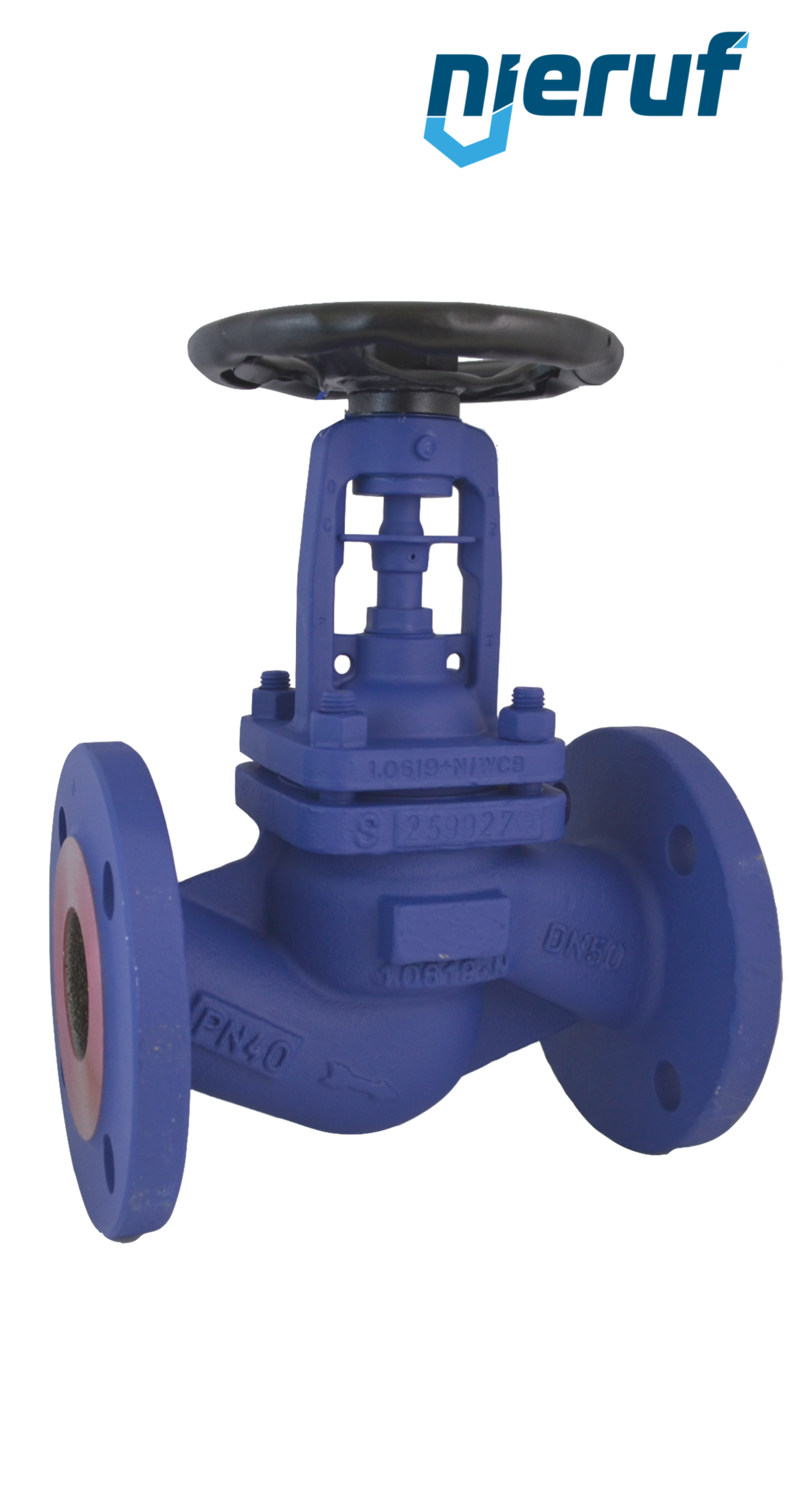

Flange-Globe valve DN 20 in straight through with bellow flange acc. DIN EN 1092 material grey cast iron DN-JL1040 with Isolation plug
| product | Flange-Globe valve |
|---|---|
| type | AV01 |
| manufacturer | NieRuf |
| diameter | DN 20 |
| flange | flange acc. DIN EN 1092 |
| pressure | PN16 |
| seal | metal |
| media | liquid and gaseous media |
| temperature | to max +300°C - depending on working pressure |
| pressure range | max. 16 bar depending on operating temperature |
| design | straight through with bellow |
| body material | grey cast iron DN-JL1040 |
| material spindel unit | SG iron EN-JS1049 |
| handwheel | steel with cataphoretic-coating (non-rising) |
| plug | Isolation plug |
| bellow | stainless steel 1.4571 |
| length | acc DIN EN 558 series 1 |
| approval | EN ISO 15848-1 / TA Luft TÜV-Prüf-Nr: TA 07 2016 C04 |
| installation position | any position, spindle preferably vertical |
| product feature | Stop valve - straight through with flanges and bellows seal additionally with non-rotation lock, flat lubricating nipple and position indicator as standard - CLOSED / OPEN. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Flange-Globe valve DN 20 AV01 grey cast iron DN-JL1040 Isolation plug
Article no.
: AV01010004
product:
Flange-Globe valve
type:
AV01
manufacturer:
NieRuf
diameter:
DN 20
flange:
flange acc. DIN EN 1092
pressure:
PN16
seal:
metal
media:
liquid and gaseous media
temperature:
to max +300°C - depending on working pressure
pressure range:
max. 16 bar depending on operating temperature
design:
straight through with bellow
body material:
grey cast iron DN-JL1040
material spindel unit:
SG iron EN-JS1049
handwheel:
steel with cataphoretic-coating (non-rising)
plug:
Isolation plug
bellow:
stainless steel 1.4571
length:
acc DIN EN 558 series 1
approval:
EN ISO 15848-1 / TA Luft TÜV-Prüf-Nr: TA 07 2016 C04
installation position:
any position, spindle preferably vertical
product feature:
Stop valve - straight through with flanges and bellows seal additionally with non-rotation lock, flat lubricating nipple and position indicator as standard - CLOSED / OPEN.
