Float valve 2 1/2" inch stainless steel FKM SW04 floats: in stainless steel

SW04000109
safety valve 2" x 2" fm SV07 neutral gaseous media, gunmetal NBR 2
quantity (pcs.):
1,387.10€ * 1,650.65€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: 3-5 working days

datasheet
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details

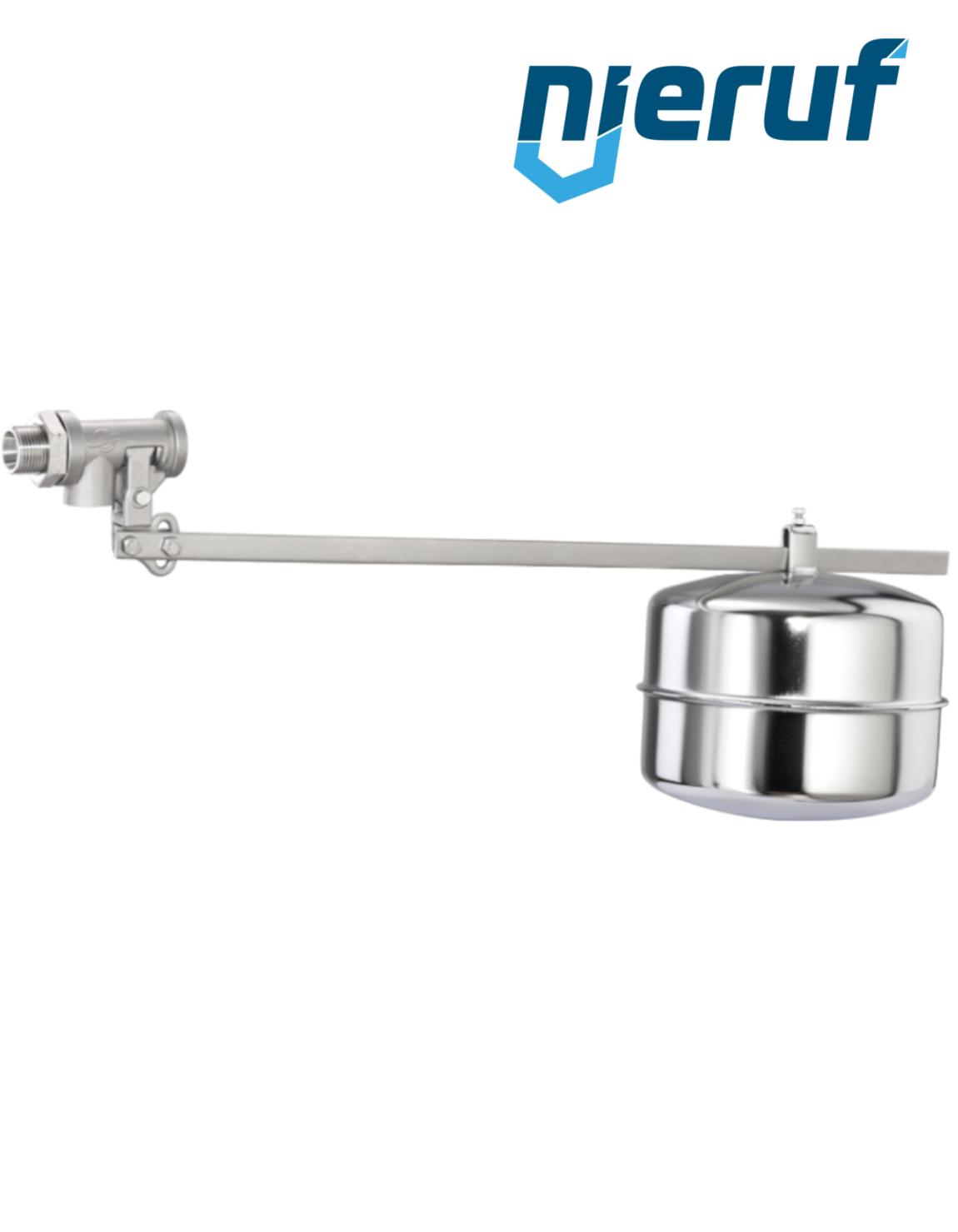

Float valve 2 1/2" inch stainless steel FKM SW04 floats: in stainless steel
Float valve 2 1/2" inch made of stainless steel seal made of FKM in closed design and control piston floats: in stainless steel
diameter: 2 1/2" inch
body: stainless steel
seat seal: FKM
max. temperature: 190°C
floats: in stainless steel
max. working pressure: 12 bar
kvs-valu: 24,0 m3/h
media: for aggressive liquids and fully desalinated water
design: closed
control: control piston
Connection: thread
installation position: horizontal
Float valve 2 1/2" inch stainless steel FKM SW04 floats: in stainless steel

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

Float valve 2 1/2" inch stainless steel FKM SW04 floats: in stainless steel
