Float valve 1" inch brass EPDM SW05 floats: in copper

Flange-Butterfly valve DN 125 PN10 AK03 EPDM notch lever 3
quantity (pcs.):
401.70€ * 478.02€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: at stock

Express shipping:

Shipping on: Friday, 22. October
Guaranteed delivery until Monday, 25. October, 12 Uhr:
order within 19 hours & 52 minutes via express shipping
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
technical details

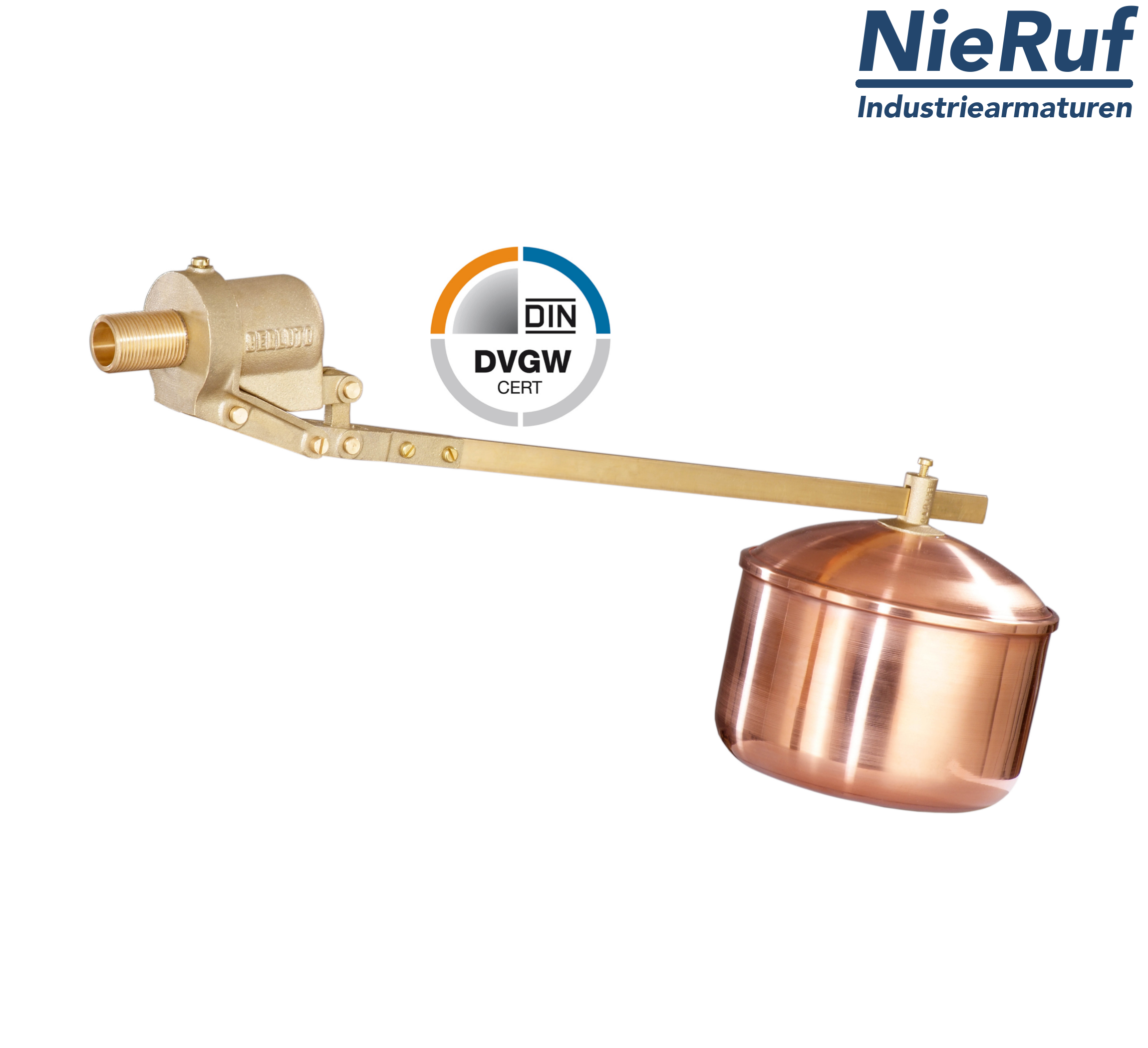

Float valve 1" inch brass EPDM SW05 floats: in copper
brass Float valve 1" inch seal made of EPDM in open design and control flap floats: in copper DVGW-water approval
diameter: 1" inch
body: brass
cap: brass
seat seal: EPDM
max. temperature: 80°C
floats: in copper
max. working pressure: 12 bar
kvs-valu: 7,6 m3/h
media: for drinking water and other neutral liquids
design: open
control: control flap
authorized for: DVGW-water
Connection: thread
installation position: horizontal
Float valve 1" inch brass EPDM SW05 floats: in copper

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

Float valve 1" inch brass EPDM SW05 floats: in copper
