FL02000113
Flat flange DN150 PN10/16 EN1092-1 01 A 1.4541
- Lead time
- 3 - 5 working days
Equipment
joint set flange/flange DN150 - 6" Inch for flange PN10/16/25 stainless steel
€25.70 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
Downloads
Flat flange DN150 PN10/16 EN1092-1 01 A 1.4541
Flat flange made of stainless steel 1.4541 DN150 flange according DIN PN10/16 EN1092-1 Typ 01 A
| product | Flat flange |
|---|---|
| type | FL02 |
| manufacturer | NieRuf |
| diameter | DN150 |
| connection | PN10/16 |
| material | stainless steel |
| material nr. | 1.4541 |
| norm | EN1092-1 |
| norm-type | 01 |
| surface | A |
| Design | Flat flange for welding |

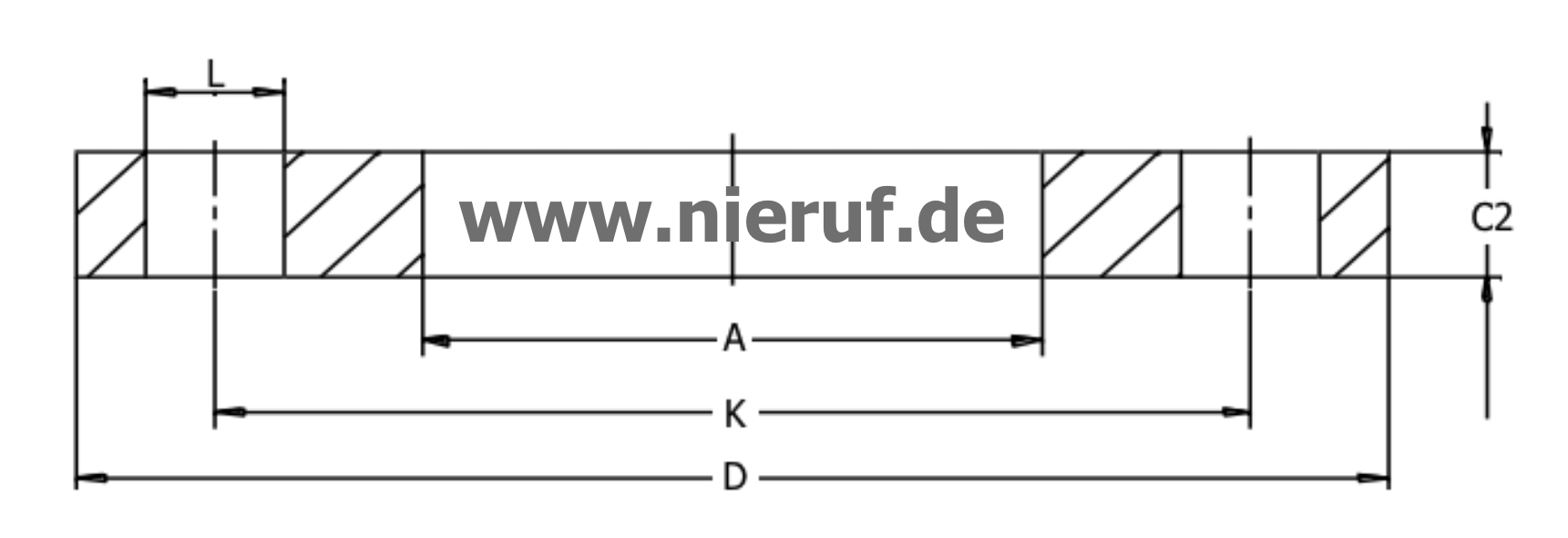

| Ø A | 170,5 |
| D | 285 |
| C2 | 24 |
| K | 240 |
| screw | M20 |
| Qty. Screws | 8 |
| L | 22 |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Flat flange DN150 PN10/16 EN1092-1 01 A 1.4541
Article no.
: FL02000113
product:
Flat flange
type:
FL02
manufacturer:
NieRuf
diameter:
DN150
connection:
PN10/16
material:
stainless steel
material nr.:
1.4541
norm:
EN1092-1
norm-type:
01
surface:
A
Design:
Flat flange for welding
Ø A:
170,5
D:
285
C2:
24
K:
240
screw:
M20
Qty. Screws:
8
L:
22
Equipment
joint set flange/flange DN150 - 6" Inch for flange PN10/16/25 stainless steel
Lead time: 3 - 5 working days
