SF01000003
flange-safety valve DN15/DN15 SF01, cast iron EN-JL1040 metal, with lever
- Lead time
- 2 - 3 weeks
Equipment
joint set flange/flange DN15 - 1/2" Inch for flange PN10/16/25/40 steel
€4.28 VAT included.
Flange DN15 PN10/16/25/40 EN1092-1 11 B1 C22.8 / P250GH bare
€11.19 VAT included.
flange seal DN15 PN10/16/25/40 22x51x2 Klingersil C 4400
€2.38 VAT included.
Certificates
Questions about the article?
Our employee Richie Rost
will be happy to help you

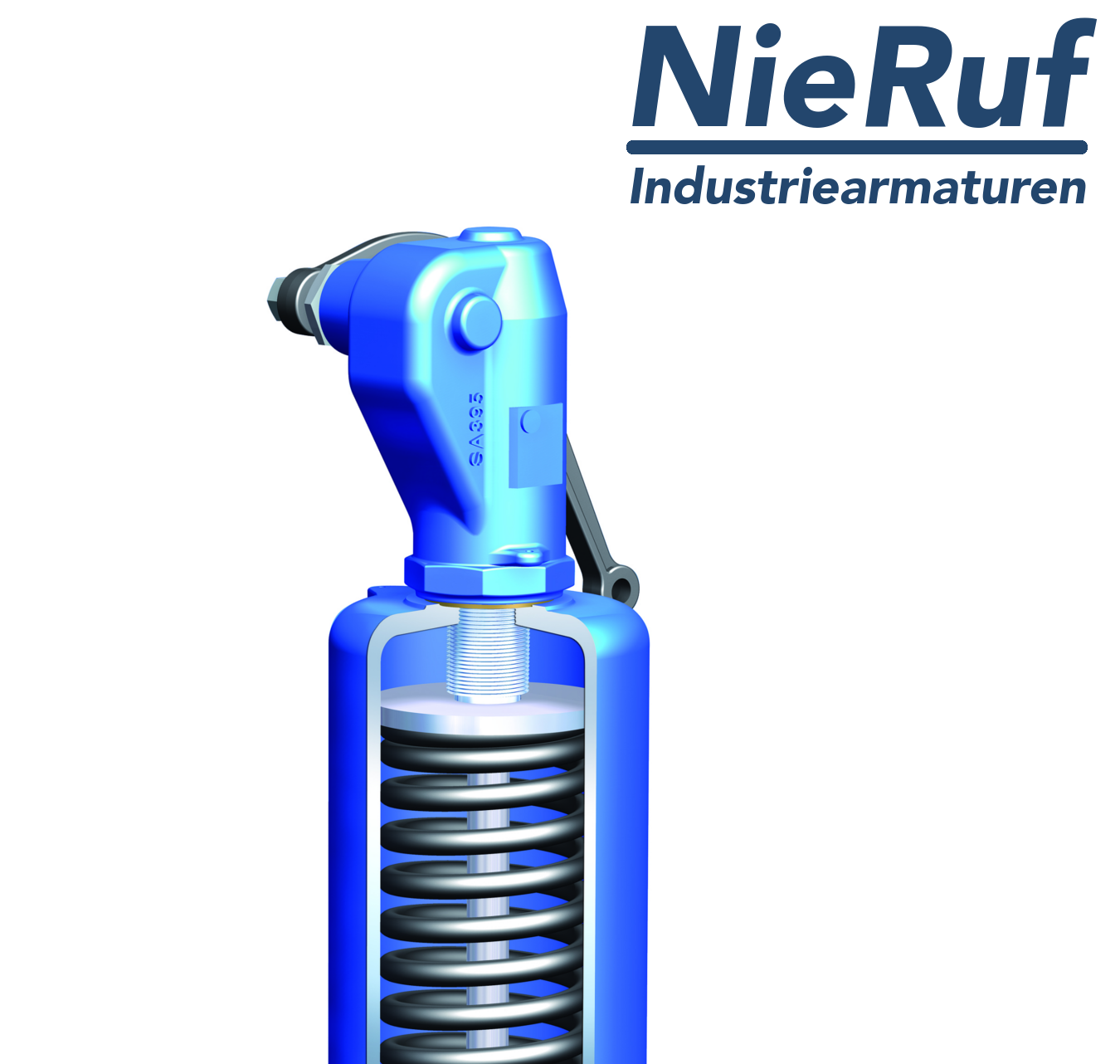

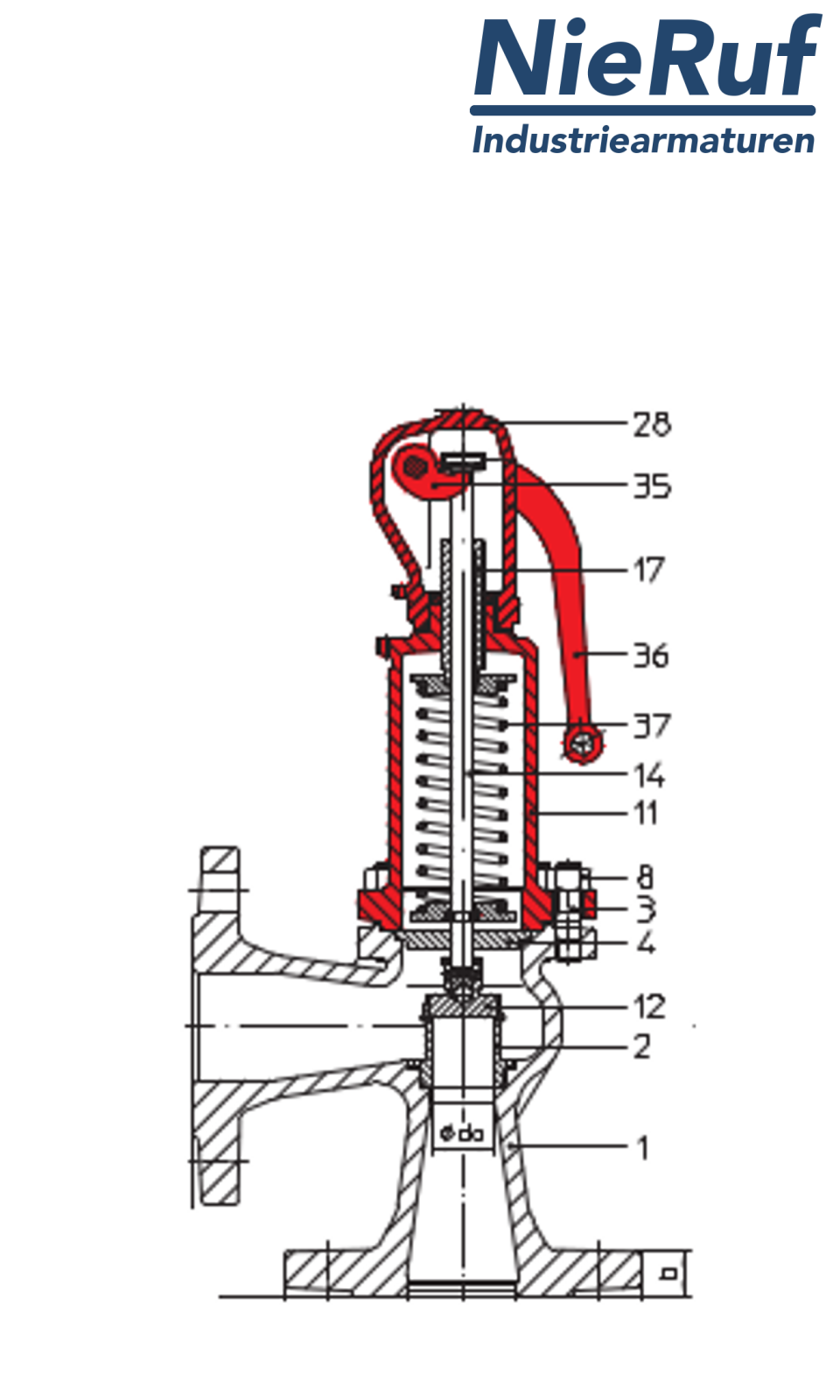

flange-safety valve DN15/DN15 SF01, cast iron EN-JL1040 metal, with lever
flange-safety valve DN15/DN15 closed lifting device and closed bonnet made of cast iron EN-JL1040 pressure 0,3 up to max. 16 bar with lever
| product | flange-safety valve |
|---|---|
| type | SF01 |
| manufacturer | NieRuf |
| diameter | DN15/DN15 |
| d0 | 12,0 mm |
| connection | flange acc. to DIN EN 1092-2 |
| seal | metal |
| media | liquid and gaseous media |
| temperature | - 10°C up to + 300°C |
| set pressure | 0,3 up to max. 16 bar |
| design | closed lifting device and closed bonnet |
| material | cast iron EN-JL1040 |
| lifting | with lever |
| type test approval | TÜV-SV-811 D/G/F |
| requirements | acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2 |
| installation position | vertical, spindle standing upwards |
| product feature 1 | safety valve, spring loaded, direct loaded. Standard safety valve (acc. VdTÜV-leaflet 811): TÜV-SV-811 D/G and TÜV-SV-811 F |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flange-safety valve DN15/DN15 SF01, cast iron EN-JL1040 metal, with lever
Article no.
: SF01000003
product:
flange-safety valve
type:
SF01
manufacturer:
NieRuf
diameter:
DN15/DN15
d0:
12,0 mm
connection:
flange acc. to DIN EN 1092-2
seal:
metal
media:
liquid and gaseous media
temperature:
- 10°C up to + 300°C
set pressure:
0,3 up to max. 16 bar
design:
closed lifting device and closed bonnet
material:
cast iron EN-JL1040
lifting:
with lever
type test approval:
TÜV-SV-811 D/G/F
requirements:
acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position:
vertical, spindle standing upwards
product feature 1:
safety valve, spring loaded, direct loaded. Standard safety valve (acc. VdTÜV-leaflet 811): TÜV-SV-811 D/G and TÜV-SV-811 F
Equipment
flange seal DN15 PN10/16/25/40 22x51x2 Klingersil C 4400
Lead time: in stock
Flange DN15 PN10/16/25/40 EN1092-1 11 B1 C22.8 / P250GH bare
Lead time: in stock
joint set flange/flange DN15 - 1/2" Inch for flange PN10/16/25/40 steel
Lead time: in stock
pipe bend (welded) 90° 21,3 x 2,0 stainless steel 1.4571
Lead time: in stock
reducing bush (welded) 26,9 x 2,0 to 21,3 x 2,0 stainless steel 1.4571
Lead time: 3 - 5 working days
