AN01000201

electric actuator J10 - Serie H (high voltage) 100-240V AC/DC 10Nm torque 75% ED IP65

attuatore elettrico J10 - serie H (alto voltaggio) 100-240V AC/DC 10Nm coppia motrice 75% ED IP65

€202.80*

€241.33 VAT included.

*Prices excl. VAT plus shipping costs

Lead time: in stock

Express delivery*

Order in within by express delivery

Shipping on: Monday, 05. October

Guaranteed delivery until Tuesday, 06. October, 12 o'clock

* Specified delivery times apply for Mon. - Fri. without consideration of public holidays.

Our employee <strong>Richie Rost</strong><br>will be happy to help you

Questions about the article?

Our employee Richie Rost
will be happy to help you

Tel: +49714396669-18

E-Mail: rost@nieruf.com

NIERUF-SERVICE

NieRuf-Exchange

Downloads

3D model

Datasheet

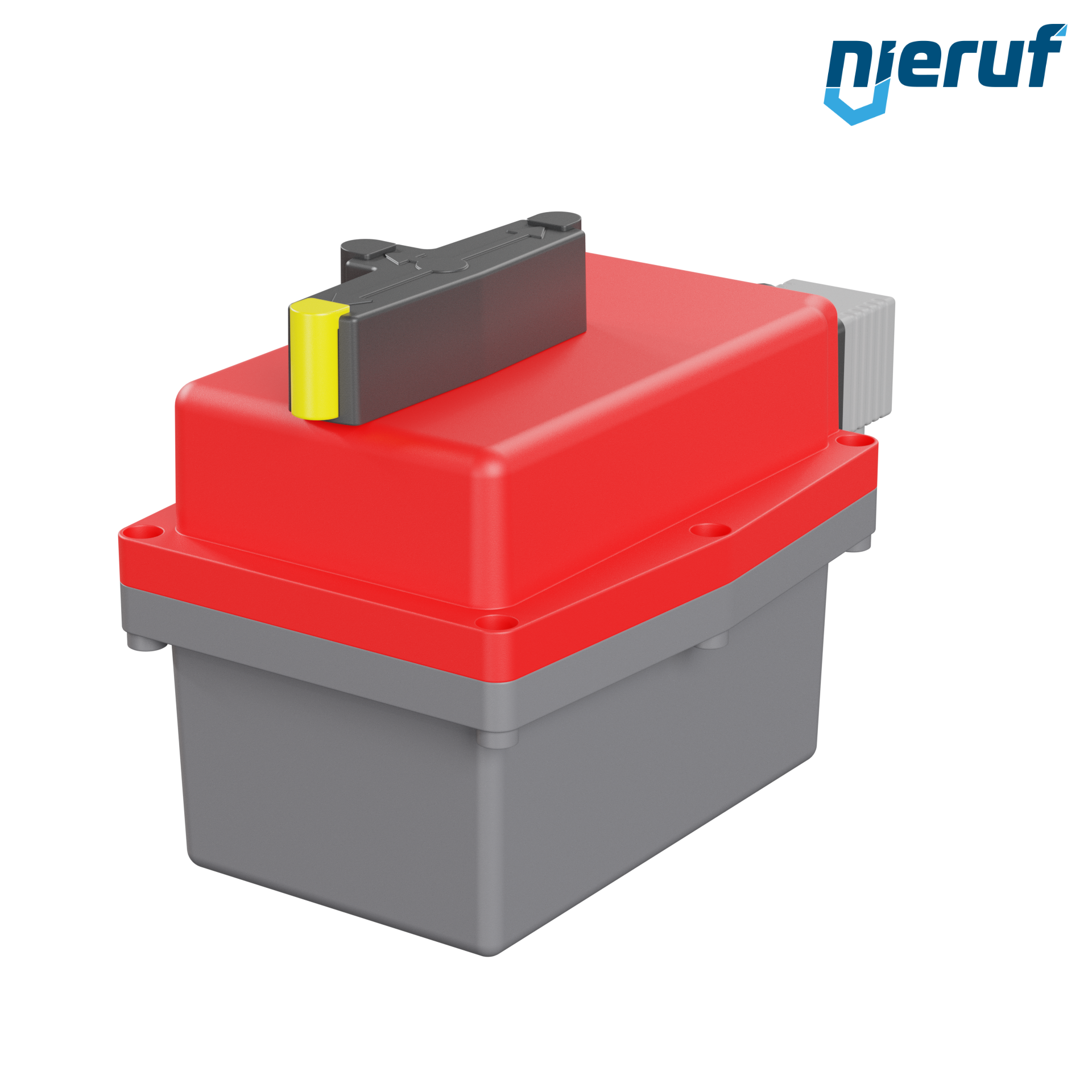

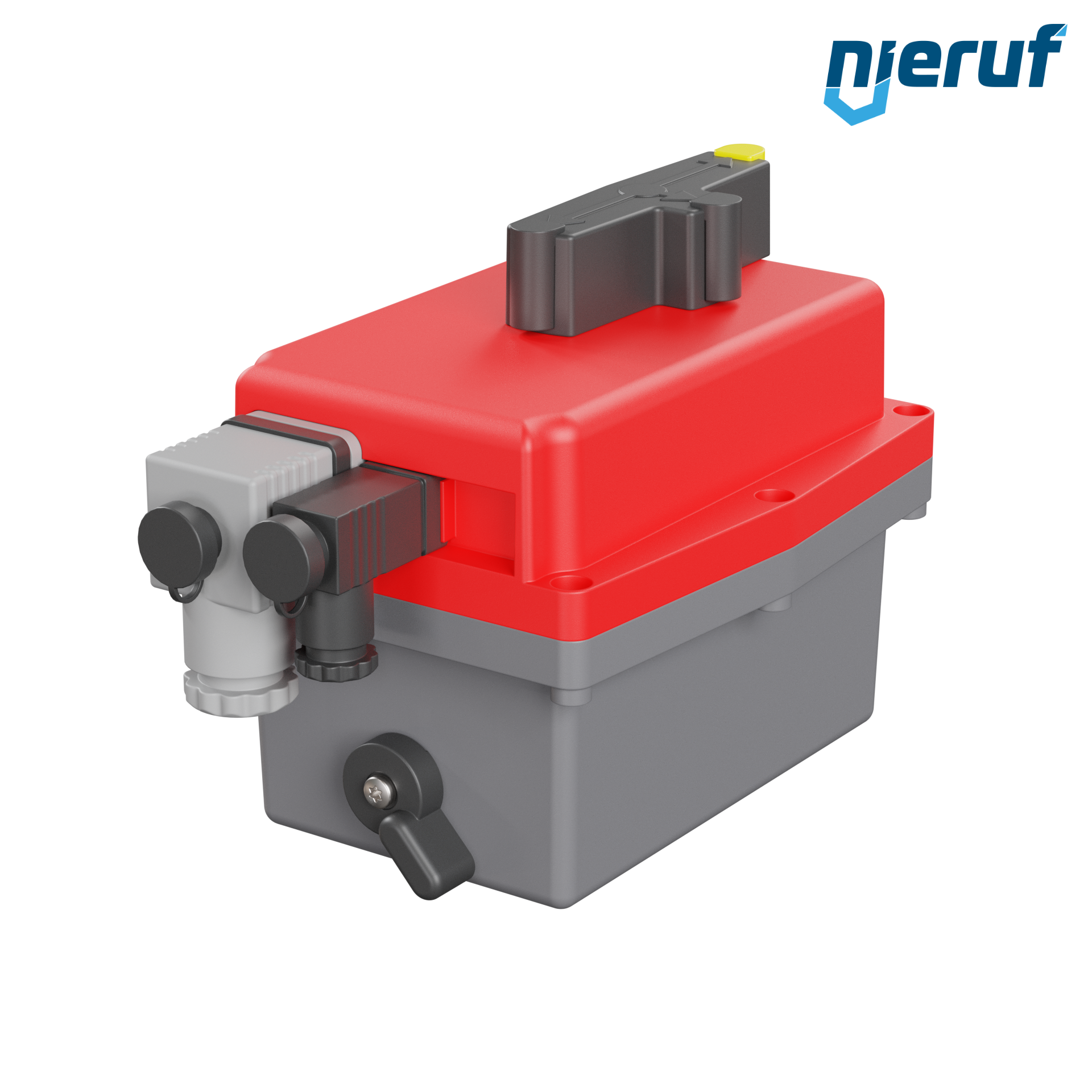

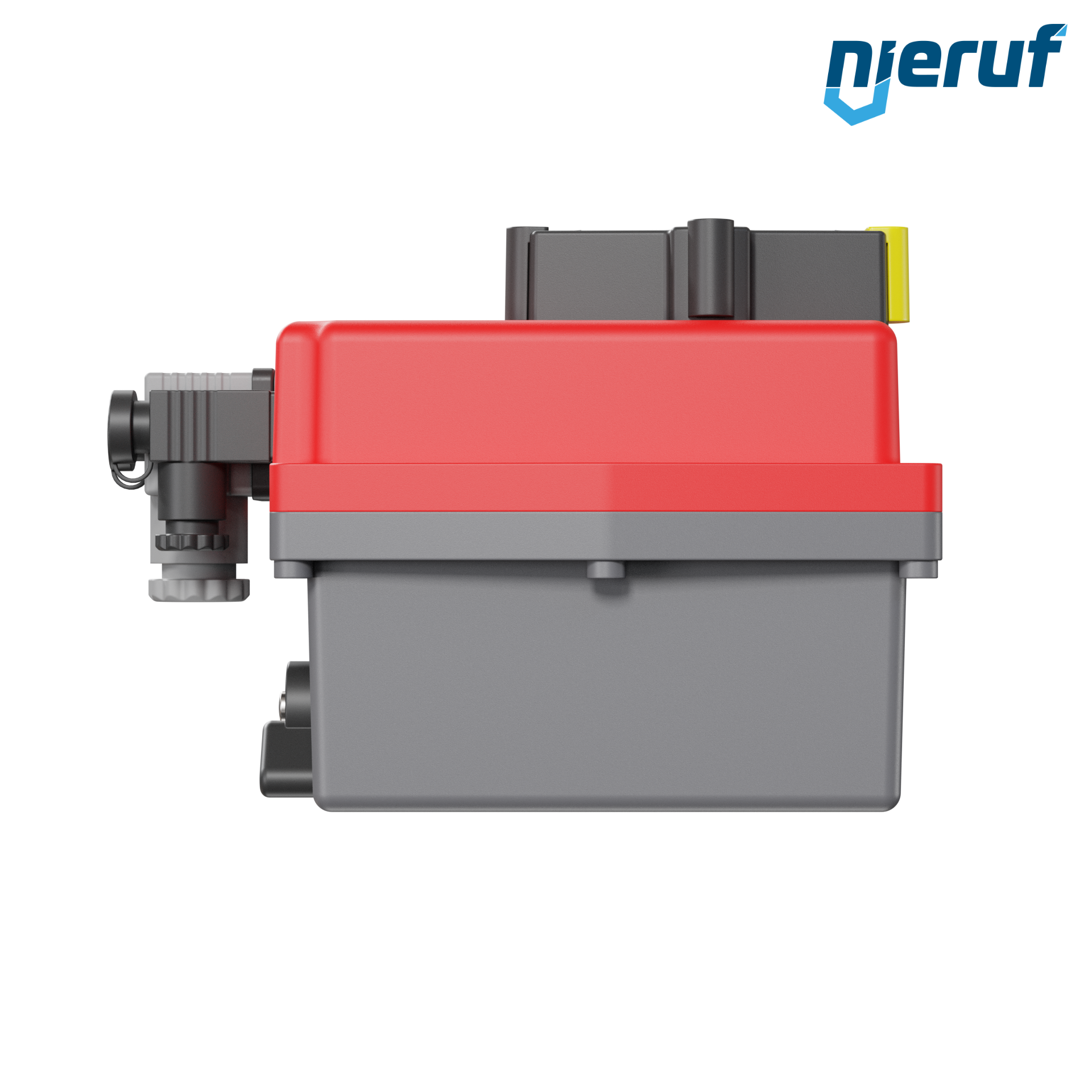

electric actuator J10 - Serie H (high voltage) 100-240V AC/DC 10Nm torque 75% ED IP65

Electronic actuator J10 - series H (high voltage) 100-240V AC/DC 10Nm torque 75% ED IP65

product	electric actuator
type	AN01
manufacturer	NieRuf
ISO flange 5211	F03-F05
stem intake	14mm
screw depth	17mm
duty rating	75%
torque	10Nm
drive sprocket design	octagon
protection class	IP65
voltage	100-240V AC/DC
working time	16sec
temperature	- 20°C up to +70°C
length	183mm
width	104mm
high	127,5mm
actuator	J10 - Serie H (high voltage) 100-240V AC/DC
body material	corrosion resistant synthetic body polyamid PA6
swivel angle	90°
installation position	any position, not upside down
product description	Compact actuator to control or regulate valves. With a preset working angle of 90° with emergency override with handwheel and position indicator. This actuator comes with automatic voltage sensing and automatic temperature control.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

electric actuator J10 - Serie H (high voltage) 100-240V AC/DC 10Nm torque 75% ED IP65

Article no. : AN01000201
product: electric actuator
type: AN01
manufacturer: NieRuf
ISO flange 5211: F03-F05
stem intake: 14mm
screw depth: 17mm
duty rating: 75%
torque: 10Nm
drive sprocket design: octagon
protection class: IP65
voltage: 100-240V AC/DC
working time: 16sec
temperature: - 20°C up to +70°C
length: 183mm
width: 104mm
high: 127,5mm
actuator: J10 - Serie H (high voltage) 100-240V AC/DC
body material: corrosion resistant synthetic body polyamid PA6
swivel angle: 90°
installation position: any position, not upside down
product description: Compact actuator to control or regulate valves. With a preset working angle of 90° with emergency override with handwheel and position indicator. This actuator comes with automatic voltage sensing and automatic temperature control.
