MI02002108
Electromagnetic flow Sensor DN50 MI02, Hard rubber VHE/102 18-36V
- Lead time
- 5 - 6 weeks
Equipment
tee (welded) 60,3 x 2,0 stainless steel 1.4571
€56.41 VAT included.
joint set flange/flange DN50 - 2" Inch for flange PN10/16/25/40 stainless steel
€8.09 VAT included.
flange seal DN50 PN10/16/25/40 61x107x2 Klingersil C 4400
€3.69 VAT included.
Welding neck flange DN50 PN10/16 EN1092-1 11 B1 1.4541
€45.10 VAT included.
pipe bend (welded) 90° 60,3 x 2,0 stainless steel 1.4571
€17.26 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
NIERUF-SERVICE

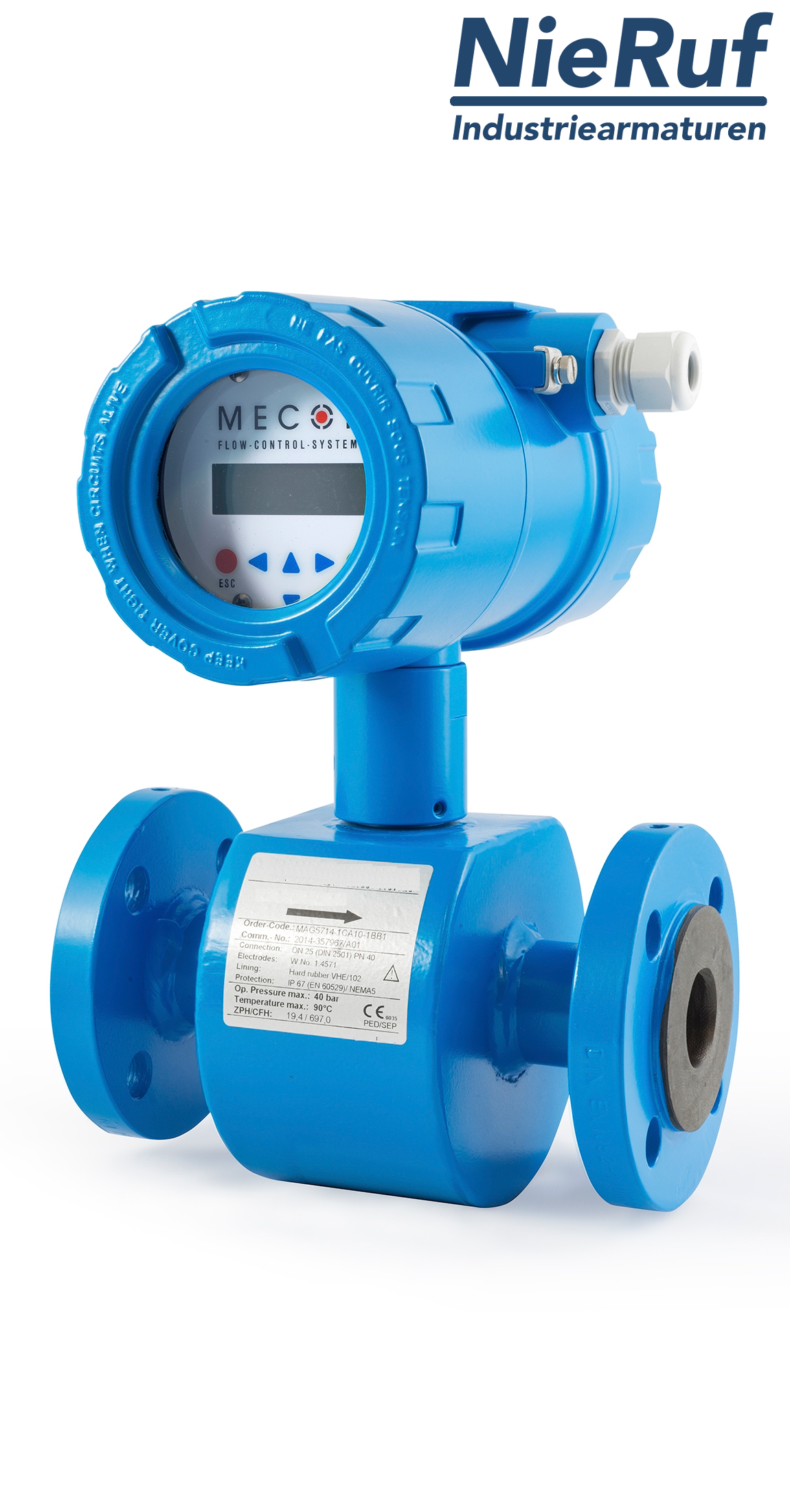

Electromagnetic flow Sensor DN50 MI02, Hard rubber VHE/102 18-36V
Electromagnetic flow Sensor DN50 Flange DIN 2501 PN40 with display, lining of measuring pipe made of Hard rubber VHE/102 voltage 18-36V comunikation 4 - 20mA
| product | Electromagnetic flow Sensor |
|---|---|
| type | MI02 |
| manufacturer | NieRuf |
| diameter | DN50 |
| connection | Flange DIN 2501 PN40 |
| design | with display |
| measuring tube | stainless steel 1.4301 |
| solenoid chamber | steel |
| flange | steel |
| coating | Primer: Coating thickness: min. 50 mu, top coat: layer thickness: min. 120 mu RAL 5015 |
| lining of measuring pipe | Hard rubber VHE/102 |
| electrodes | stainless steel 1.4571 |
| error of measurement | +/- 0,5% of the reading from 0,25 ms to 10m/s |
| repeat accuracy | +/- 0,15% of the reading from 0,25 ms to 10m/s |
| operqting temerature | +90°C |
| protection class | IP67 |
| minimum conductivity media | > 20 μS/cm |
| max. flow rate | 10 m/s |
| flow rate final value | 0,25 - 10 m/s |
| flow rate range | 1,77 - 70,69 m3/h |
| wiring | 2 x M16 x 1,5 |
| version | with display |
| power supply | 18-36V |
| analogue output | 4 - 20mA |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Electromagnetic flow Sensor DN50 MI02, Hard rubber VHE/102 18-36V
Article no.
: MI02002108
product:
Electromagnetic flow Sensor
type:
MI02
manufacturer:
NieRuf
diameter:
DN50
connection:
Flange DIN 2501 PN40
design:
with display
measuring tube:
stainless steel 1.4301
solenoid chamber:
steel
flange:
steel
coating:
Primer: Coating thickness: min. 50 mu, top coat: layer thickness: min. 120 mu RAL 5015
lining of measuring pipe:
Hard rubber VHE/102
electrodes:
stainless steel 1.4571
error of measurement:
+/- 0,5% of the reading from 0,25 ms to 10m/s
repeat accuracy:
+/- 0,15% of the reading from 0,25 ms to 10m/s
operqting temerature:
+90°C
protection class:
IP67
minimum conductivity media:
> 20 μS/cm
max. flow rate:
10 m/s
flow rate final value:
0,25 - 10 m/s
flow rate range:
1,77 - 70,69 m3/h
wiring:
2 x M16 x 1,5
version:
with display
power supply:
18-36V
analogue output:
4 - 20mA
