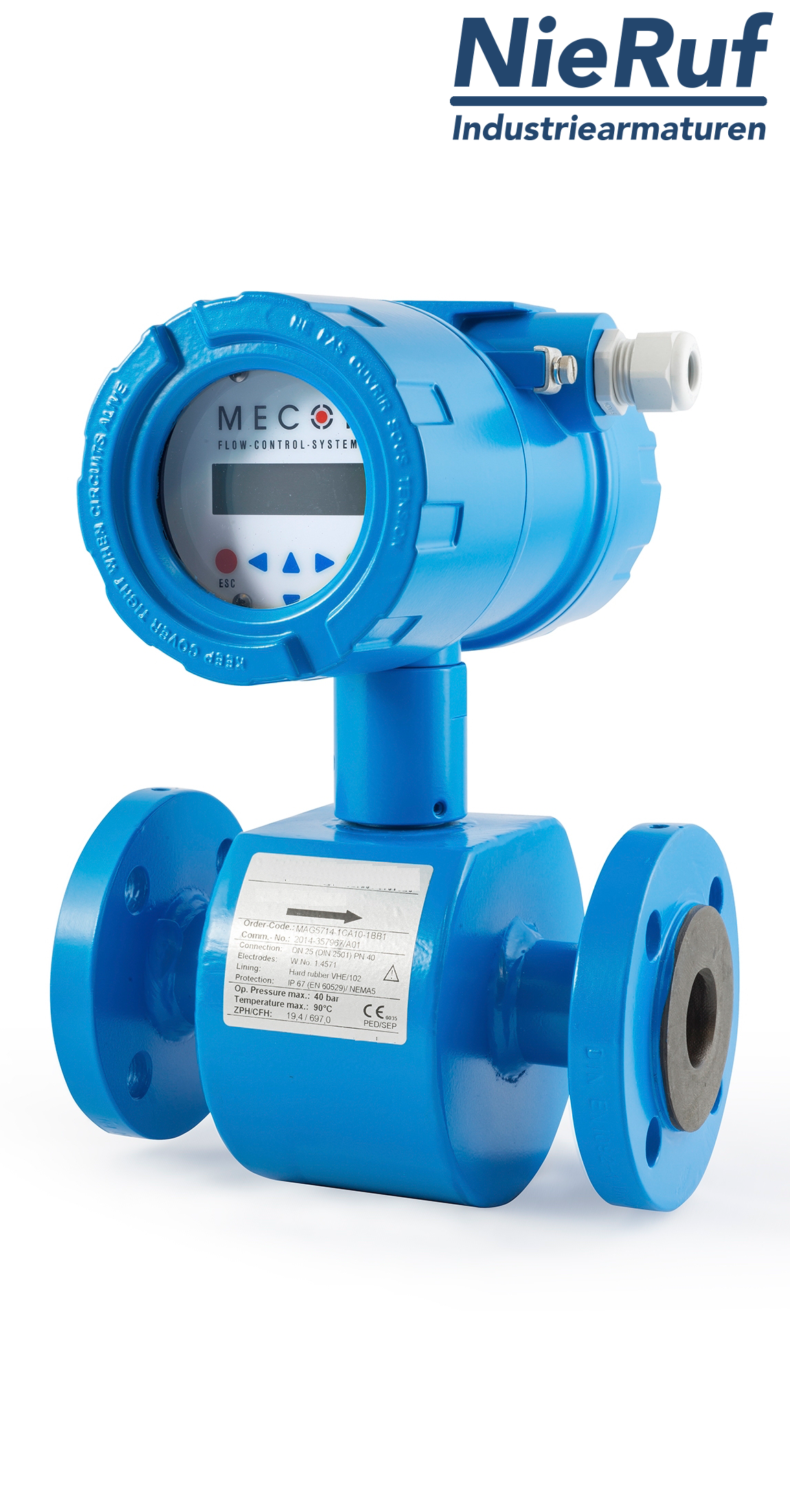

Electromagnetic flow Sensor DN450 MI02, PTFE AC 230V 50/60hz

MI02011119
Solenoid valve d 15 PVC KV04 FKM 24V DC 3
quantity (pcs.):
5,022.20€ * 5,976.42€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: 3 - 4 Weeks

datasheet
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details
Electromagnetic flow Sensor DN450 MI02, PTFE AC 230V 50/60hz
Electromagnetic flow Sensor DN450 Flange DIN 2501 PN10 with display, lining of measuring pipe made of PTFE voltage AC 230V 50/60hz comunikation 4 - 20mA
diameter: DN450
connection: Flange DIN 2501 PN10
design: with display
measuring tube: stainless steel 1.4301
solenoid chamber: steel
flange: steel
coating: Primer: Coating thickness: min. 50 mu, top coat: layer thickness: min. 120 mu RAL 5015
lining of measuring pipe: PTFE
electrodes: stainless steel 1.4571
error of measurement: +/- 0,5% of the reading from 0,25 ms to 10m/s
repeat accuracy: +/- 0,15% of the reading from 0,25 ms to 10m/s
operqting temerature: +180°C
protection class: IP67
minimum conductivity media: > 5 μS/cm
max. flow rate: 10 m/s
flow rate final value: 0,25 - 10 m/s
flow rate range: 143,14 - 5725,55 m3/h
wiring: 2 x M16 x 1,5
power supply: AC 230V 50/60hz
analogue output: 4 - 20mA
Electromagnetic flow Sensor DN450 MI02, PTFE AC 230V 50/60hz

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

Electromagnetic flow Sensor DN450 MI02, PTFE AC 230V 50/60hz
