Electromagnetic flow Sensor DN400 MI02, PTFE 18-36V

Solenoid valve G 1/2" Zoll PTFE KV04 EPDM 230V 50Hz 2
quantity (pcs.):
4,492.10€ * 5,345.60€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: 3 - 4 Weeks

All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
technical details

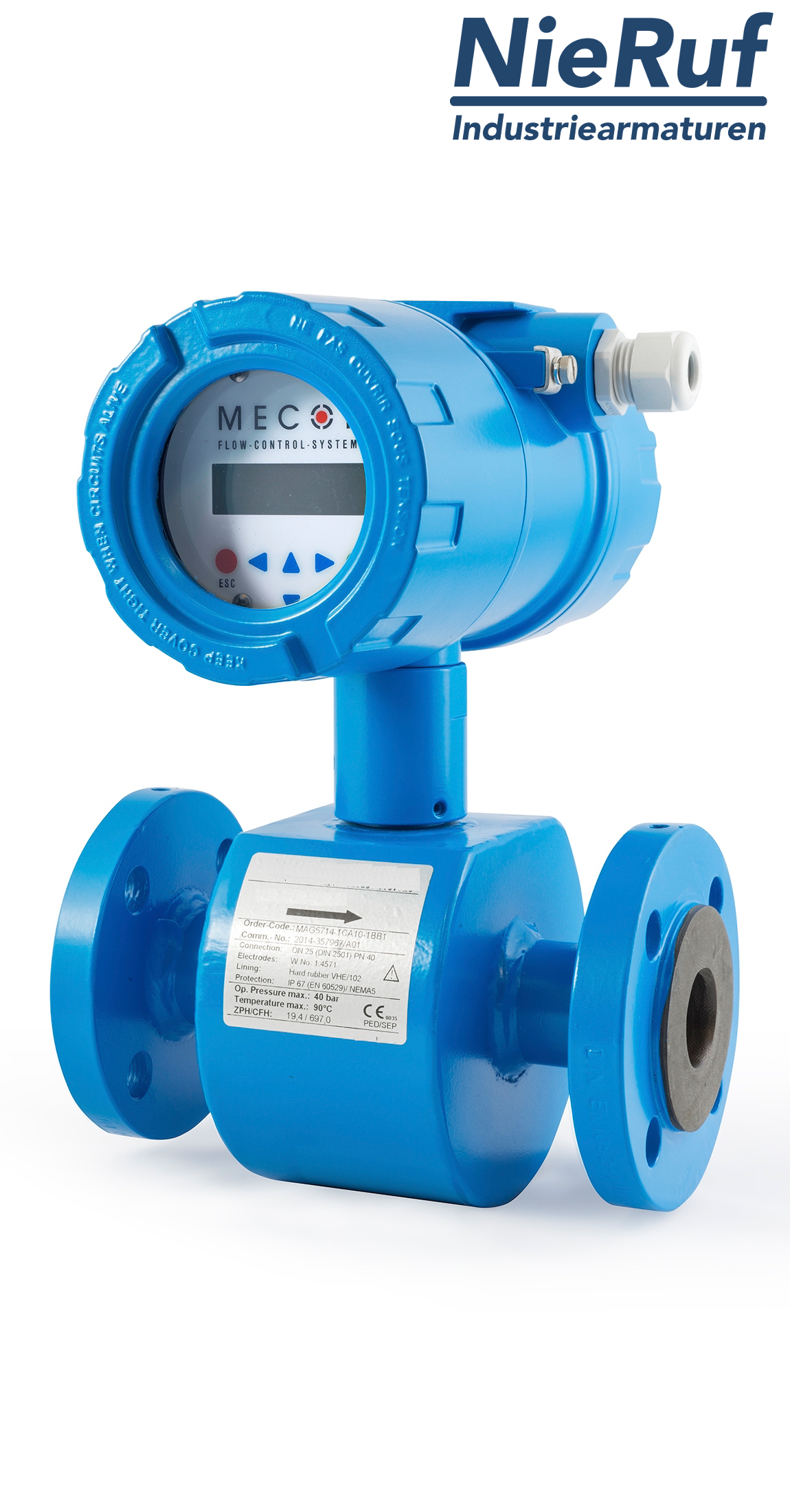

Electromagnetic flow Sensor DN400 MI02, PTFE 18-36V
Electromagnetic flow Sensor DN400 Flange DIN 2501 PN10 with display, lining of measuring pipe made of PTFE voltage 18-36V comunikation 4 - 20mA
diameter: DN400
connection: Flange DIN 2501 PN10
design: with display
measuring tube: stainless steel 1.4301
solenoid chamber: steel
flange: steel
coating: Primer: Coating thickness: min. 50 mu, top coat: layer thickness: min. 120 mu RAL 5015
lining of measuring pipe: PTFE
electrodes: stainless steel 1.4571
error of measurement: +/- 0,5% of the reading from 0,25 ms to 10m/s
repeat accuracy: +/- 0,15% of the reading from 0,25 ms to 10m/s
operqting temerature: +180°C
protection class: IP67
minimum conductivity media: > 5 μS/cm
max. flow rate: 10 m/s
flow rate final value: 0,25 - 10 m/s
flow rate range: 113,1 - 4523,89 m3/h
wiring: 2 x M16 x 1,5
power supply: 18-36V
analogue output: 4 - 20mA
Electromagnetic flow Sensor DN400 MI02, PTFE 18-36V

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

Electromagnetic flow Sensor DN400 MI02, PTFE 18-36V
