MI01002118

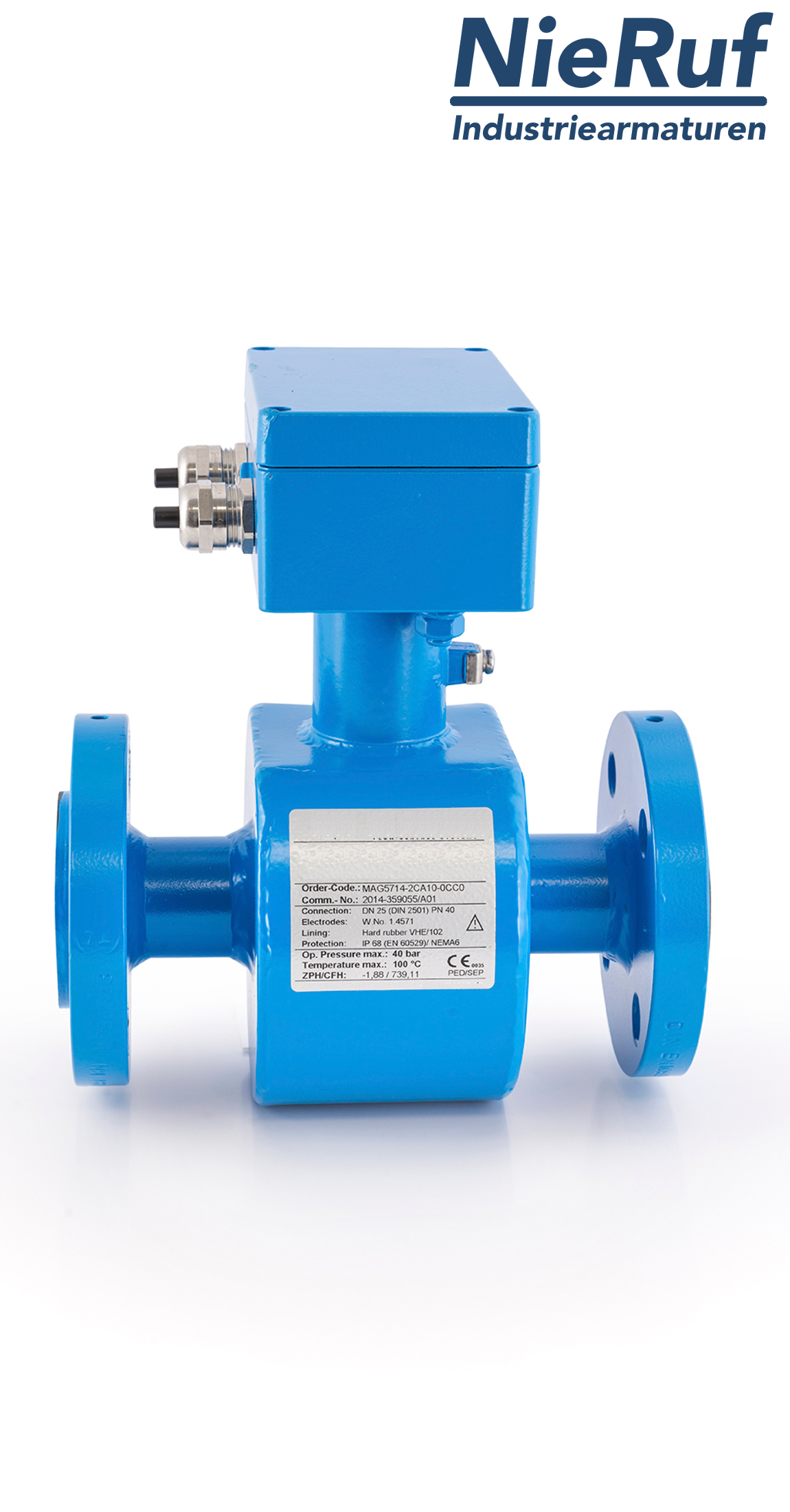

Electromagnetic flow Sensor DN400 MI01, Hard rubber VHE/102, 18-36V

€6,889.30*

€8,198.27 VAT included.

Delivery time: 5 - 6 weeks

Delivery information

×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com


Product number: MI01002118
Electromagnetic flow Sensor DN400 MI01, Hard rubber VHE/102, 18-36V

Electromagnetic flow Sensor DN400 Flange DIN 2501 PN10 remote version design, lining of measuring pipe made of Hard rubber VHE/102 18-36V

product: Electromagnetic flow Sensor
type: MI01
manufacturer: NieRuf
diameter: DN400
connection: Flange DIN 2501 PN10
design: remote design
measuring tube: stainless steel 1.4301
solenoid chamber: steel
flange: steel
coating: Primer: Coating thickness: min. 50 mu, top coat: layer thickness: min. 120 mu RAL 5015
lining of measuring pipe: Hard rubber VHE/102
electrodes: stainless steel 1.4571
error of measurement: +/- 0,5% of the reading from 0,25 ms to 10m/s
repeat accuracy: +/- 0,15% of the reading from 0,25 ms to 10m/s
operqting temerature: +90°C
protection class: IP67
minimum conductivity media: > 20 μS/cm
max. flow rate: 10 m/s
flow rate final value: 0,25 - 10 m/s
flow rate range: 113,1 - 4523,89 m3/h
wiring: 2 x M16 x 1,5
wire: magnetic current cable (3x1,0 mm2) and electrode cable (5x0,5 mm2), length 5 m
power supply: 18-36V
analogue output: 4 - 20mA

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Electromagnetic flow Sensor DN400 MI01, Hard rubber VHE/102, 18-36V

Article no. : MI01002118
product: Electromagnetic flow Sensor
type: MI01
manufacturer: NieRuf
diameter: DN400
connection: Flange DIN 2501 PN10
design: remote design
measuring tube: stainless steel 1.4301
solenoid chamber: steel
flange: steel
coating: Primer: Coating thickness: min. 50 mu, top coat: layer thickness: min. 120 mu RAL 5015
lining of measuring pipe: Hard rubber VHE/102
electrodes: stainless steel 1.4571
error of measurement: +/- 0,5% of the reading from 0,25 ms to 10m/s
repeat accuracy: +/- 0,15% of the reading from 0,25 ms to 10m/s
operqting temerature: +90°C
protection class: IP67
minimum conductivity media: > 20 μS/cm
max. flow rate: 10 m/s
flow rate final value: 0,25 - 10 m/s
flow rate range: 113,1 - 4523,89 m3/h
wiring: 2 x M16 x 1,5
wire: magnetic current cable (3x1,0 mm2) and electrode cable (5x0,5 mm2), length 5 m
power supply: 18-36V
analogue output: 4 - 20mA
