MI02001105

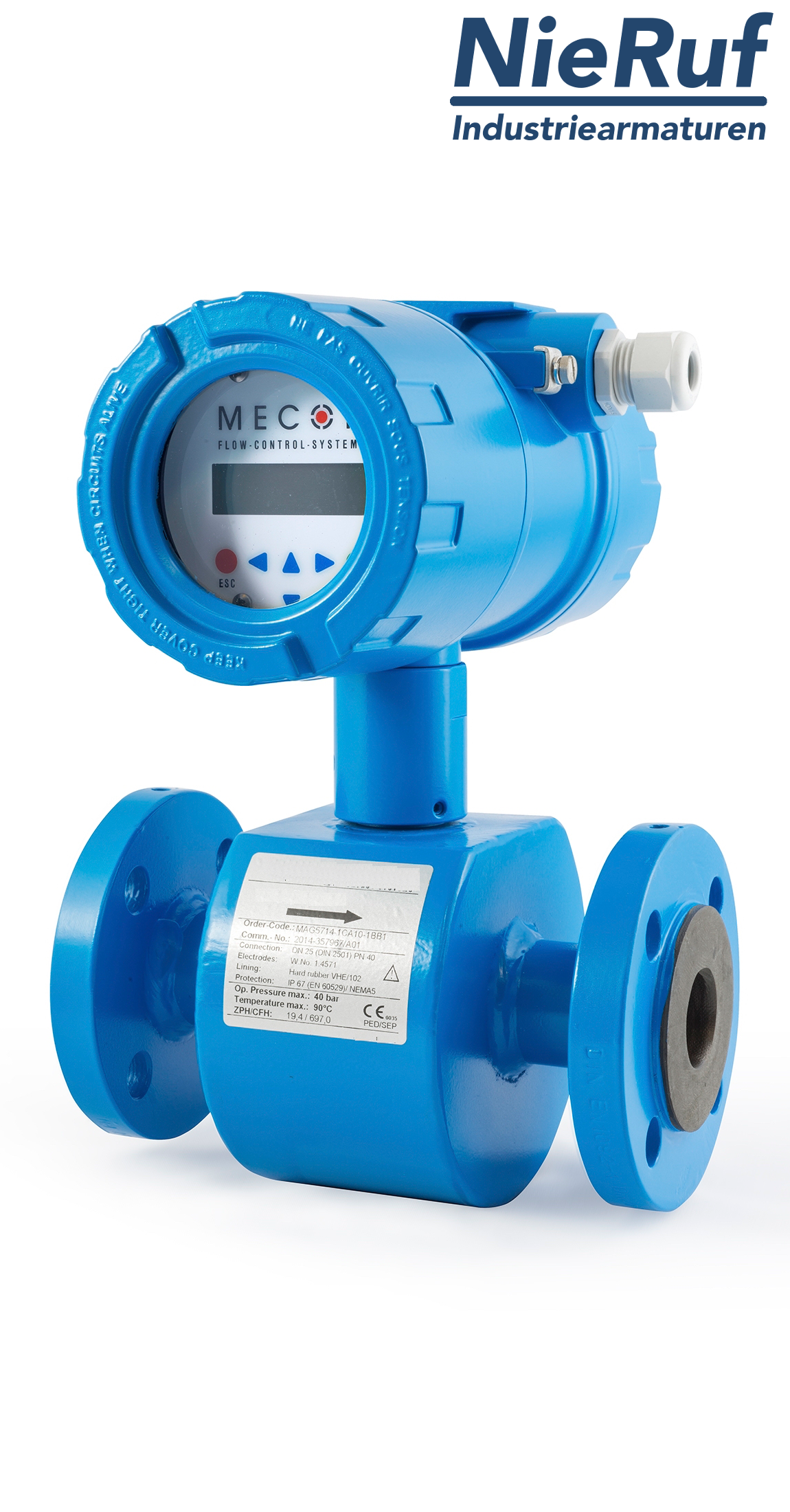

Electromagnetic flow Sensor DN25 MI02, Hard rubber VHE/102 AC 230V 50/60hz
- Lead time
- 5 - 6 weeks
Equipment
flange seal DN25 PN10/16/25/40 34x71x2 Klingersil C 4400
€4.88 VAT included.
pipe bend (welded) 90° 33,7 x 2,0 stainless steel 1.4571
€6.31 VAT included.
tee (welded) 33,7 x 2,0 stainless steel 1.4571
€29.04 VAT included.
Welding neck flange DN25 PN10/16/25/40 EN1092-1 11 B1 1.4541
€22.97 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
NIERUF-SERVICE
Downloads
Electromagnetic flow Sensor DN25 MI02, Hard rubber VHE/102 AC 230V 50/60hz
Electromagnetic flow Sensor DN25 Flange DIN 2501 PN40 with display, lining of measuring pipe made of Hard rubber VHE/102 voltage AC 230V 50/60hz comunikation 4 - 20mA
| product | Electromagnetic flow Sensor |
|---|---|
| type | MI02 |
| manufacturer | NieRuf |
| diameter | DN25 |
| connection | Flange DIN 2501 PN40 |
| design | with display |
| measuring tube | stainless steel 1.4301 |
| solenoid chamber | steel |
| flange | steel |
| coating | Primer: Coating thickness: min. 50 mu, top coat: layer thickness: min. 120 mu RAL 5015 |
| lining of measuring pipe | Hard rubber VHE/102 |
| electrodes | stainless steel 1.4571 |
| error of measurement | +/- 0,5% of the reading from 0,25 ms to 10m/s |
| repeat accuracy | +/- 0,15% of the reading from 0,25 ms to 10m/s |
| operqting temerature | +90°C |
| protection class | IP67 |
| minimum conductivity media | > 20 μS/cm |
| max. flow rate | 10 m/s |
| flow rate final value | 0,25 - 10 m/s |
| flow rate range | 0,0442 - 17,67 m3/h |
| wiring | 2 x M16 x 1,5 |
| version | with display |
| power supply | AC 230V 50/60hz |
| analogue output | 4 - 20mA |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Electromagnetic flow Sensor DN25 MI02, Hard rubber VHE/102 AC 230V 50/60hz
Article no.
: MI02001105
product:
Electromagnetic flow Sensor
type:
MI02
manufacturer:
NieRuf
diameter:
DN25
connection:
Flange DIN 2501 PN40
design:
with display
measuring tube:
stainless steel 1.4301
solenoid chamber:
steel
flange:
steel
coating:
Primer: Coating thickness: min. 50 mu, top coat: layer thickness: min. 120 mu RAL 5015
lining of measuring pipe:
Hard rubber VHE/102
electrodes:
stainless steel 1.4571
error of measurement:
+/- 0,5% of the reading from 0,25 ms to 10m/s
repeat accuracy:
+/- 0,15% of the reading from 0,25 ms to 10m/s
operqting temerature:
+90°C
protection class:
IP67
minimum conductivity media:
> 20 μS/cm
max. flow rate:
10 m/s
flow rate final value:
0,25 - 10 m/s
flow rate range:
0,0442 - 17,67 m3/h
wiring:
2 x M16 x 1,5
version:
with display
power supply:
AC 230V 50/60hz
analogue output:
4 - 20mA
