- Delivery time
- 2 - 3 weeks
Questions about the article?
NIERUF-SERVICE

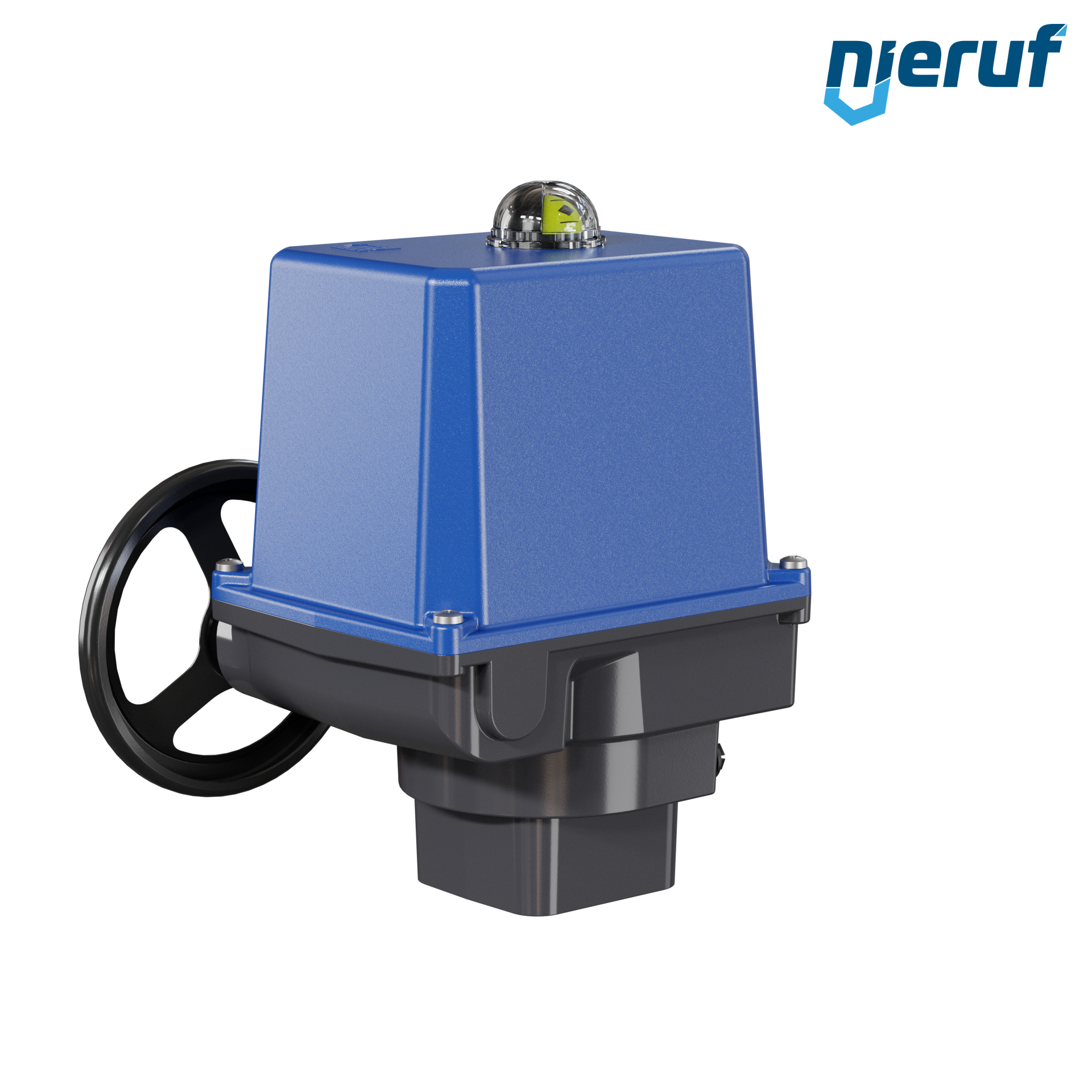

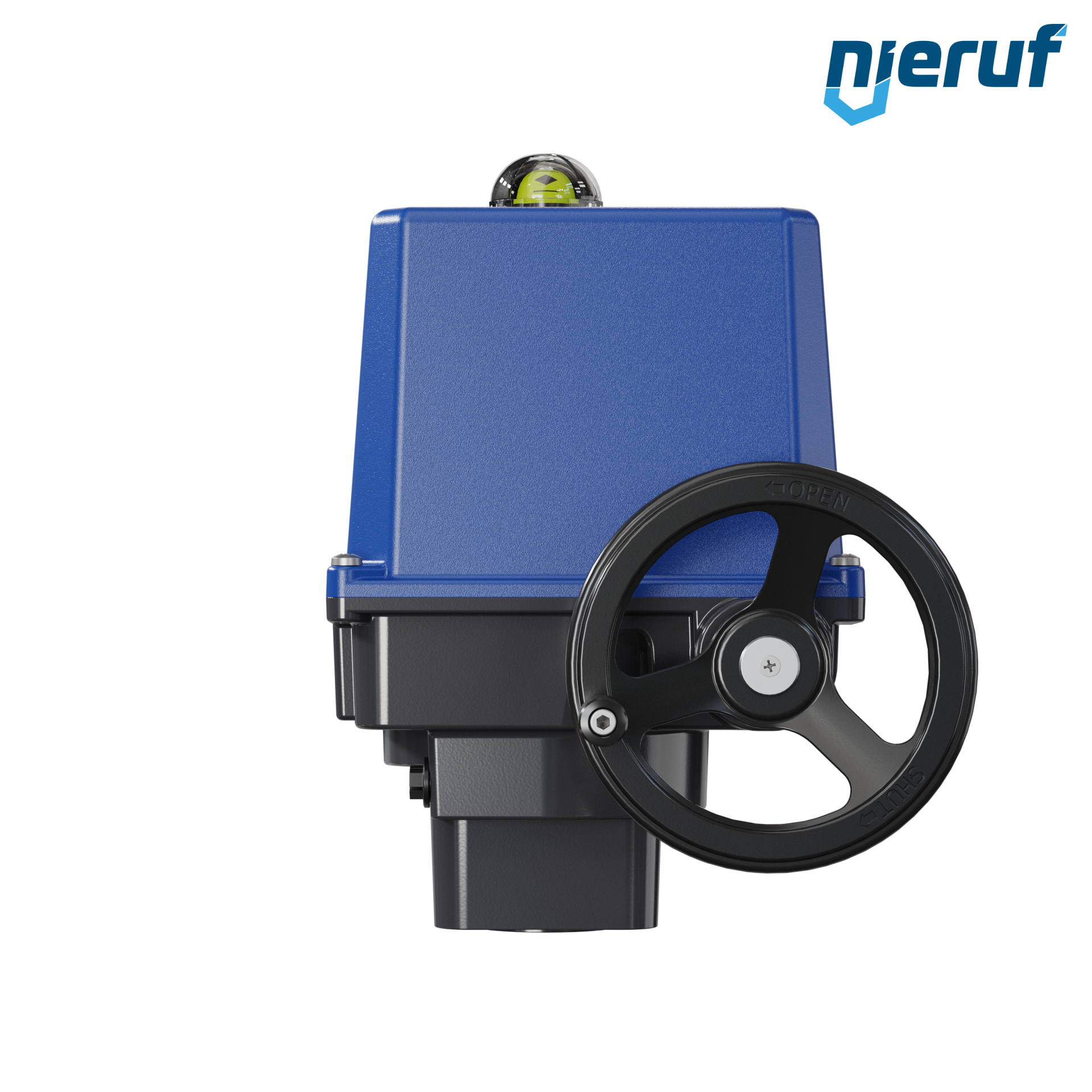

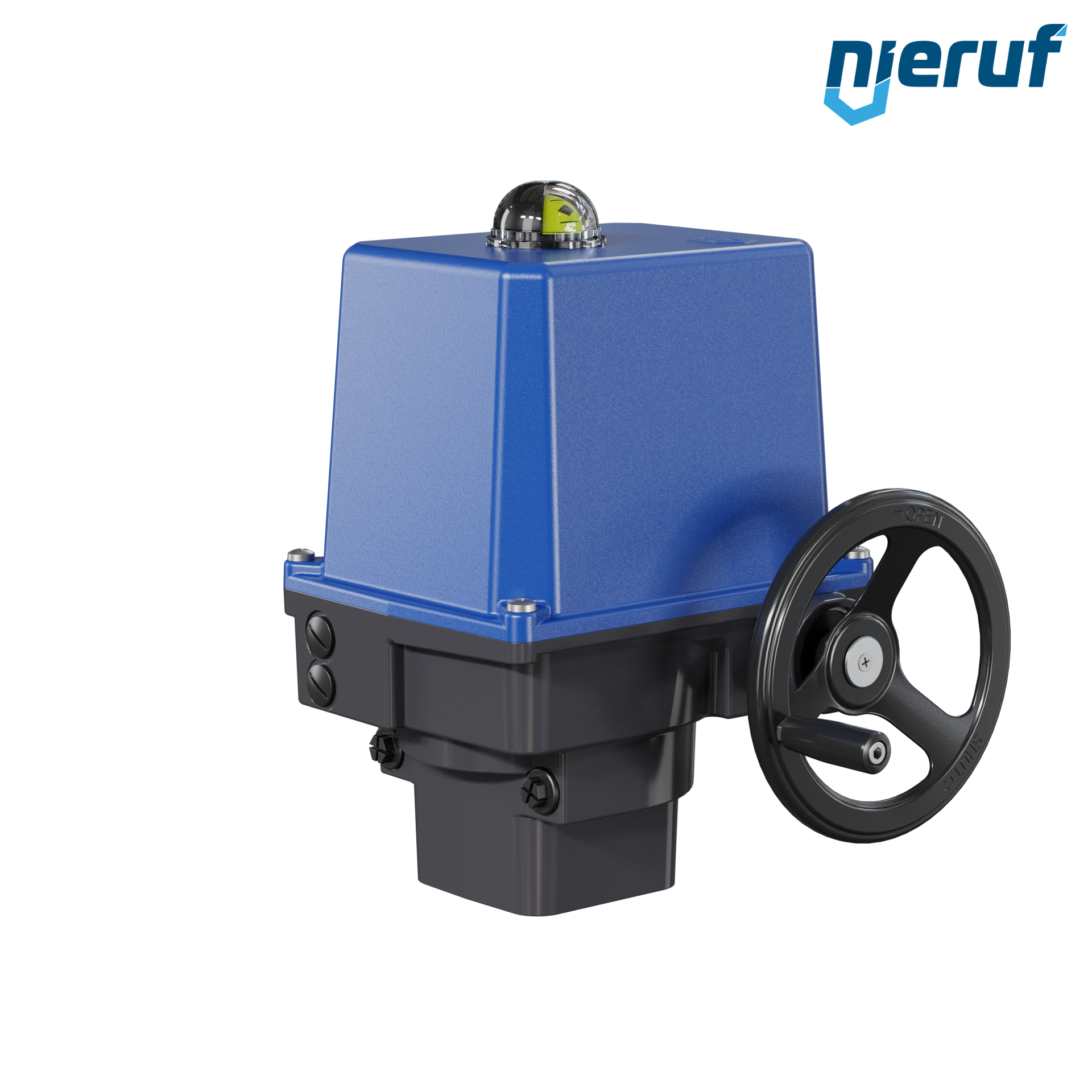

Electric quarter-turn actuator AN03 PSQ503AMS12 and power supply of 230V AC and max. torque of 500Nm , ISO 5211 flange F12 with square 27mm
| product | electric actuator |
|---|---|
| type | AN03 |
| manufacturer | NieRuf |
| ISO flange 5211 | F12 |
| stem intake | 27mm |
| screw depth | 45,9mm |
| duty rating | 50% |
| torque | 500Nm |
| drive sprocket design | square diagonal (45° turned) |
| protection class | IP67 |
| voltage | 230V AC |
| working time | 36 - 72 sec |
| temperature | - 20°C up to +60°C |
| length | 350mm |
| width | 358mm |
| high | 405mm |
| actuator | PSQ503AMS12 |
| actuator informations | Smart quarter-turn actuator for simple and advanced control operations. Automatic one-key commissioning. |
| body material | aluminium alloy |
| swivel angle | 90° |
| installation position | any position, not upside down |
| product description | Compact electric quarter-turn actuator for simple and advanced control operations. Equipped with optical position indicator, hand wheel as well as automated one-key commissioning. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Electric quarter-turn actuator AN03 PSQ503AMS12 - 230V AC 500Nm IP67 ISO 5211 F12
Article no.
: AN03000005
product:
electric actuator
type:
AN03
manufacturer:
NieRuf
ISO flange 5211:
F12
stem intake:
27mm
screw depth:
45,9mm
duty rating:
50%
torque:
500Nm
drive sprocket design:
square diagonal (45° turned)
protection class:
IP67
voltage:
230V AC
working time:
36 - 72 sec
temperature:
- 20°C up to +60°C
length:
350mm
width:
358mm
high:
405mm
actuator:
PSQ503AMS12
actuator informations:
Smart quarter-turn actuator for simple and advanced control operations. Automatic one-key commissioning.
body material:
aluminium alloy
swivel angle:
90°
installation position:
any position, not upside down
product description:
Compact electric quarter-turn actuator for simple and advanced control operations. Equipped with optical position indicator, hand wheel as well as automated one-key commissioning.
