AN03010202
Electric quarter-turn actuator AN03 PSQ203AMS11 Fail-Safe - 115V AC 250Nm IP67 ISO 5211 F07-F10
- Lead time
- 2 - 3 weeks
Equipment
Position indicator 3-way ball valve with T-bore for electric actuator Type AN03
€29.75 VAT included.
Position indicator 3-way ball valve with L-bore for electric actuator Type AN03
€29.75 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
NIERUF-SERVICE

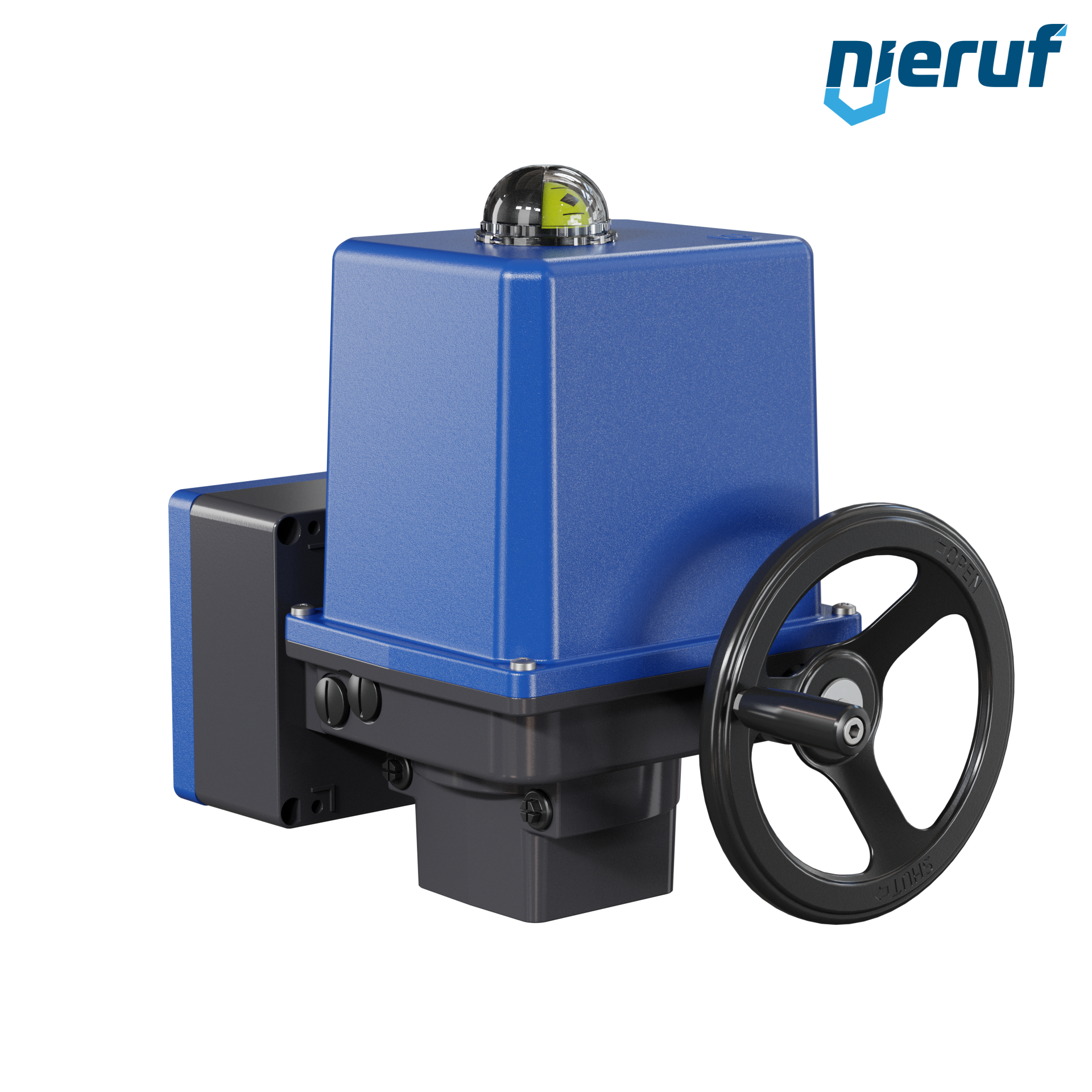

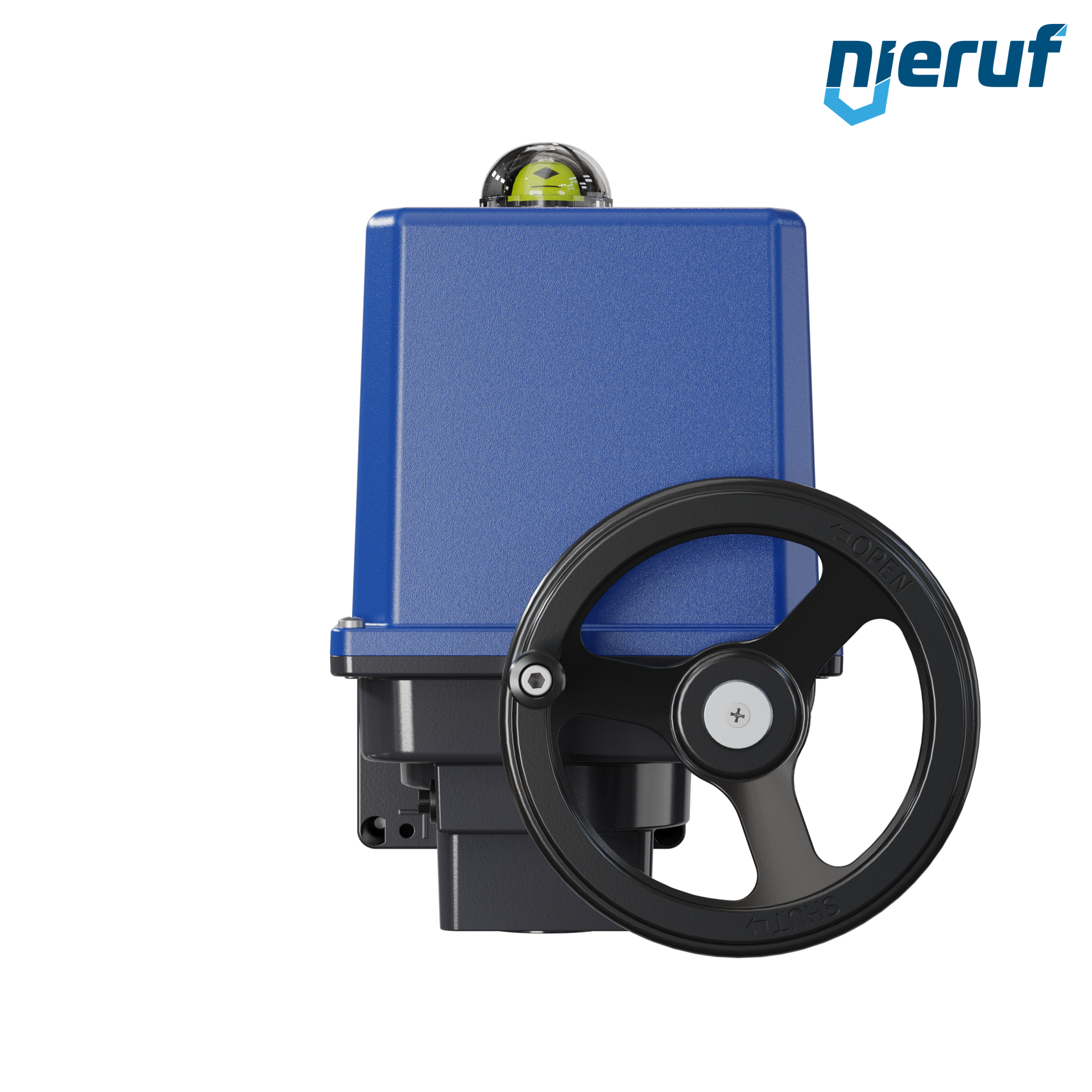

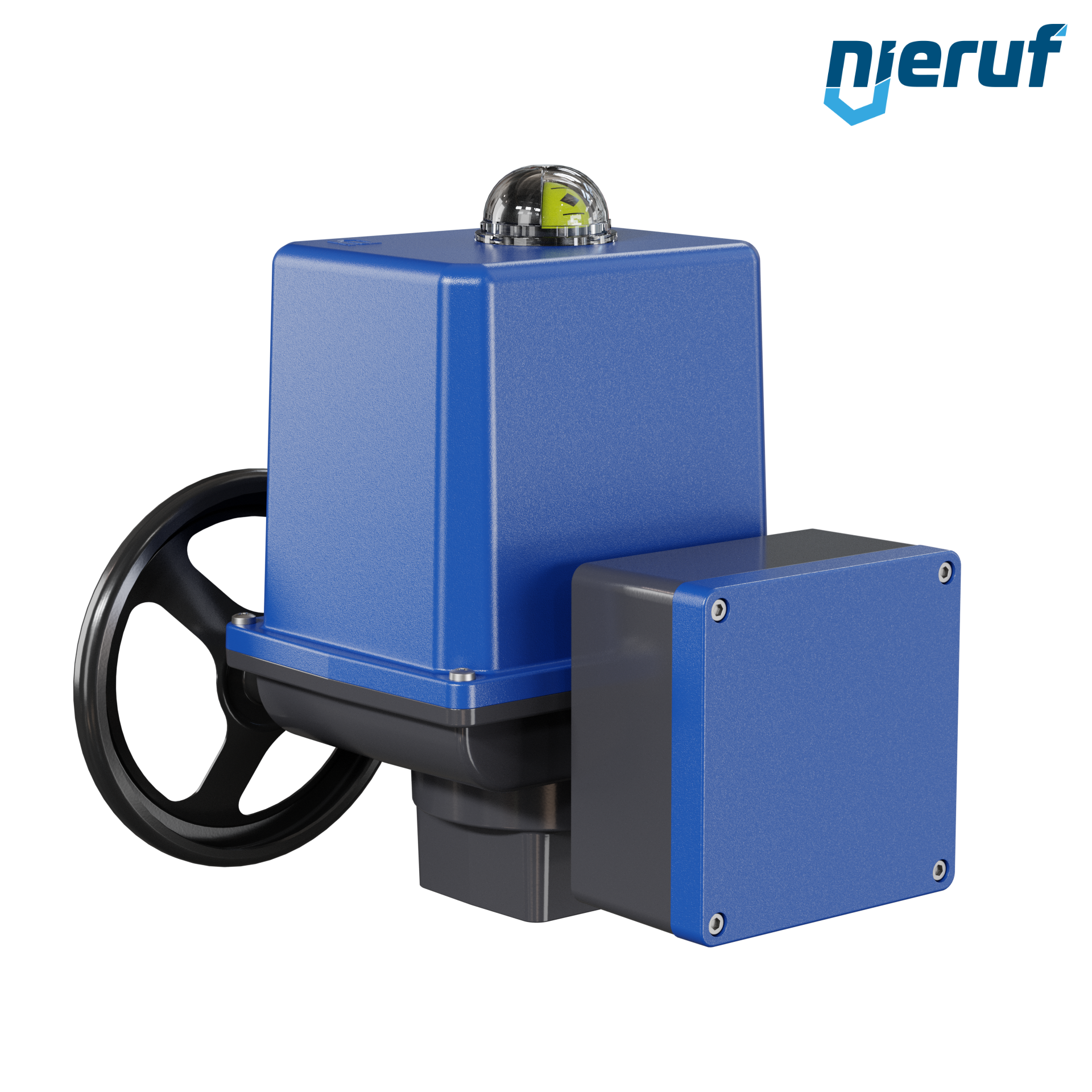

Electric quarter-turn actuator AN03 PSQ203AMS11 Fail-Safe - 115V AC 250Nm IP67 ISO 5211 F07-F10
Electric quarter-turn actuator AN03 PSQ203AMS11 Fail-Safe and power supply of 115V AC and max. torque of 250Nm , ISO 5211 flange F07-F10 with square 22mm
| product | electric actuator |
|---|---|
| type | AN03 |
| manufacturer | NieRuf |
| ISO flange 5211 | F07-F10 |
| stem intake | 22mm |
| screw depth | 35mm |
| duty rating | 50% |
| torque | 250Nm |
| drive sprocket design | square diagonal (45° turned) |
| protection class | IP67 |
| voltage | 115V AC |
| working time | 60 - 120 sec |
| temperature | - 20°C up to +60°C |
| length | 276mm |
| width | 401mm |
| high | 355mm |
| actuator | PSQ203AMS11 Fail-Safe |
| actuator informations | Smart quarter-turn actuator for simple and advanced control operations with FailSafe. Automatic one-key commissioning. |
| body material | aluminium alloy |
| swivel angle | 90° |
| installation position | any position, not upside down |
| product description | Compact electric quarter-turn actuator for simple and advanced control operations. Equipped with optical position indicator, hand wheel, automated one-key commissioning as well as Fail-Safe on the basis of super-capacitors. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Electric quarter-turn actuator AN03 PSQ203AMS11 Fail-Safe - 115V AC 250Nm IP67 ISO 5211 F07-F10
Article no.
: AN03010202
product:
electric actuator
type:
AN03
manufacturer:
NieRuf
ISO flange 5211:
F07-F10
stem intake:
22mm
screw depth:
35mm
duty rating:
50%
torque:
250Nm
drive sprocket design:
square diagonal (45° turned)
protection class:
IP67
voltage:
115V AC
working time:
60 - 120 sec
temperature:
- 20°C up to +60°C
length:
276mm
width:
401mm
high:
355mm
actuator:
PSQ203AMS11 Fail-Safe
actuator informations:
Smart quarter-turn actuator for simple and advanced control operations with FailSafe. Automatic one-key commissioning.
body material:
aluminium alloy
swivel angle:
90°
installation position:
any position, not upside down
product description:
Compact electric quarter-turn actuator for simple and advanced control operations. Equipped with optical position indicator, hand wheel, automated one-key commissioning as well as Fail-Safe on the basis of super-capacitors.
Equipment
Position indicator 3-way ball valve with T-bore for electric actuator Type AN03
Lead time: 3 - 5 working days
Position indicator 3-way ball valve with L-bore for electric actuator Type AN03
Lead time: in stock
