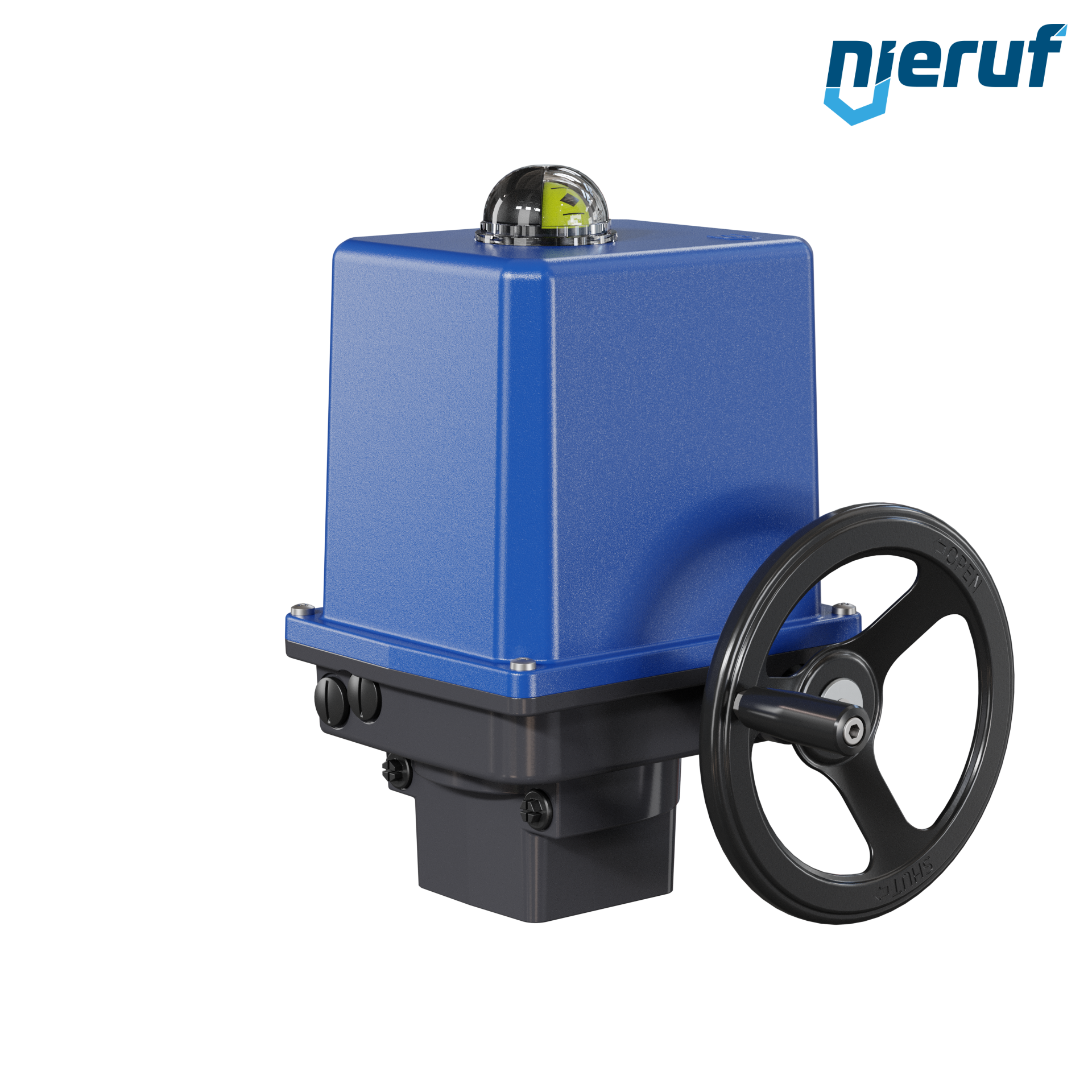

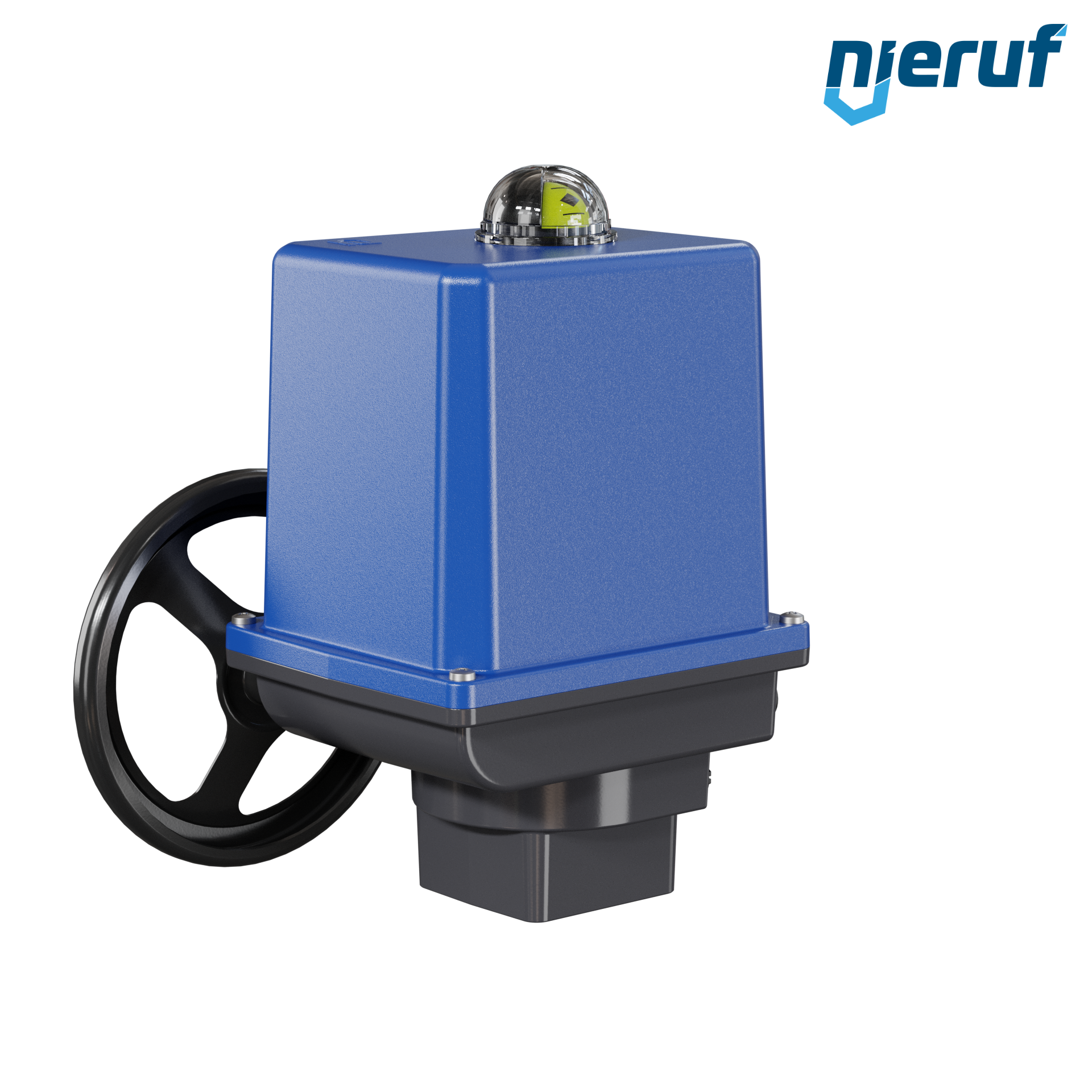

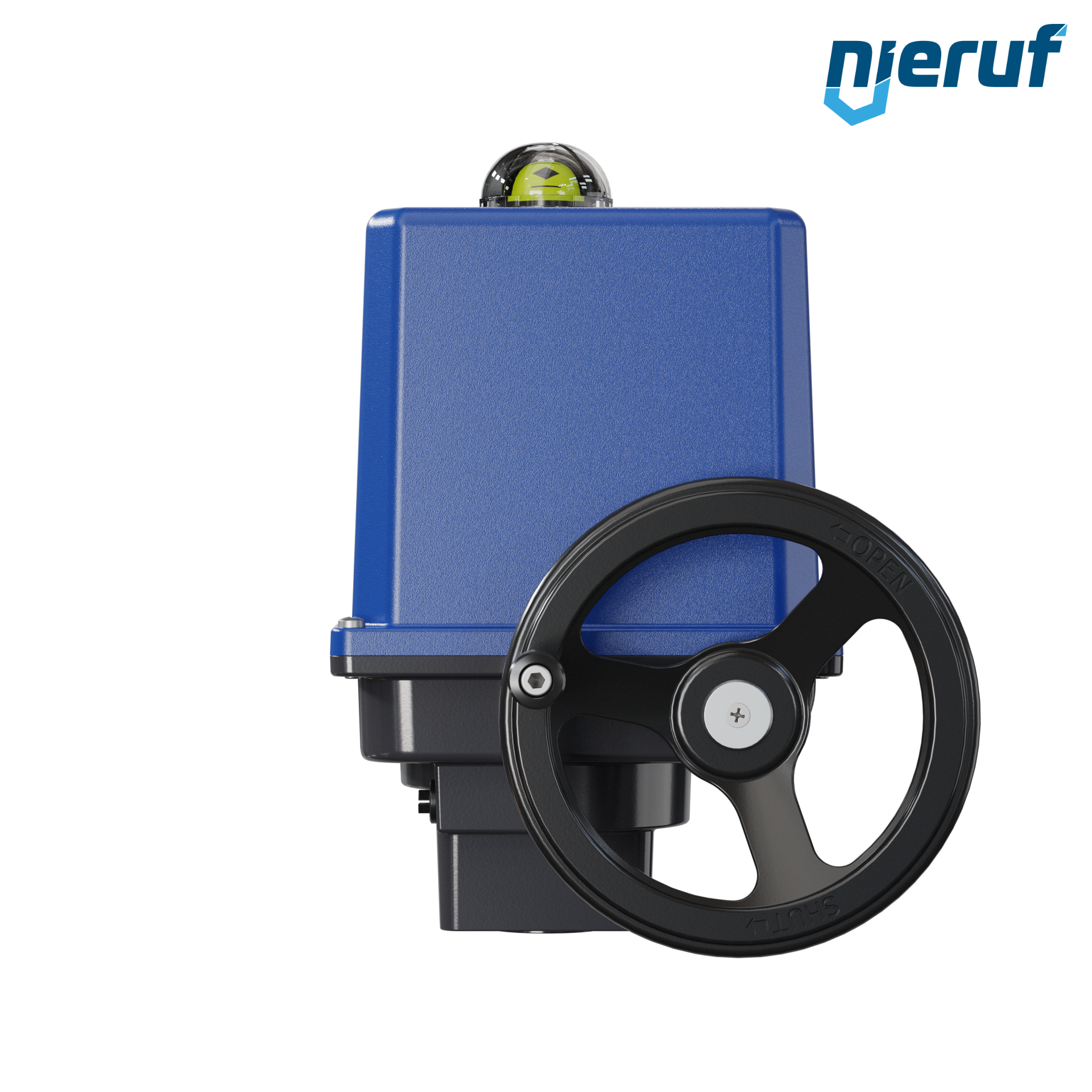

Electric quarter-turn actuator AN03 PSQ203AMS11 and power supply of 230V AC and max. torque of 250Nm , ISO 5211 flange F07-F10 with square 22mm
| product | electric actuator |
|---|---|
| type | AN03 |
| manufacturer | NieRuf |
| ISO flange 5211 | F07-F10 |
| stem intake | 22mm |
| screw depth | 35mm |
| duty rating | 50% |
| torque | 250Nm |
| drive sprocket design | square diagonal (45° turned) |
| protection class | IP67 |
| voltage | 230V AC |
| working time | 60 - 120 sec |
| temperature | - 20°C up to +60°C |
| length | 292mm |
| width | 307mm |
| high | 355mm |
| actuator | PSQ203AMS11 |
| actuator informations | Smart quarter-turn actuator for simple and advanced control operations. Automatic one-key commissioning. |
| body material | aluminium alloy |
| swivel angle | 90° |
| installation position | any position, not upside down |
| product description | Compact electric quarter-turn actuator for simple and advanced control operations. Equipped with optical position indicator, hand wheel as well as automated one-key commissioning. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Electric quarter-turn actuator AN03 PSQ203AMS11 - 230V AC 250Nm IP67 ISO 5211 F07-F10
Article no.
: AN03000002
product:
electric actuator
type:
AN03
manufacturer:
NieRuf
ISO flange 5211:
F07-F10
stem intake:
22mm
screw depth:
35mm
duty rating:
50%
torque:
250Nm
drive sprocket design:
square diagonal (45° turned)
protection class:
IP67
voltage:
230V AC
working time:
60 - 120 sec
temperature:
- 20°C up to +60°C
length:
292mm
width:
307mm
high:
355mm
actuator:
PSQ203AMS11
actuator informations:
Smart quarter-turn actuator for simple and advanced control operations. Automatic one-key commissioning.
body material:
aluminium alloy
swivel angle:
90°
installation position:
any position, not upside down
product description:
Compact electric quarter-turn actuator for simple and advanced control operations. Equipped with optical position indicator, hand wheel as well as automated one-key commissioning.
