AN03010111
Electric quarter-turn actuator AN03 PSQ1503AMS13 Fail-Safe - 24V AC/DC 1500Nm IP67 ISO 5211 F16
- Lead time
- 2 - 3 weeks
Equipment
Position indicator 3-way ball valve with T-bore for electric actuator Type AN03
€29.75 VAT included.
Position indicator 3-way ball valve with L-bore for electric actuator Type AN03
€29.75 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
NIERUF-SERVICE

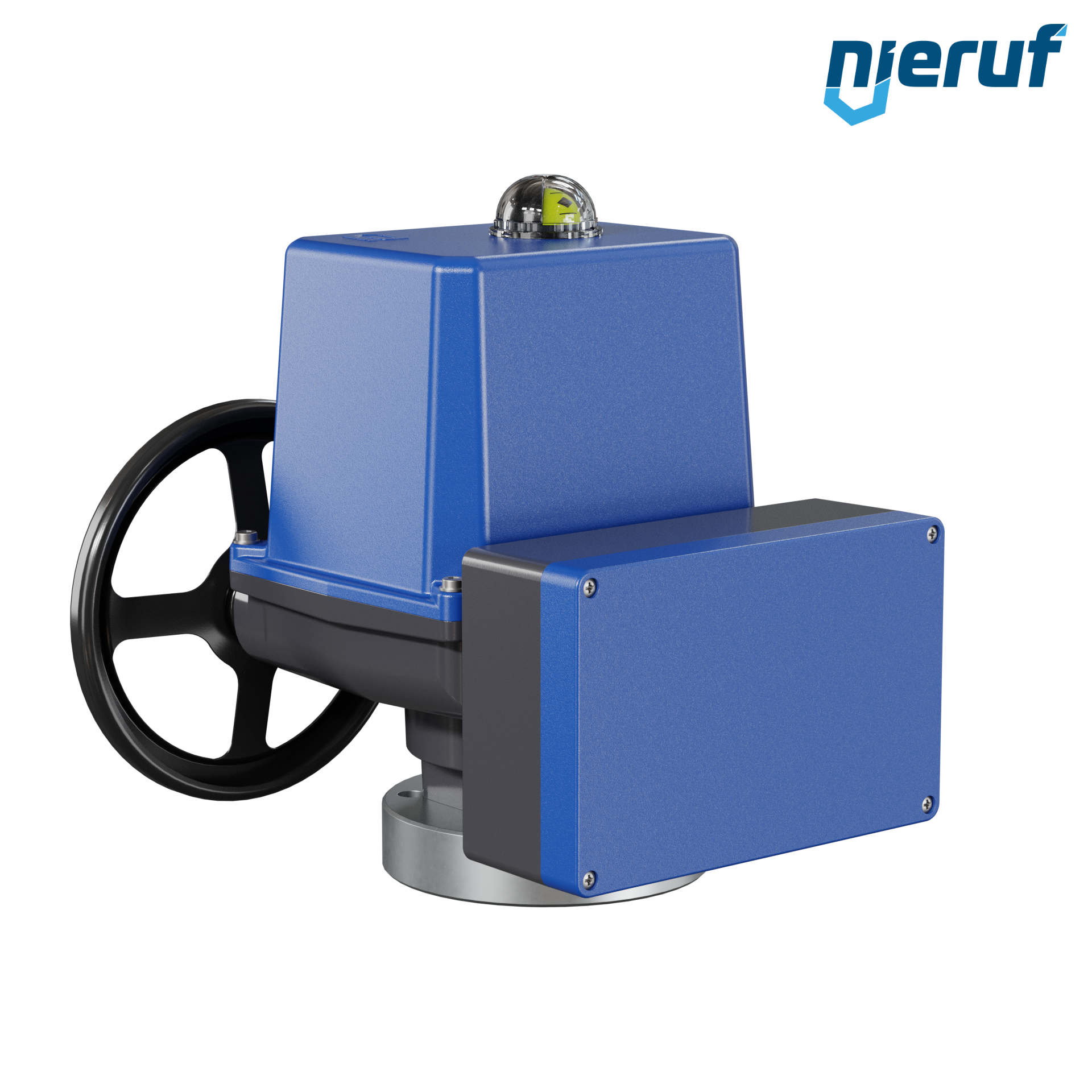

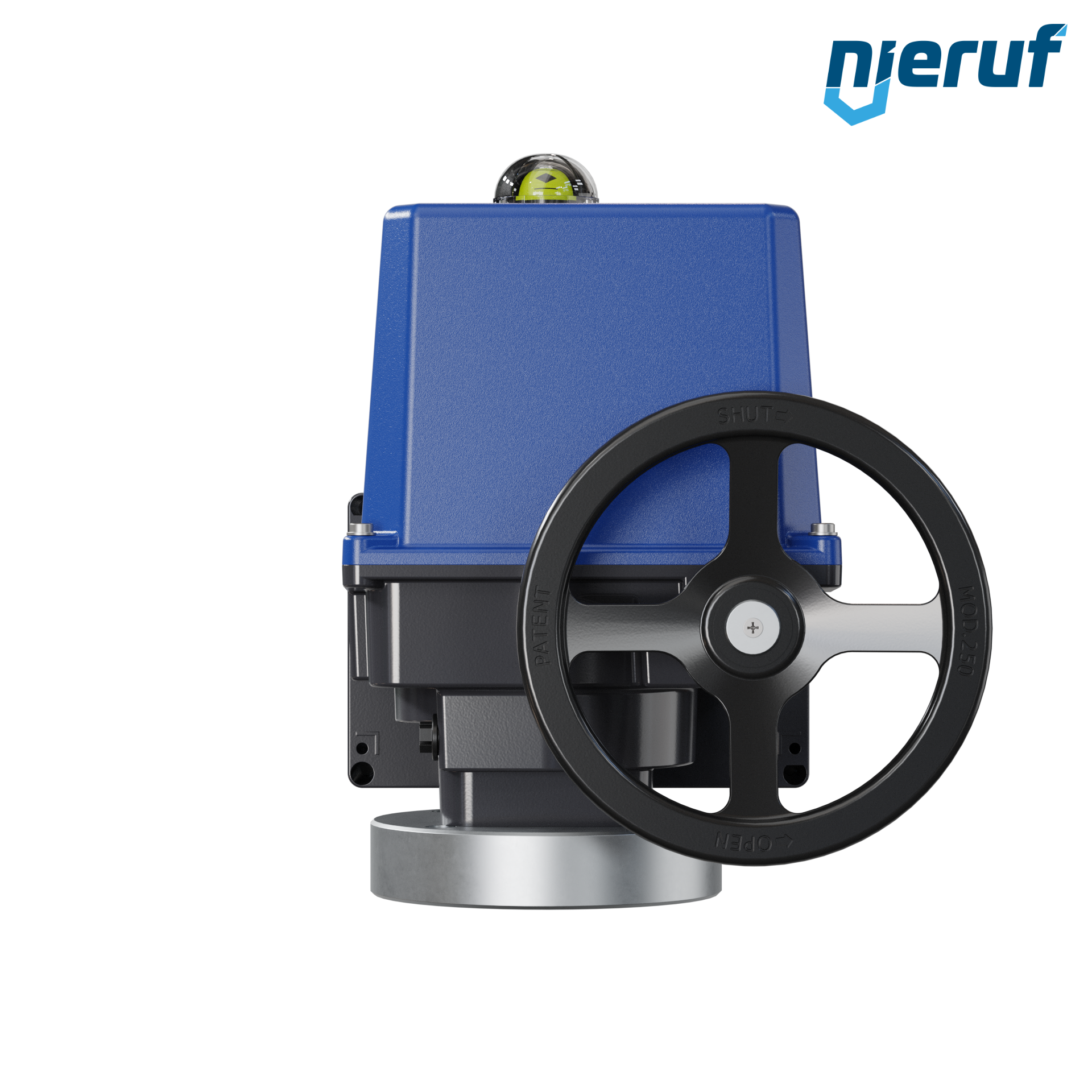

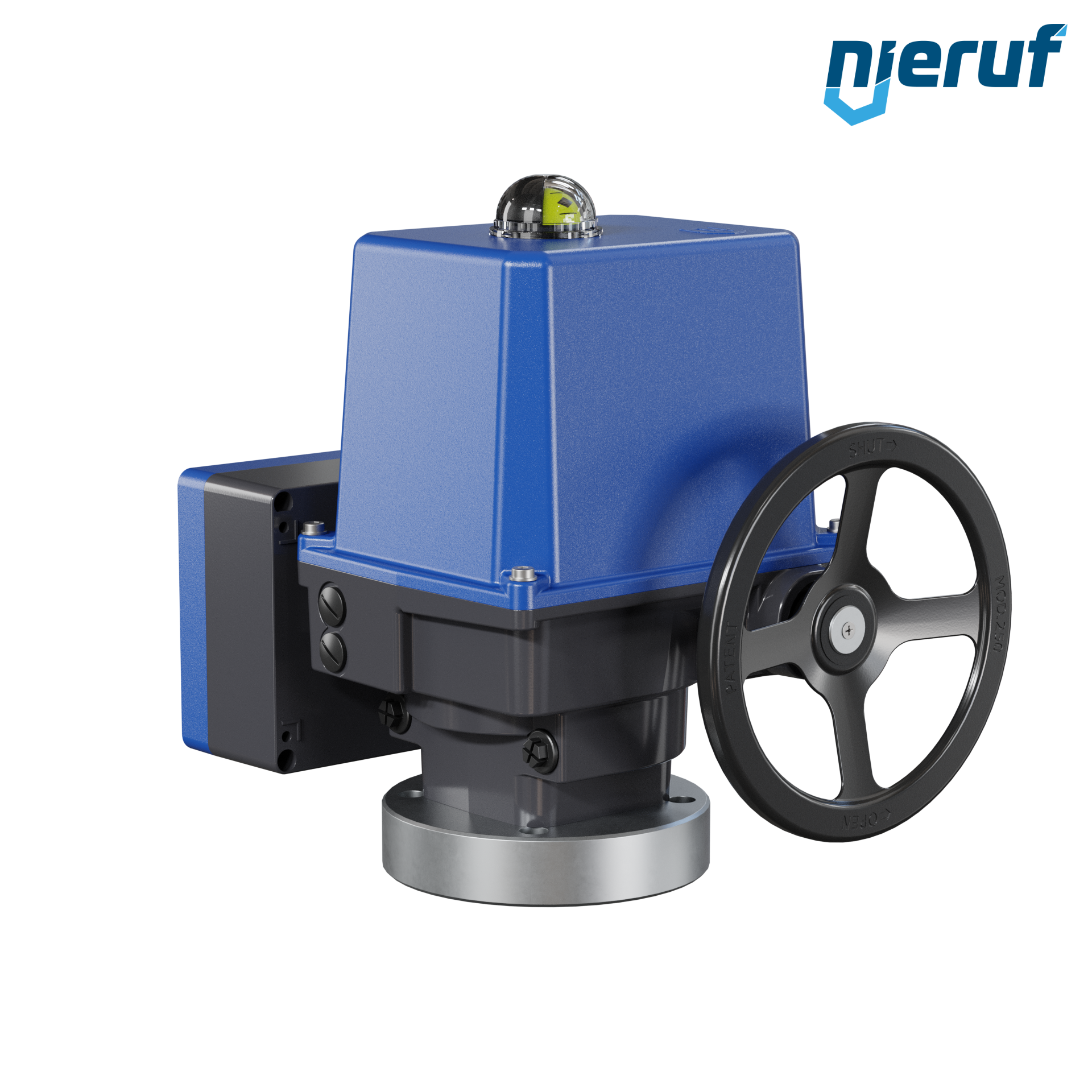

Electric quarter-turn actuator AN03 PSQ1503AMS13 Fail-Safe - 24V AC/DC 1500Nm IP67 ISO 5211 F16
Electric quarter-turn actuator AN03 PSQ1503AMS13 Fail-Safe and power supply of 24V AC/DC and max. torque of 1500Nm , ISO 5211 flange F16 with square 27mm
| product | electric actuator |
|---|---|
| type | AN03 |
| manufacturer | NieRuf |
| ISO flange 5211 | F16 |
| stem intake | 27mm |
| screw depth | 45,9mm |
| duty rating | 50% |
| torque | 1500Nm |
| drive sprocket design | square diagonal (45° turned) |
| protection class | IP67 |
| voltage | 24V AC/DC |
| working time | 110 - 220 sec |
| temperature | - 20°C up to +60°C |
| length | 355mm |
| width | 382mm |
| high | 420mm |
| actuator | PSQ1503AMS13 Fail-Safe |
| actuator informations | Smart quarter-turn actuator for simple and advanced control operations with FailSafe. Automatic one-key commissioning. |
| body material | aluminium alloy |
| swivel angle | 90° |
| installation position | any position, not upside down |
| product description | Compact electric quarter-turn actuator for simple and advanced control operations. Equipped with optical position indicator, hand wheel, automated one-key commissioning as well as Fail-Safe on the basis of super-capacitors. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Electric quarter-turn actuator AN03 PSQ1503AMS13 Fail-Safe - 24V AC/DC 1500Nm IP67 ISO 5211 F16
Article no.
: AN03010111
product:
electric actuator
type:
AN03
manufacturer:
NieRuf
ISO flange 5211:
F16
stem intake:
27mm
screw depth:
45,9mm
duty rating:
50%
torque:
1500Nm
drive sprocket design:
square diagonal (45° turned)
protection class:
IP67
voltage:
24V AC/DC
working time:
110 - 220 sec
temperature:
- 20°C up to +60°C
length:
355mm
width:
382mm
high:
420mm
actuator:
PSQ1503AMS13 Fail-Safe
actuator informations:
Smart quarter-turn actuator for simple and advanced control operations with FailSafe. Automatic one-key commissioning.
body material:
aluminium alloy
swivel angle:
90°
installation position:
any position, not upside down
product description:
Compact electric quarter-turn actuator for simple and advanced control operations. Equipped with optical position indicator, hand wheel, automated one-key commissioning as well as Fail-Safe on the basis of super-capacitors.
Equipment
Position indicator 3-way ball valve with T-bore for electric actuator Type AN03
Lead time: 3 - 5 working days
Position indicator 3-way ball valve with L-bore for electric actuator Type AN03
Lead time: in stock
