AN03000010
Electric quarter-turn actuator AN03 PSQ1503AMS13 - 230V AC 1500Nm IP67 ISO 5211 F14
- Lead time
- 2 - 3 weeks
Equipment
Position indicator 3-way ball valve with T-bore for electric actuator Type AN03
€29.75 VAT included.
Position indicator 3-way ball valve with L-bore for electric actuator Type AN03
€29.75 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
NIERUF-SERVICE

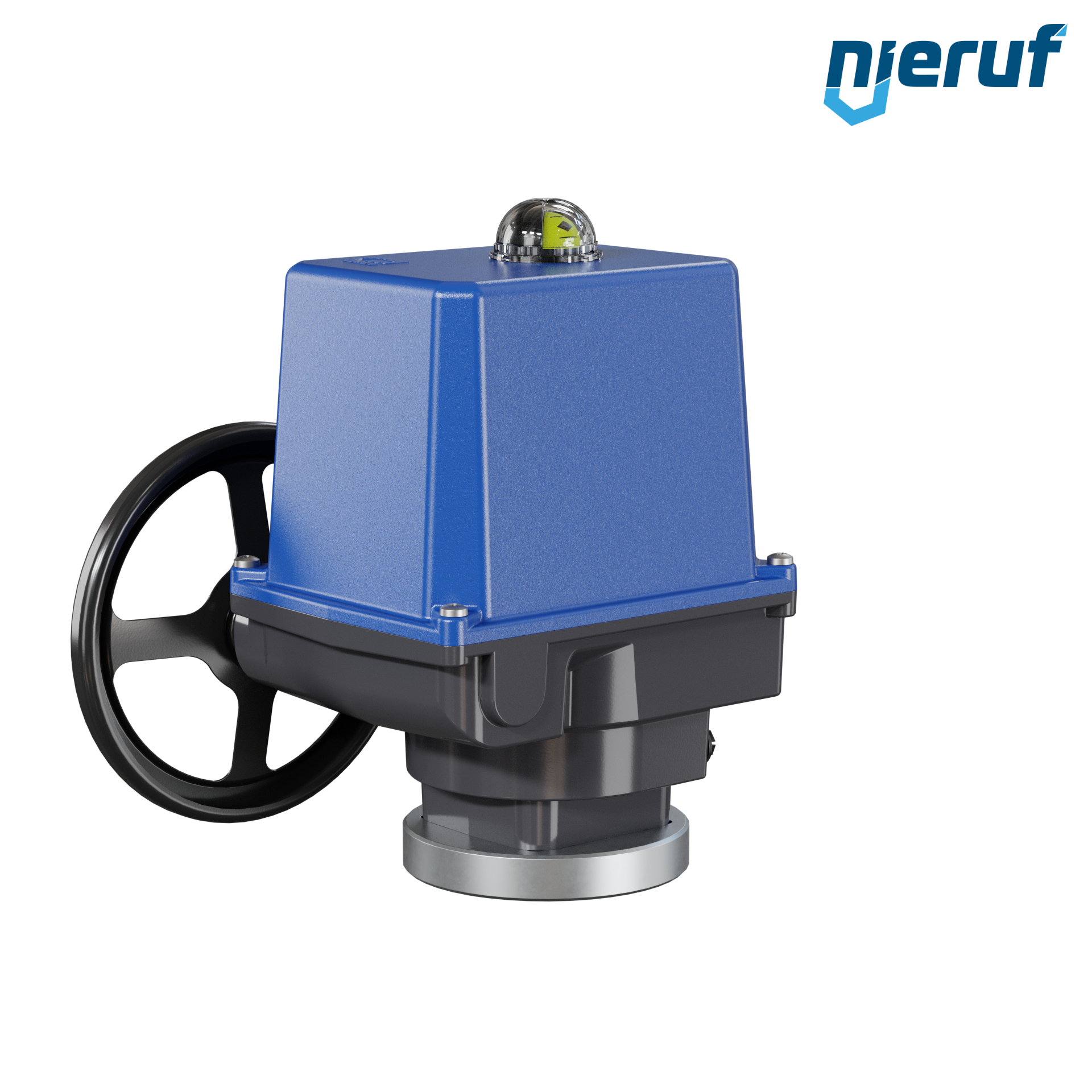

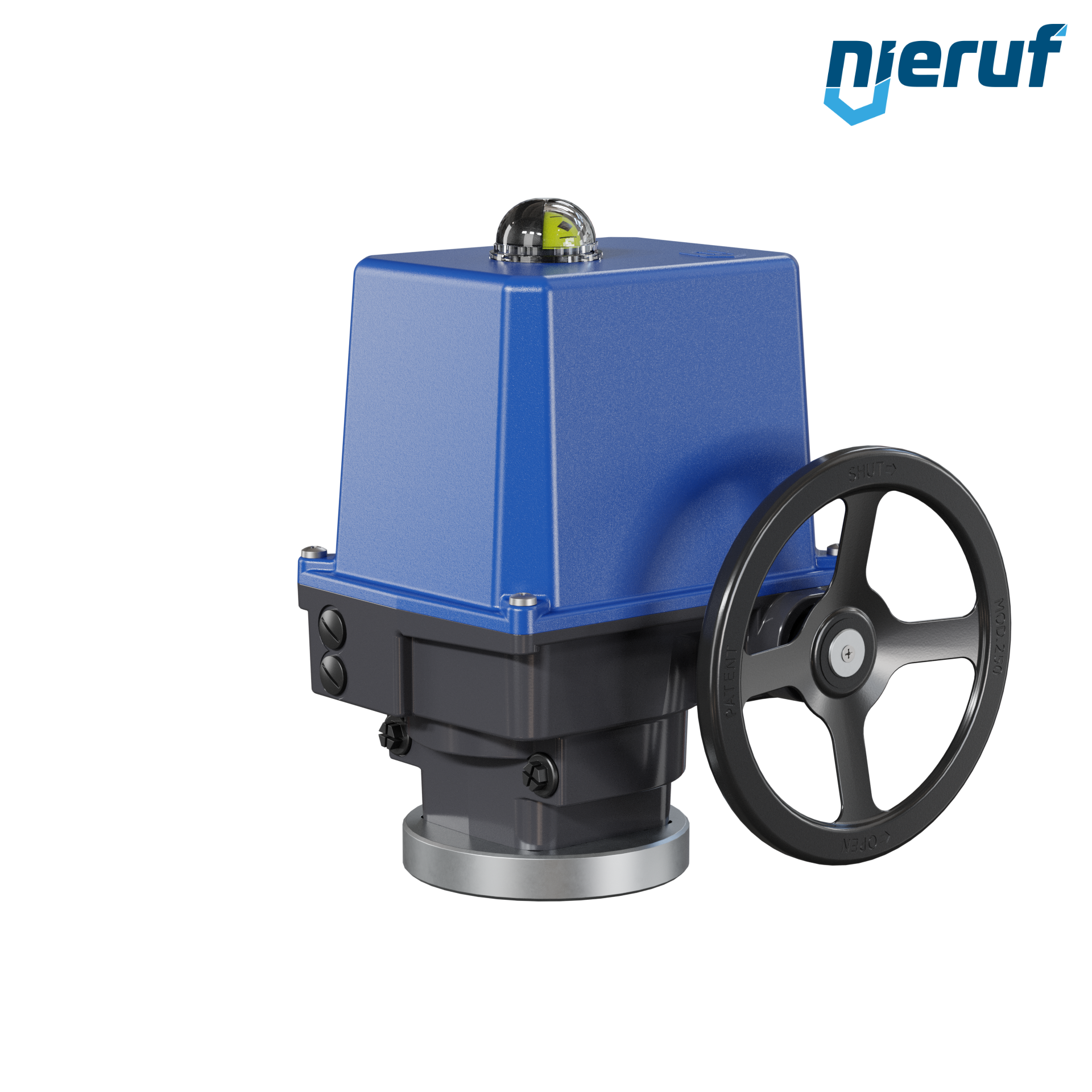

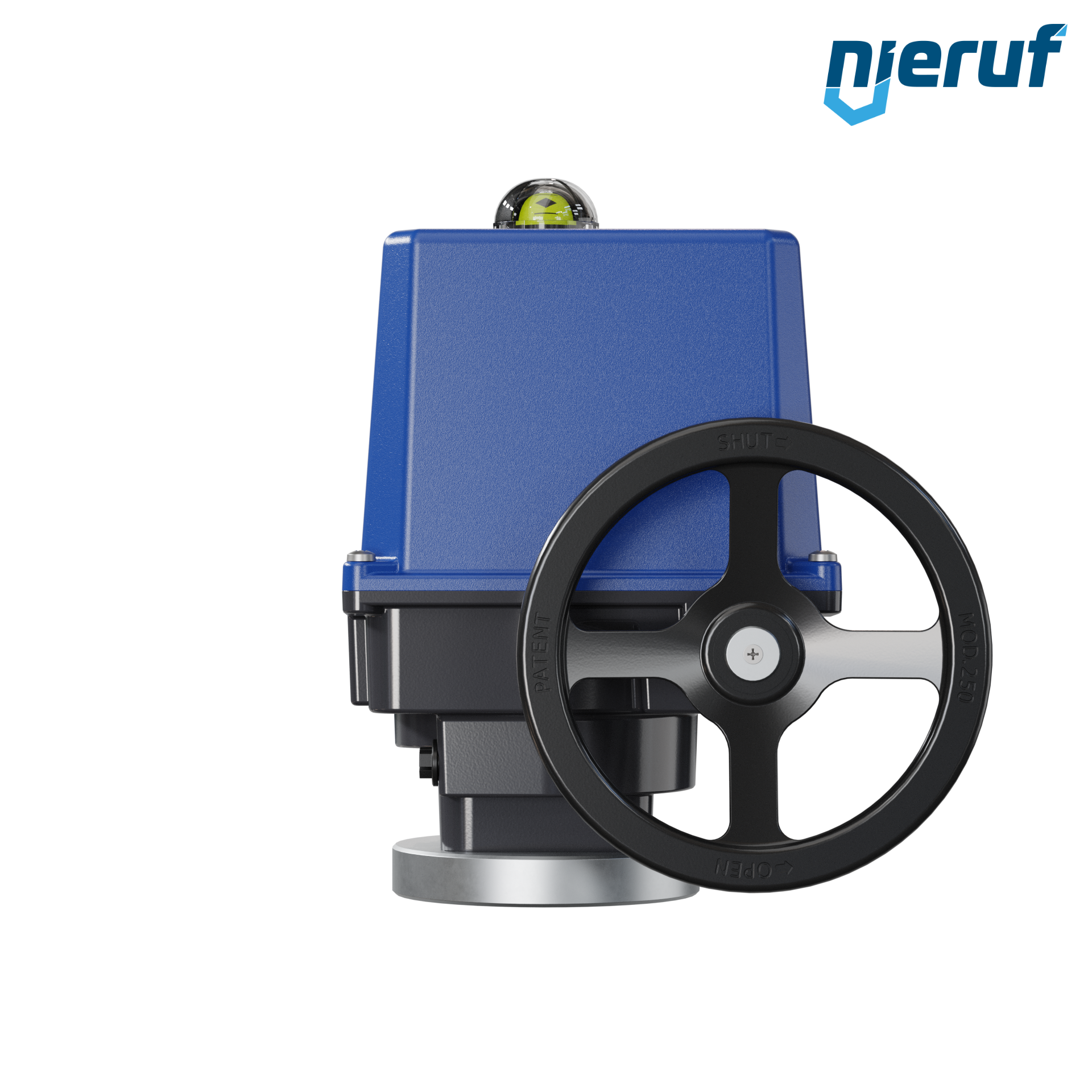

Electric quarter-turn actuator AN03 PSQ1503AMS13 - 230V AC 1500Nm IP67 ISO 5211 F14
Electric quarter-turn actuator AN03 PSQ1503AMS13 and power supply of 230V AC and max. torque of 1500Nm , ISO 5211 flange F14 with square 27mm
| product | electric actuator |
|---|---|
| type | AN03 |
| manufacturer | NieRuf |
| ISO flange 5211 | F14 |
| stem intake | 27mm |
| screw depth | 45,9mm |
| duty rating | 50% |
| torque | 1500Nm |
| drive sprocket design | square diagonal (45° turned) |
| protection class | IP67 |
| voltage | 230V AC |
| working time | 110 - 220 sec |
| temperature | - 20°C up to +60°C |
| length | 375mm |
| width | 275mm |
| high | 406mm |
| actuator | PSQ1503AMS13 |
| actuator informations | Smart quarter-turn actuator for simple and advanced control operations. Automatic one-key commissioning. |
| body material | aluminium alloy |
| swivel angle | 90° |
| installation position | any position, not upside down |
| product description | Compact electric quarter-turn actuator for simple and advanced control operations. Equipped with optical position indicator, hand wheel as well as automated one-key commissioning. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Electric quarter-turn actuator AN03 PSQ1503AMS13 - 230V AC 1500Nm IP67 ISO 5211 F14
Article no.
: AN03000010
product:
electric actuator
type:
AN03
manufacturer:
NieRuf
ISO flange 5211:
F14
stem intake:
27mm
screw depth:
45,9mm
duty rating:
50%
torque:
1500Nm
drive sprocket design:
square diagonal (45° turned)
protection class:
IP67
voltage:
230V AC
working time:
110 - 220 sec
temperature:
- 20°C up to +60°C
length:
375mm
width:
275mm
high:
406mm
actuator:
PSQ1503AMS13
actuator informations:
Smart quarter-turn actuator for simple and advanced control operations. Automatic one-key commissioning.
body material:
aluminium alloy
swivel angle:
90°
installation position:
any position, not upside down
product description:
Compact electric quarter-turn actuator for simple and advanced control operations. Equipped with optical position indicator, hand wheel as well as automated one-key commissioning.
