AN03010008

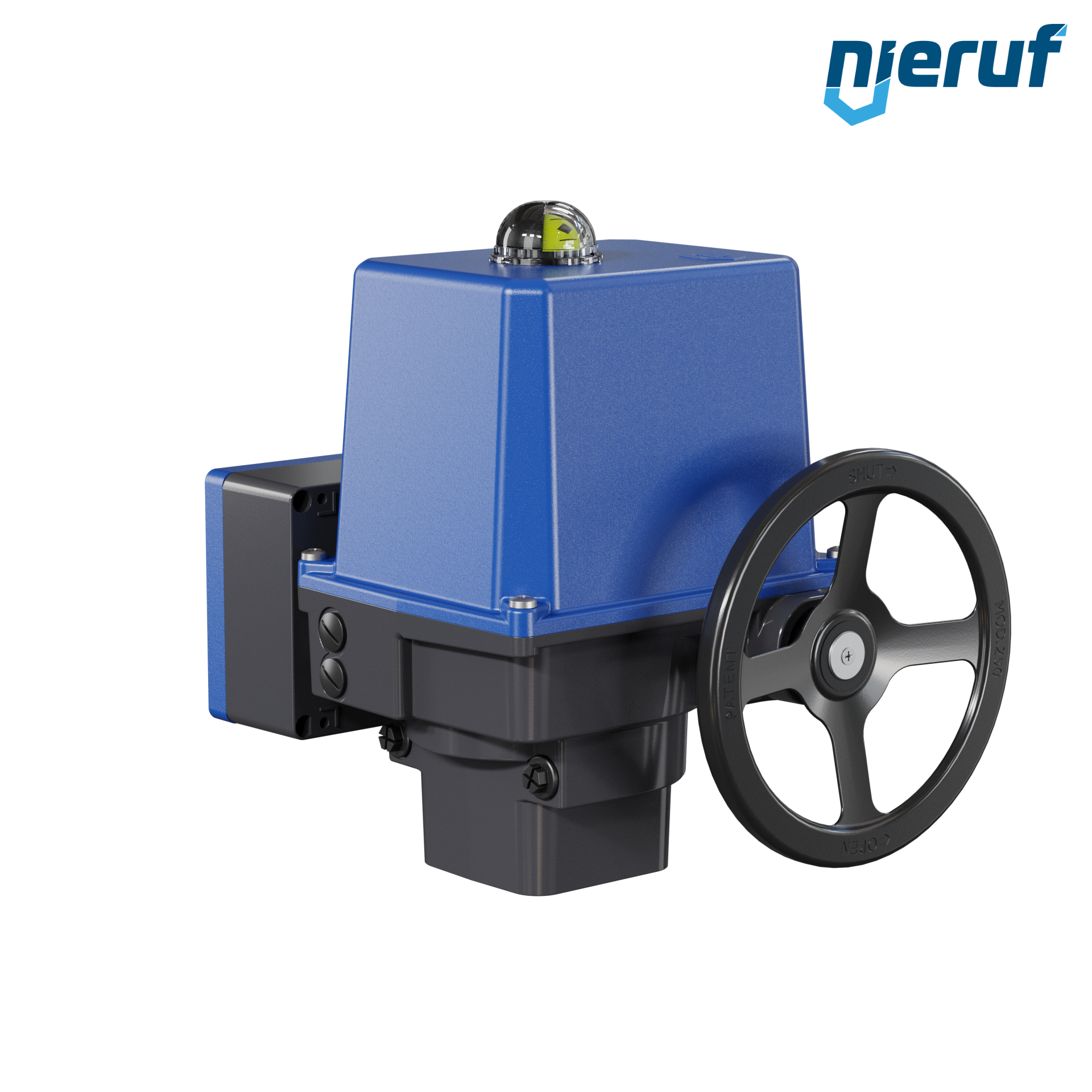

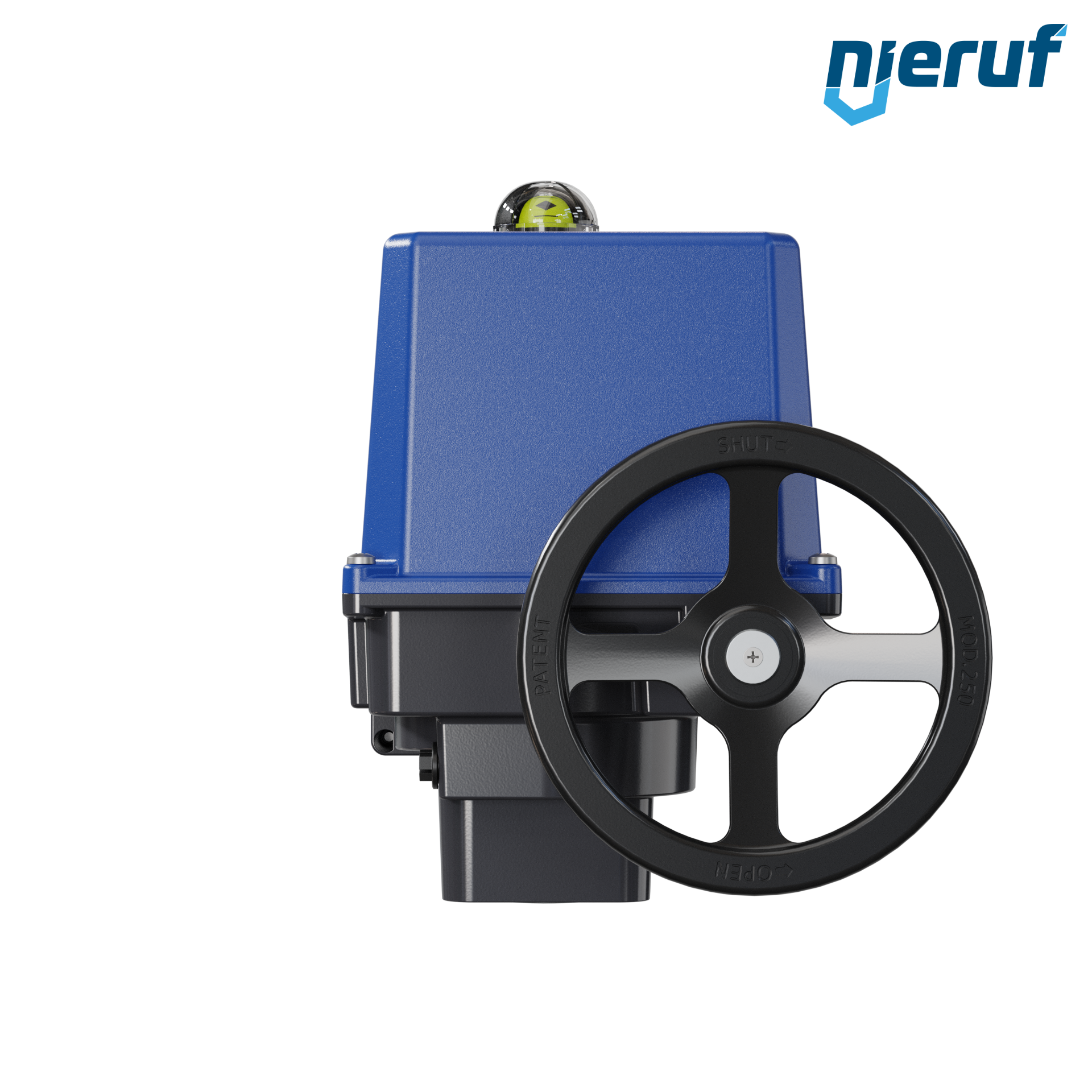

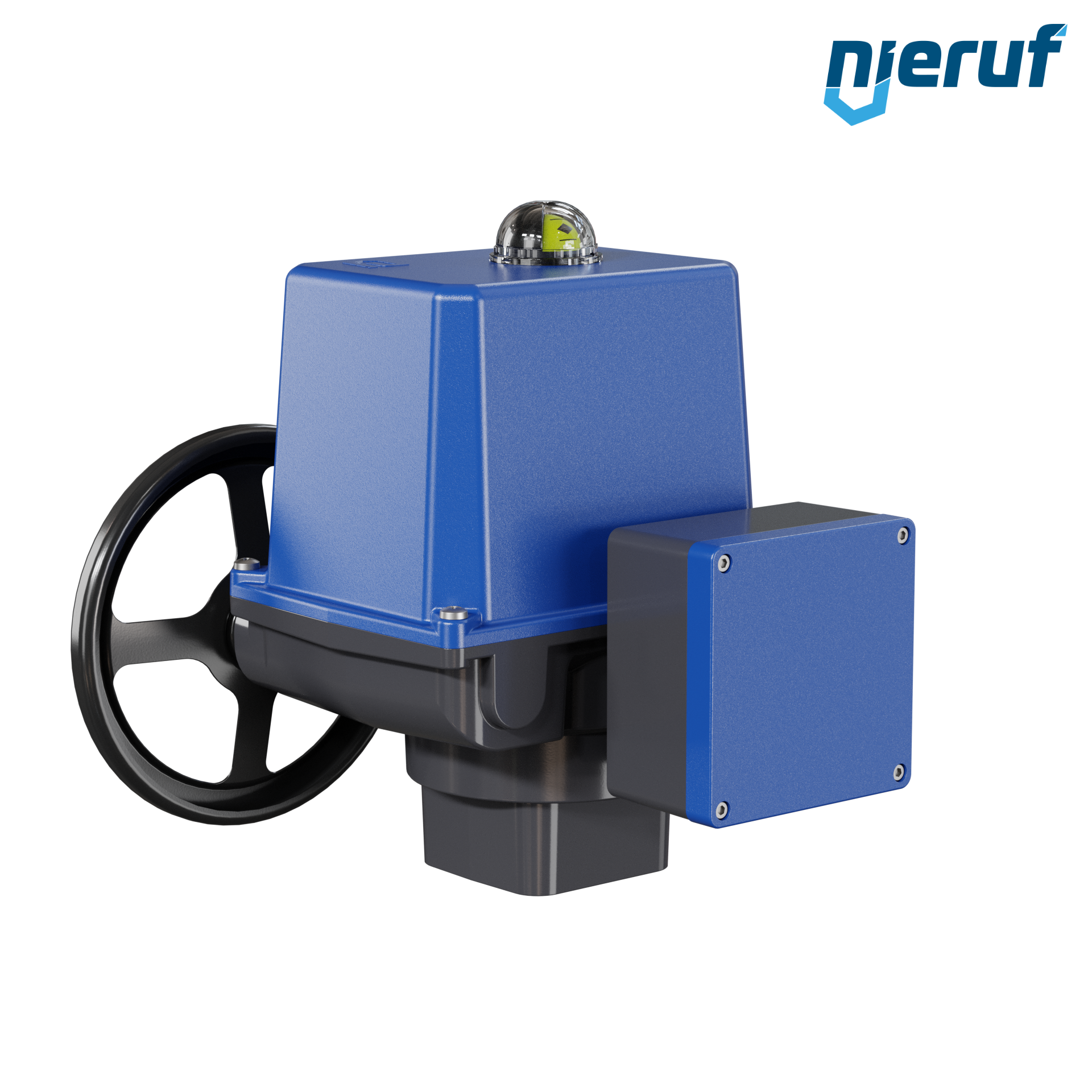

Electric quarter-turn actuator AN03 PSQ1003AMS13 Fail-Safe - 230V AC 1000Nm IP67 ISO 5211 F10
- Delivery time
- 2 - 3 weeks
Questions about the article?
NIERUF-SERVICE
Electric quarter-turn actuator AN03 PSQ1003AMS13 Fail-Safe and power supply of 230V AC and max. torque of 1000Nm , ISO 5211 flange F10 with square 27mm
| product | electric actuator |
|---|---|
| type | AN03 |
| manufacturer | NieRuf |
| ISO flange 5211 | F10 |
| stem intake | 27mm |
| screw depth | 45,9mm |
| duty rating | 50% |
| torque | 1000Nm |
| drive sprocket design | square diagonal (45° turned) |
| protection class | IP67 |
| voltage | 230V AC |
| working time | 70 - 140 sec |
| temperature | - 20°C up to +60°C |
| length | 348mm |
| width | 372mm |
| high | 405mm |
| actuator | PSQ1003AMS13 Fail-Safe |
| actuator informations | Smart quarter-turn actuator for simple and advanced control operations with FailSafe. Automatic one-key commissioning. |
| body material | aluminium alloy |
| swivel angle | 90° |
| installation position | any position, not upside down |
| product description | Compact electric quarter-turn actuator for simple and advanced control operations. Equipped with optical position indicator, hand wheel, automated one-key commissioning as well as Fail-Safe on the basis of super-capacitors. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Electric quarter-turn actuator AN03 PSQ1003AMS13 Fail-Safe - 230V AC 1000Nm IP67 ISO 5211 F10
Article no.
: AN03010008
product:
electric actuator
type:
AN03
manufacturer:
NieRuf
ISO flange 5211:
F10
stem intake:
27mm
screw depth:
45,9mm
duty rating:
50%
torque:
1000Nm
drive sprocket design:
square diagonal (45° turned)
protection class:
IP67
voltage:
230V AC
working time:
70 - 140 sec
temperature:
- 20°C up to +60°C
length:
348mm
width:
372mm
high:
405mm
actuator:
PSQ1003AMS13 Fail-Safe
actuator informations:
Smart quarter-turn actuator for simple and advanced control operations with FailSafe. Automatic one-key commissioning.
body material:
aluminium alloy
swivel angle:
90°
installation position:
any position, not upside down
product description:
Compact electric quarter-turn actuator for simple and advanced control operations. Equipped with optical position indicator, hand wheel, automated one-key commissioning as well as Fail-Safe on the basis of super-capacitors.
