EF04110808
Elbow connector EF04 stainless steel FKM D8mm
- Lead time
- 3 - 5 working days
Questions about the article?
Our employee Richie Rost
will be happy to help you
Downloads

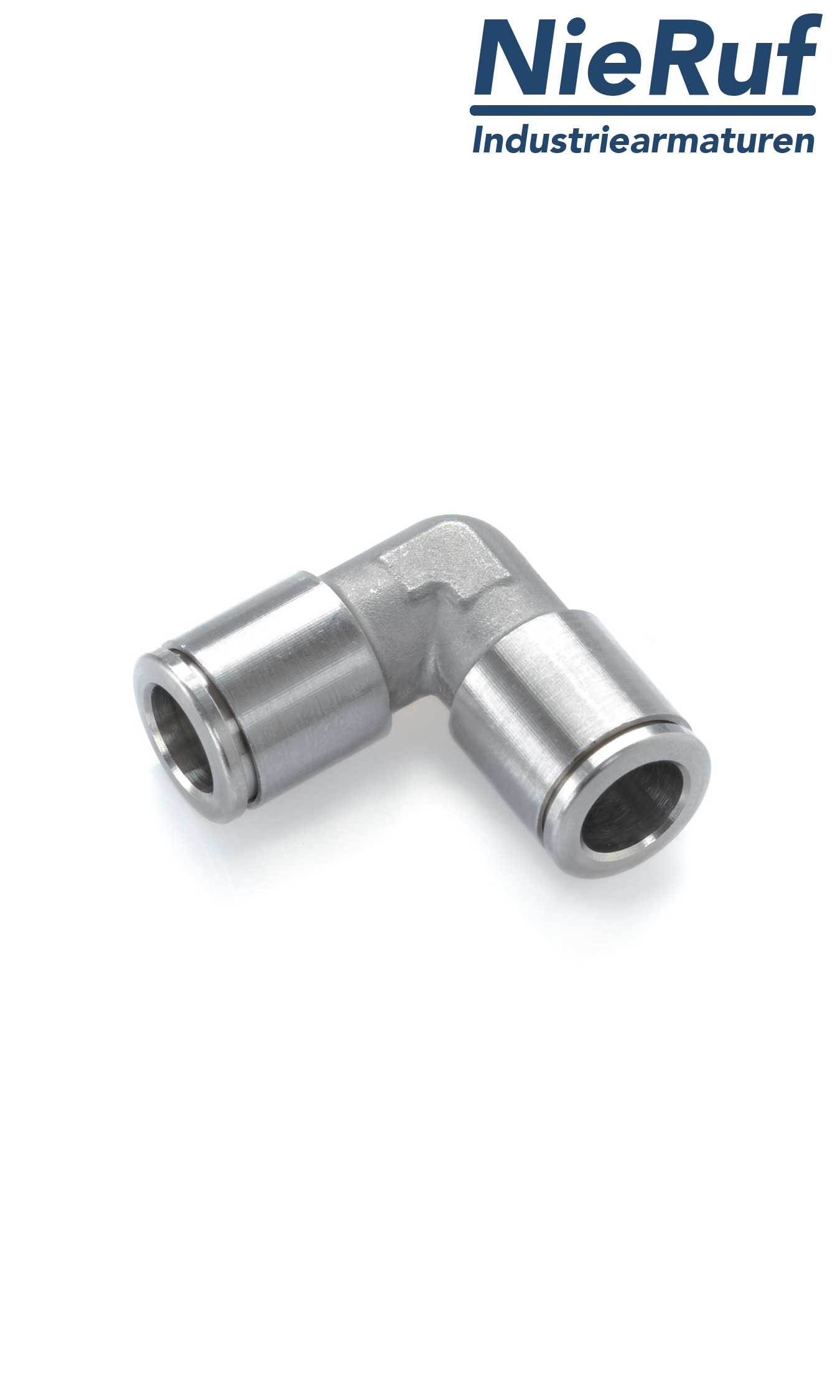

Elbow connector EF04 stainless steel FKM D8mm
port connection Elbow connector made of stainless steel with FKM-seal D8mm for lubricated & non-lubricated compressed air up to 16 bar
| product | port connection |
|---|---|
| type | EF04 |
| manufacturer | NieRuf |
| design | Elbow connector |
| tube connection 1 | D8mm |
| tube connection 2 | D8mm |
| body material | stainless steel 1.4404 |
| seal | FKM |
| collet | stainless steel 1.4401 |
| pressure ring | stainless steel 1.4404 |
| thread | cylindrical |
| media | lubricated & non-lubricated compressed air |
| max. working pressure | up to 16 bar |
| product feature | Elbow connector to connect or to plug pipes in pneumatic- or pressure air applications. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Elbow connector EF04 stainless steel FKM D8mm
Article no.
: EF04110808
product:
port connection
type:
EF04
manufacturer:
NieRuf
design:
Elbow connector
tube connection 1:
D8mm
tube connection 2:
D8mm
body material:
stainless steel 1.4404
seal:
FKM
collet:
stainless steel 1.4401
pressure ring:
stainless steel 1.4404
thread:
cylindrical
media:
lubricated & non-lubricated compressed air
max. working pressure:
up to 16 bar
product feature:
Elbow connector to connect or to plug pipes in pneumatic- or pressure air applications.
