EF04001212

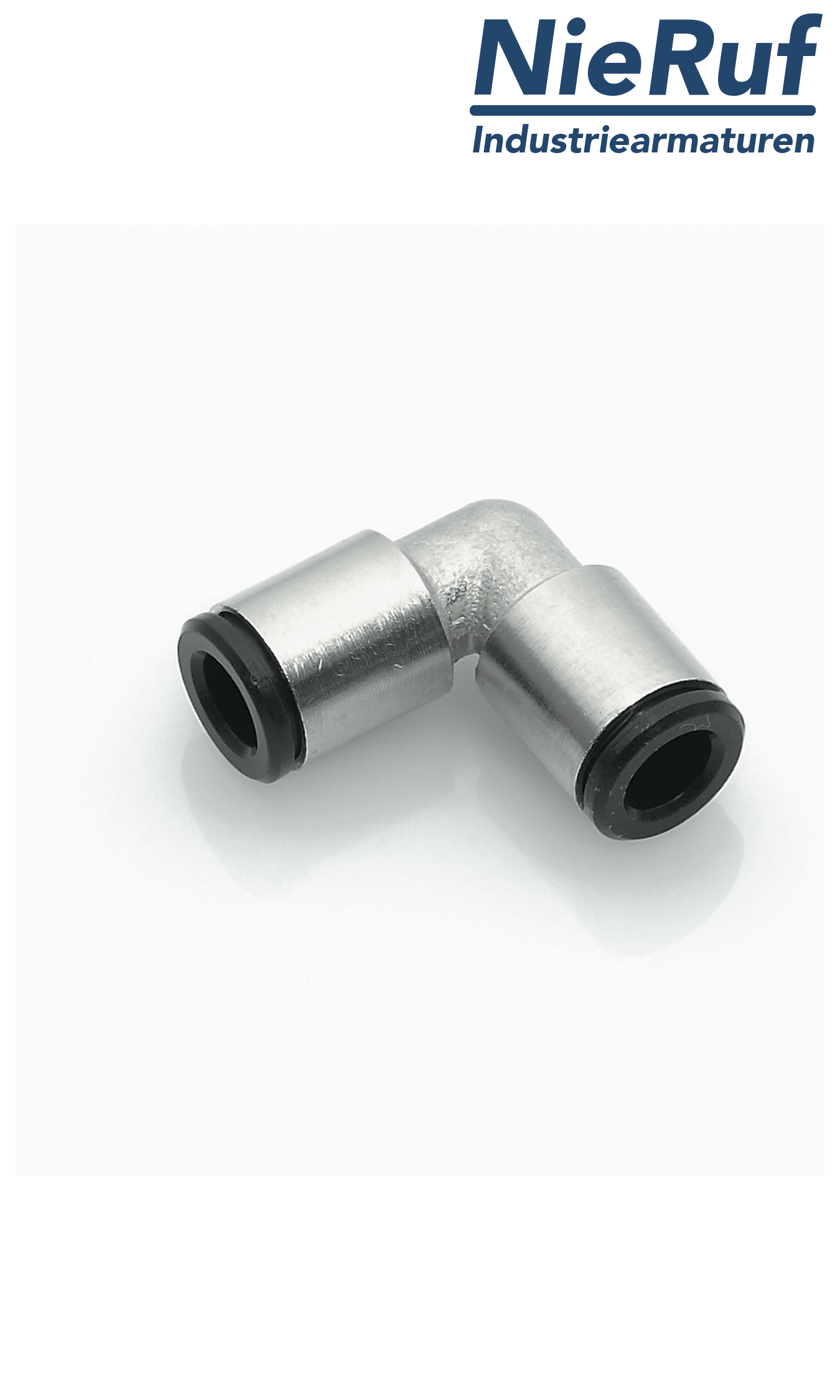

Elbow connector EF04 brass NBR D12mm
- Lead time
- 3 - 5 working days
Questions about the article?
Our employee Richie Rost
will be happy to help you
Downloads
Elbow connector EF04 brass NBR D12mm
port connection Elbow connector made of brass with NBR-seal D12mm for lubricated & non-lubricated compressed air up to 16 bar
| product | port connection |
|---|---|
| type | EF04 |
| manufacturer | NieRuf |
| design | Elbow connector |
| tube connection 1 | D12mm |
| tube connection 2 | D12mm |
| body material | brass Ms58 nickel-plated |
| seal | NBR |
| collet | stainless steel 1.4401 |
| pressure ring | black plastic |
| thread | cylindrical |
| media | lubricated & non-lubricated compressed air |
| max. working pressure | up to 16 bar |
| product feature | Elbow connector to connect or to plug pipes in pneumatic- or pressure air applications. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Elbow connector EF04 brass NBR D12mm
Article no.
: EF04001212
product:
port connection
type:
EF04
manufacturer:
NieRuf
design:
Elbow connector
tube connection 1:
D12mm
tube connection 2:
D12mm
body material:
brass Ms58 nickel-plated
seal:
NBR
collet:
stainless steel 1.4401
pressure ring:
black plastic
thread:
cylindrical
media:
lubricated & non-lubricated compressed air
max. working pressure:
up to 16 bar
product feature:
Elbow connector to connect or to plug pipes in pneumatic- or pressure air applications.
