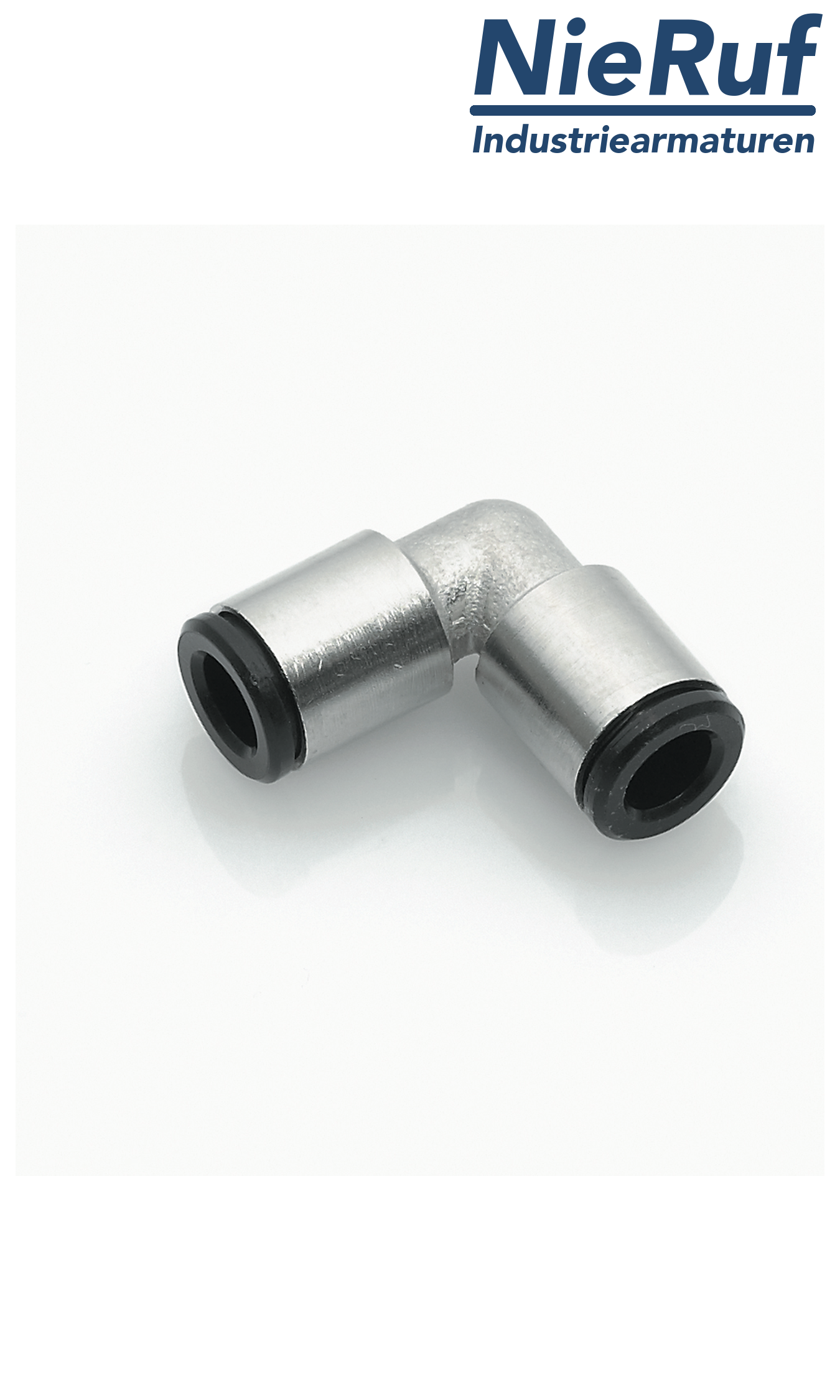

Elbow connector EF04 brass NBR D10mm

needle valve 1 1/2" fm NV01 steel (blue galvanized) 3
quantity (pcs.):
2.00€ * 2.38€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: 1-2 working days

All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
technical details
Elbow connector EF04 brass NBR D10mm
port connection Elbow connector made of brass with NBR-seal D10mm for lubricated & non-lubricated compressed air up to 16 bar
design: Elbow connector
tube connection 1: D10mm
tube connection 2: D10mm
body material: brass Ms58 nickel-plated
seal: NBR
collet: stainless steel 1.4401
pressure ring: black plastic
thread: cylindrical
media: lubricated & non-lubricated compressed air
max. working pressure: up to 16 bar
product feature: Elbow connector to connect or to plug pipes in pneumatic- or pressure air applications.
Elbow connector EF04 brass NBR D10mm

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

Elbow connector EF04 brass NBR D10mm
