DR02000108
dual plate check valve DN50 DR02 GGG40 epoxyd plated blue 180µm EPDM
- Lead time
- in stock
- Express delivery*
Order in within by express delivery
Shipping on: Tuesday, 06. October
Guaranteed delivery until Wednesday, 07. October, 12 o'clock
Equipment
flange seal DN50 PN10/16/25/40 61x107x2 Klingersil C 4400
€3.69 VAT included.
Welding neck flange DN50 PN10/16 EN1092-1 11 B1 1.4541
€45.10 VAT included.
joint set dual plate check valve/flange DN50 - 2" Inch for flange PN10/16 stainless steel
€10.95 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

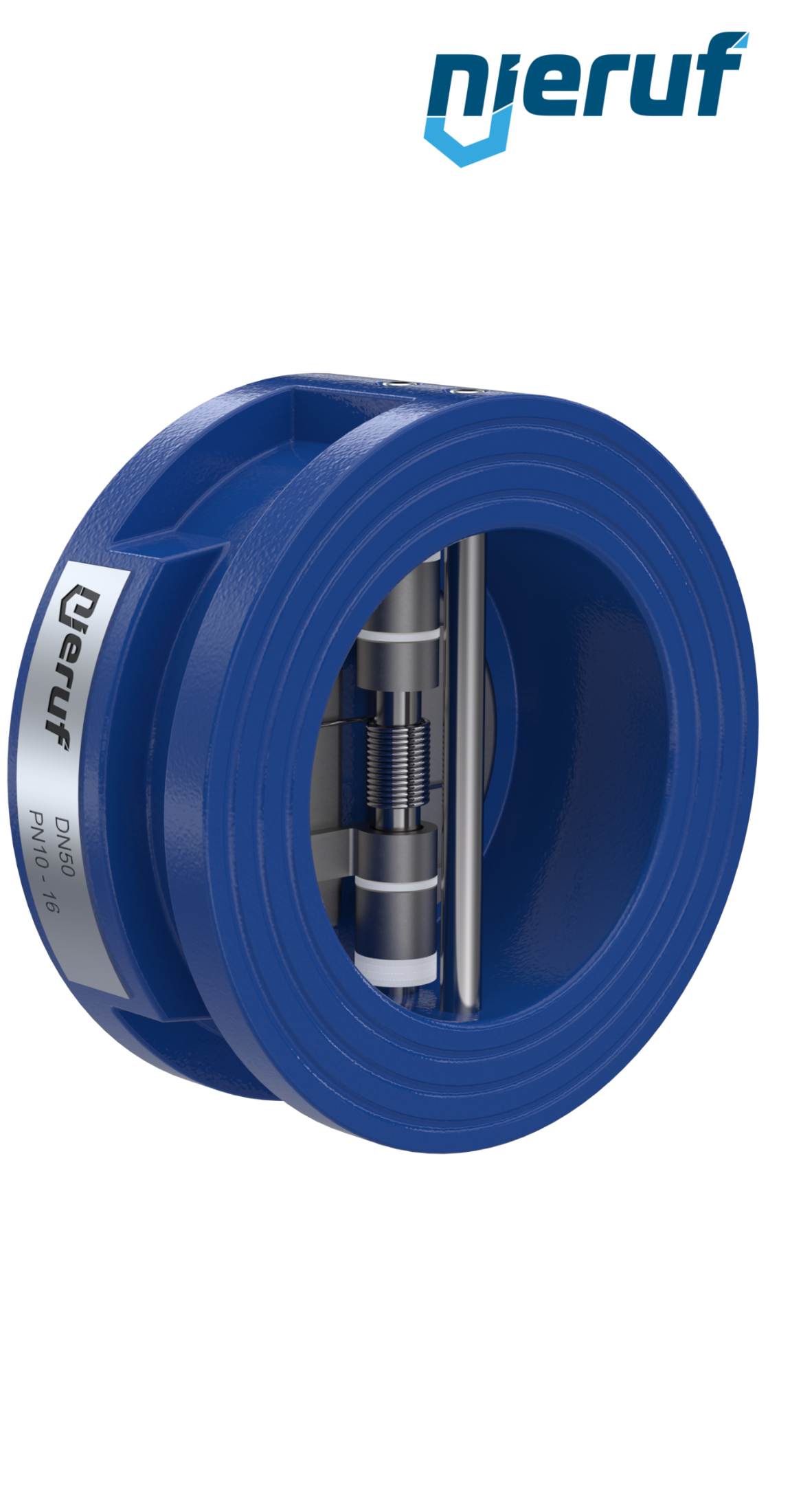

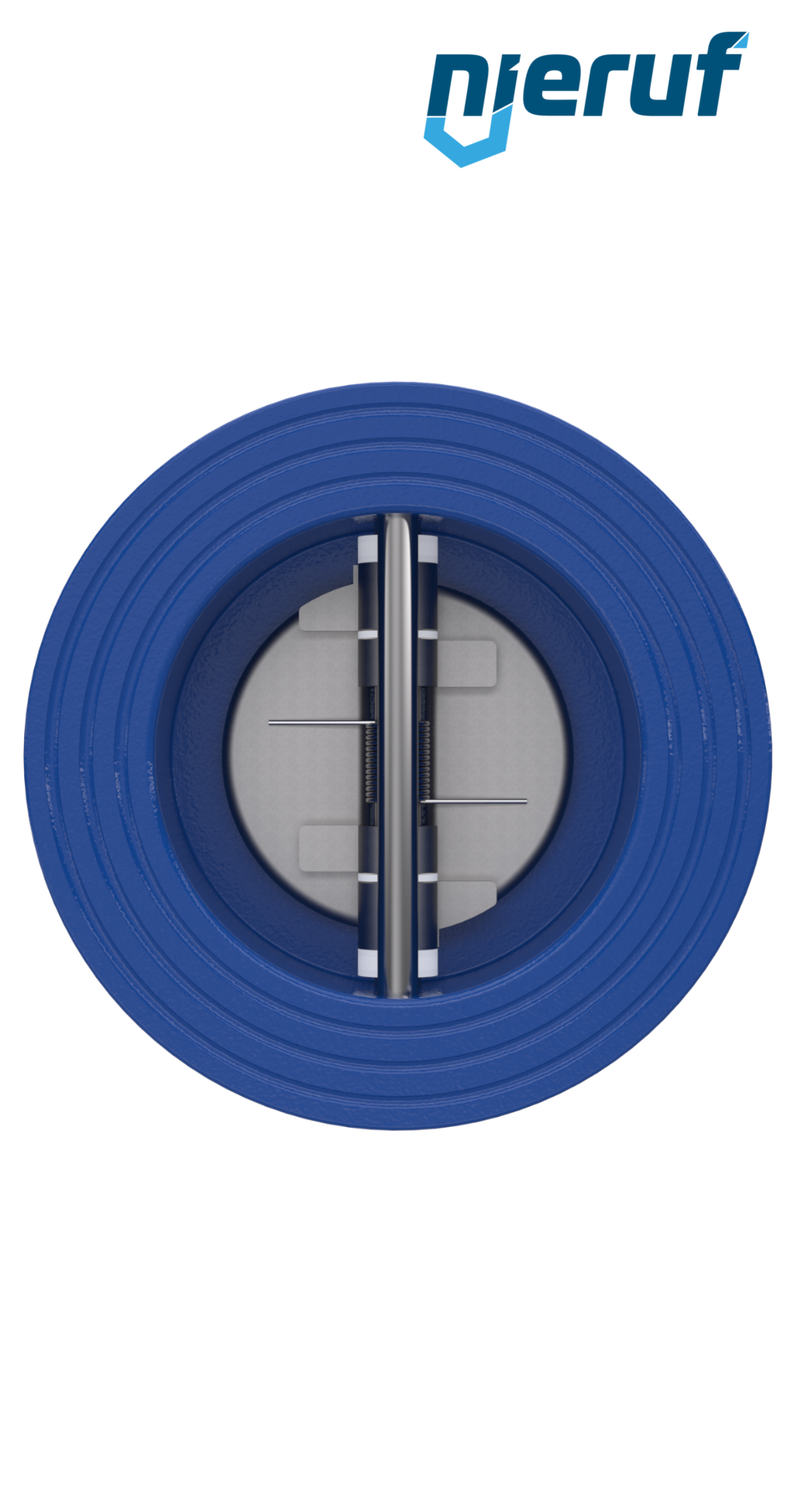

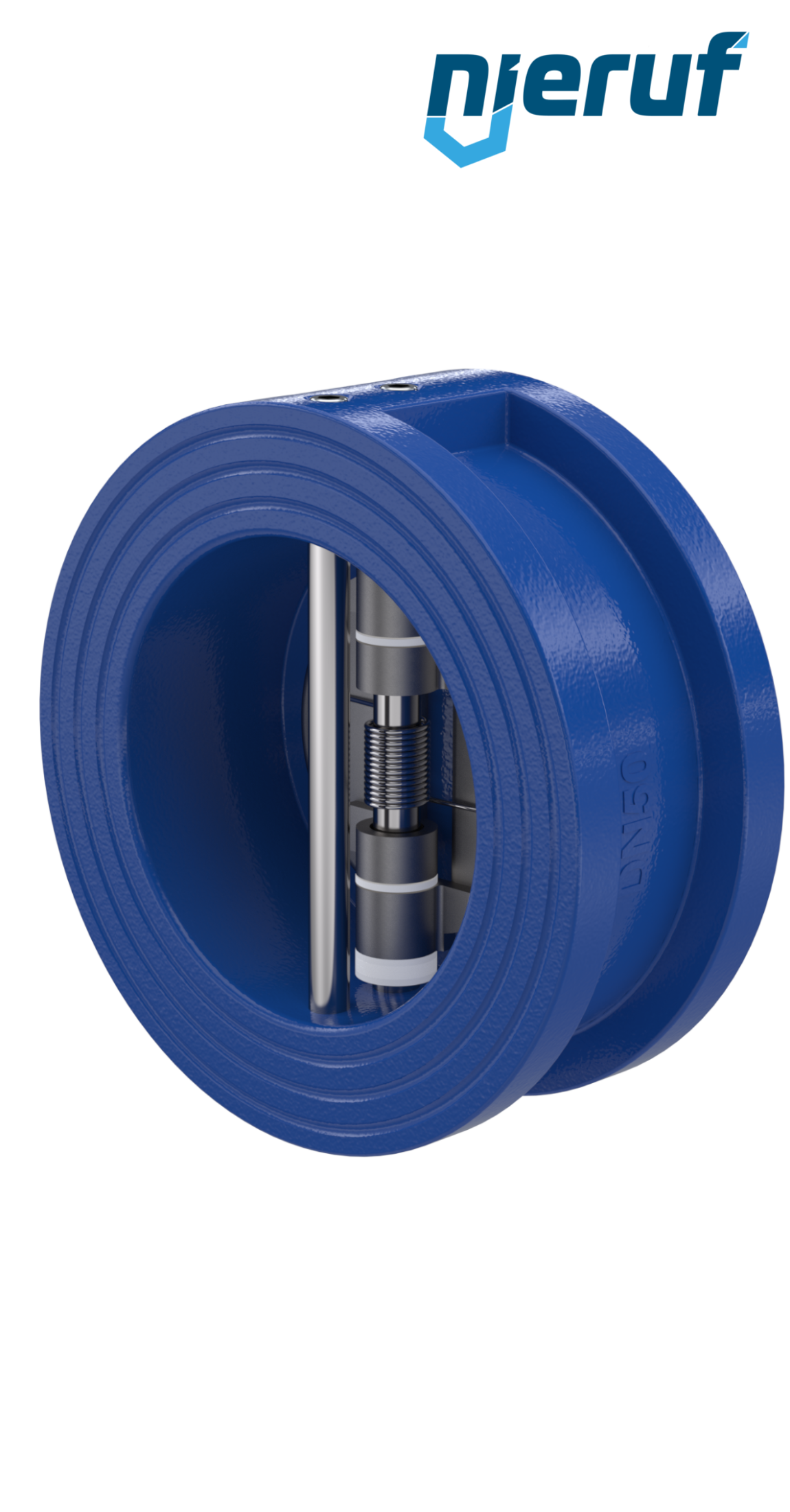

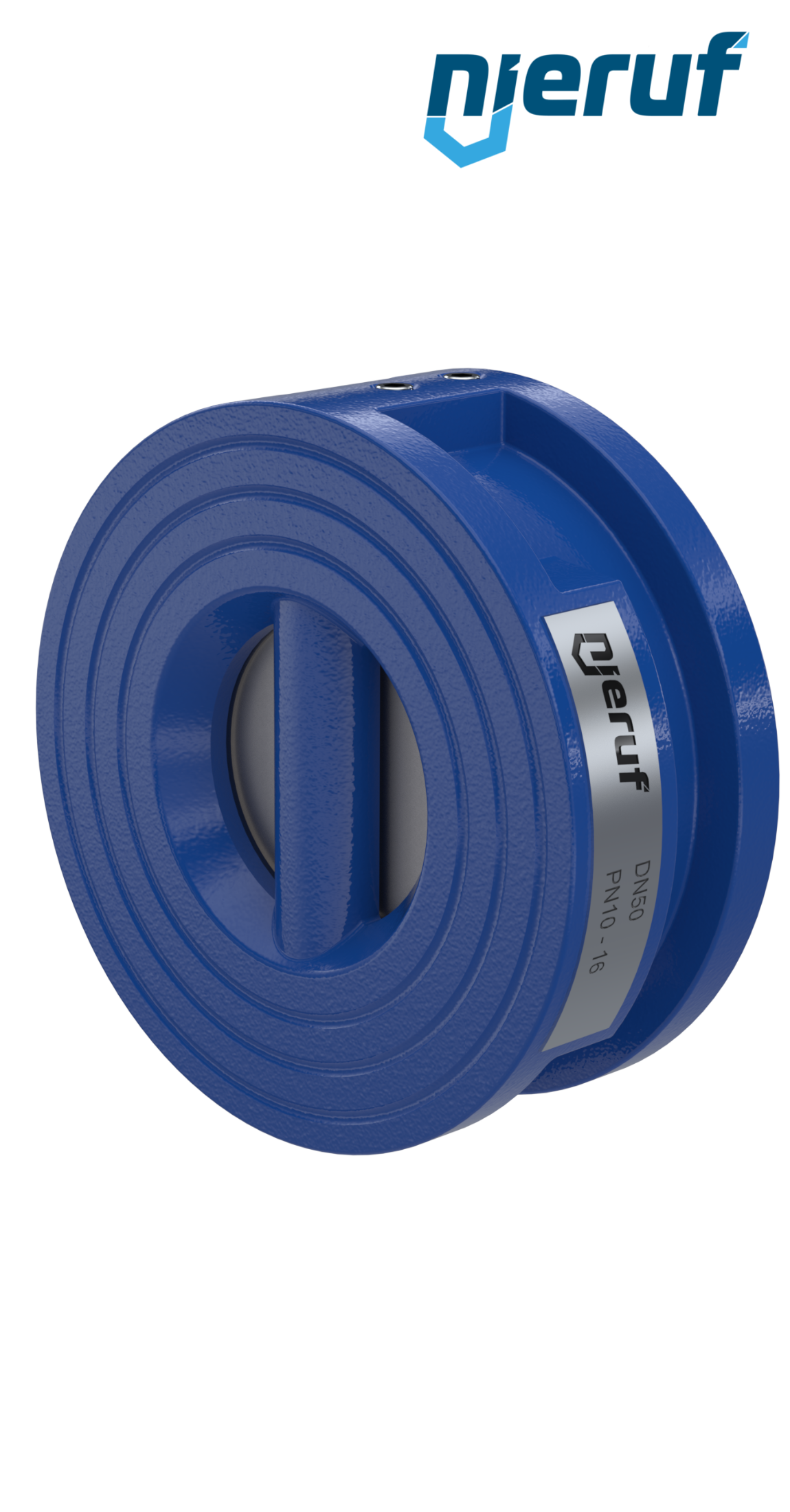

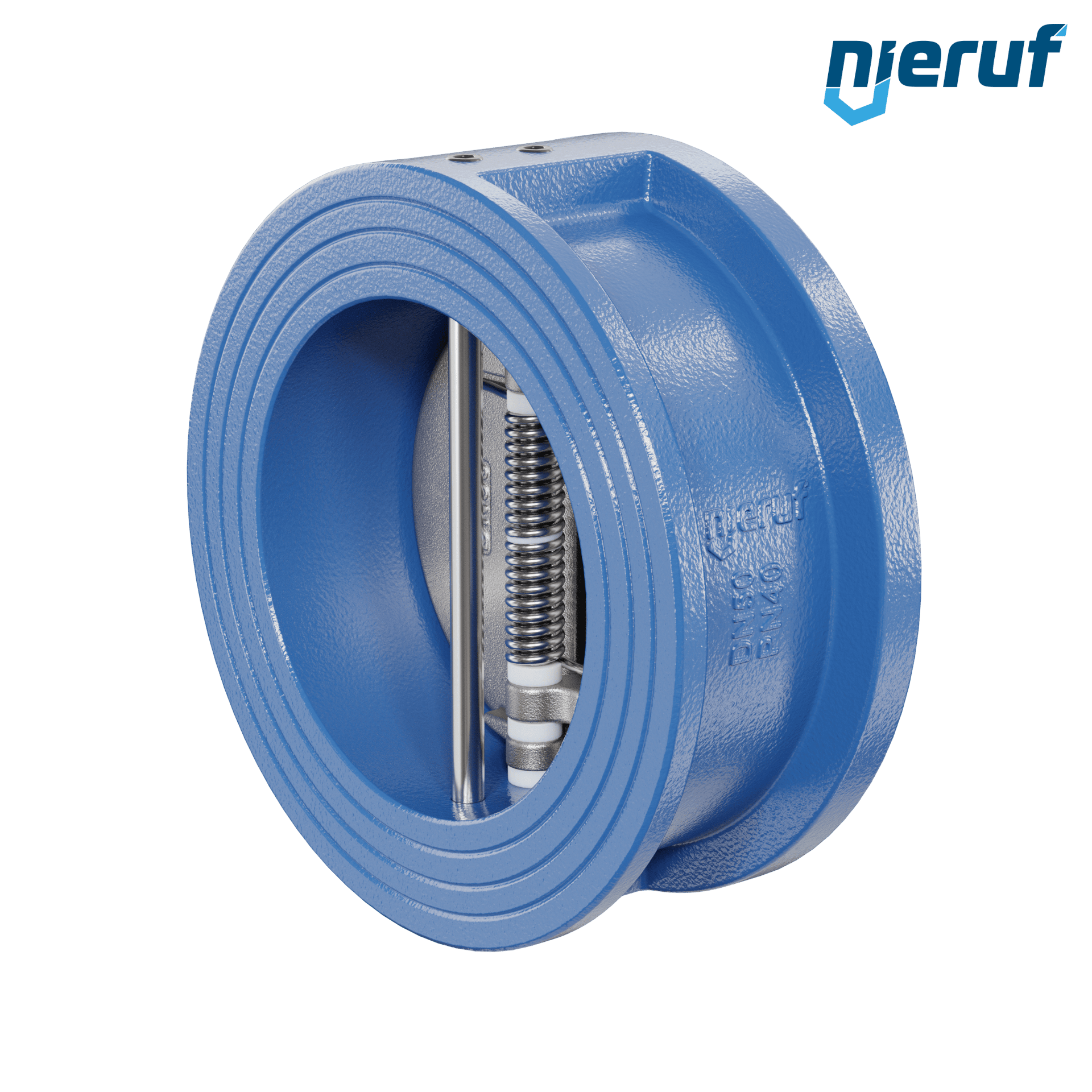

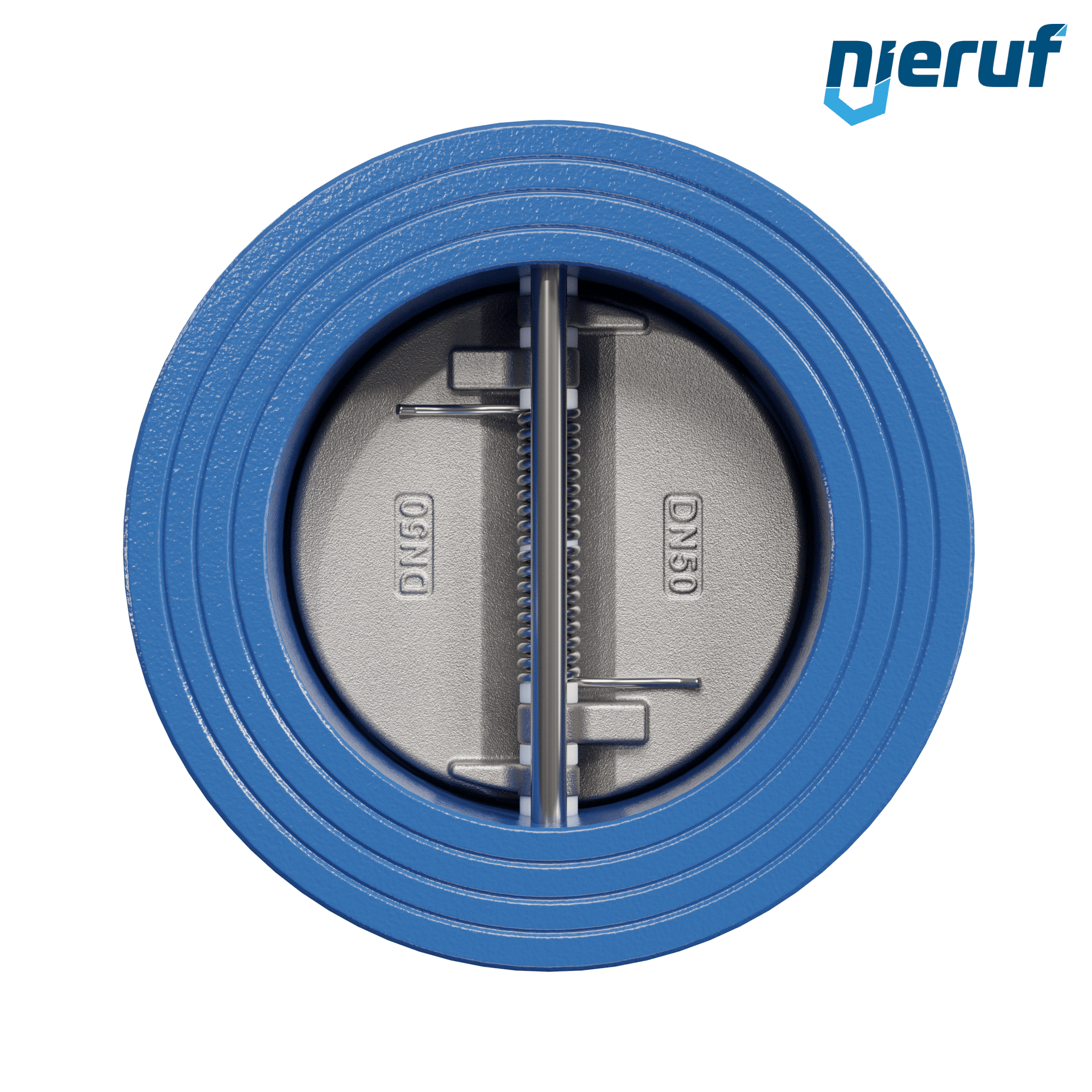

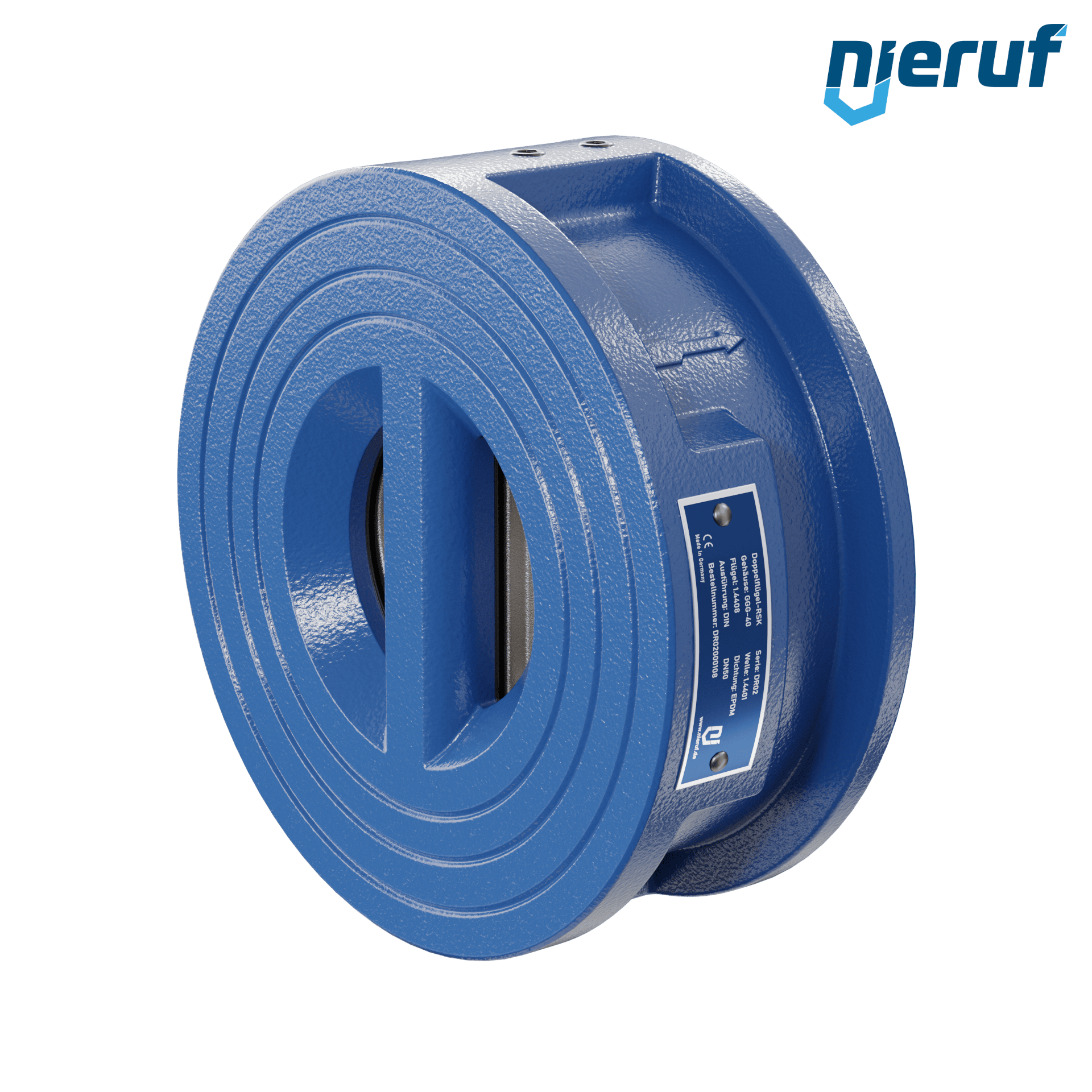

dual plate check valve DN50 DR02 GGG40 epoxyd plated blue 180µm EPDM
dual plate check valve DN50 seal EPDM PN 10/16/25/40 DIN EN 1092-1 Form B, body made of grey cast iron wings made of stainless steel
| product | dual plate check valve |
|---|---|
| type | DR02 |
| manufacturer | NieRuf |
| design | dual plate check valve |
| diameter | DN50 |
| body material | GGG40 epoxyd plated blue 180µm |
| disc material | stainless steel 1.4408 |
| seal | EPDM |
| temperature | -10°C to +120°C |
| connection | flange |
| flange | PN 10/16/25/40 DIN EN 1092-1 Form B |
| pressure range | 0 - 16 bar |
| media | liquid and gaseous media |
| tightness acc. to DIN EN 12266 | leak rate A |
| option | with spring made of stainless steel |
| installation position | direction of flow horizontal, vertical from below - up to DN200 also from above |
| product feature | face to face according DIN EN 558-1 row 16 |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
dual plate check valve DN50 DR02 GGG40 epoxyd plated blue 180µm EPDM
Article no.
: DR02000108
product:
dual plate check valve
type:
DR02
manufacturer:
NieRuf
design:
dual plate check valve
diameter:
DN50
body material:
GGG40 epoxyd plated blue 180µm
disc material:
stainless steel 1.4408
seal:
EPDM
temperature:
-10°C to +120°C
connection:
flange
flange:
PN 10/16/25/40 DIN EN 1092-1 Form B
pressure range:
0 - 16 bar
media:
liquid and gaseous media
tightness acc. to DIN EN 12266:
leak rate A
option:
with spring made of stainless steel
installation position:
direction of flow horizontal, vertical from below - up to DN200 also from above
product feature:
face to face according DIN EN 558-1 row 16
Equipment
flange seal DN50 PN10/16/25/40 61x107x2 Klingersil C 4400
Lead time: in stock
Flange DN50 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare
Lead time: in stock
joint set dual plate check valve/flange DN50 - 2" Inch for flange PN10/16 steel
Lead time: in stock
pipe bend (welded) 90° 60,3 x 2,0 stainless steel 1.4571
Lead time: in stock
reducing bush (welded) 76,1 x 2,3 to 60,3 x 2,0 stainless steel 1.4571
Lead time: 3 - 5 working days
