DR03000217

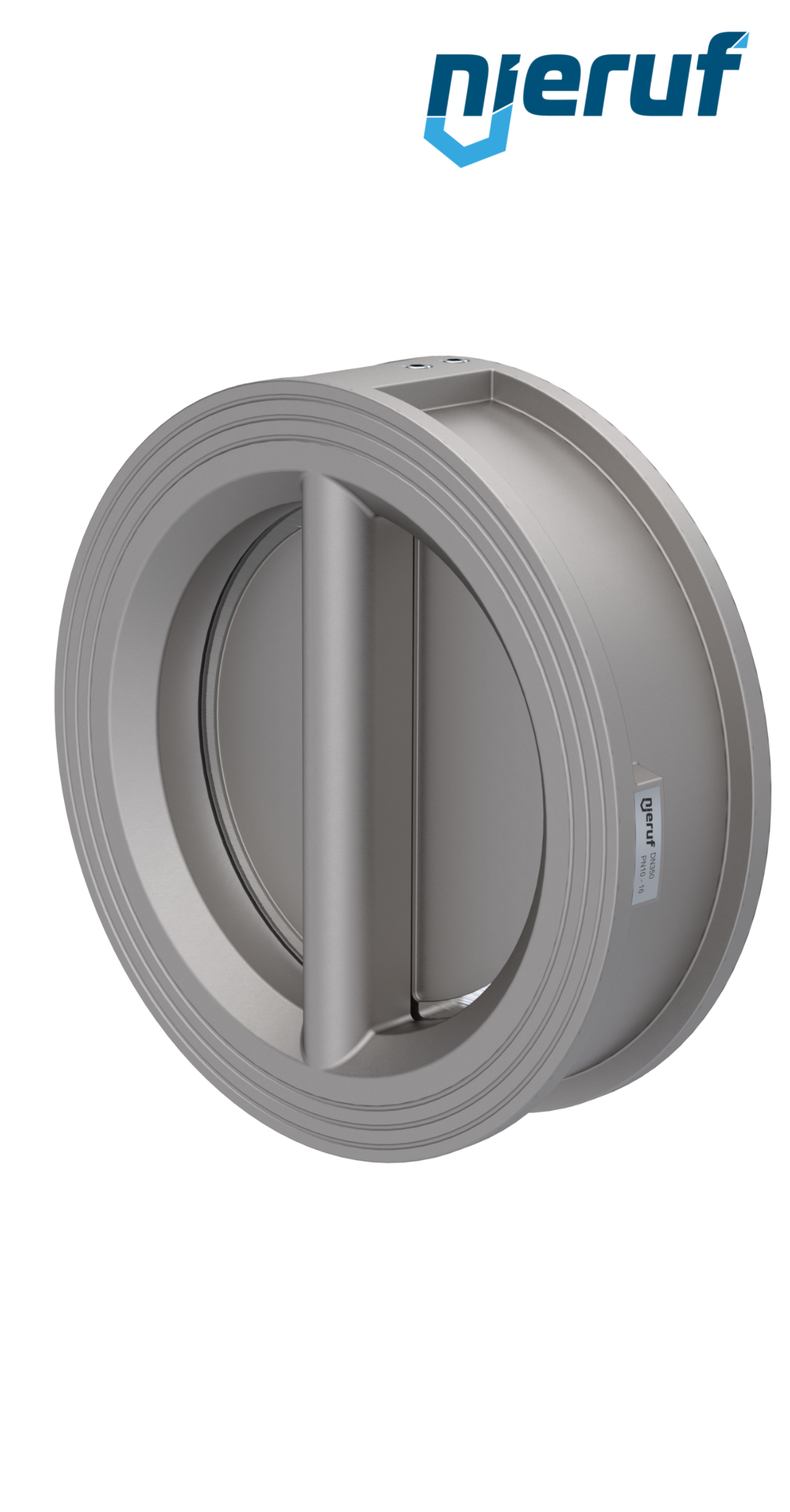

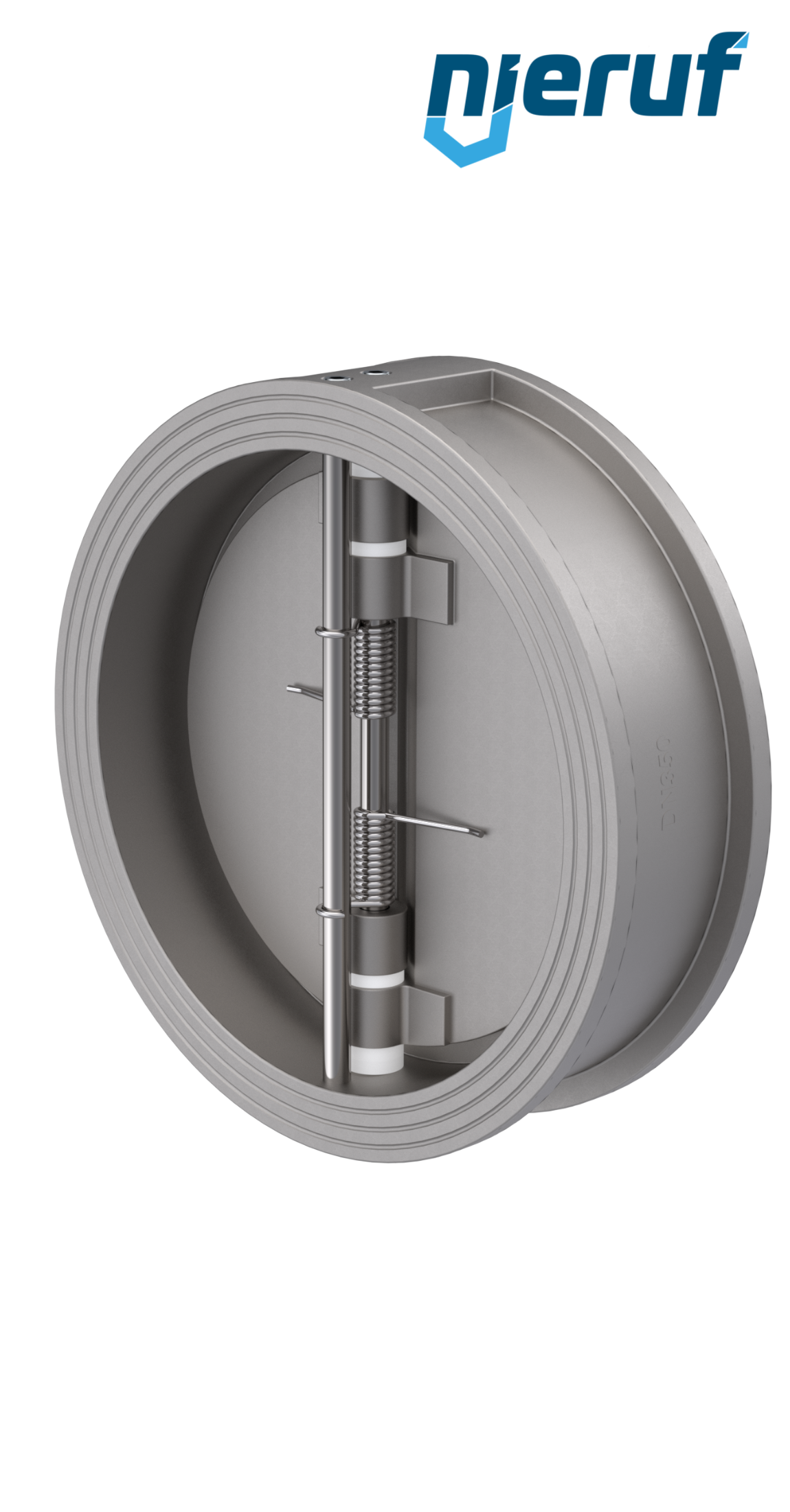

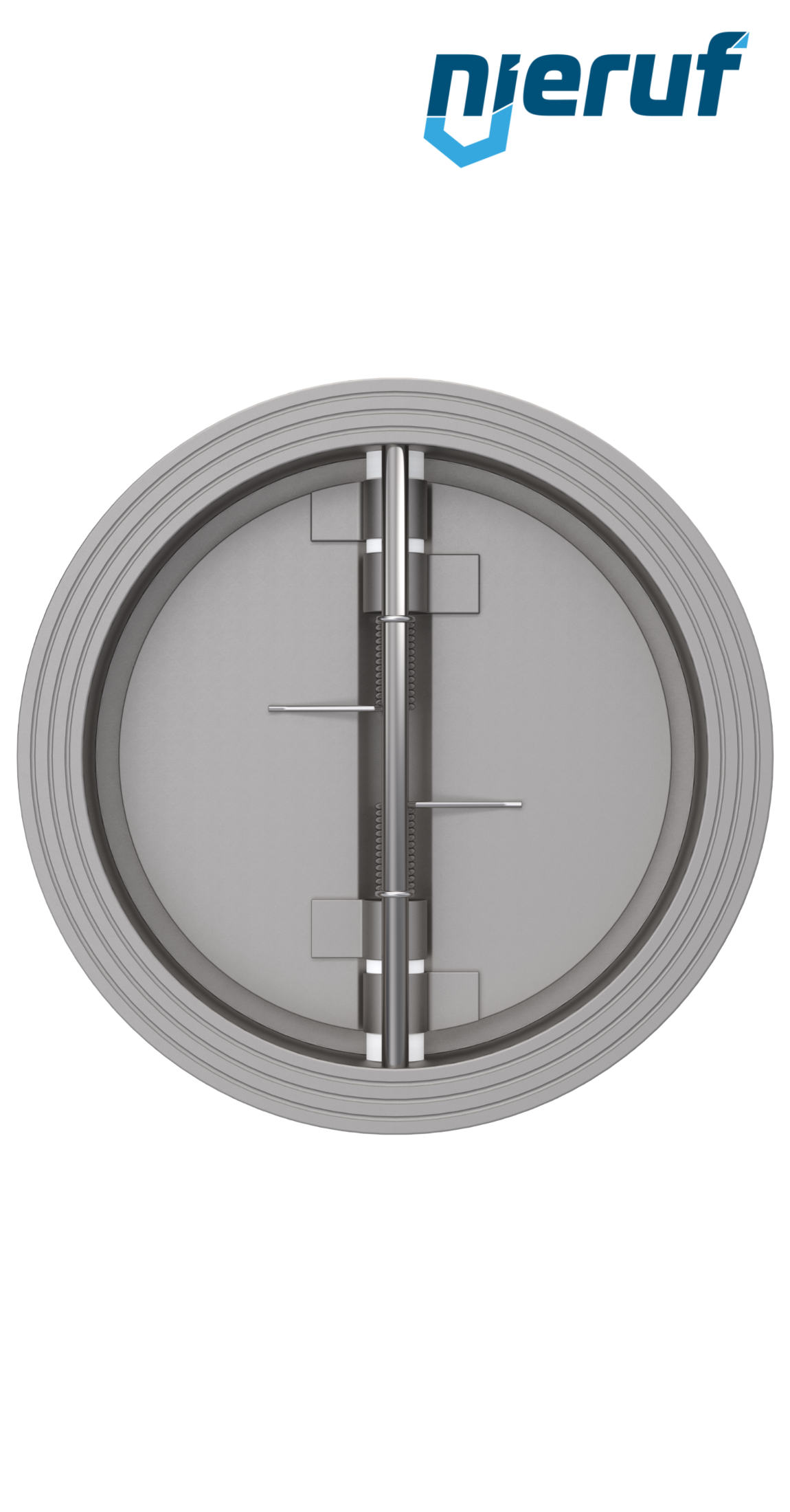

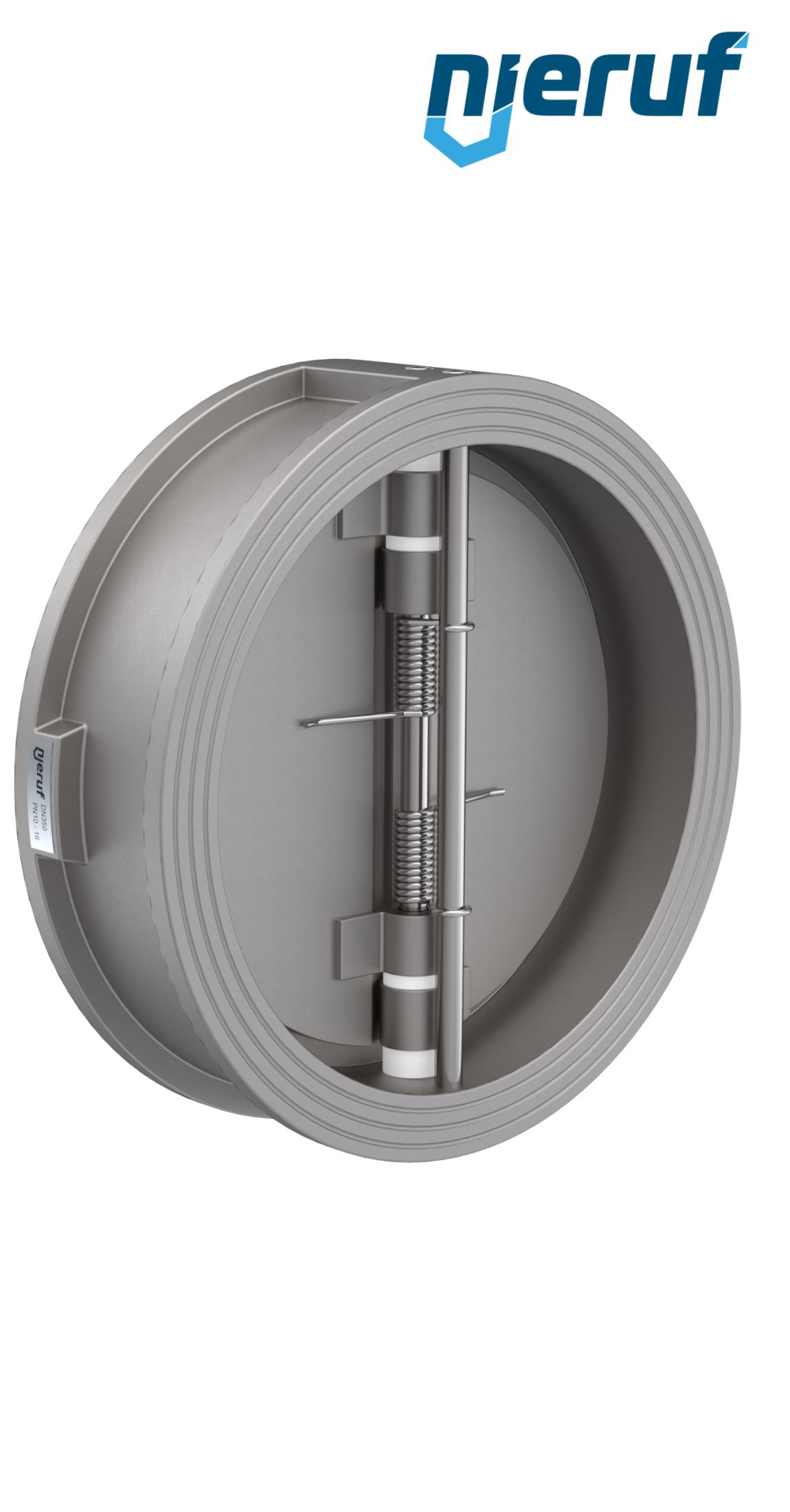

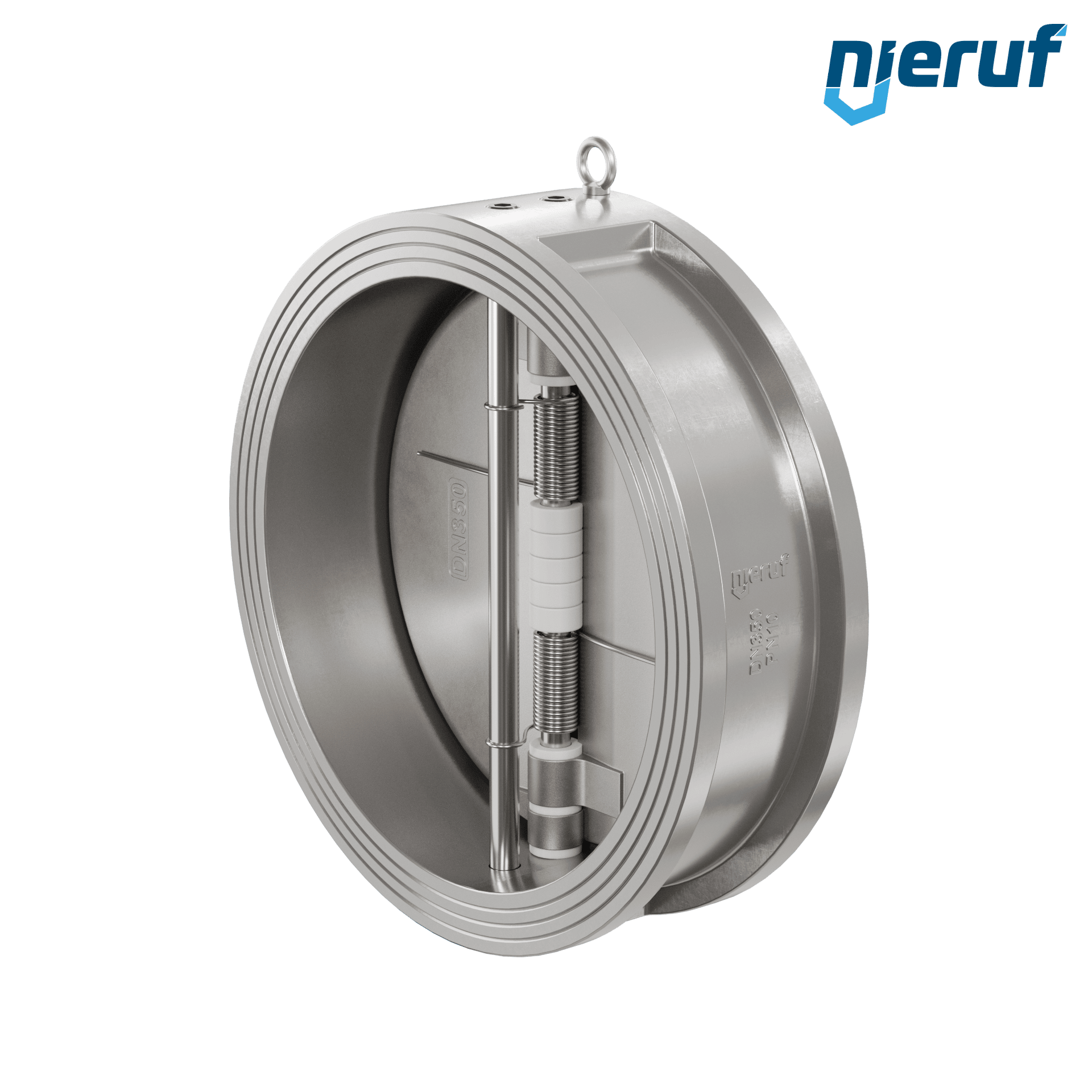

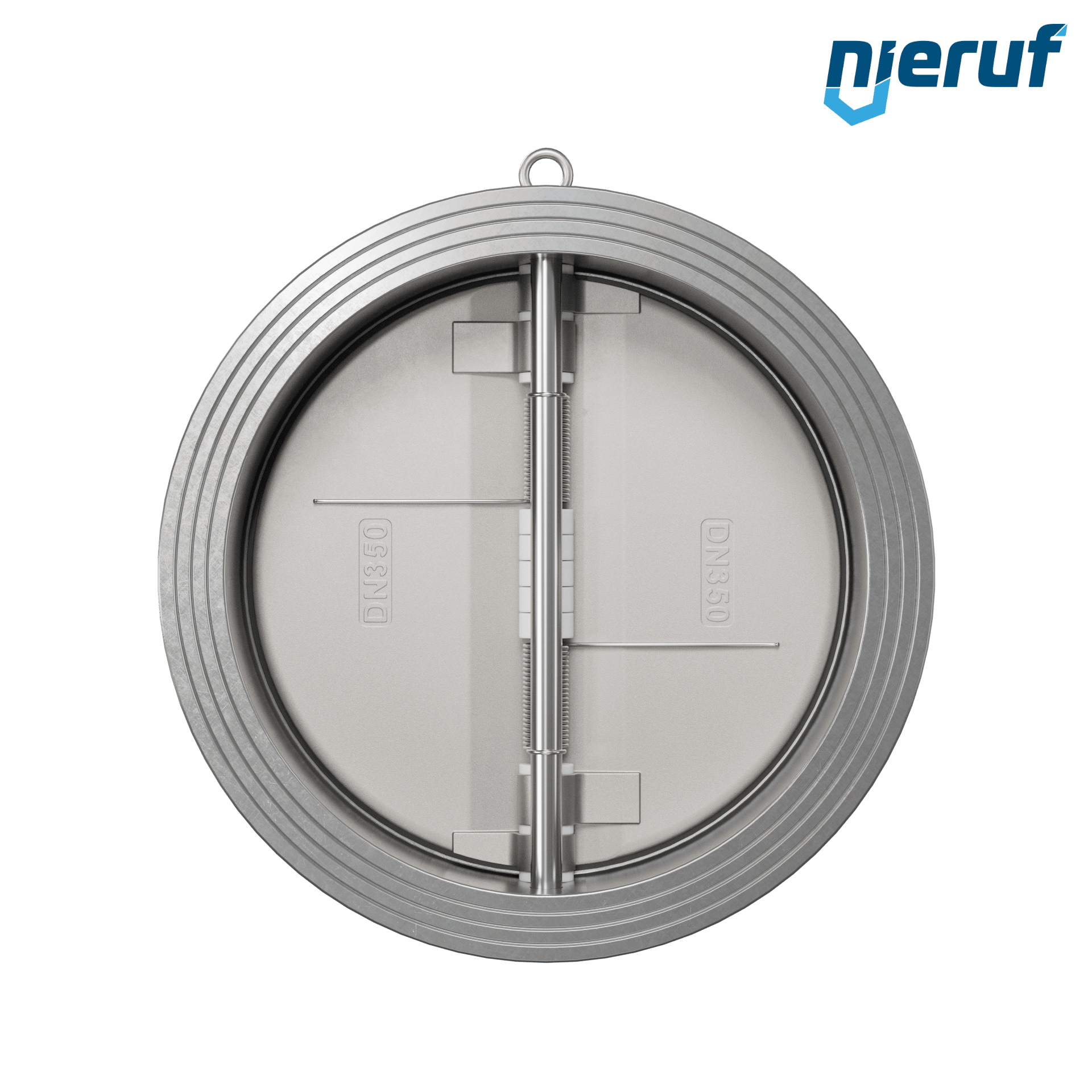

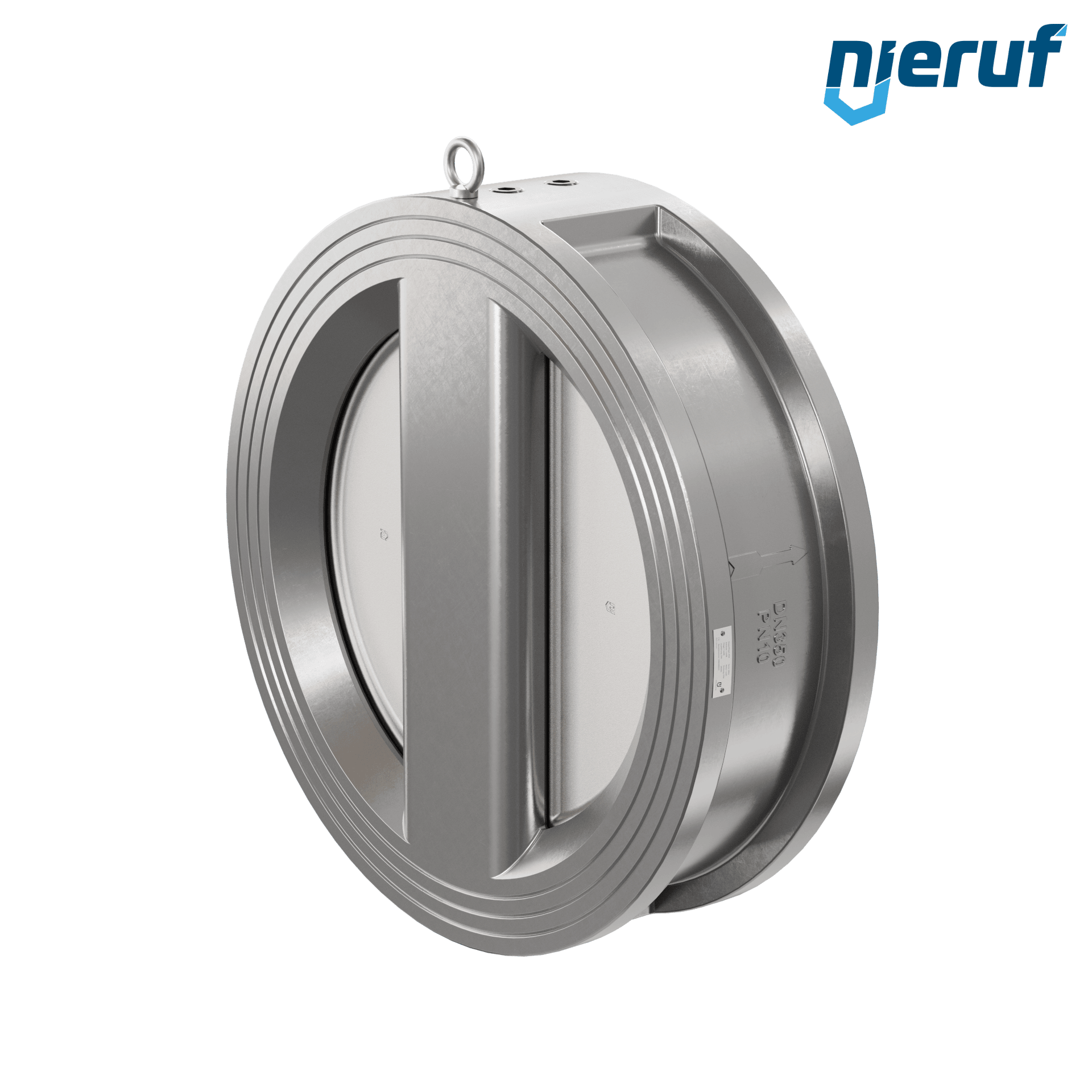

dual plate check valve DN350 DR03 stainless steel 1.4408 FKM (Viton)
- Lead time
- 3 - 5 working days
Questions about the article?
Our employee Richie Rost
will be happy to help you
dual plate check valve DN350 DR03 stainless steel 1.4408 FKM (Viton)
dual plate check valve DN350 seal FKM (Viton) PN 10 DIN EN 1092-1 Form B, body made of stainless steel 1.4408, wings made of stainless steel 1.4408
| product | dual plate check valve |
|---|---|
| type | DR03 |
| manufacturer | NieRuf |
| design | dual plate check valve |
| diameter | DN350 |
| body material | stainless steel 1.4408 |
| disc material | stainless steel 1.4408 |
| seal | FKM (Viton) |
| temperature | -10°C to +200°C |
| connection | flange |
| flange | PN 10 DIN EN 1092-1 Form B |
| pressure range | 0 - 10 bar |
| media | liquid and gaseous media |
| tightness acc. to DIN EN 12266 | leak rate A |
| option | with spring made of stainless steel |
| installation position | direction of flow horizontal, vertical from below - up to DN200 also from above |
| product feature | face to face according DIN EN 558-1 row 16 |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
dual plate check valve DN350 DR03 stainless steel 1.4408 FKM (Viton)
Article no.
: DR03000217
product:
dual plate check valve
type:
DR03
manufacturer:
NieRuf
design:
dual plate check valve
diameter:
DN350
body material:
stainless steel 1.4408
disc material:
stainless steel 1.4408
seal:
FKM (Viton)
temperature:
-10°C to +200°C
connection:
flange
flange:
PN 10 DIN EN 1092-1 Form B
pressure range:
0 - 10 bar
media:
liquid and gaseous media
tightness acc. to DIN EN 12266:
leak rate A
option:
with spring made of stainless steel
installation position:
direction of flow horizontal, vertical from below - up to DN200 also from above
product feature:
face to face according DIN EN 558-1 row 16
