DR03000116
dual plate check valve DN300 DR03 stainless steel 1.4408 EPDM
- Lead time
- 3 - 5 working days
Equipment
joint set dual plate check valve/flange DN300 - 12" Inch for flange PN10 stainless steel
€84.25 VAT included.
flange seal DN300 PN10 324x378x2 Klingersil C 4400
€37.72 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

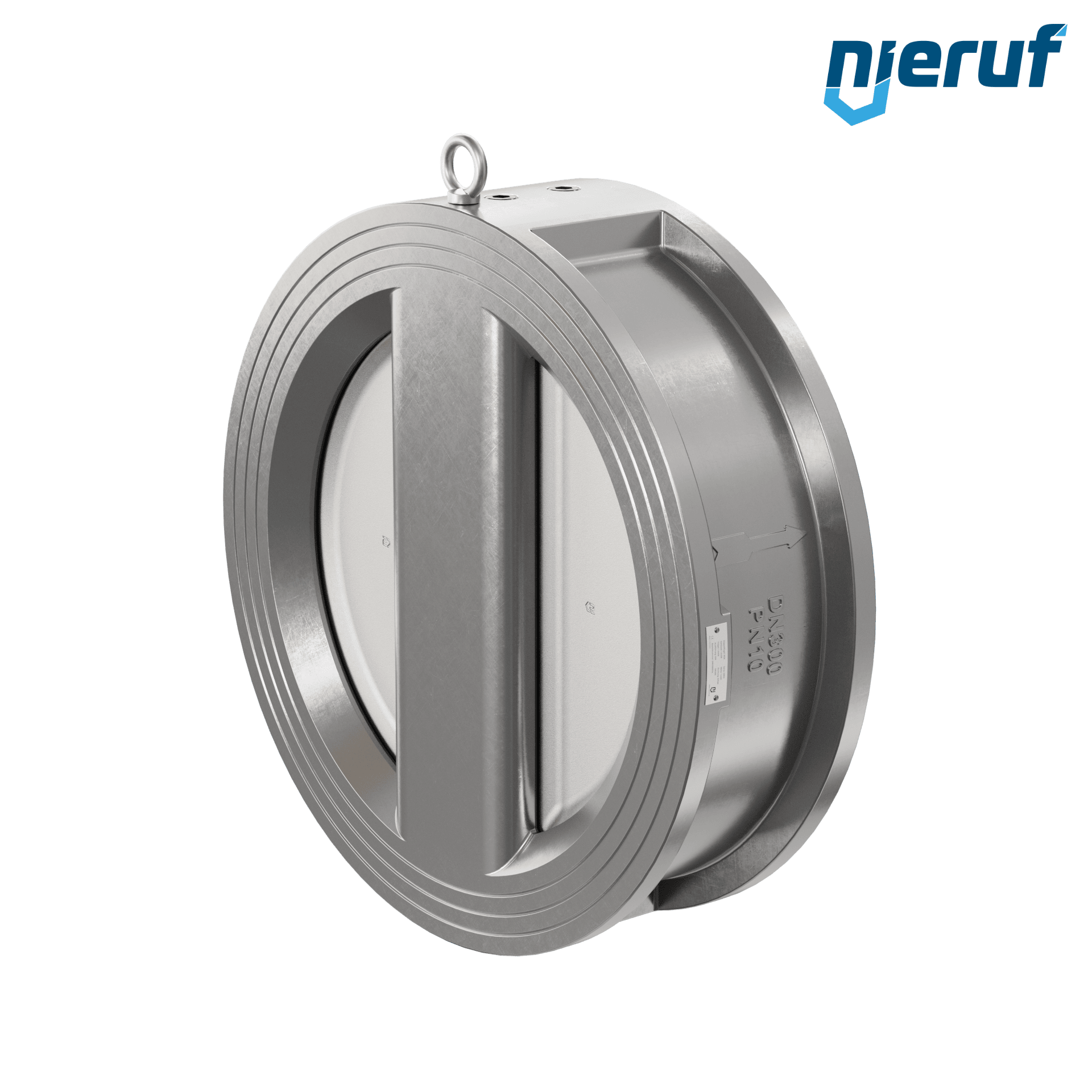

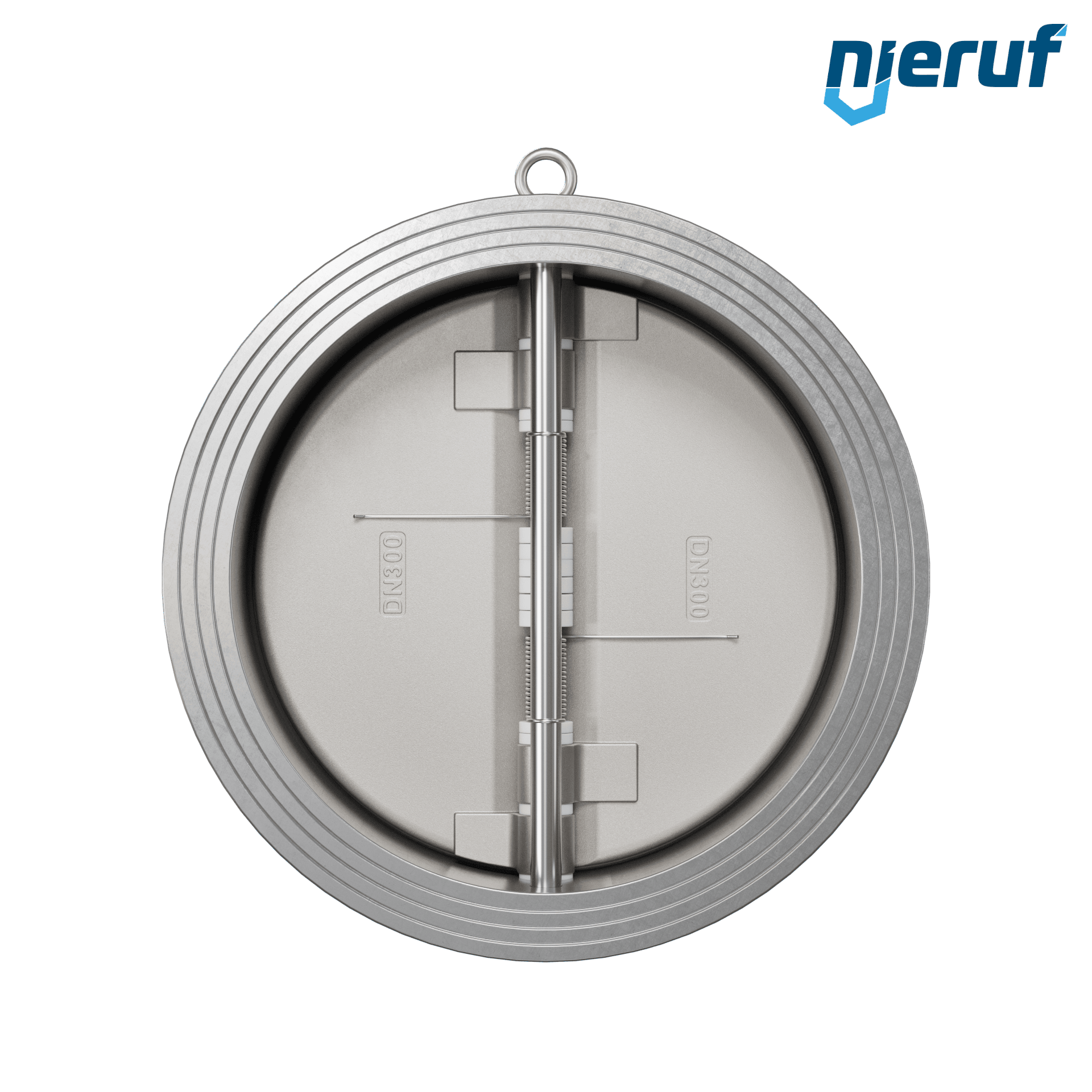

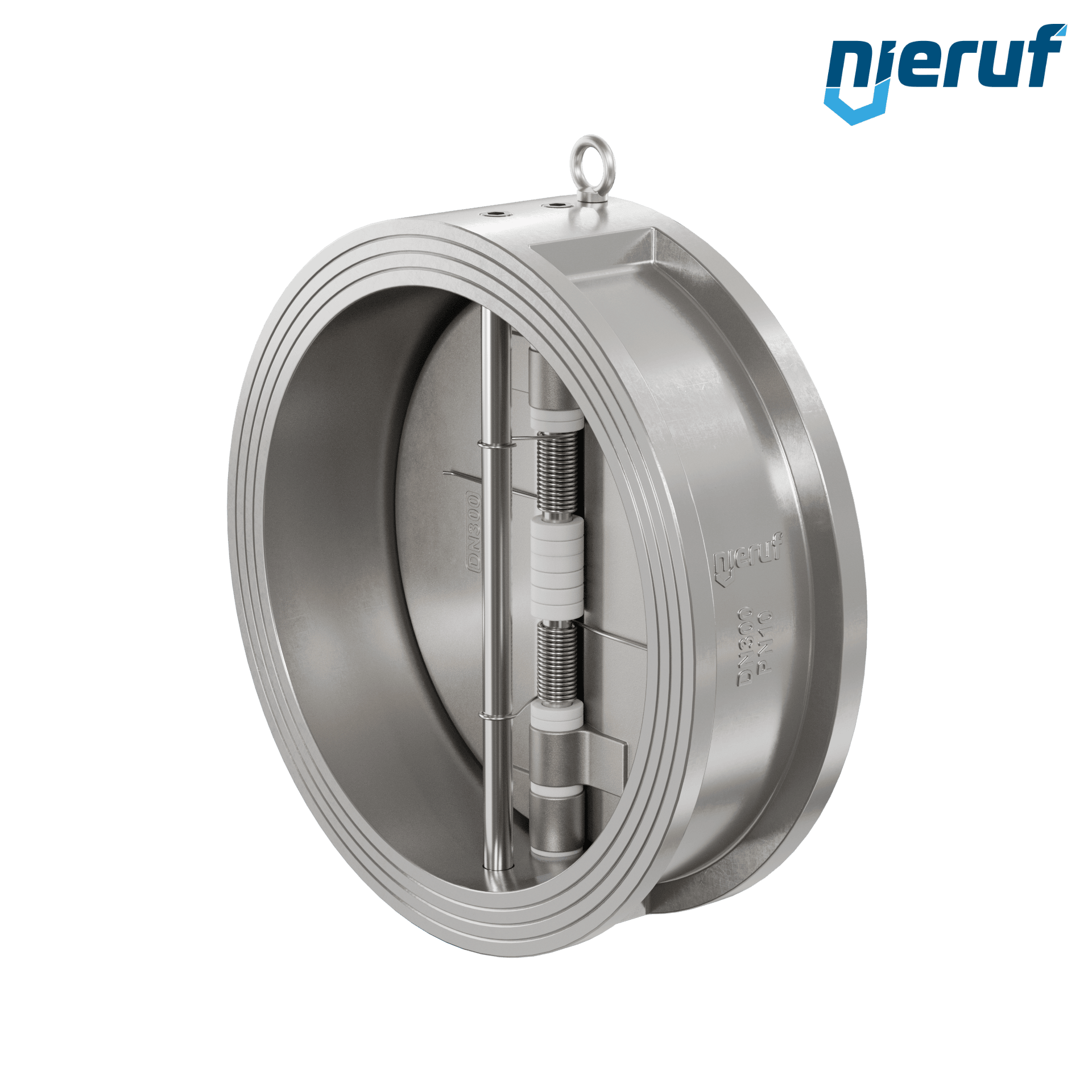

dual plate check valve DN300 DR03 stainless steel 1.4408 EPDM
dual plate check valve DN300 seal EPDM PN 10 DIN EN 1092-1 Form B, body made of stainless steel 1.4408, wings made of stainless steel 1.4408
| product | dual plate check valve |
|---|---|
| type | DR03 |
| manufacturer | NieRuf |
| design | dual plate check valve |
| diameter | DN300 |
| body material | stainless steel 1.4408 |
| disc material | stainless steel 1.4408 |
| seal | EPDM |
| temperature | -10°C to +120°C |
| connection | flange |
| flange | PN 10 DIN EN 1092-1 Form B |
| pressure range | 0 - 10 bar |
| media | liquid and gaseous media |
| tightness acc. to DIN EN 12266 | leak rate A |
| option | with spring made of stainless steel |
| installation position | direction of flow horizontal, vertical from below - up to DN200 also from above |
| product feature | face to face according DIN EN 558-1 row 16 |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
dual plate check valve DN300 DR03 stainless steel 1.4408 EPDM
Article no.
: DR03000116
product:
dual plate check valve
type:
DR03
manufacturer:
NieRuf
design:
dual plate check valve
diameter:
DN300
body material:
stainless steel 1.4408
disc material:
stainless steel 1.4408
seal:
EPDM
temperature:
-10°C to +120°C
connection:
flange
flange:
PN 10 DIN EN 1092-1 Form B
pressure range:
0 - 10 bar
media:
liquid and gaseous media
tightness acc. to DIN EN 12266:
leak rate A
option:
with spring made of stainless steel
installation position:
direction of flow horizontal, vertical from below - up to DN200 also from above
product feature:
face to face according DIN EN 558-1 row 16
Equipment
joint set dual plate check valve/flange DN300 - 12" Inch for flange PN10 stainless steel
Lead time: 3 - 5 working days
