RV01000506

check valve DN 32 Stainless steel CF8M metall PN 6/10/16/25/40 DIN EN 1092-1 Form B

€27.10*

€32.25 VAT included.

Delivery time: 3 - 5 working days

Delivery information

Equipment

FL01000106

Welding neck flange DN32 PN10/16/25/40 EN1092-1 11 B1 1.4541

€39.80*

€47.36 VAT included.


VS05000106

joint set check valve/flange DN32 - 1 1/4" Inch for flange PN10/16/25/40 stainless steel

€10.00*

€11.90 VAT included.


FD01000106

flange seal DN32 PN10/16/25/40 43x82x2 Klingersil C 4400

€2.10*

€2.50 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

NieRuf-Exchange

NieRuf-Exchange

Certified

Certified

Product number: RV01000506
check valve DN 32 Stainless steel CF8M metall PN 6/10/16/25/40 DIN EN 1092-1 Form B

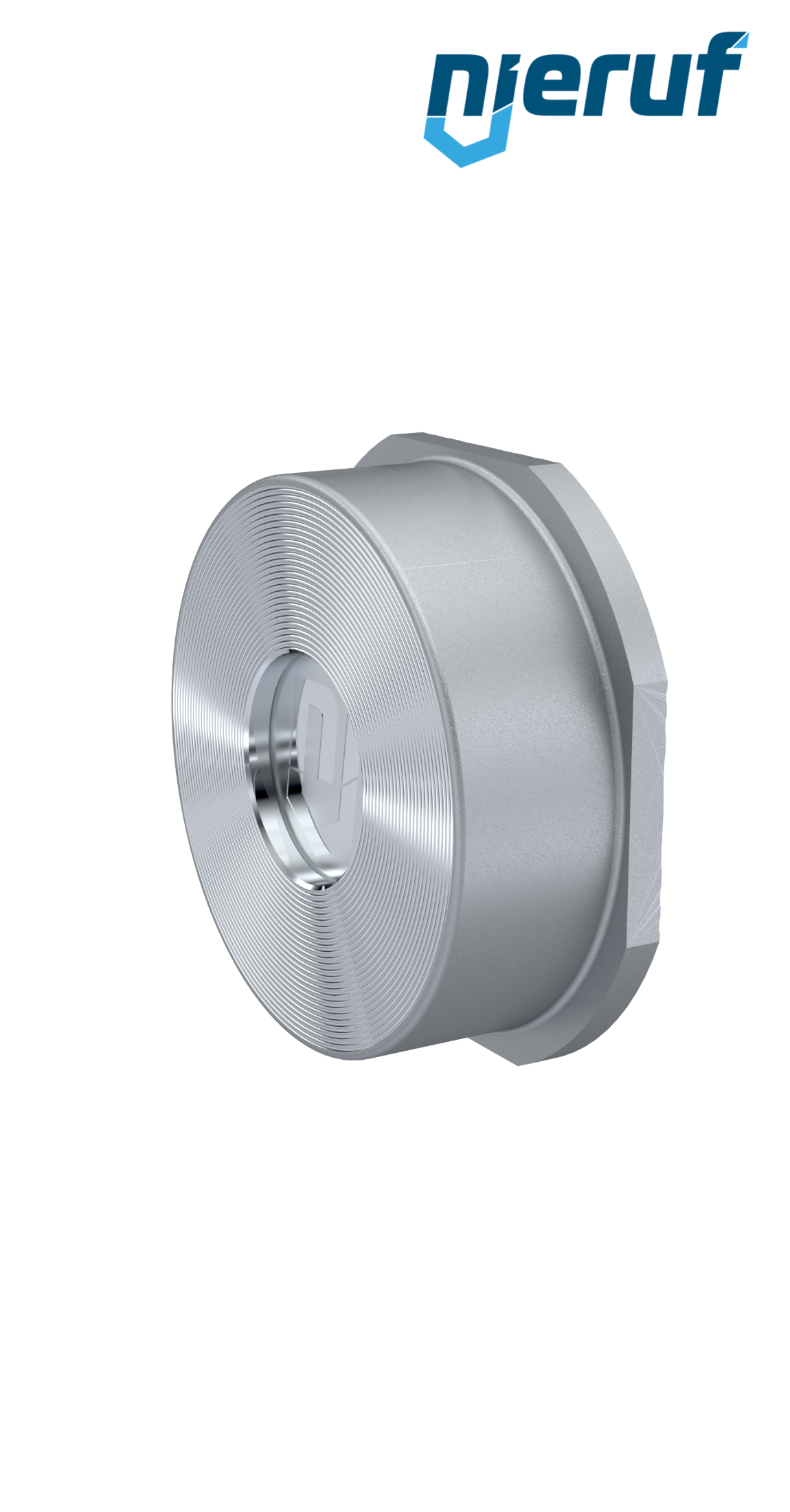

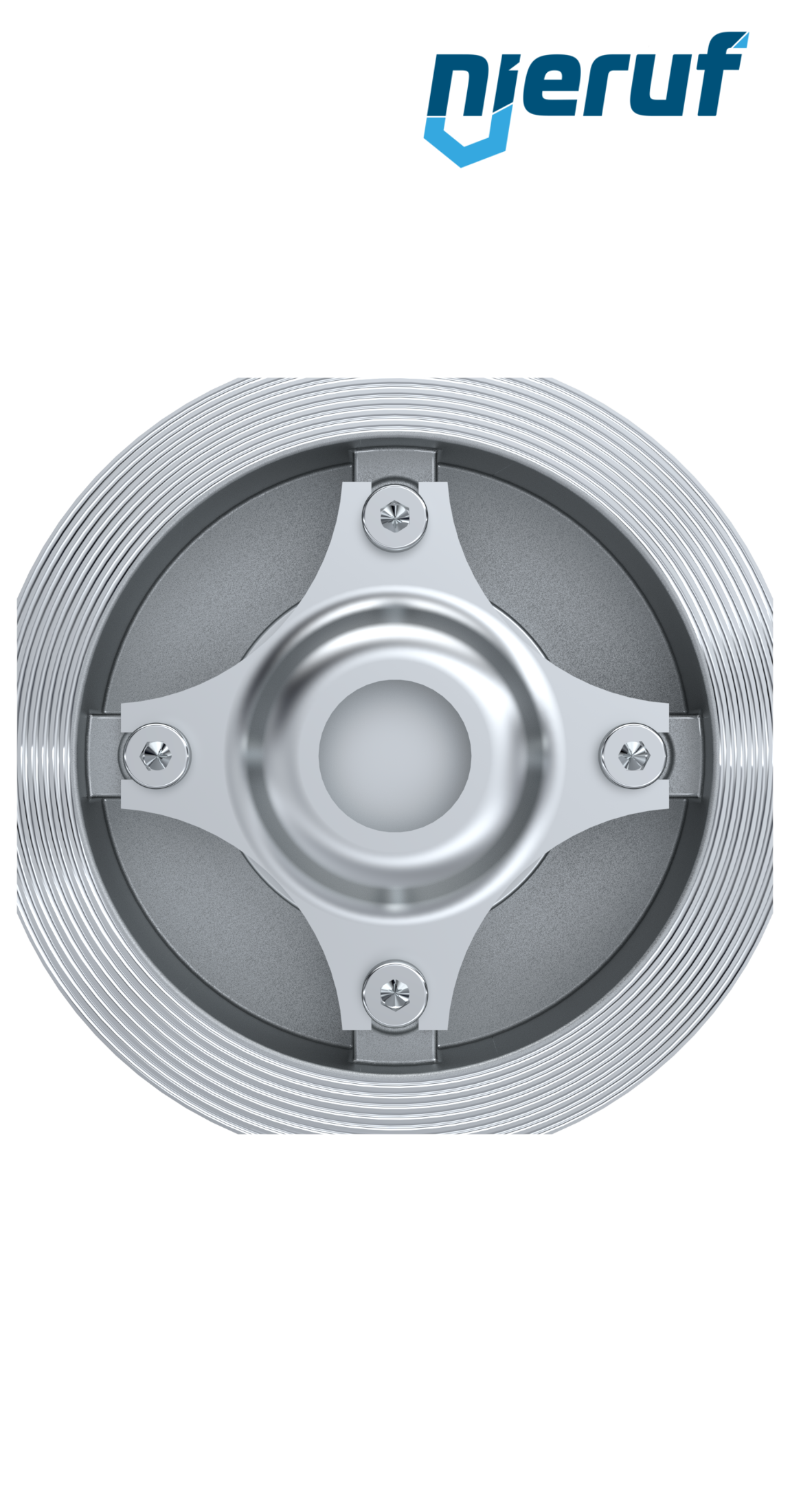

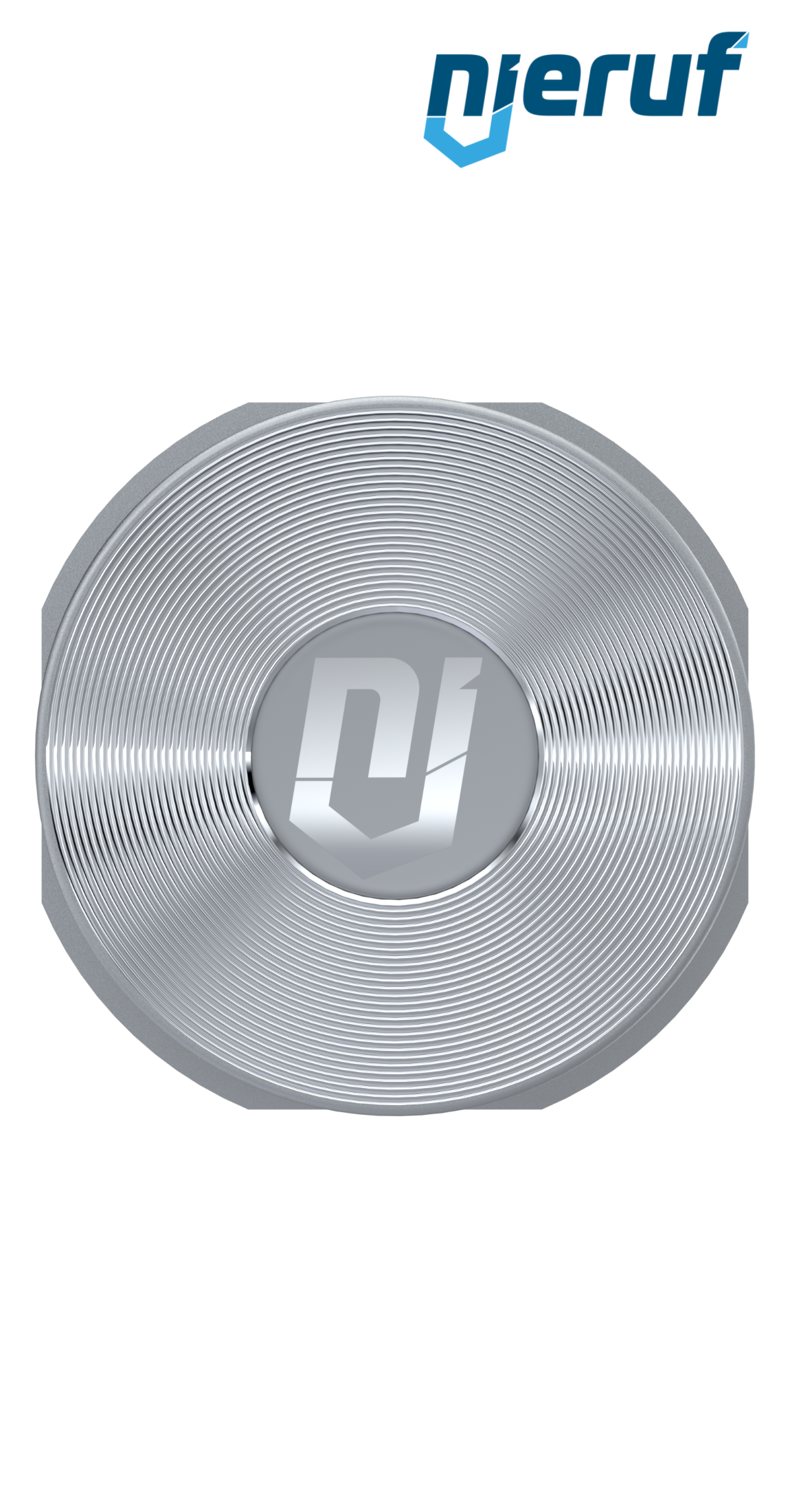

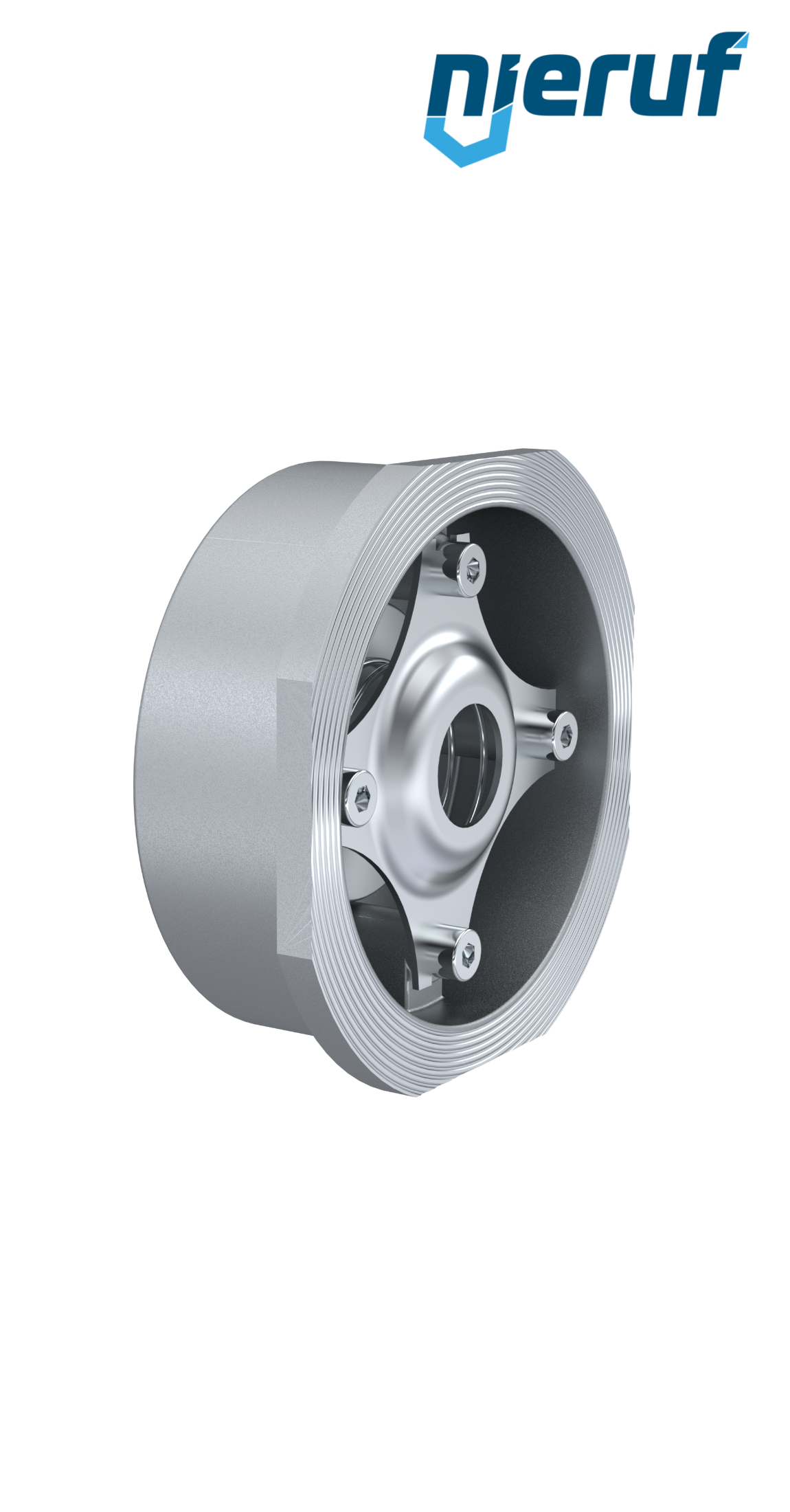

disco check valve DN 32 made of Stainless steel CF8M seal metall for liquid and gaseous media PN 6/10/16/25/40 DIN EN 1092-1 Form B

product: check valve
type: RV01
manufacturer: NieRuf
design: disco check valve
diameter: DN 32
body material: Stainless steel CF8M
disc material: Stainless steel CF8M
seal: metall
tightness acc. to DIN EN 12266: leak rate ≥ G
temperature: -20°C up to +300°C
flange: PN 6/10/16/25/40 DIN EN 1092-1 Form B
pressure range: 0 - 40 bar
Kv-value in m3/h: 17,00
spring material: stainless steel 1.4436
media: liquid and gaseous media
installation position: any position
product feature: face to face according DIN EN 558-1 row 49

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

check valve DN 32 Stainless steel CF8M metall PN 6/10/16/25/40 DIN EN 1092-1 Form B

Article no. : RV01000506
product: check valve
type: RV01
manufacturer: NieRuf
design: disco check valve
diameter: DN 32
body material: Stainless steel CF8M
disc material: Stainless steel CF8M
seal: metall
tightness acc. to DIN EN 12266: leak rate ≥ G
temperature: -20°C up to +300°C
flange: PN 6/10/16/25/40 DIN EN 1092-1 Form B
pressure range: 0 - 40 bar
Kv-value in m3/h: 17,00
spring material: stainless steel 1.4436
media: liquid and gaseous media
installation position: any position
product feature: face to face according DIN EN 558-1 row 49
