RV01000403
check valve DN 15 Stainless steel CF8M NBR PN 6/10/16/25/40 DIN EN 1092-1 Form B
- Lead time
- 3 - 5 working days
Equipment
joint set check valve/flange DN15 - 1/2" Inch for flange PN10/16/25/40 stainless steel
€4.28 VAT included.
flange seal DN15 PN10/16/25/40 22x51x2 Klingersil C 4400
€2.38 VAT included.
Welding neck flange DN15 PN10/16/25/40 EN1092-1 11 B1 1.4541
€13.33 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
check valve DN 15 Stainless steel CF8M NBR PN 6/10/16/25/40 DIN EN 1092-1 Form B

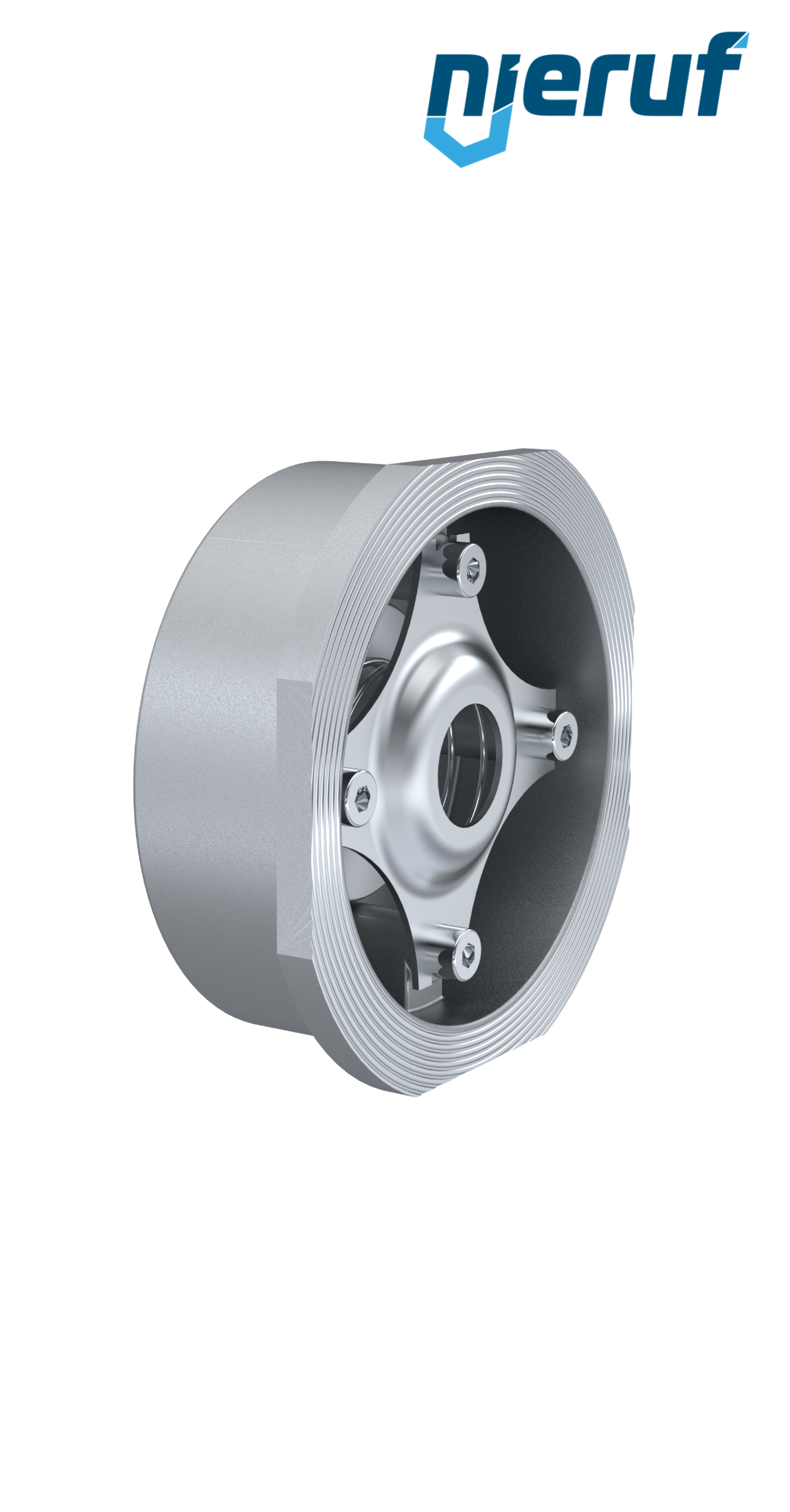

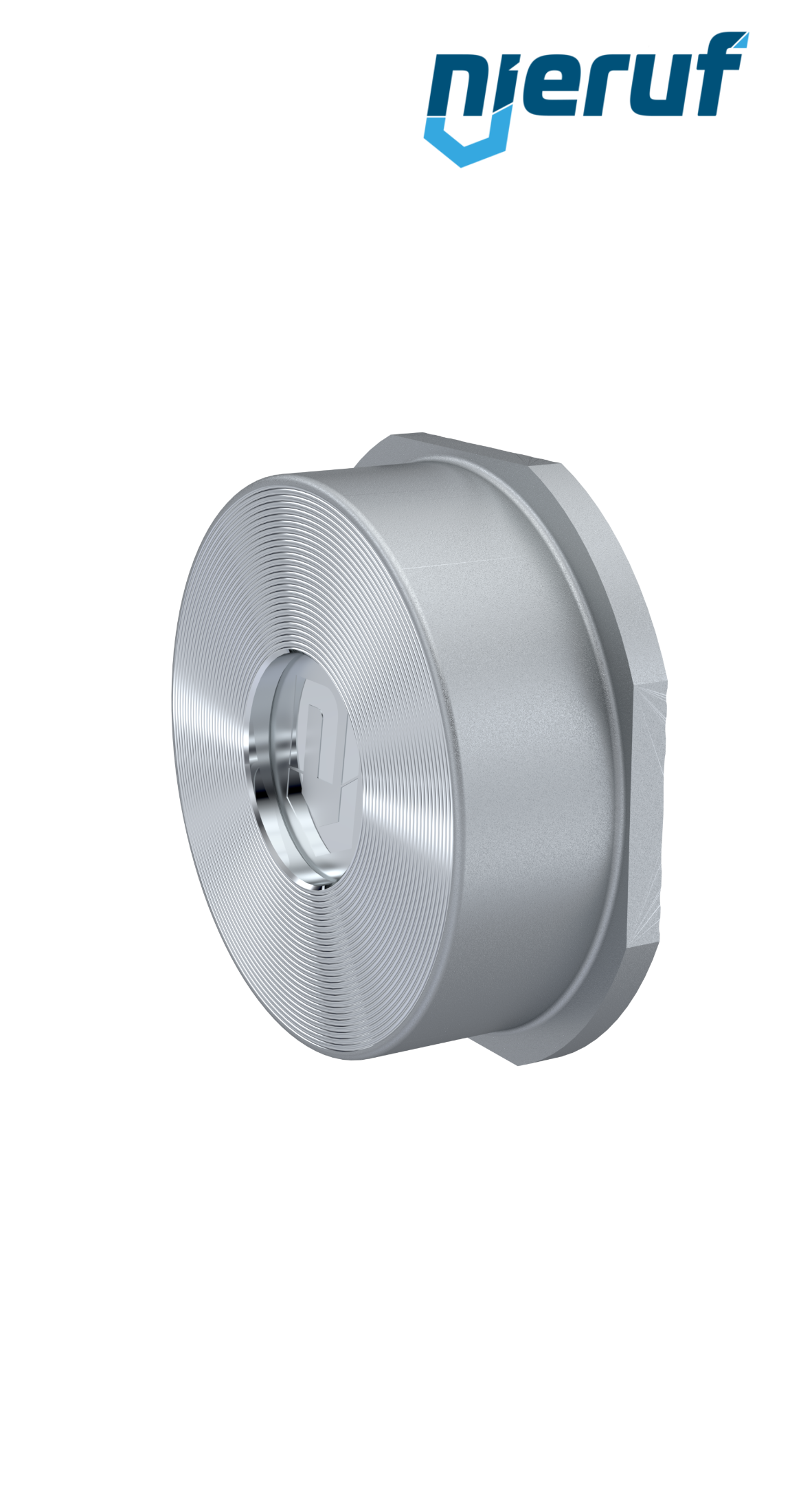

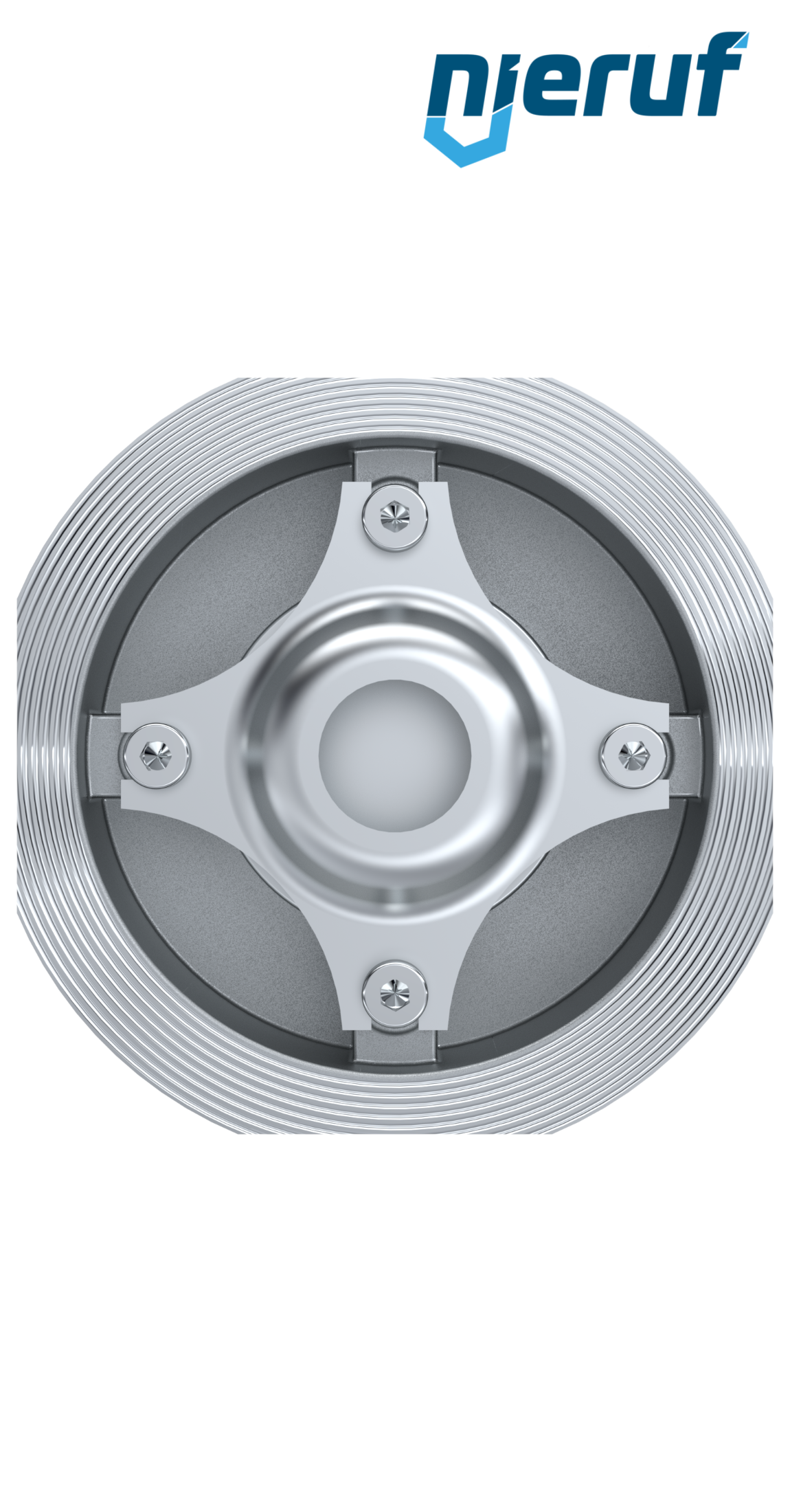

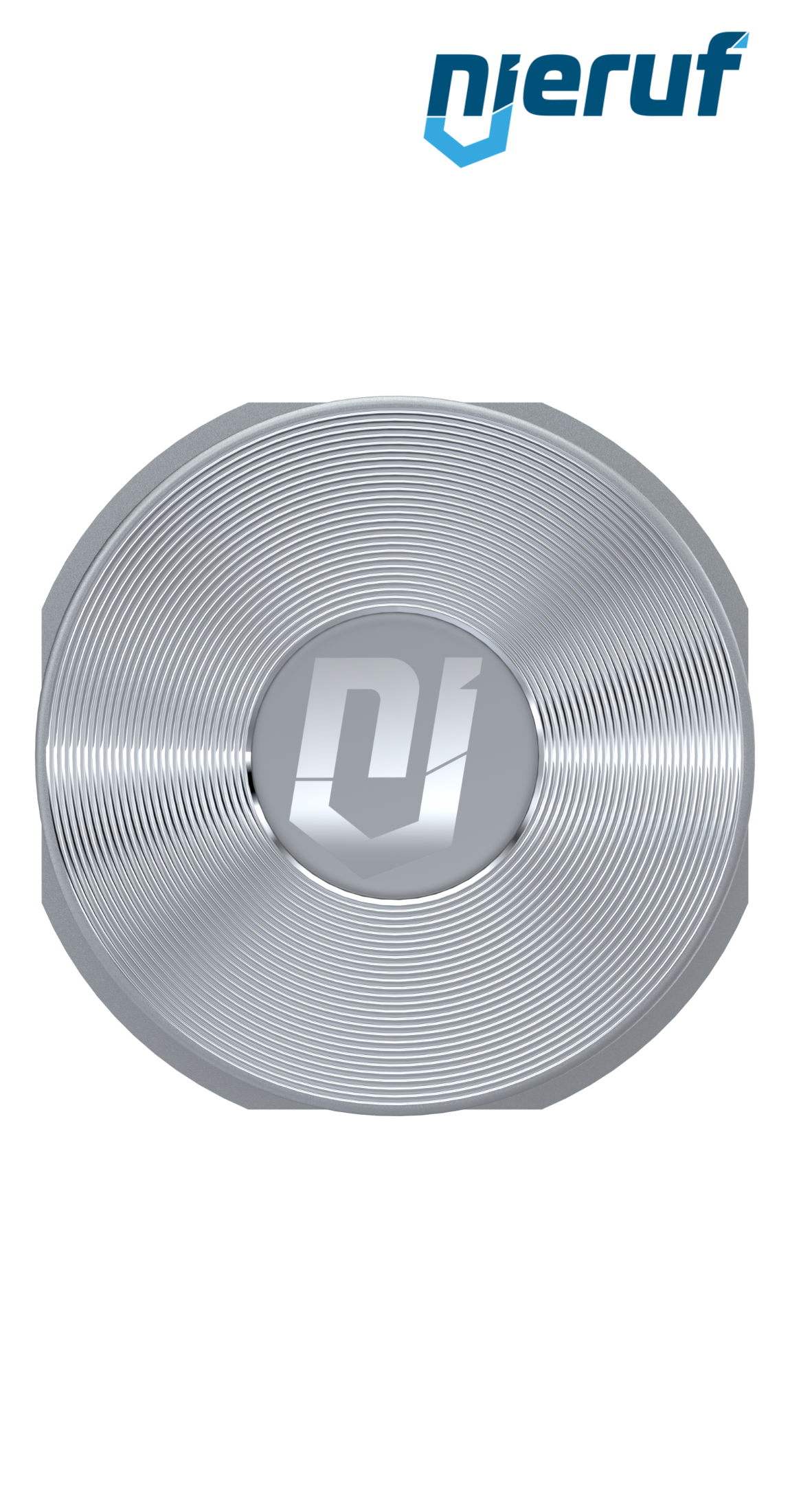

disco check valve DN 15 made of Stainless steel CF8M seal NBR for liquid and gaseous media PN 6/10/16/25/40 DIN EN 1092-1 Form B
| product | check valve |
|---|---|
| type | RV01 |
| manufacturer | NieRuf |
| design | disco check valve |
| diameter | DN 15 |
| body material | stainless steel 1.4408 / CF8M |
| disc material | stainless steel 1.4571 / AISI 316Ti |
| seal | NBR |
| tightness acc. to DIN EN 12266 | leak rate A |
| temperature | -20°C up to +90°C |
| flange | PN 6/10/16/25/40 DIN EN 1092-1 Form B |
| pressure range | 0 - 40 bar |
| Kv-value in m3/h | 2,00 |
| spring material | stainless steel 1.4436 / AISI 316 |
| media | liquid and gaseous media |
| installation position | any position |
| product feature | face to face according DIN EN 558-1 row 49 |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
check valve DN 15 Stainless steel CF8M NBR PN 6/10/16/25/40 DIN EN 1092-1 Form B
Article no.
: RV01000403
product:
check valve
type:
RV01
manufacturer:
NieRuf
design:
disco check valve
diameter:
DN 15
body material:
stainless steel 1.4408 / CF8M
disc material:
stainless steel 1.4571 / AISI 316Ti
seal:
NBR
tightness acc. to DIN EN 12266:
leak rate A
temperature:
-20°C up to +90°C
flange:
PN 6/10/16/25/40 DIN EN 1092-1 Form B
pressure range:
0 - 40 bar
Kv-value in m3/h:
2,00
spring material:
stainless steel 1.4436 / AISI 316
media:
liquid and gaseous media
installation position:
any position
product feature:
face to face according DIN EN 558-1 row 49
Equipment
Welding neck flange DN15 PN10/16/25/40 EN1092-1 11 B1 1.4541
Lead time: in stock
joint set check valve/flange DN15 - 1/2" Inch for flange PN10/16/25/40 stainless steel
Lead time: in stock
flange seal DN15 PN10/16/25/40 22x51x2 Klingersil C 4400
Lead time: in stock
