RV06000304

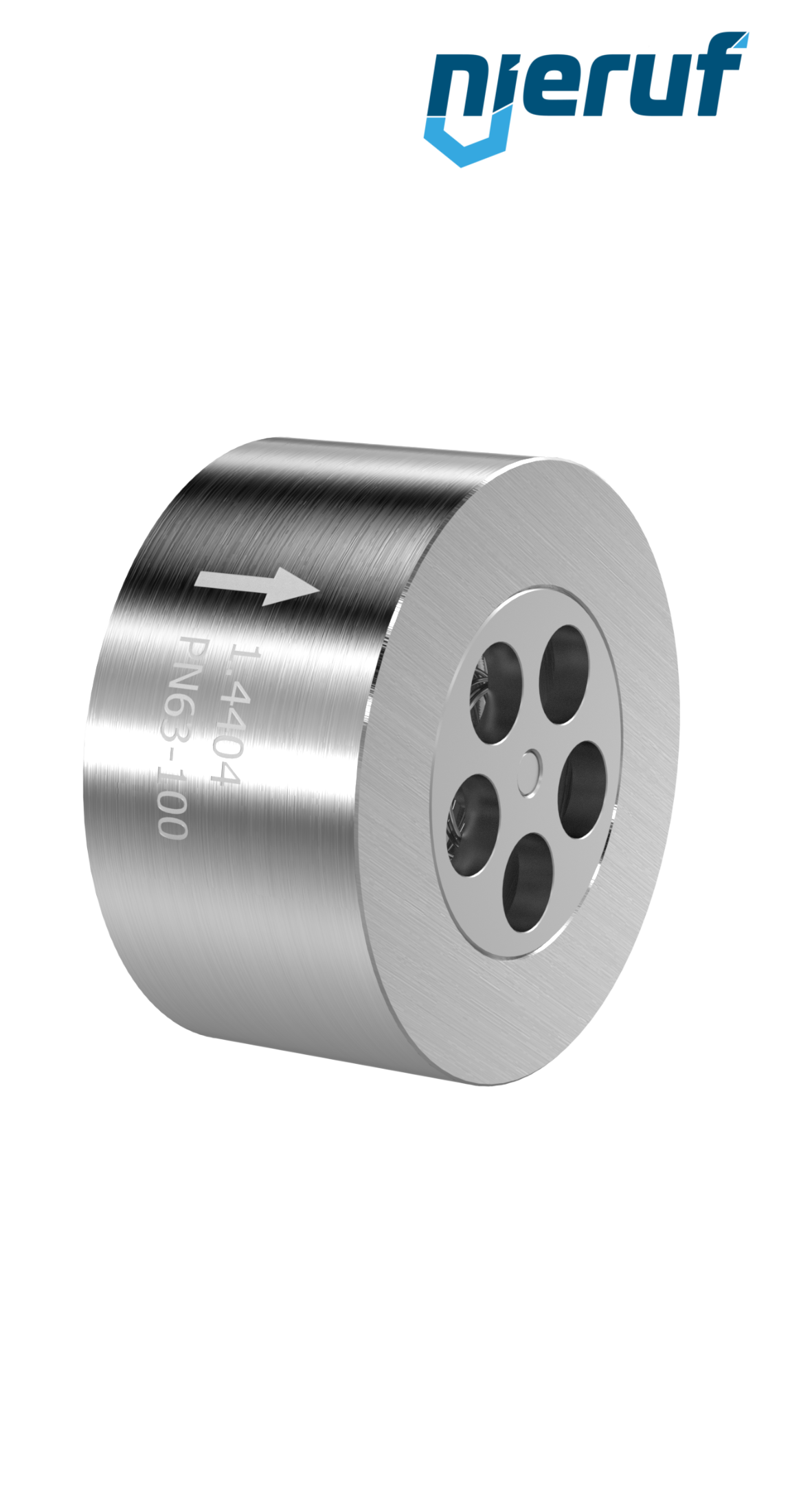

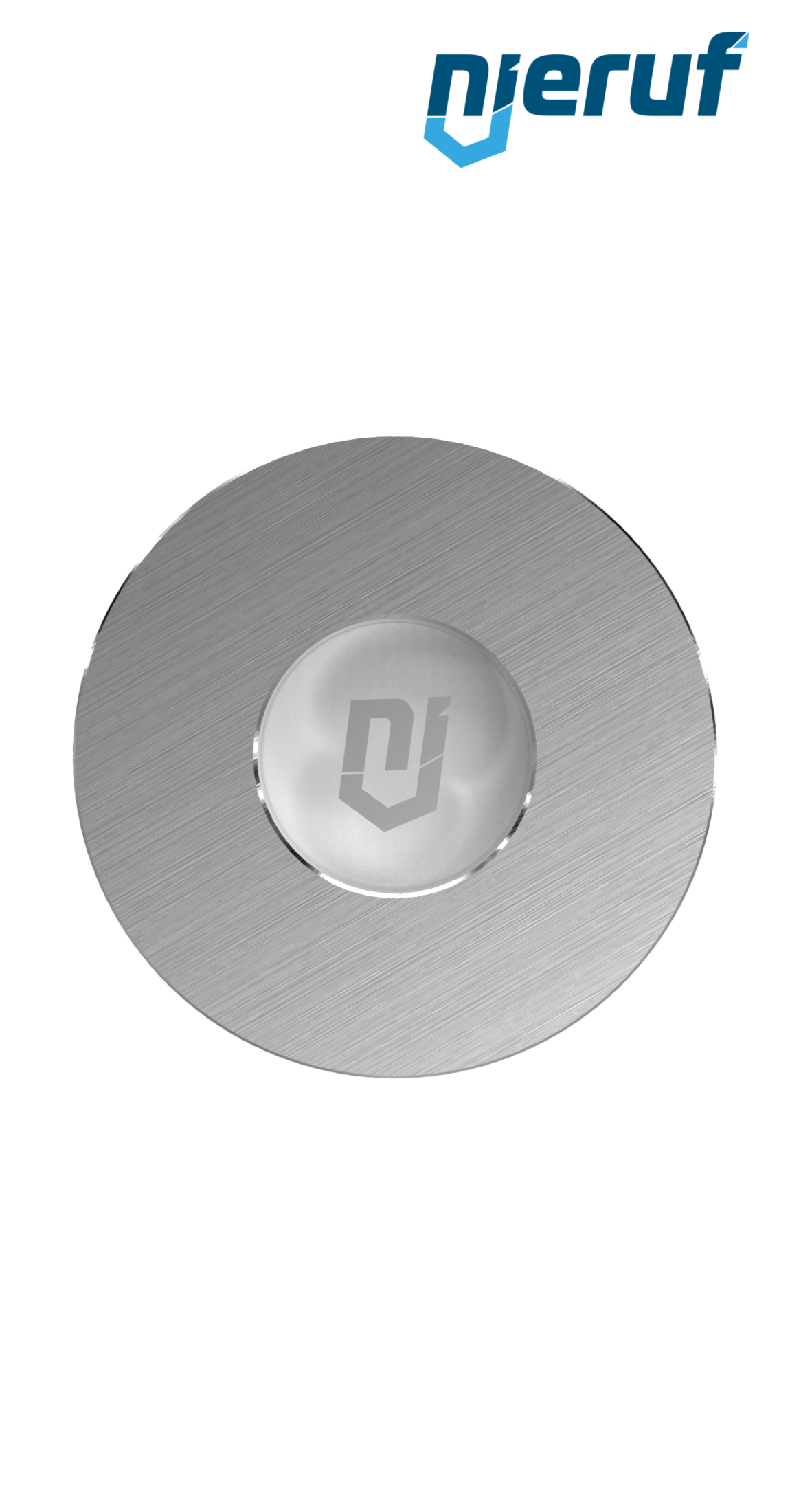

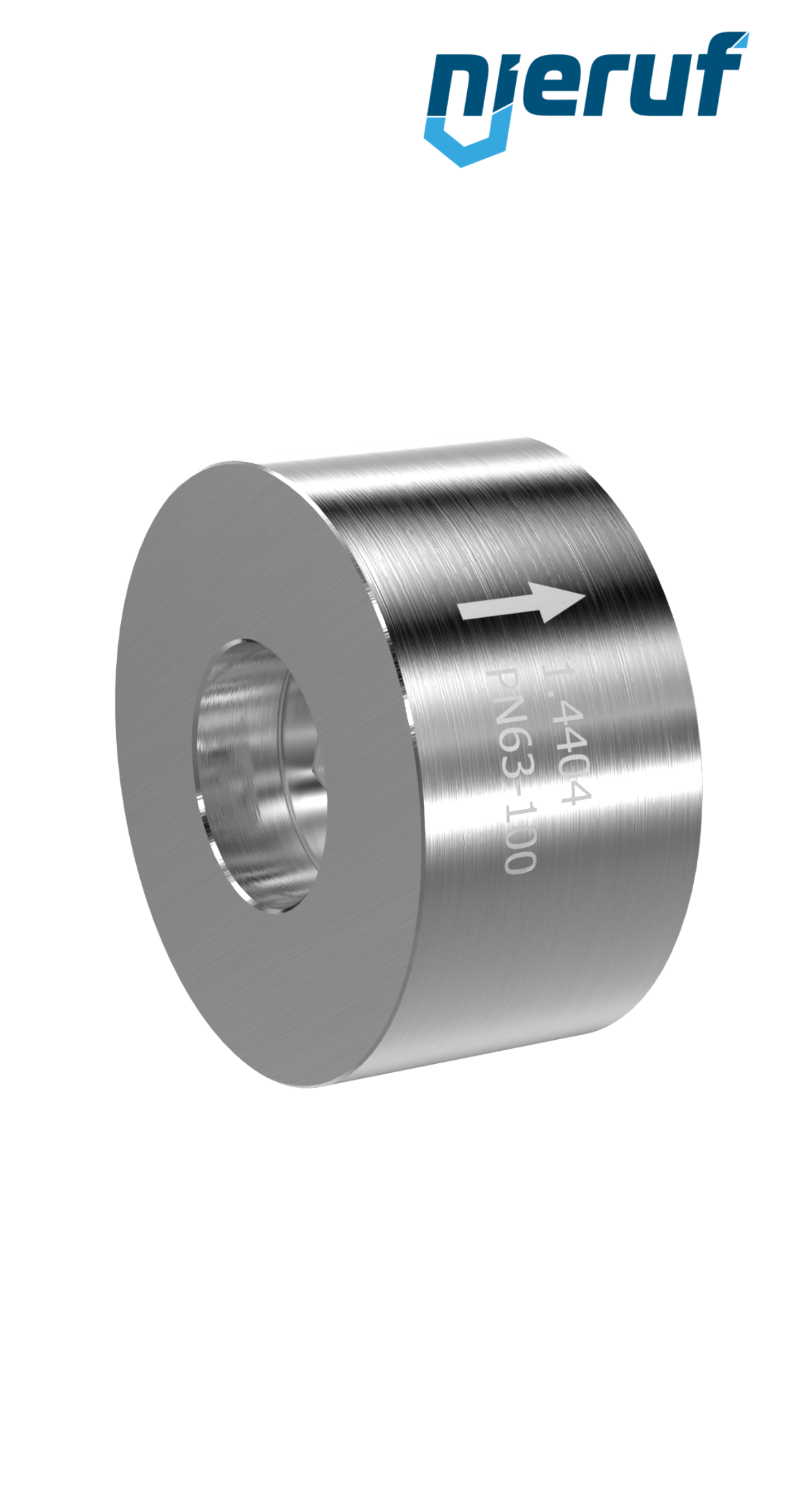

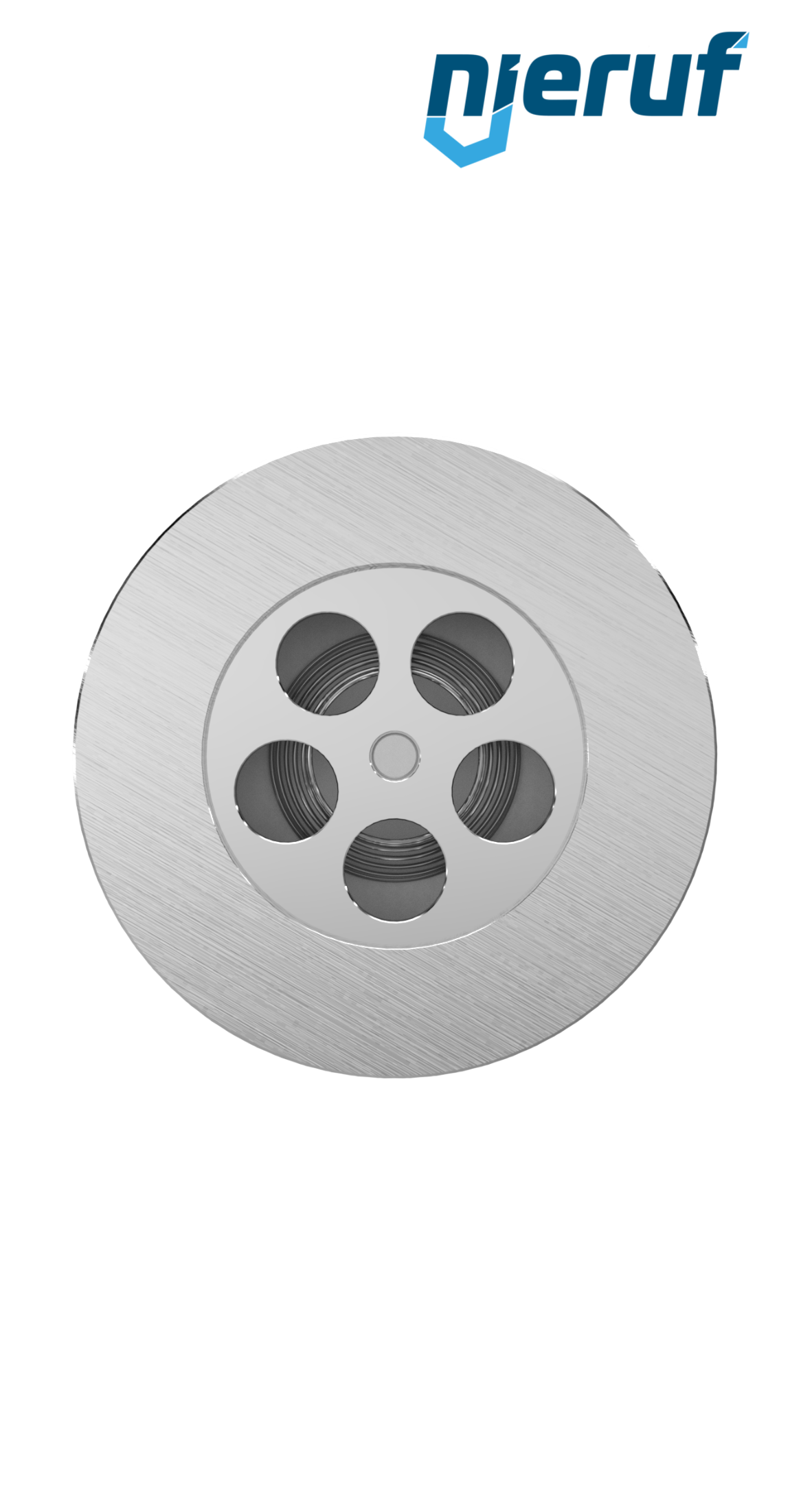

Check valve DN 20 stainless steel CF8M PTFE PN 63/100/160 (+ASME B16.5 / ANSI 600 and 900)

€327.30*

€389.49 VAT included.

*Prices excl. VAT plus shipping costs

Lead time: 3 - 5 working days

Resistance check

Our employee <strong>Richie Rost</strong><br>will be happy to help you

Questions about the article?

Our employee Richie Rost
will be happy to help you

Tel: +49714396669-18

E-Mail: rost@nieruf.com

NIERUF-SERVICE

24 months warranty

Certified

Downloads

3D model

Datasheet

Check valve DN 20 stainless steel CF8M PTFE PN 63/100/160 (+ASME B16.5 / ANSI 600 and 900)

DISCO - Check valve DN 20 made of stainless steel CF8M seal PTFE for liquid and gaseous media PN 63/100/160 (+ASME B16.5 ANSI 600 and 900) DIN EN 1092-1 B1

product	check valve
type	RV06
manufacturer	NieRuf
design	disco check valve
diameter	DN 20
body material	stainless steel 1.4404 / AISI 316L
disc material	stainless steel 1.4404 / AISI 316L
seal	PTFE
tightness acc. to DIN EN 12266	leak rate A
temperature	-196°C up to +250°C
flange	PN 63/100/160 DIN EN 1092-1 B1, ASME B16.5 ANSI 600 / 900
pressure range	0 - 160 bar
Kv-value in m3/h	9,00
spring material	stainless steel 1.4571 / AISI 316Ti
media	liquid and gaseous media
installation position	any position
product feature	Length according DIN EN 558 row 52

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Check valve DN 20 stainless steel CF8M PTFE PN 63/100/160 (+ASME B16.5 / ANSI 600 and 900)

Article no. : RV06000304
product: check valve
type: RV06
manufacturer: NieRuf
design: disco check valve
diameter: DN 20
body material: stainless steel 1.4404 / AISI 316L
disc material: stainless steel 1.4404 / AISI 316L
seal: PTFE
tightness acc. to DIN EN 12266: leak rate A
temperature: -196°C up to +250°C
flange: PN 63/100/160 DIN EN 1092-1 B1, ASME B16.5 ANSI 600 / 900
pressure range: 0 - 160 bar
Kv-value in m3/h: 9,00
spring material: stainless steel 1.4571 / AISI 316Ti
media: liquid and gaseous media
installation position: any position
product feature: Length according DIN EN 558 row 52

3D model STEP - 61.23 KiB

Datasheet PDF - 1.75 MiB
