RV06000511
Check valve DN 100 stainless steel CF8M metall PN 63/100/160 (+ASME B16.5 / ANSI 600 and 900)
- Lead time
- 3 - 5 working days
Questions about the article?
Our employee Richie Rost
will be happy to help you

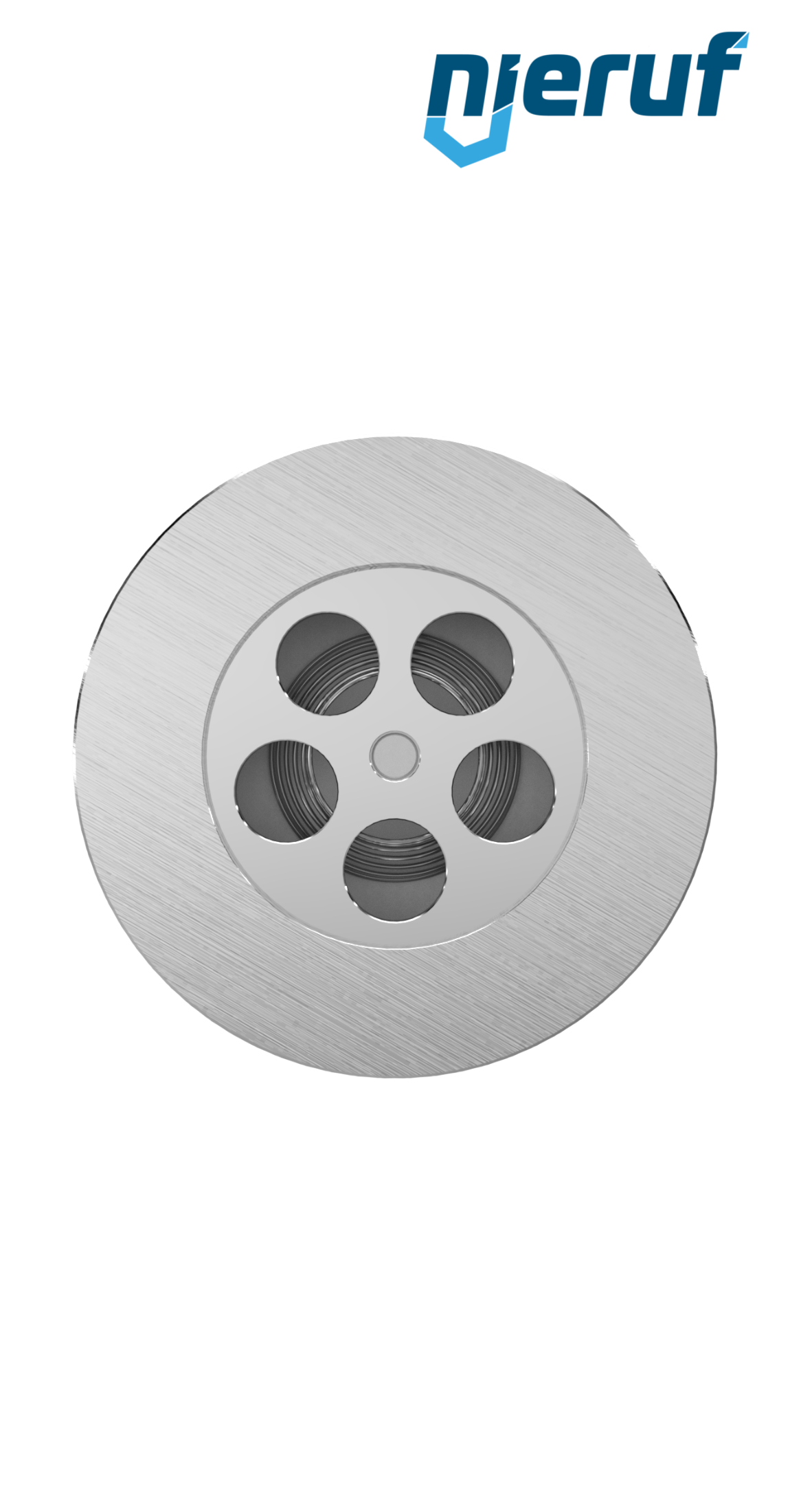

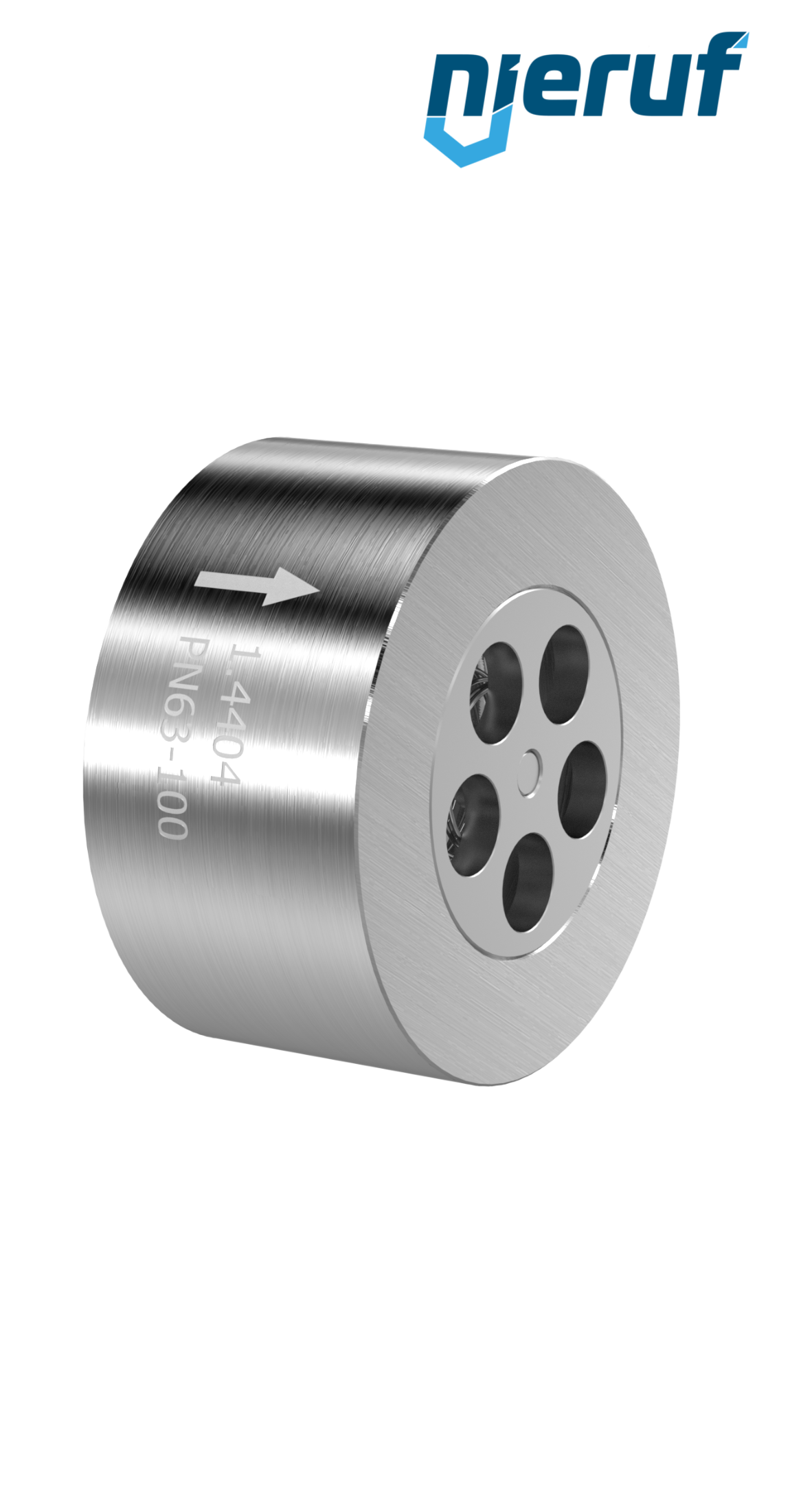

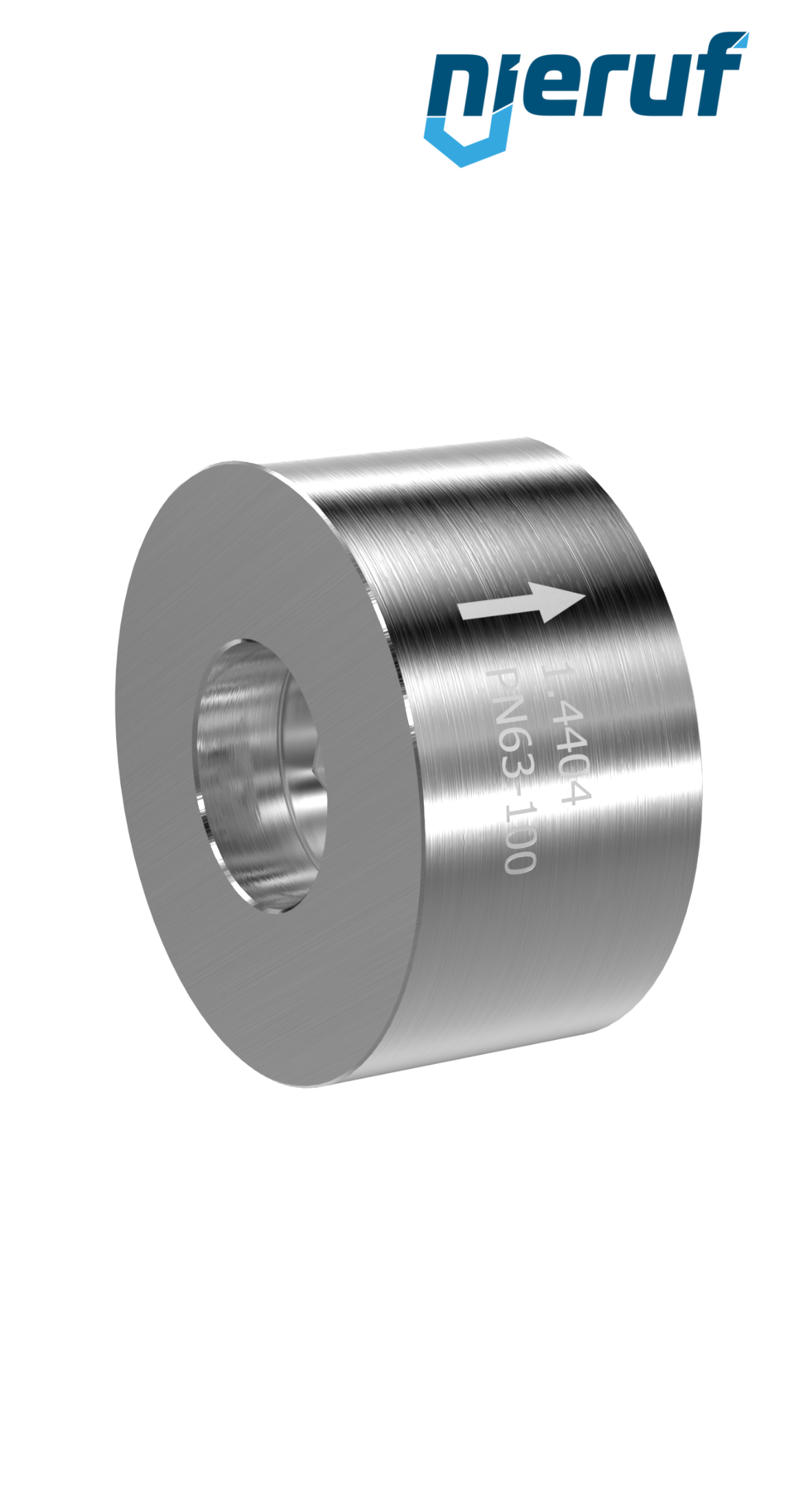

Check valve DN 100 stainless steel CF8M metall PN 63/100/160 (+ASME B16.5 / ANSI 600 and 900)
DISCO - Check valve DN 100 made of stainless steel CF8M seal metall for liquid and gaseous media PN 63/100/160 (+ASME B16.5 ANSI 600 and 900) DIN EN 1092-1 B1
| product | check valve |
|---|---|
| type | RV06 |
| manufacturer | NieRuf |
| design | disco check valve |
| diameter | DN 100 |
| body material | stainless steel 1.4404 / AISI 316L |
| disc material | stainless steel 1.4404 / AISI 316L |
| seal | metall |
| tightness acc. to DIN EN 12266 | leak rate ≥ G |
| temperature | -196°C up to +300°C |
| flange | PN 63/100/160 DIN EN 1092-1 B1, ASME B16.5 ANSI 600 / 900 |
| pressure range | 0 - 160 bar |
| Kv-value in m3/h | 143,00 |
| spring material | stainless steel 1.4571 / AISI 316Ti |
| media | liquid and gaseous media |
| installation position | any position |
| product feature | Length according DIN EN 558 row 52 |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Check valve DN 100 stainless steel CF8M metall PN 63/100/160 (+ASME B16.5 / ANSI 600 and 900)
Article no.
: RV06000511
product:
check valve
type:
RV06
manufacturer:
NieRuf
design:
disco check valve
diameter:
DN 100
body material:
stainless steel 1.4404 / AISI 316L
disc material:
stainless steel 1.4404 / AISI 316L
seal:
metall
tightness acc. to DIN EN 12266:
leak rate ≥ G
temperature:
-196°C up to +300°C
flange:
PN 63/100/160 DIN EN 1092-1 B1, ASME B16.5 ANSI 600 / 900
pressure range:
0 - 160 bar
Kv-value in m3/h:
143,00
spring material:
stainless steel 1.4571 / AISI 316Ti
media:
liquid and gaseous media
installation position:
any position
product feature:
Length according DIN EN 558 row 52
