EF06010108

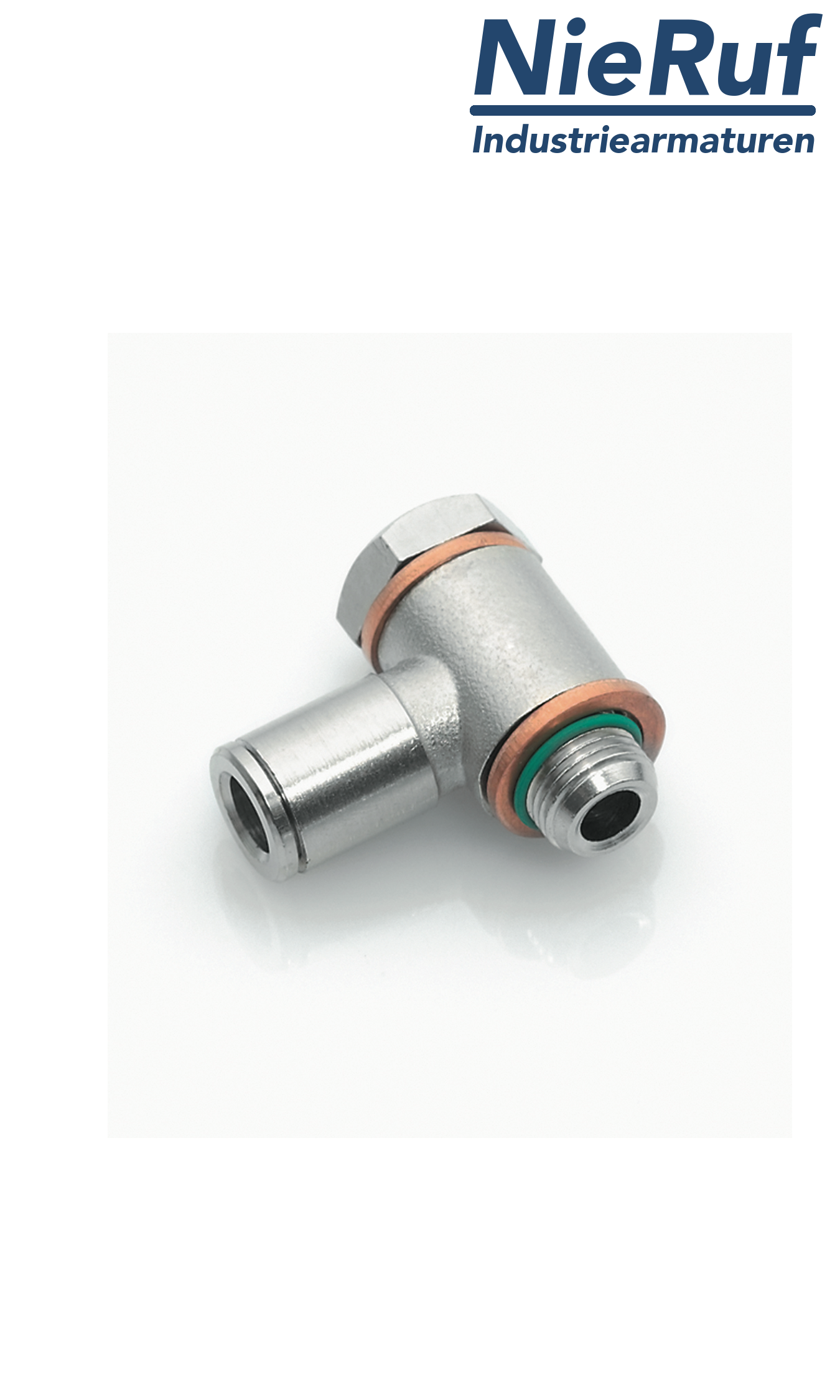

Complete single swivel banjo EF06 brass FKM G1/4" D8mm
- Lead time
- 3 - 5 working days
Questions about the article?
Our employee Richie Rost
will be happy to help you
Downloads
Complete single swivel banjo EF06 brass FKM G1/4" D8mm
port connection Complete single swivel banjo made of brass with FKM-seal G1/4" D8mm for lubricated & non-lubricated compressed air up to 16 bar
| product | port connection |
|---|---|
| type | EF06 |
| manufacturer | NieRuf |
| design | Complete single swivel banjo |
| thread connection | G1/4" |
| tube connection 1 | D8mm |
| body material | brass Ms58 nickel-plated |
| seal | FKM |
| collet | stainless steel 1.4401 |
| pressure ring | brass Ms58 nickel-plated |
| thread | cylindrical |
| media | lubricated & non-lubricated compressed air |
| max. working pressure | up to 16 bar |
| product feature | Complete single swivel banjo to connect or to plug pipes in pneumatic- or pressure air applications. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Complete single swivel banjo EF06 brass FKM G1/4" D8mm
Article no.
: EF06010108
product:
port connection
type:
EF06
manufacturer:
NieRuf
design:
Complete single swivel banjo
thread connection:
G1/4"
tube connection 1:
D8mm
body material:
brass Ms58 nickel-plated
seal:
FKM
collet:
stainless steel 1.4401
pressure ring:
brass Ms58 nickel-plated
thread:
cylindrical
media:
lubricated & non-lubricated compressed air
max. working pressure:
up to 16 bar
product feature:
Complete single swivel banjo to connect or to plug pipes in pneumatic- or pressure air applications.
