KP04002116.1

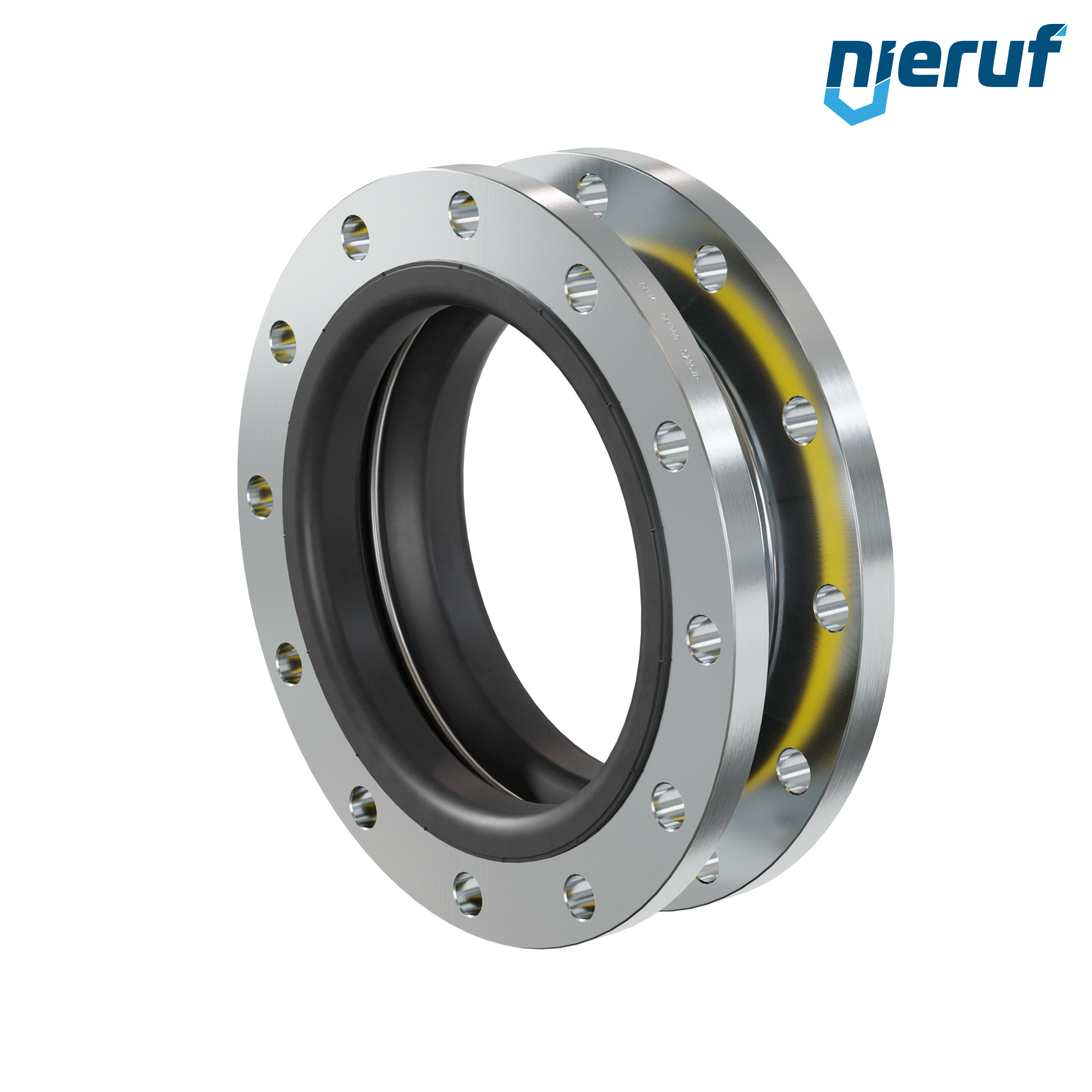

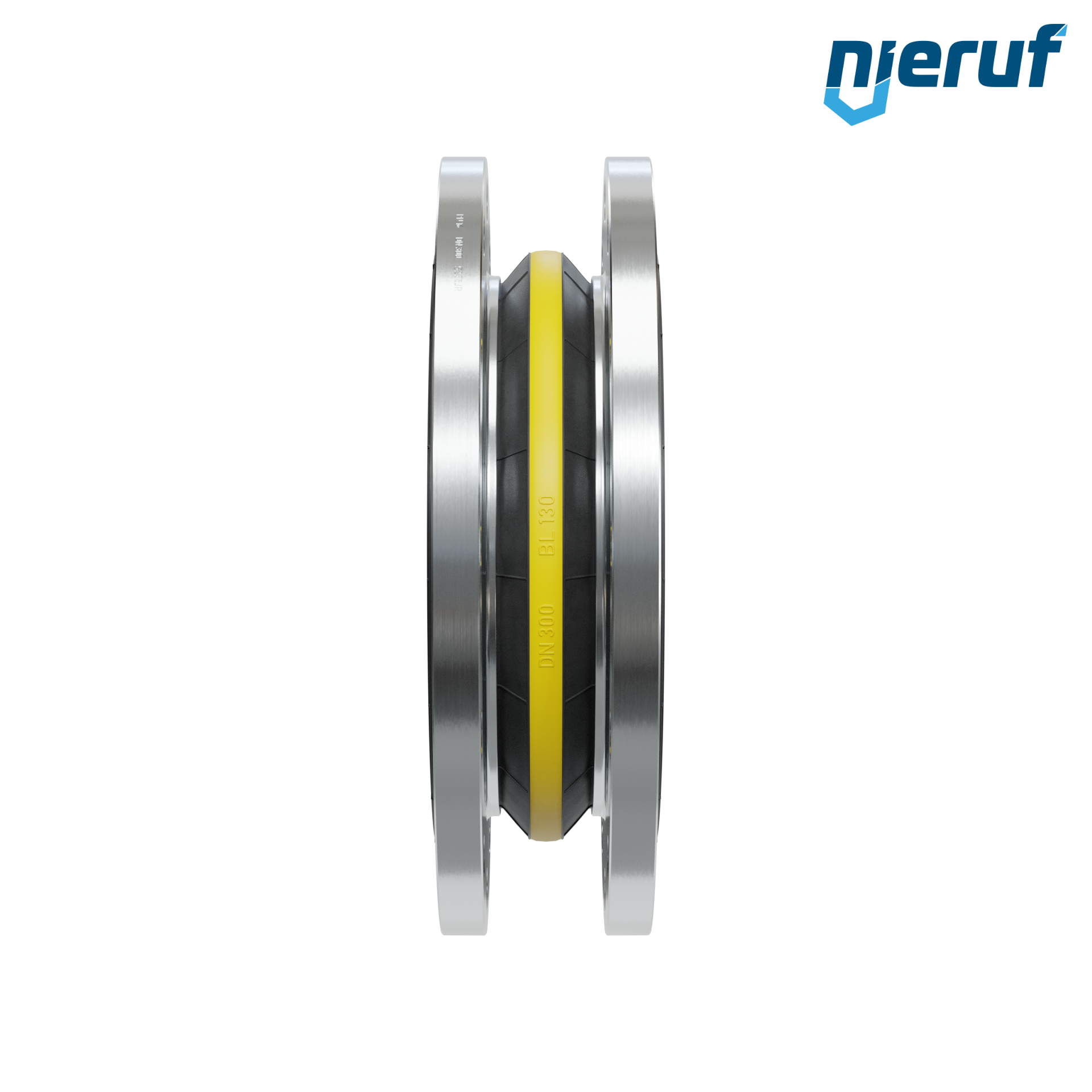

Rubber expansion joint vacuum support ring DN300 PN16 type KP04 steel flanges NBR
- Lead time
- 3 - 5 working days
Equipment
joint set flange/flange DN300 - 12" Inch for flange PN16 steel
€94.25 VAT included.
flange seal DN300 PN16 324x384x2 Klingersil C 4400
€41.17 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
Downloads
Rubber expansion joint vacuum support ring DN300 PN16 type KP04 steel flanges NBR
Rubber expansion joint DN300 PN16 vacuum support ring for liquid & gaseous media (no steam) with steel flanges & NBR seal
| product | Compensators |
|---|---|
| type | KP04 |
| manufacturer | NieRuf |
| diameter | DN300 |
| connection | flange acc. DIN EN 1092-1 PN16 |
| option | vacuum support ring |
| max. pressure | max. 16 bar (consider pressure-temperature diagram) |
| nominal pressure | PN16 |
| material | steel (electro galvanized) 235JR |
| sleeves | NBR |
| media | liquid media and gases (no steam) |
| temperature | -20°C up to +90°C |
| design | straightway form |
| CE | Directive 2014/68/EU: product excluded from directive (article 4 § 3) |
| product feature | High quality compensator with NBR sleeve and steel flanges. In addition, this componesator is equipped with a vacuum support for negative pressure. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Rubber expansion joint vacuum support ring DN300 PN16 type KP04 steel flanges NBR
Article no.
: KP04002116.1
product:
Compensators
type:
KP04
manufacturer:
NieRuf
diameter:
DN300
connection:
flange acc. DIN EN 1092-1 PN16
option:
vacuum support ring
max. pressure:
max. 16 bar (consider pressure-temperature diagram)
nominal pressure:
PN16
material:
steel (electro galvanized) 235JR
sleeves:
NBR
media:
liquid media and gases (no steam)
temperature:
-20°C up to +90°C
design:
straightway form
CE:
Directive 2014/68/EU: product excluded from directive (article 4 § 3)
product feature:
High quality compensator with NBR sleeve and steel flanges. In addition, this componesator is equipped with a vacuum support for negative pressure.
Equipment
joint set flange/flange DN300 - 12" Inch for flange PN16 steel
Lead time: 3 - 5 working days
