KP04012016.1

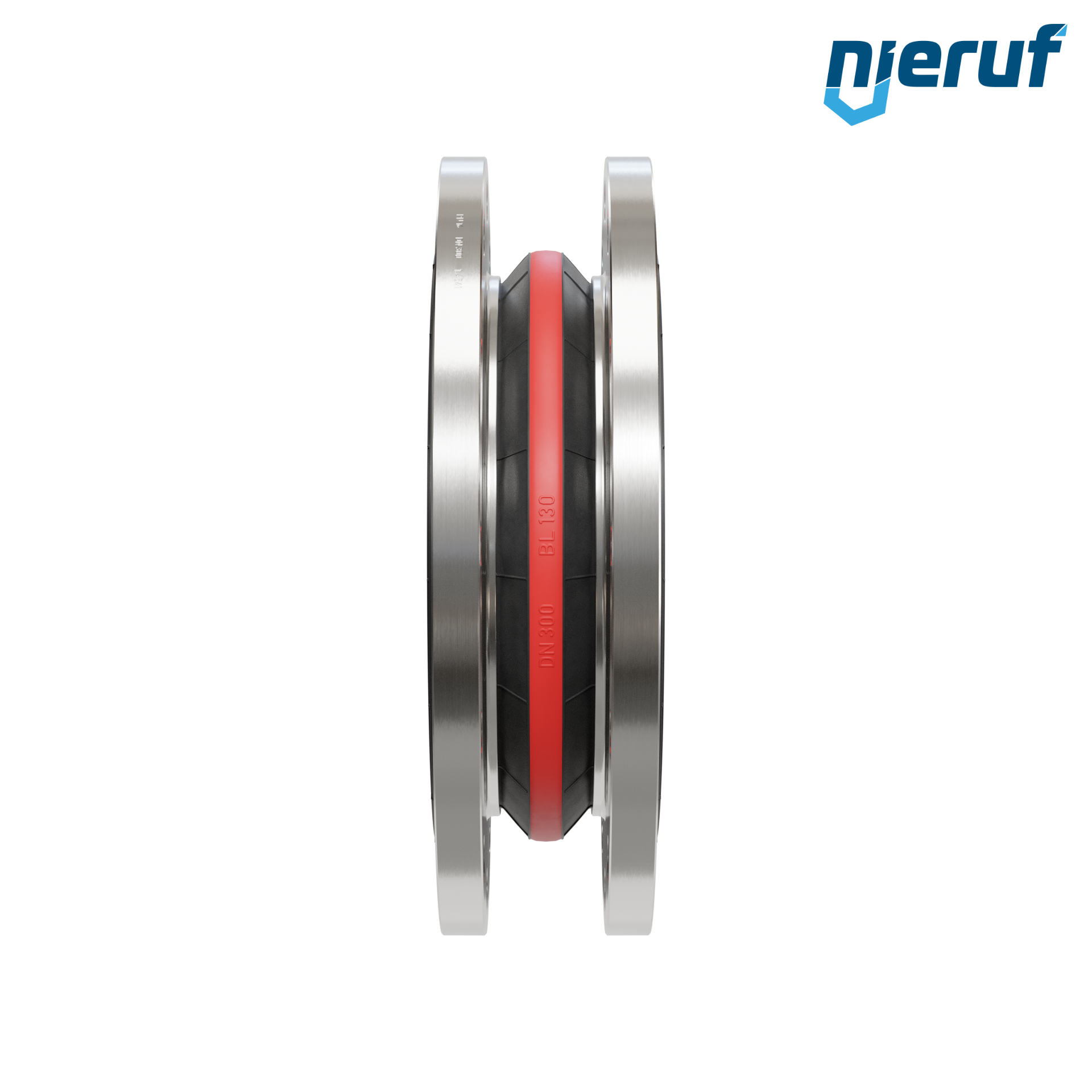

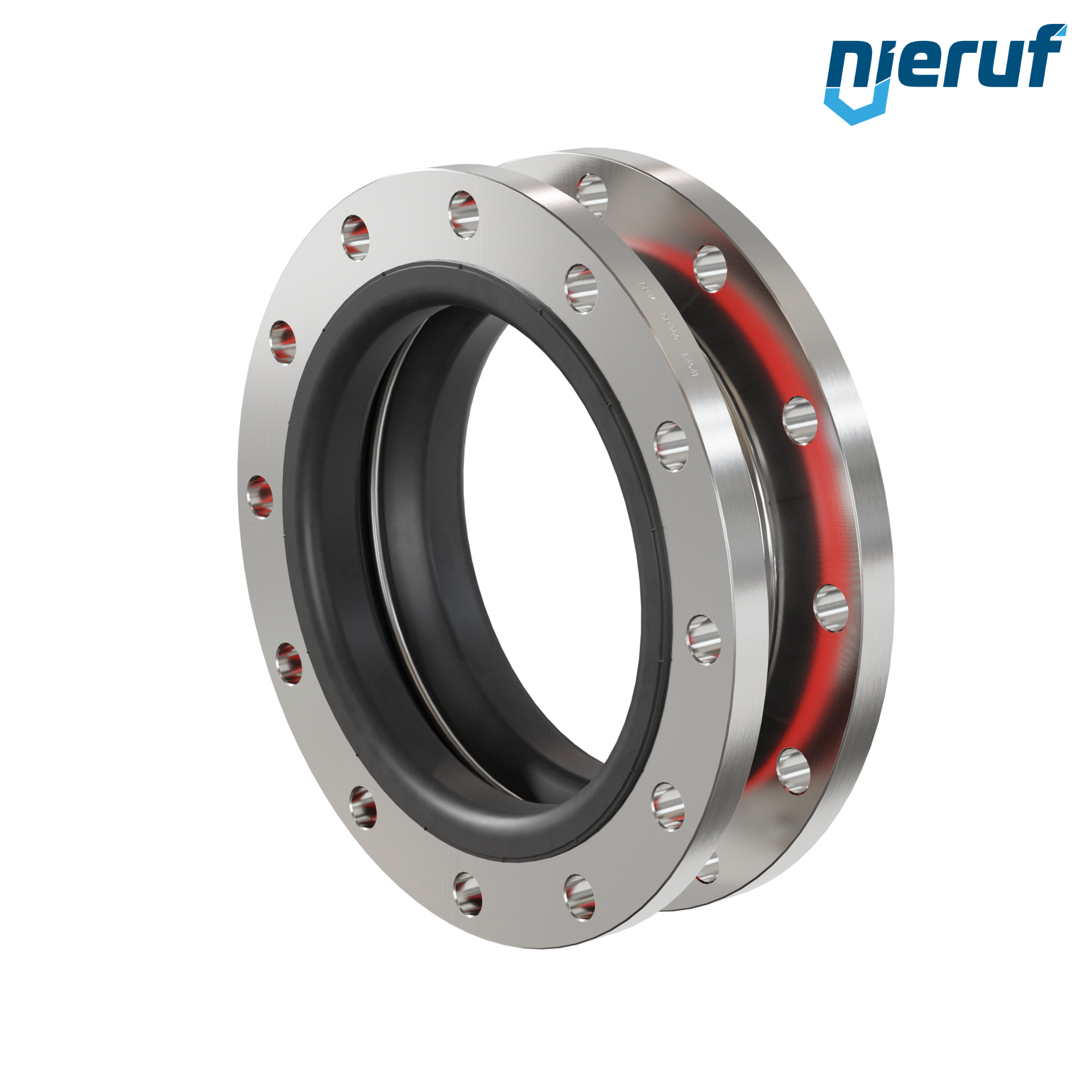

Rubber expansion joint vacuum support ring DN300 PN16 type KP04 stainless steel flanges EPDM
- Lead time
- 3 - 5 working days
Equipment
flange seal DN300 PN16 324x384x2 Klingersil C 4400
€41.17 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
Downloads
Rubber expansion joint vacuum support ring DN300 PN16 type KP04 stainless steel flanges EPDM
Rubber expansion joint DN300 PN16 vacuum support ring for liquid & gaseous media (no steam) with stainless steel flanges & EPDM seal
| product | Compensators |
|---|---|
| type | KP04 |
| manufacturer | NieRuf |
| diameter | DN300 |
| connection | flange acc. DIN EN 1092-1 PN16 |
| option | vacuum support ring |
| max. pressure | max. 16 bar (consider pressure-temperature diagram) |
| nominal pressure | PN16 |
| material | stainless steel 1.4571 / 316 Ti |
| sleeves | EPDM |
| media | liquid media and gases (no steam) |
| temperature | -40°C up to +100°C |
| design | straightway form |
| CE | Directive 2014/68/EU: product excluded from directive (article 4 § 3) |
| product feature | This high quality compensator with EPDM sleeve and stainless steel flanges. In addition, this componesator is equipped with a vacuum support for negative pressure. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Rubber expansion joint vacuum support ring DN300 PN16 type KP04 stainless steel flanges EPDM
Article no.
: KP04012016.1
product:
Compensators
type:
KP04
manufacturer:
NieRuf
diameter:
DN300
connection:
flange acc. DIN EN 1092-1 PN16
option:
vacuum support ring
max. pressure:
max. 16 bar (consider pressure-temperature diagram)
nominal pressure:
PN16
material:
stainless steel 1.4571 / 316 Ti
sleeves:
EPDM
media:
liquid media and gases (no steam)
temperature:
-40°C up to +100°C
design:
straightway form
CE:
Directive 2014/68/EU: product excluded from directive (article 4 § 3)
product feature:
This high quality compensator with EPDM sleeve and stainless steel flanges. In addition, this componesator is equipped with a vacuum support for negative pressure.
