KP04012116

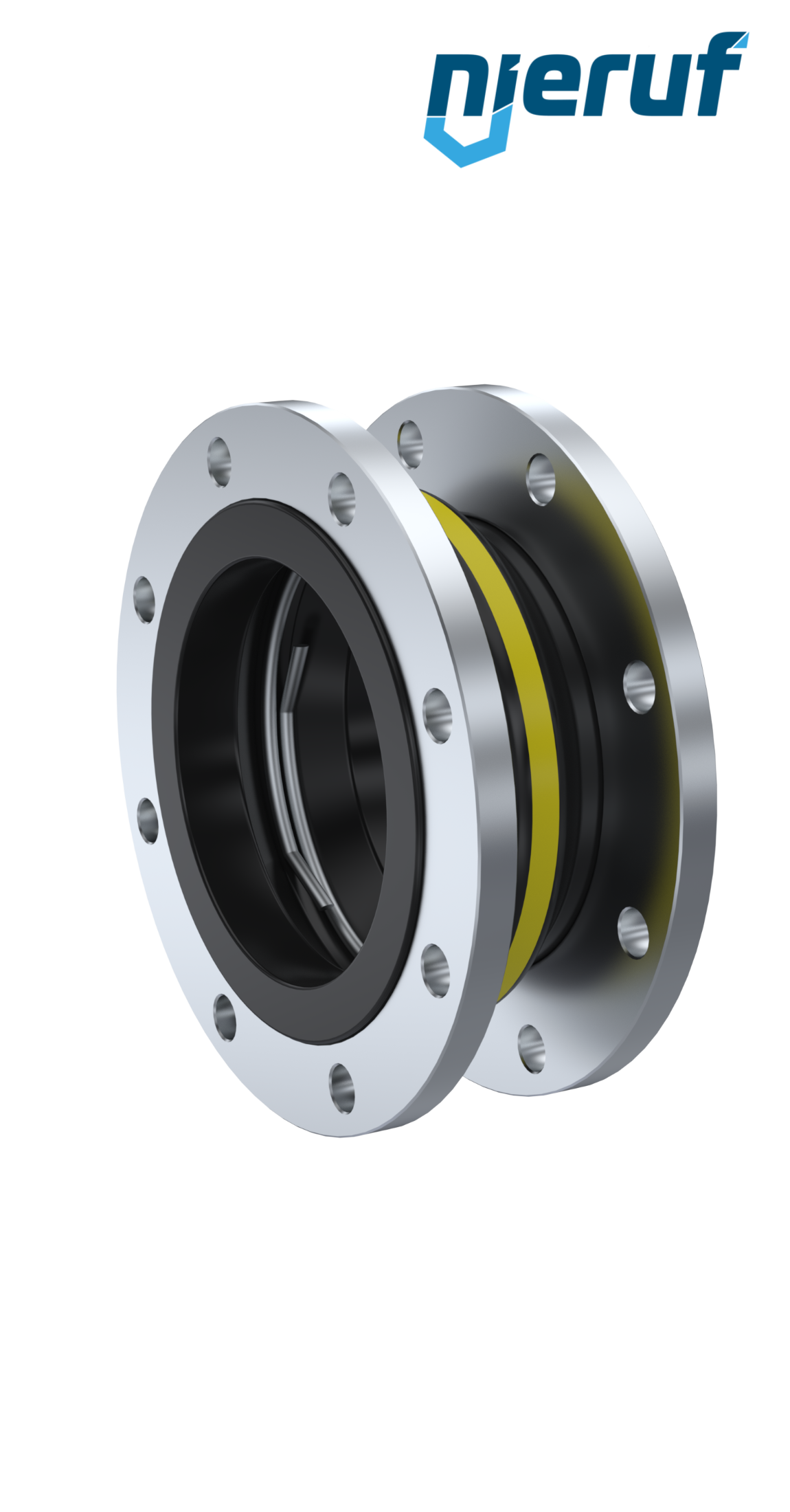

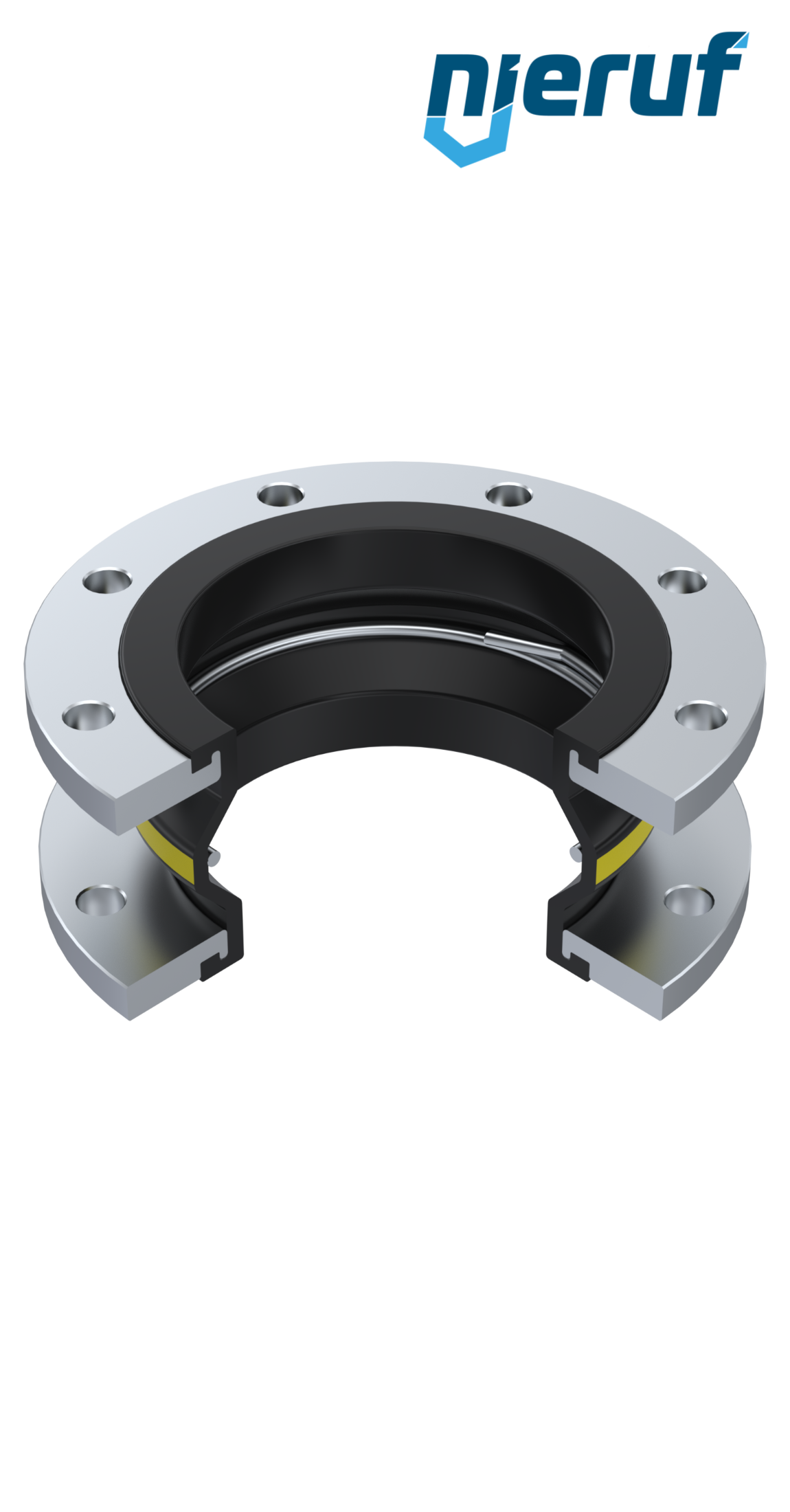

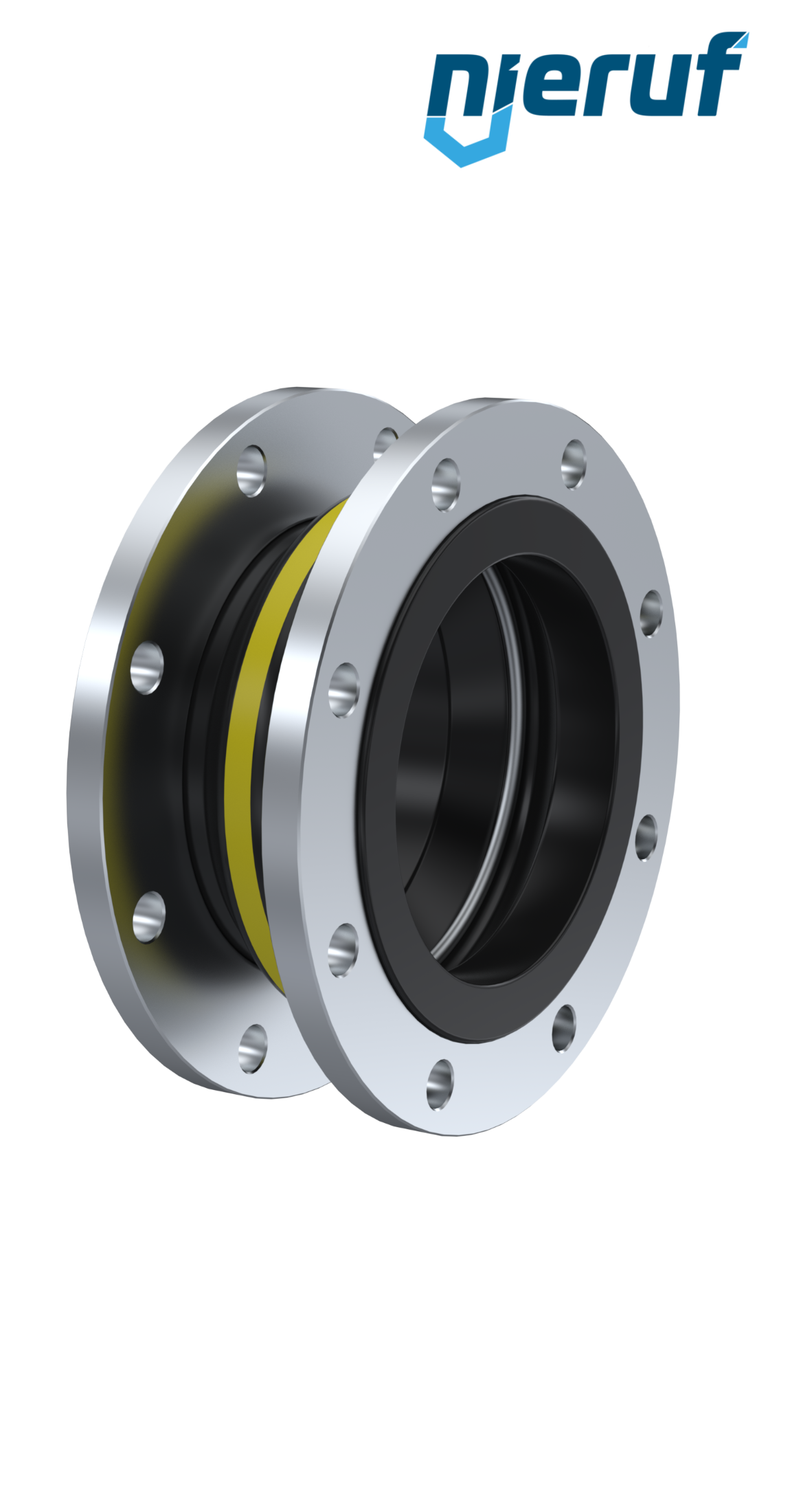

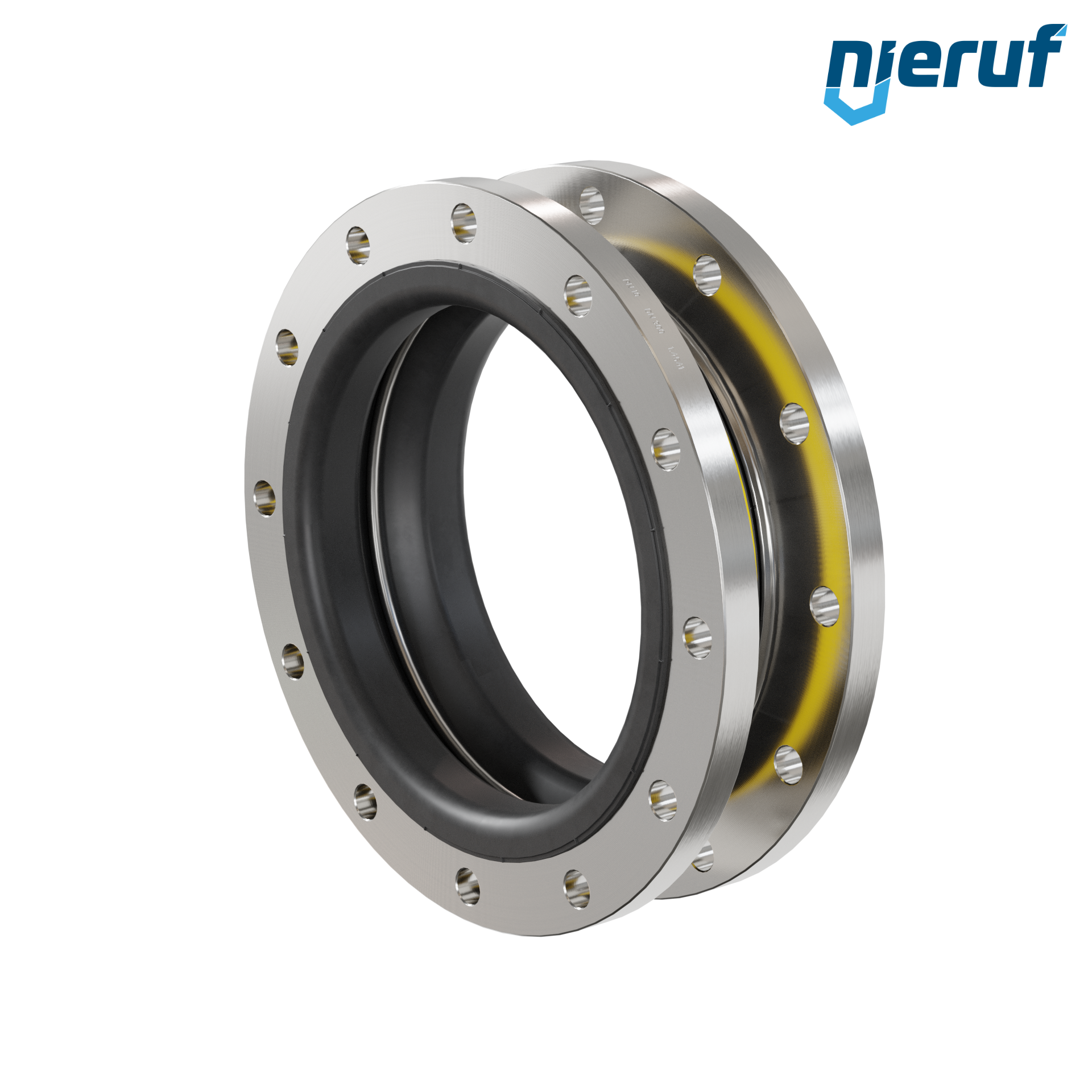

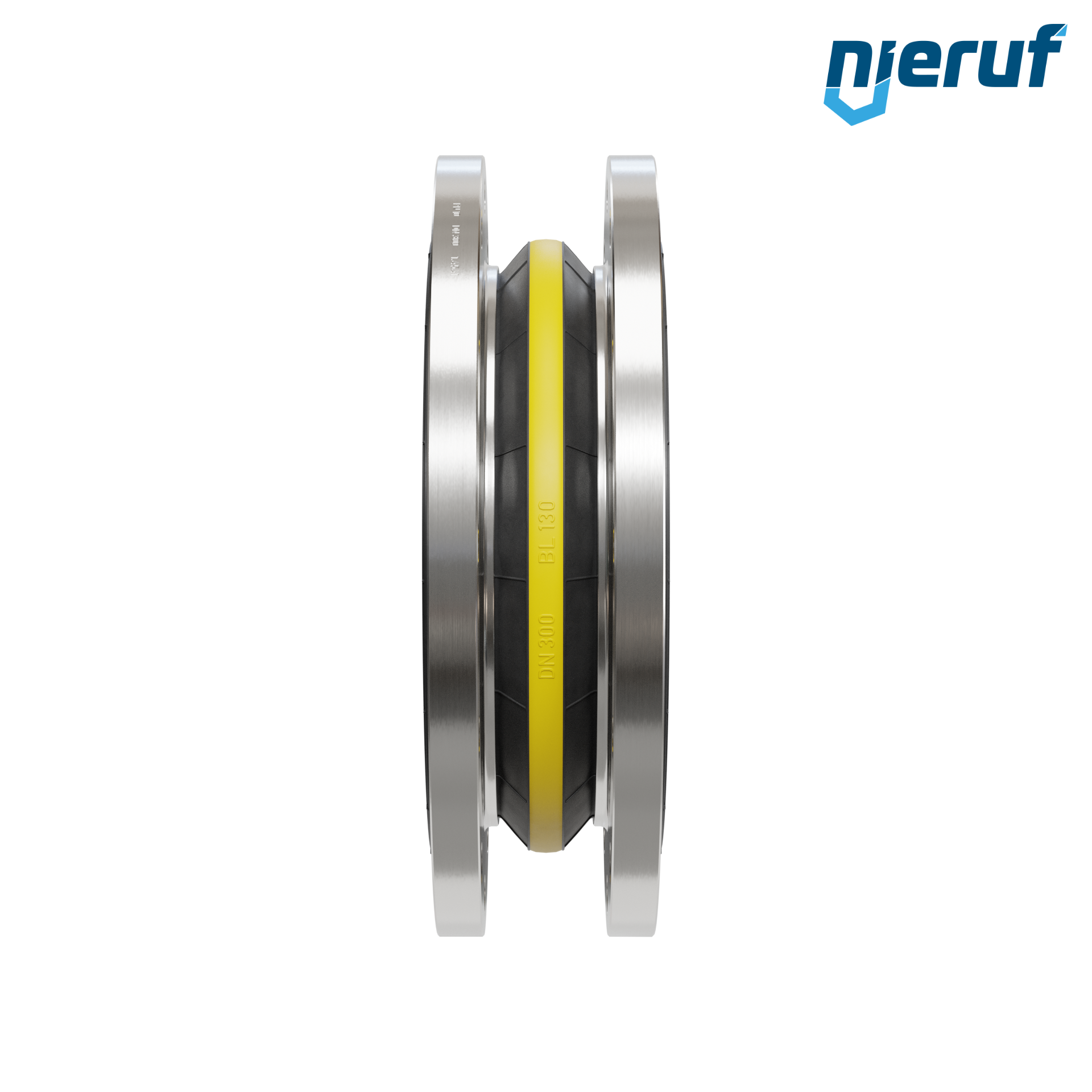

Rubber expansion joint vacuum support ring DN300 type KP04 stainless steel flanges NBR
- Lead time
- 3 - 5 working days
Equipment
joint set flange/flange DN300 - 12" Inch for flange PN10 stainless steel
€38.56 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
Downloads
Rubber expansion joint vacuum support ring DN300 type KP04 stainless steel flanges NBR
Rubber expansion joint DN300 vacuum support ring for liquid & gaseous media (no steam) with stainless steel flanges & NBR seal
| product | Compensators |
|---|---|
| type | KP04 |
| manufacturer | NieRuf |
| diameter | DN300 |
| connection | flange acc. DIN EN 1092-1 PN10 |
| option | vacuum support ring |
| max. pressure | max. 10 bar (consider pressure-temperature diagram) |
| nominal pressure | PN 10 |
| material | stainless steel 1.4541 / 321 |
| sleeves | NBR |
| media | liquid media and gases (no steam) |
| temperature | -20°C up to +90°C |
| design | straightway form |
| CE | Directive 2014/68/EU: product excluded from directive (article 4 § 3) |
| product feature | High quality compensator with NBR sleeve and stainless steel flanges. In addition, this componesator is equipped with a vacuum support for negative pressure. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Rubber expansion joint vacuum support ring DN300 type KP04 stainless steel flanges NBR
Article no.
: KP04012116
product:
Compensators
type:
KP04
manufacturer:
NieRuf
diameter:
DN300
connection:
flange acc. DIN EN 1092-1 PN10
option:
vacuum support ring
max. pressure:
max. 10 bar (consider pressure-temperature diagram)
nominal pressure:
PN 10
material:
stainless steel 1.4541 / 321
sleeves:
NBR
media:
liquid media and gases (no steam)
temperature:
-20°C up to +90°C
design:
straightway form
CE:
Directive 2014/68/EU: product excluded from directive (article 4 § 3)
product feature:
High quality compensator with NBR sleeve and stainless steel flanges. In addition, this componesator is equipped with a vacuum support for negative pressure.
Equipment
joint set flange/flange DN300 - 12" Inch for flange PN10 stainless steel
Lead time: in stock
