KP04002014.1

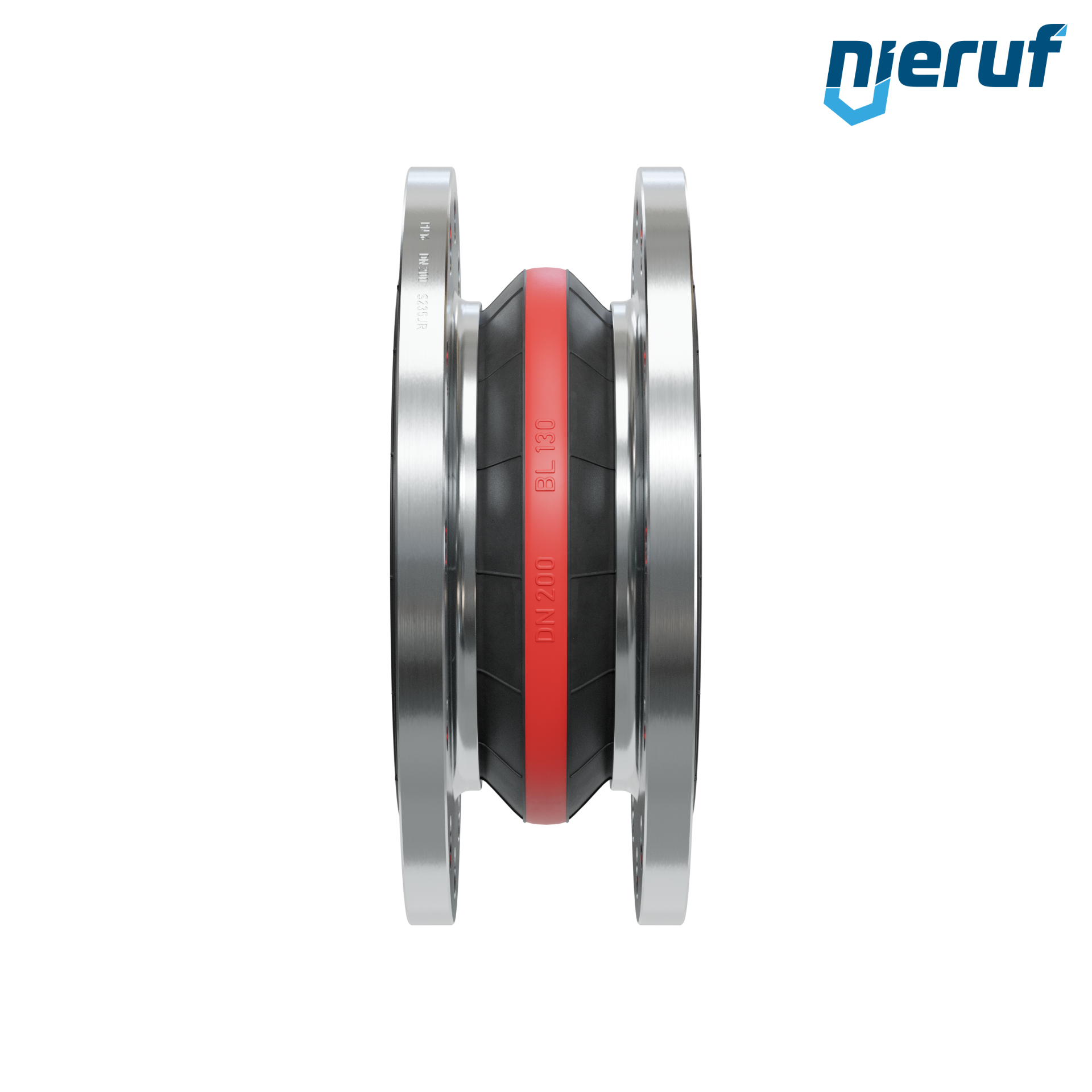

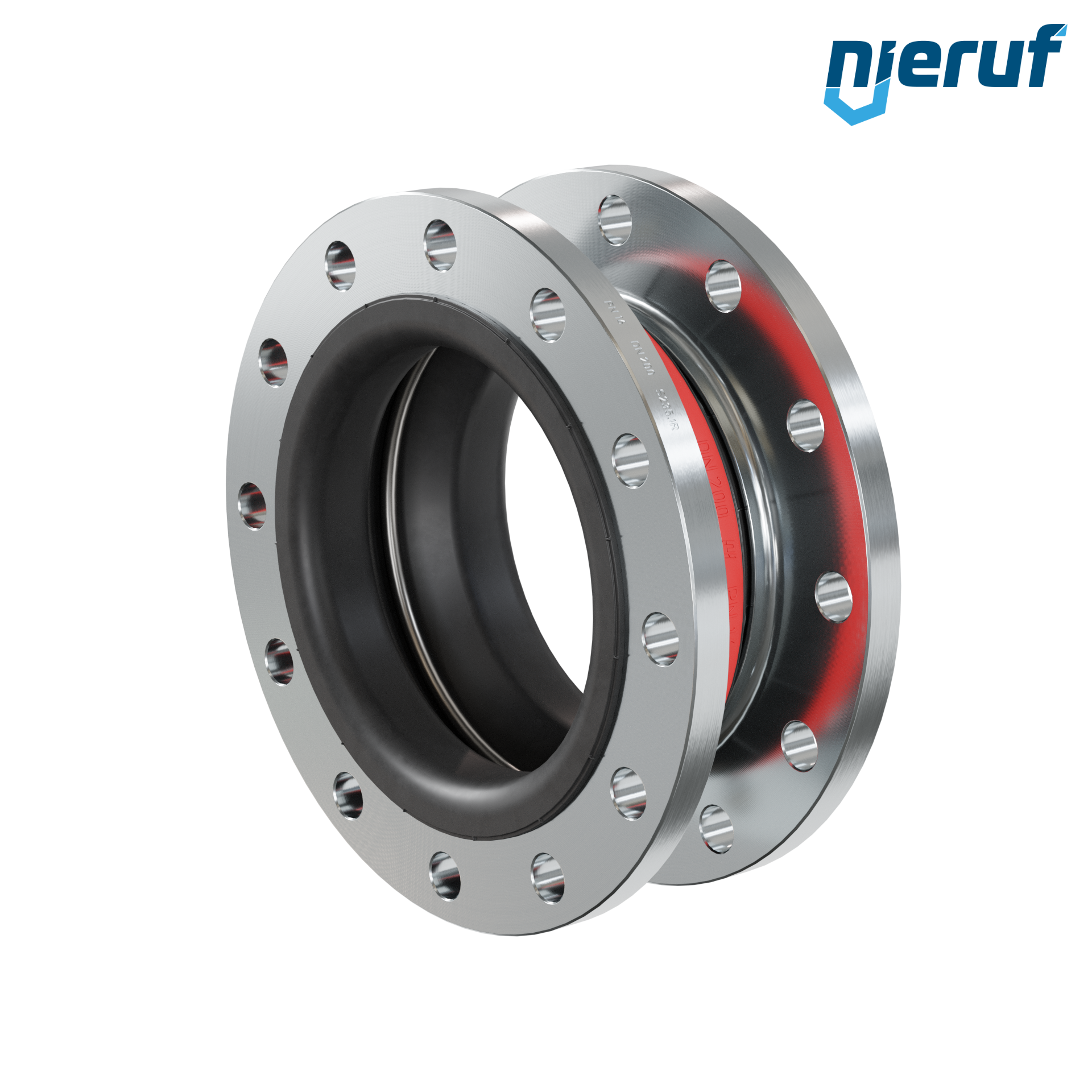

Rubber expansion joint vacuum support ring DN200 PN16 type KP04 steel flanges EPDM
- Lead time
- 3 - 5 working days
Equipment
flange seal DN200 PN10/16 220x273x2 Klingersil C 4400
€10.71 VAT included.
joint set flange/flange DN200 - 8" Inch for flange PN16 steel
€54.26 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
Downloads
Rubber expansion joint vacuum support ring DN200 PN16 type KP04 steel flanges EPDM
Rubber expansion joint DN200 PN16 vacuum support ring for liquid & gaseous media (no steam) with steel flanges & EPDM seal
| product | Compensators |
|---|---|
| type | KP04 |
| manufacturer | NieRuf |
| diameter | DN200 |
| connection | flange acc. DIN EN 1092-1 PN16 |
| option | vacuum support ring |
| max. pressure | max. 16 bar (consider pressure-temperature diagram) |
| nominal pressure | PN16 |
| material | steel (electro galvanized) 235JR |
| sleeves | EPDM |
| media | liquid media and gases (no steam) |
| temperature | -40°C up to +100°C |
| design | straightway form |
| CE | Directive 2014/68/EU: product excluded from directive (article 4 § 3) |
| product feature | This high quality compensator with EPDM sleeve and steel flanges. In addition, this componesator is equipped with a vacuum support for negative pressure. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Rubber expansion joint vacuum support ring DN200 PN16 type KP04 steel flanges EPDM
Article no.
: KP04002014.1
product:
Compensators
type:
KP04
manufacturer:
NieRuf
diameter:
DN200
connection:
flange acc. DIN EN 1092-1 PN16
option:
vacuum support ring
max. pressure:
max. 16 bar (consider pressure-temperature diagram)
nominal pressure:
PN16
material:
steel (electro galvanized) 235JR
sleeves:
EPDM
media:
liquid media and gases (no steam)
temperature:
-40°C up to +100°C
design:
straightway form
CE:
Directive 2014/68/EU: product excluded from directive (article 4 § 3)
product feature:
This high quality compensator with EPDM sleeve and steel flanges. In addition, this componesator is equipped with a vacuum support for negative pressure.
Equipment
flange seal DN200 PN10/16 220x273x2 Klingersil C 4400
Lead time: in stock
joint set flange/flange DN200 - 8" Inch for flange PN16 steel
Lead time: in stock
