KP04012014

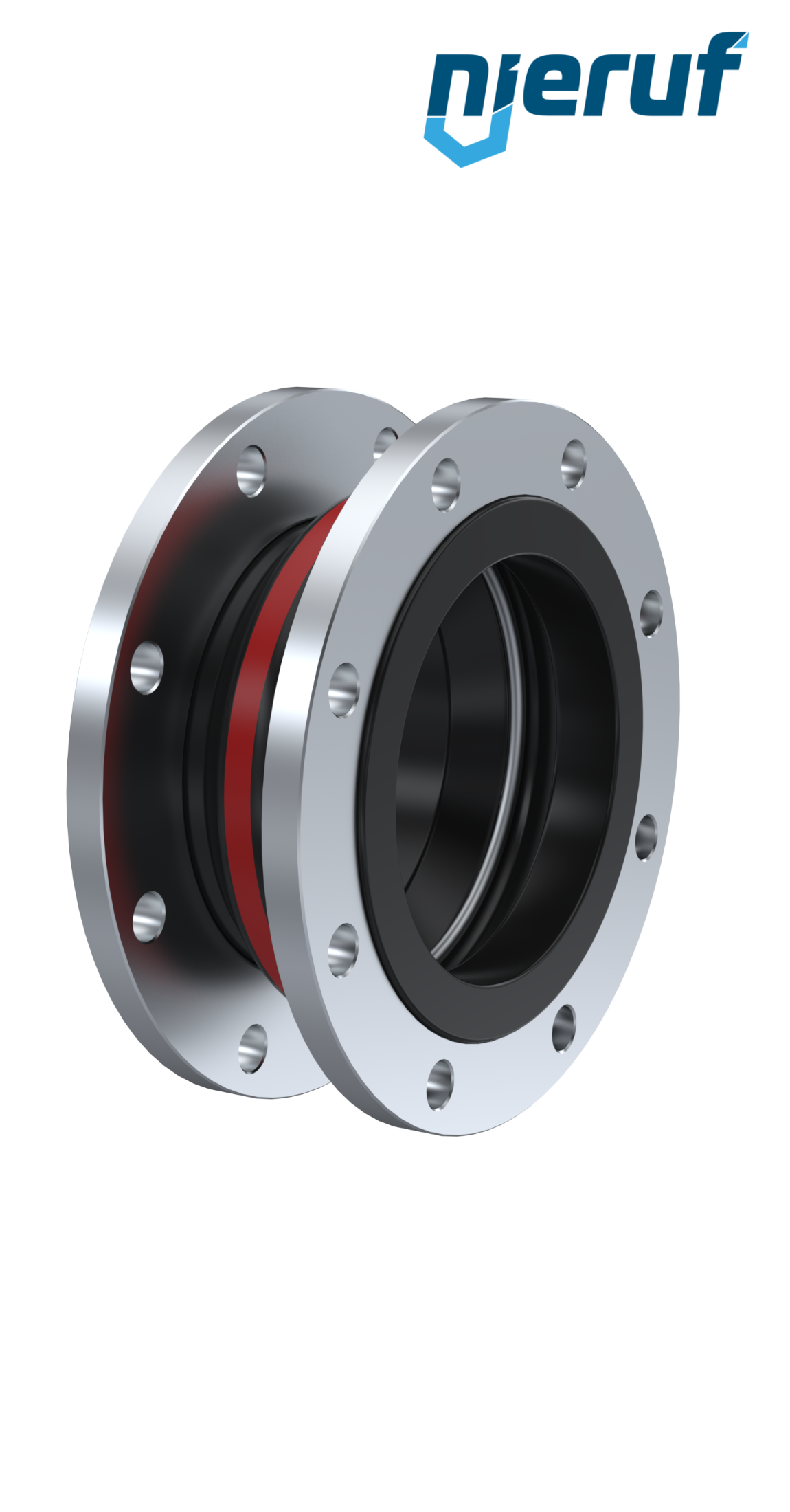

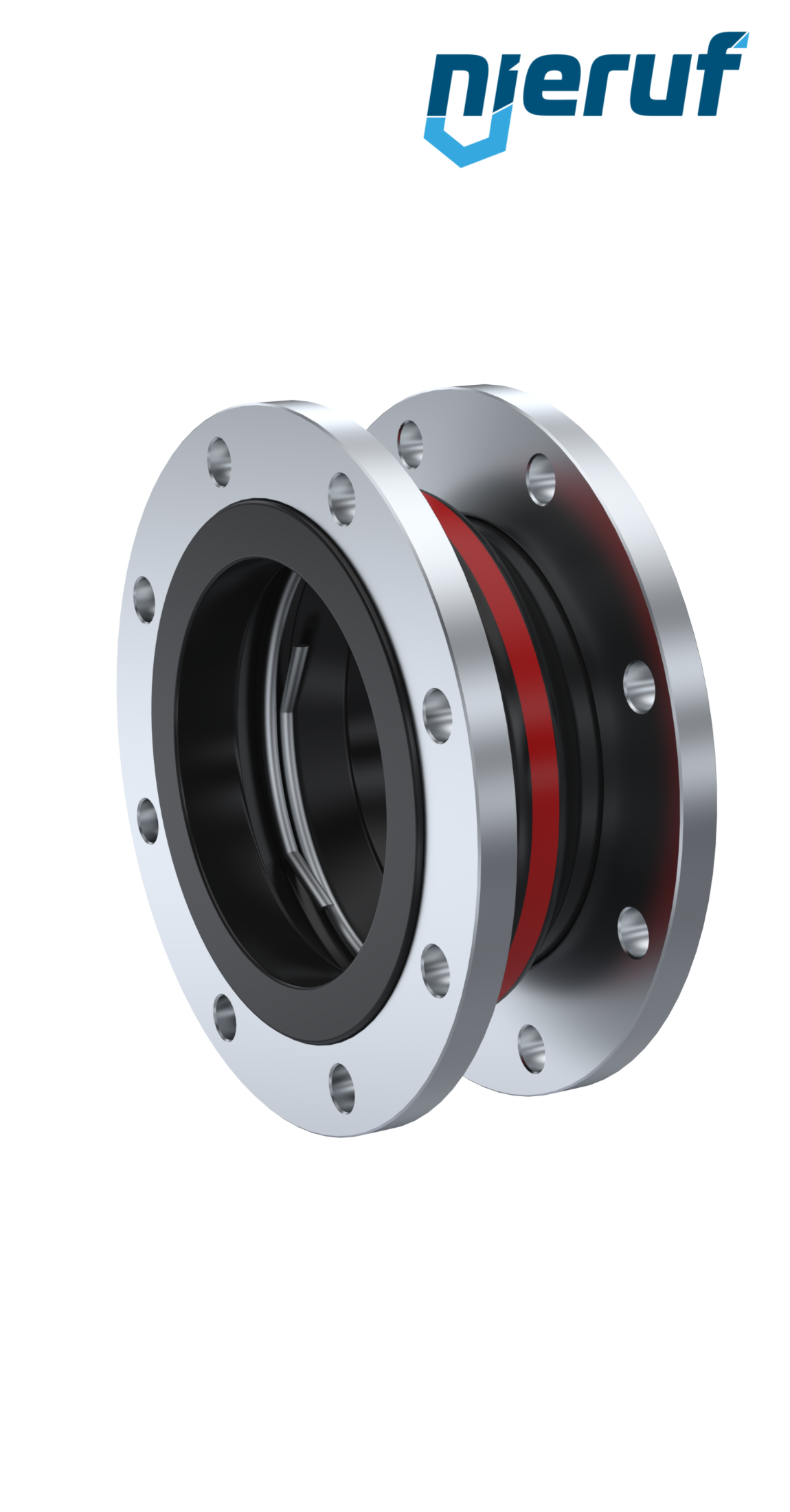

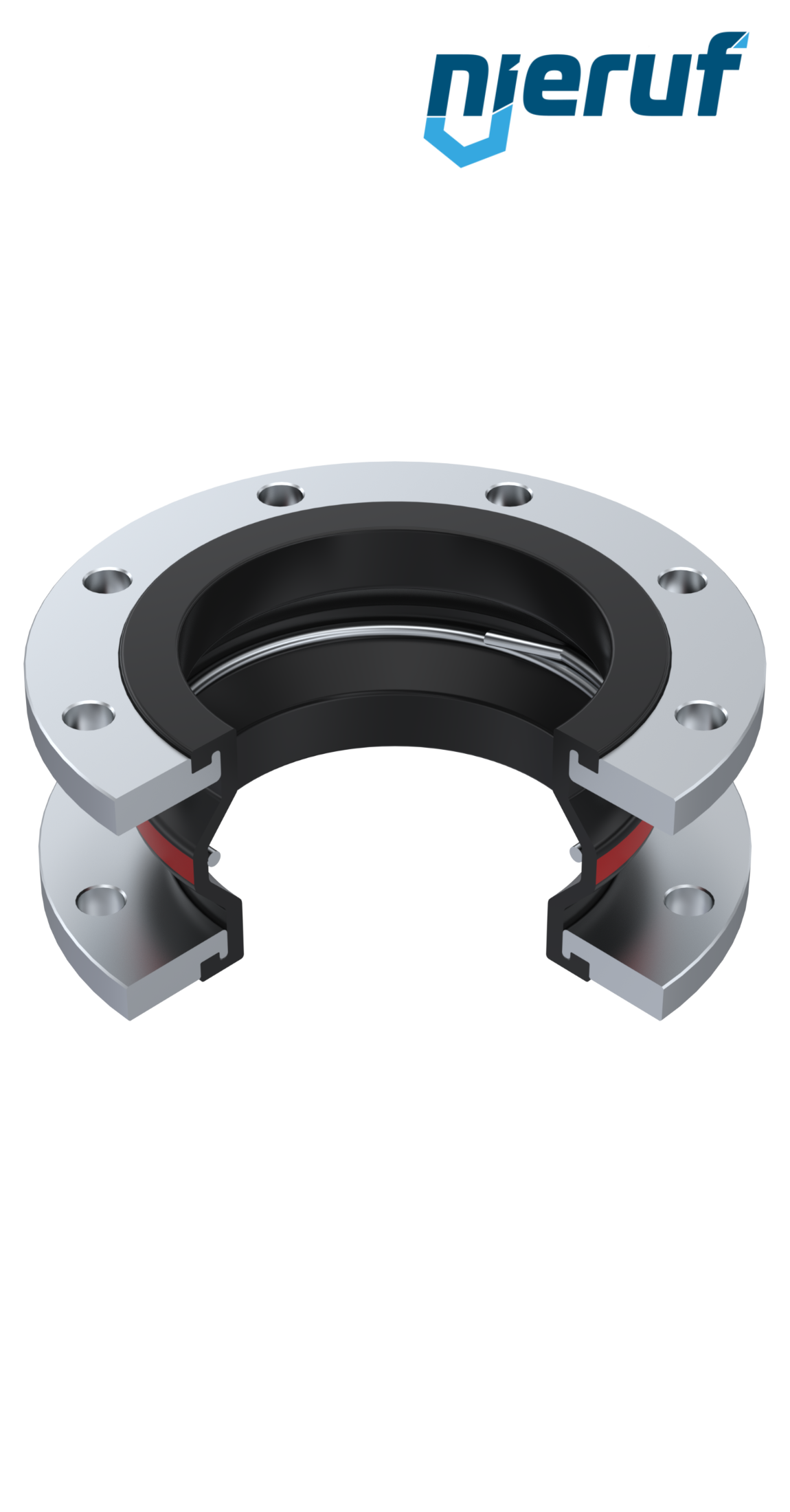

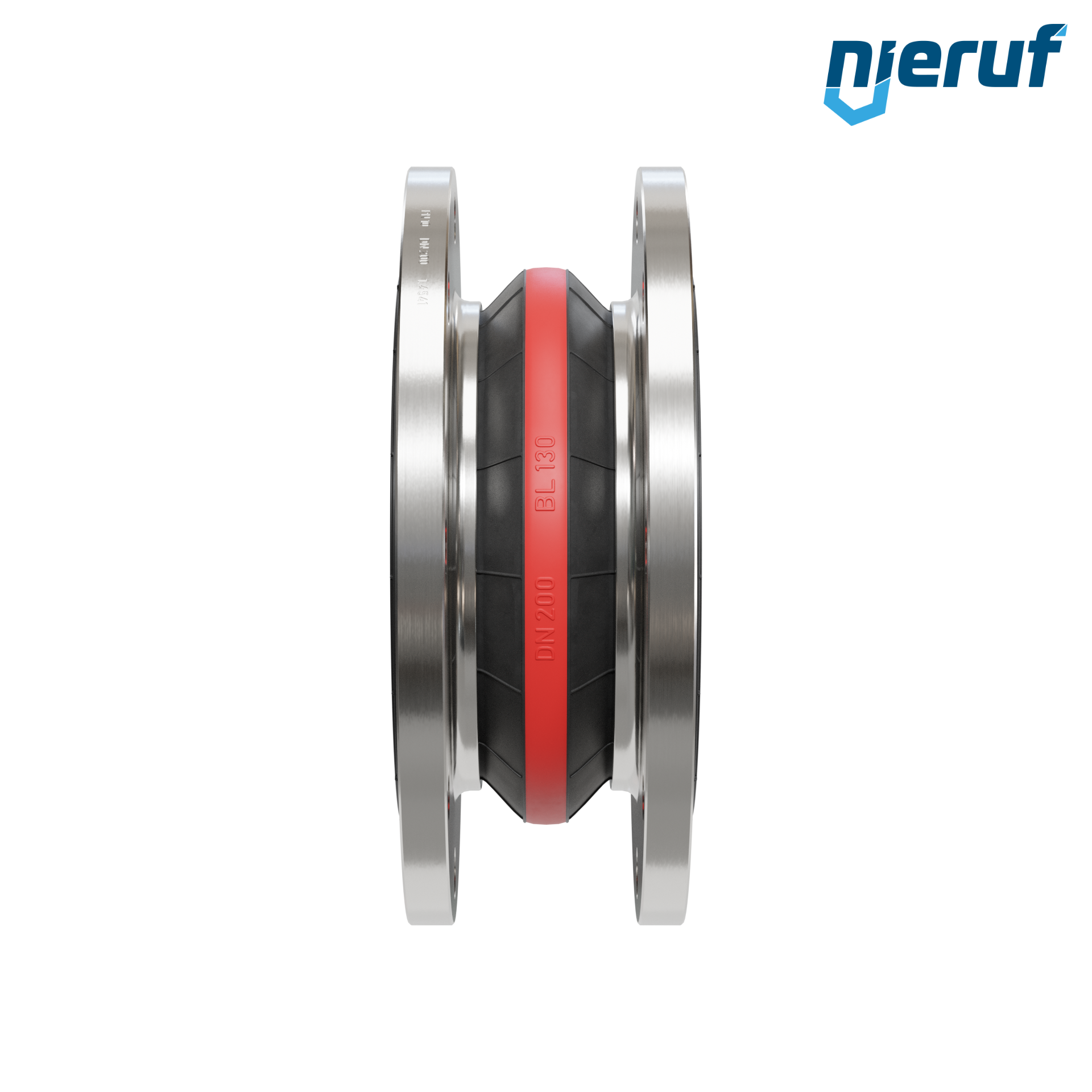

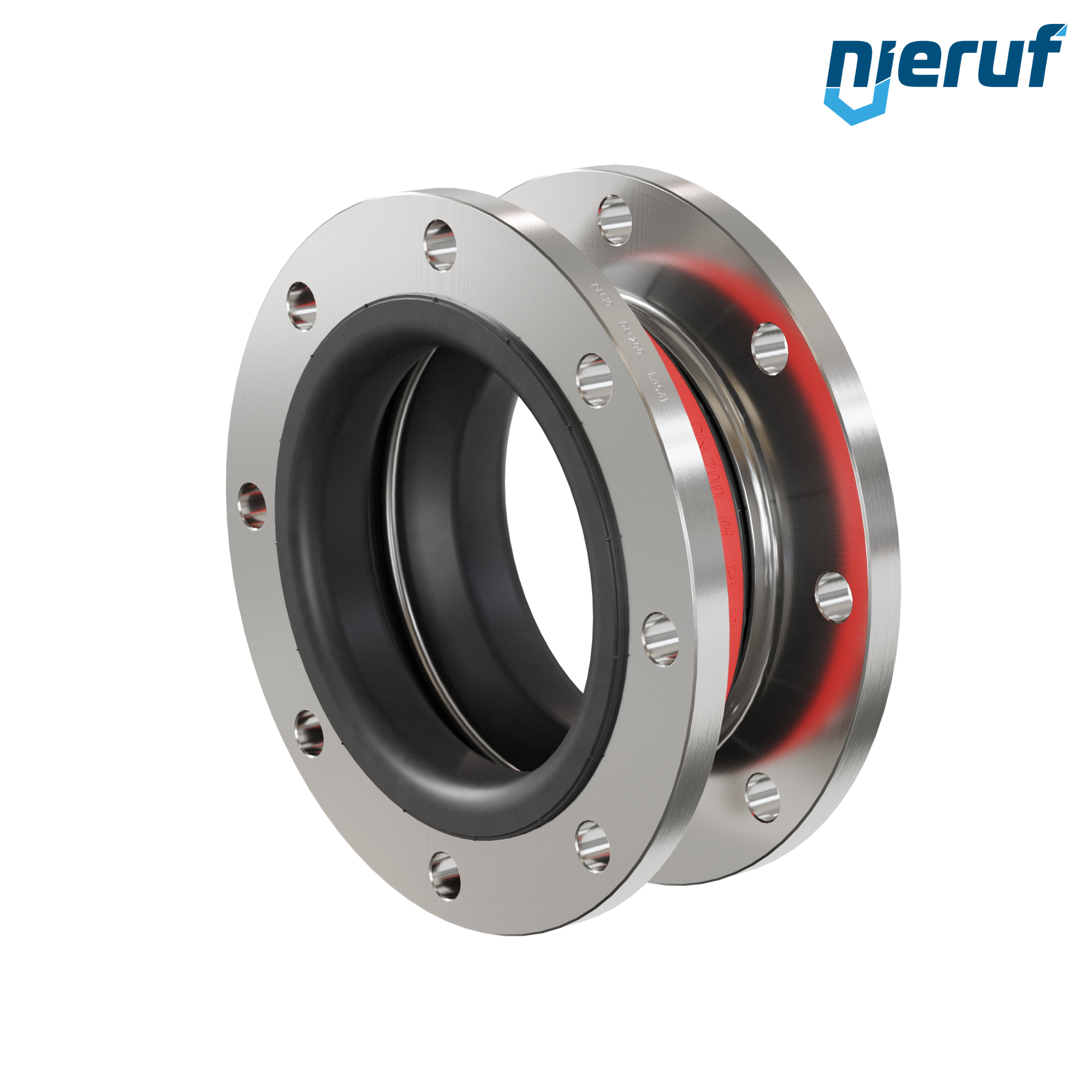

Rubber expansion joint vacuum support ring DN200 type KP04 stainless steel flanges EPDM
- Lead time
- 3 - 5 working days
Equipment
joint set flange/flange DN200 - 8" Inch for flange PN10 stainless steel
€25.70 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
Downloads
Rubber expansion joint vacuum support ring DN200 type KP04 stainless steel flanges EPDM
Rubber expansion joint DN200 vacuum support ring for liquid & gaseous media (no steam) with stainless steel flanges & EPDM seal
| product | Compensators |
|---|---|
| type | KP04 |
| manufacturer | NieRuf |
| diameter | DN200 |
| connection | flange acc. DIN EN 1092-1 PN10 |
| option | vacuum support ring |
| max. pressure | max. 10 bar (consider pressure-temperature diagram) |
| nominal pressure | PN 10 |
| material | stainless steel 1.4541 / 321 |
| sleeves | EPDM |
| media | liquid media and gases (no steam) |
| temperature | -40°C up to +100°C |
| design | straightway form |
| CE | Directive 2014/68/EU: product excluded from directive (article 4 § 3) |
| product feature | This high quality compensator with EPDM sleeve and stainless steel flanges. In addition, this componesator is equipped with a vacuum support for negative pressure. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Rubber expansion joint vacuum support ring DN200 type KP04 stainless steel flanges EPDM
Article no.
: KP04012014
product:
Compensators
type:
KP04
manufacturer:
NieRuf
diameter:
DN200
connection:
flange acc. DIN EN 1092-1 PN10
option:
vacuum support ring
max. pressure:
max. 10 bar (consider pressure-temperature diagram)
nominal pressure:
PN 10
material:
stainless steel 1.4541 / 321
sleeves:
EPDM
media:
liquid media and gases (no steam)
temperature:
-40°C up to +100°C
design:
straightway form
CE:
Directive 2014/68/EU: product excluded from directive (article 4 § 3)
product feature:
This high quality compensator with EPDM sleeve and stainless steel flanges. In addition, this componesator is equipped with a vacuum support for negative pressure.
Equipment
joint set flange/flange DN200 - 8" Inch for flange PN10 stainless steel
Lead time: in stock
