KP04003115.1

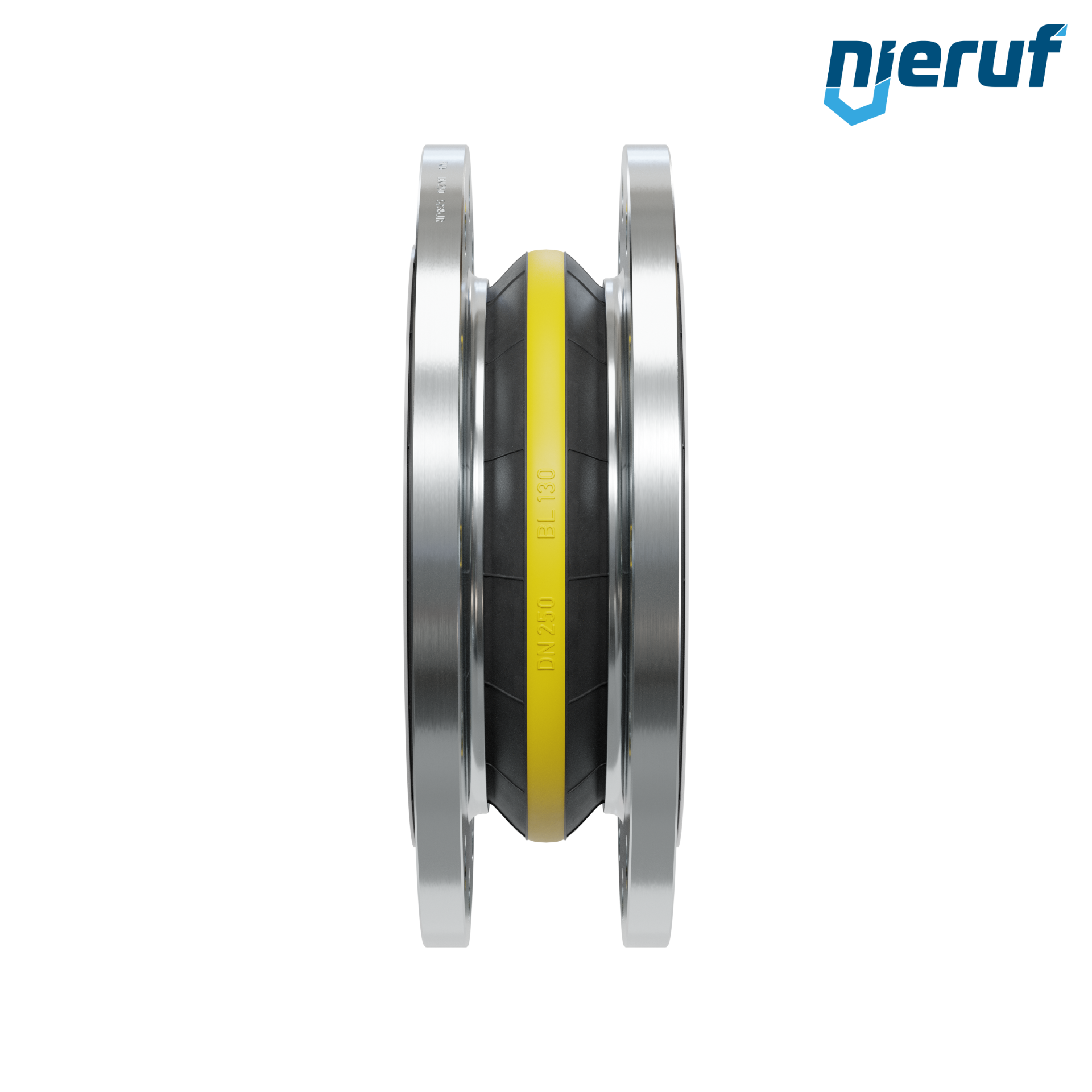

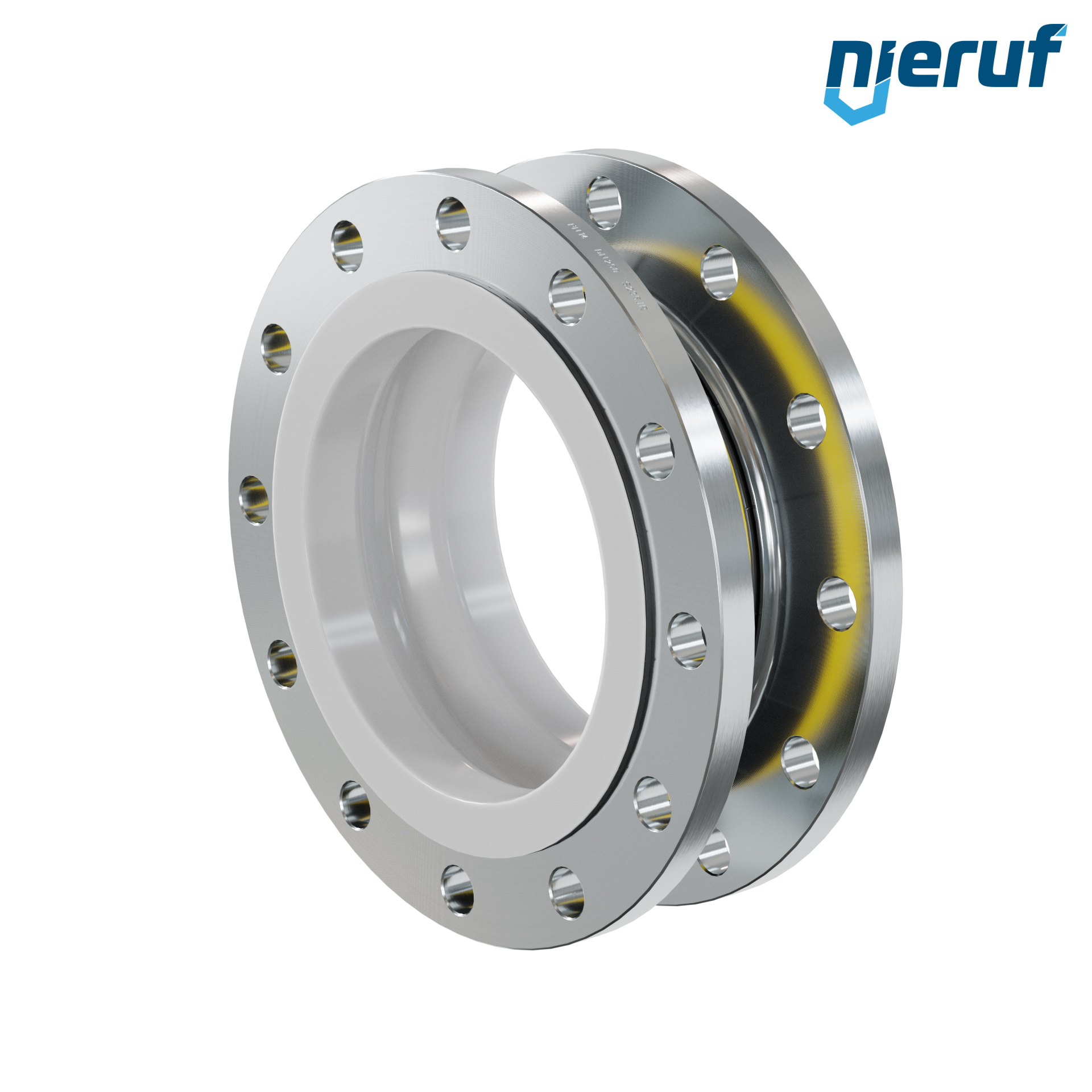

Rubber expansion joint PTFE lining DN250 PN16 type KP04 steel flanges NBR
- Lead time
- 5 - 6 weeks
Equipment
flange seal DN250 PN10 273x328x2 Klingersil C 4400
€26.78 VAT included.
joint set flange/flange DN250 - 10" Inch for flange PN10 steel
€54.26 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
Downloads
Rubber expansion joint PTFE lining DN250 PN16 type KP04 steel flanges NBR
Rubber expansion joint DN250 PN16 PTFE lining for liquid & gaseous media (no steam) with steel flanges & NBR seal
| product | Compensators |
|---|---|
| type | KP04 |
| manufacturer | NieRuf |
| diameter | DN250 |
| connection | flange acc. DIN EN 1092-1 PN16 |
| option | PTFE lining |
| max. pressure | max. 6 bar |
| material | steel (electro galvanized) 235JR |
| sleeves | NBR |
| media | liquid media and gases (no steam) |
| temperature | -20°C up to +90°C |
| design | straightway form |
| CE | Directive 2014/68/EU: product excluded from directive (article 4 § 3) |
| authorized for | FDA |
| product feature | This high quality compensator with NBR sleeve and steel flanges has a FDA-authorization. In addition, this componesator is equipped with PTFE lining which leads to a high chemical resistance due to a smooth interior surface. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Rubber expansion joint PTFE lining DN250 PN16 type KP04 steel flanges NBR
Article no.
: KP04003115.1
product:
Compensators
type:
KP04
manufacturer:
NieRuf
diameter:
DN250
connection:
flange acc. DIN EN 1092-1 PN16
option:
PTFE lining
max. pressure:
max. 6 bar
material:
steel (electro galvanized) 235JR
sleeves:
NBR
media:
liquid media and gases (no steam)
temperature:
-20°C up to +90°C
design:
straightway form
CE:
Directive 2014/68/EU: product excluded from directive (article 4 § 3)
authorized for:
FDA
product feature:
This high quality compensator with NBR sleeve and steel flanges has a FDA-authorization. In addition, this componesator is equipped with PTFE lining which leads to a high chemical resistance due to a smooth interior surface.
