KP04013015.1

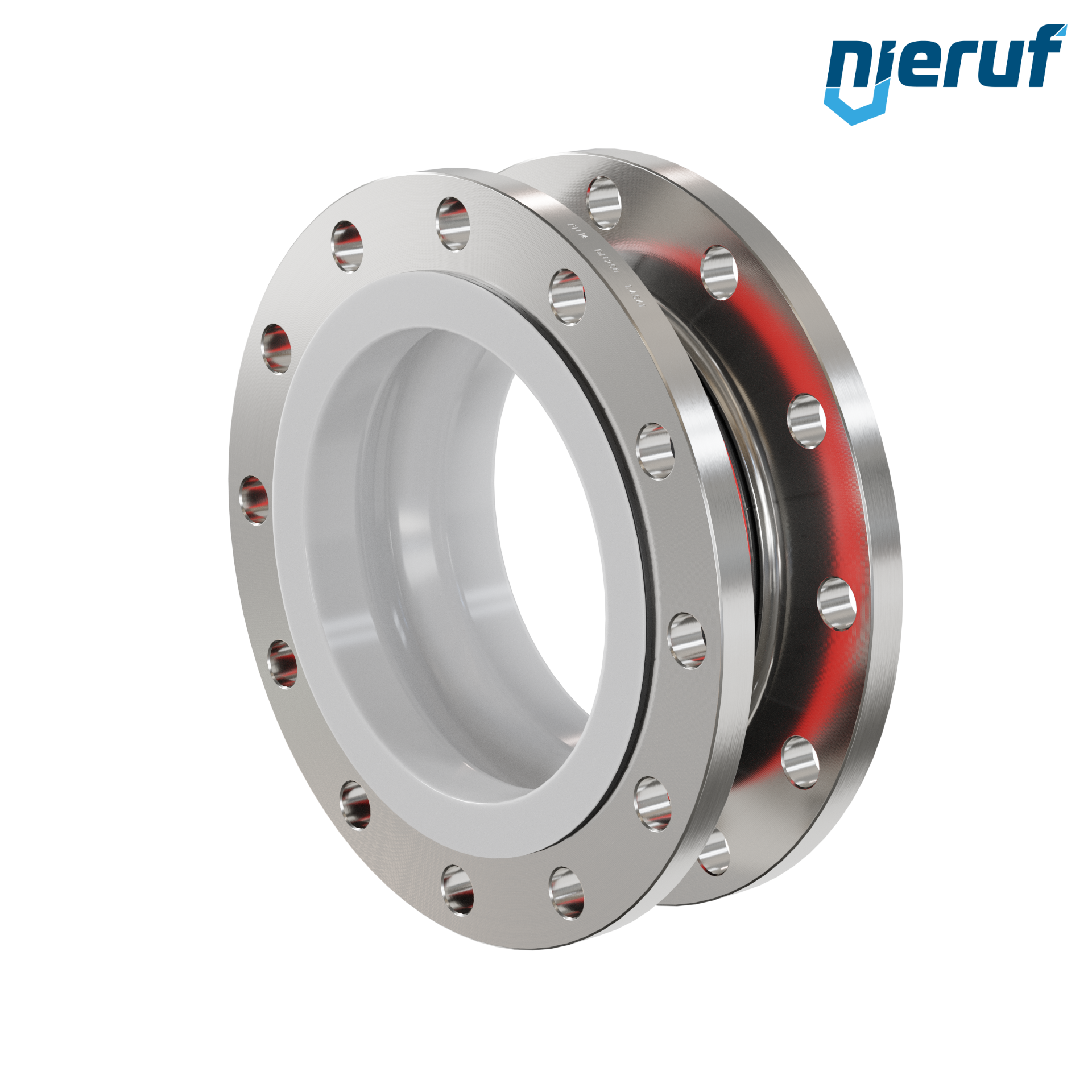

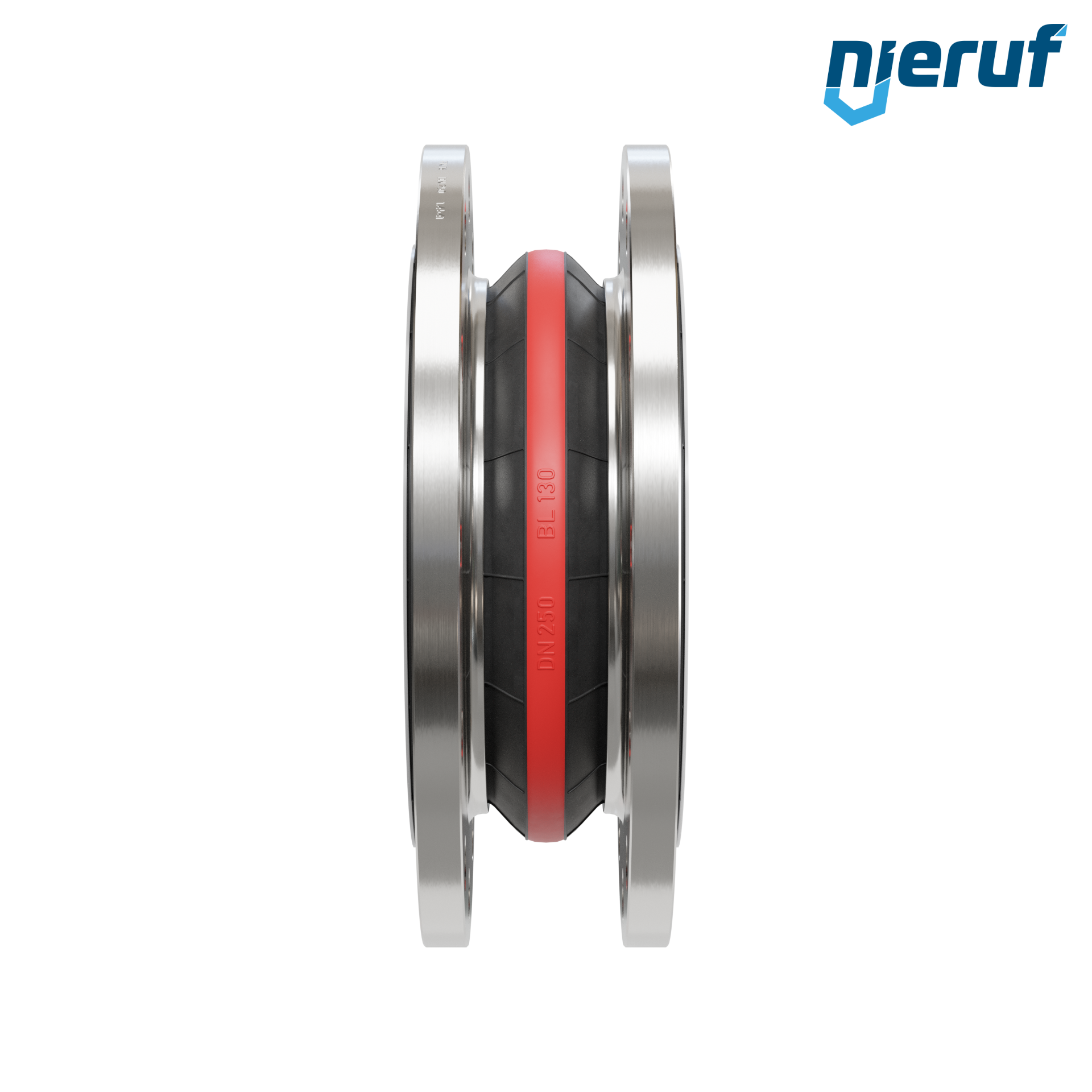

Rubber expansion joint PTFE lining DN250 PN16 type KP04 stainless steel flanges EPDM
- Lead time
- 5 - 6 weeks
Equipment
joint set flange/flange DN250 - 10" Inch for flange PN10 stainless steel
€38.56 VAT included.
flange seal DN250 PN10 273x328x2 Klingersil C 4400
€26.78 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
Downloads
Rubber expansion joint PTFE lining DN250 PN16 type KP04 stainless steel flanges EPDM
Rubber expansion joint DN250 PN16 PTFE lining for liquid & gaseous media (no steam) with stainless steel flanges & EPDM seal
| product | Compensators |
|---|---|
| type | KP04 |
| manufacturer | NieRuf |
| diameter | DN250 |
| connection | flange acc. DIN EN 1092-1 PN16 |
| option | PTFE lining |
| max. pressure | max. 6 bar |
| material | stainless steel 1.4571 / 316 Ti |
| sleeves | EPDM |
| media | liquid media and gases (no steam) |
| temperature | -40°C up to +100°C |
| design | straightway form |
| CE | Directive 2014/68/EU: product excluded from directive (article 4 § 3) |
| authorized for | FDA |
| product feature | This high quality compensator with EPDM sleeve and stainless steel flanges has a FDA-authorization. In addition, this componesator is equipped with PTFE lining which leads to a high chemical resistance due to a smooth interior surface. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Rubber expansion joint PTFE lining DN250 PN16 type KP04 stainless steel flanges EPDM
Article no.
: KP04013015.1
product:
Compensators
type:
KP04
manufacturer:
NieRuf
diameter:
DN250
connection:
flange acc. DIN EN 1092-1 PN16
option:
PTFE lining
max. pressure:
max. 6 bar
material:
stainless steel 1.4571 / 316 Ti
sleeves:
EPDM
media:
liquid media and gases (no steam)
temperature:
-40°C up to +100°C
design:
straightway form
CE:
Directive 2014/68/EU: product excluded from directive (article 4 § 3)
authorized for:
FDA
product feature:
This high quality compensator with EPDM sleeve and stainless steel flanges has a FDA-authorization. In addition, this componesator is equipped with PTFE lining which leads to a high chemical resistance due to a smooth interior surface.
Equipment
joint set flange/flange DN250 - 10" Inch for flange PN10 stainless steel
Lead time: in stock
