KP04011009
Rubber expansion joint guide pipe DN65 type KP04 stainless steel flanges EPDM
- Lead time
- 3 - 5 working days
Equipment
flange seal DN65 PN10/16/25/40 77x127x2 Klingersil C 4400
€4.76 VAT included.
joint set flange/flange DN65 - 2 1/2" Inch for flange PN10/16/25 stainless steel
€8.09 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
Downloads

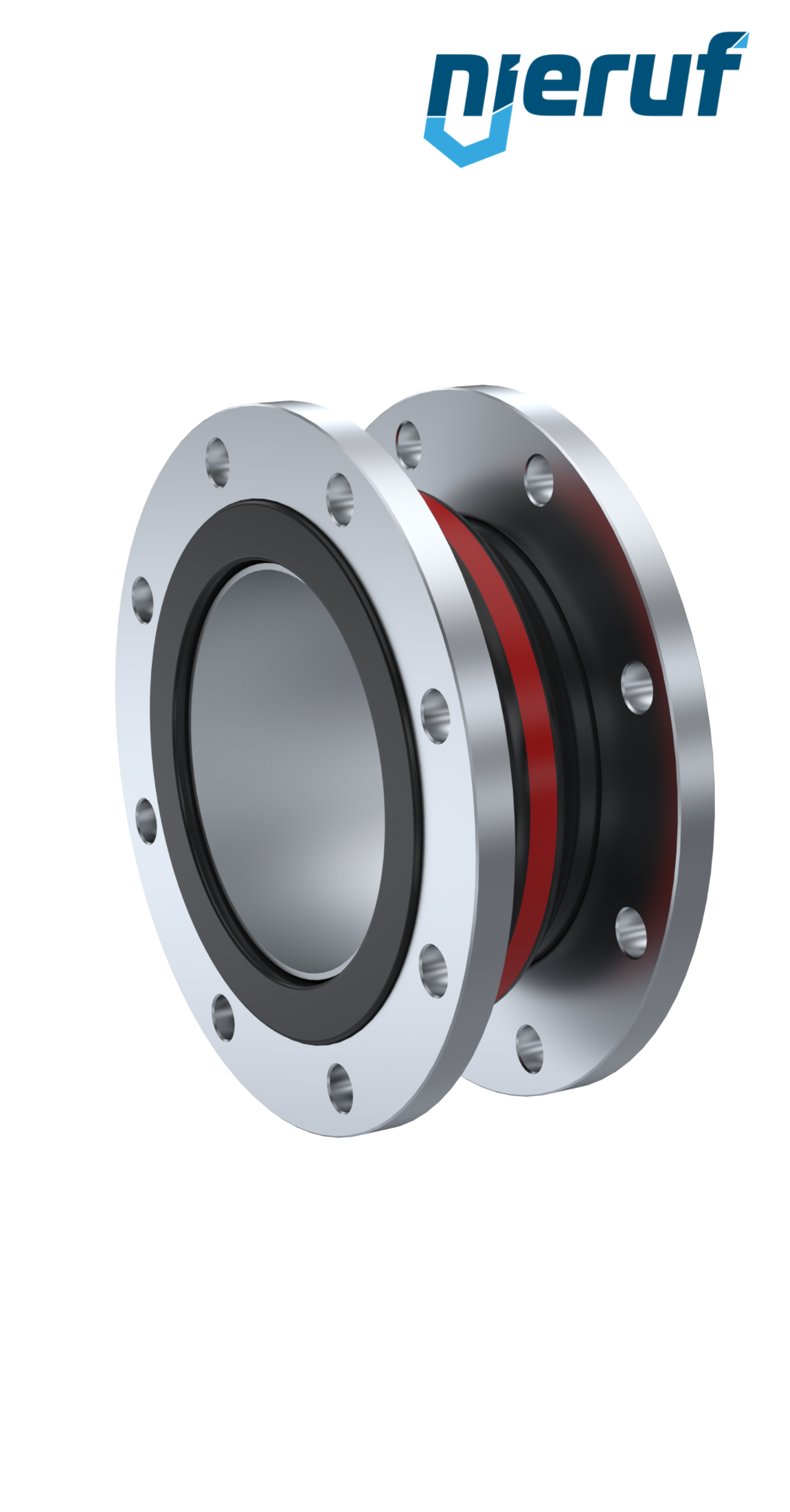

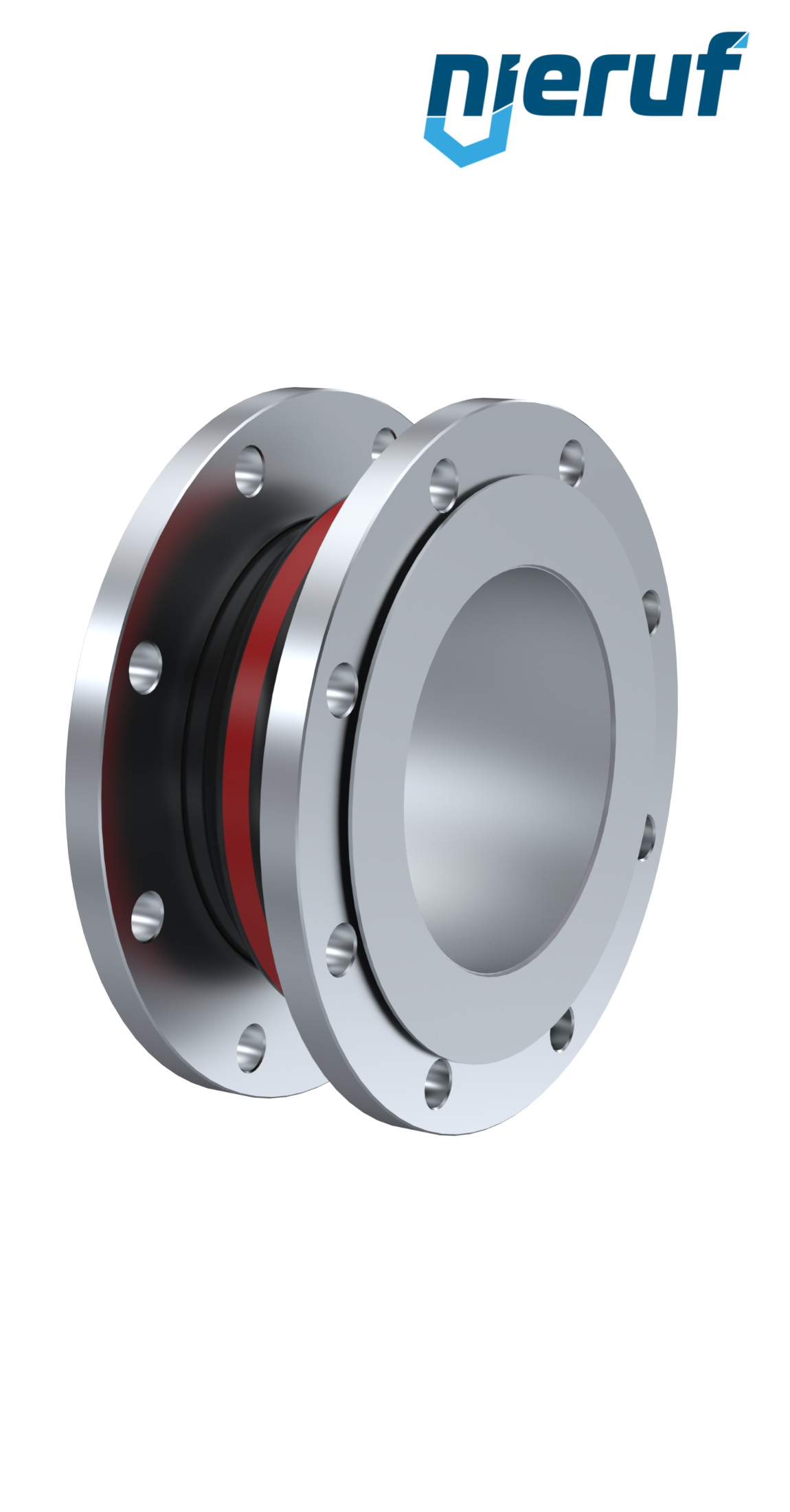

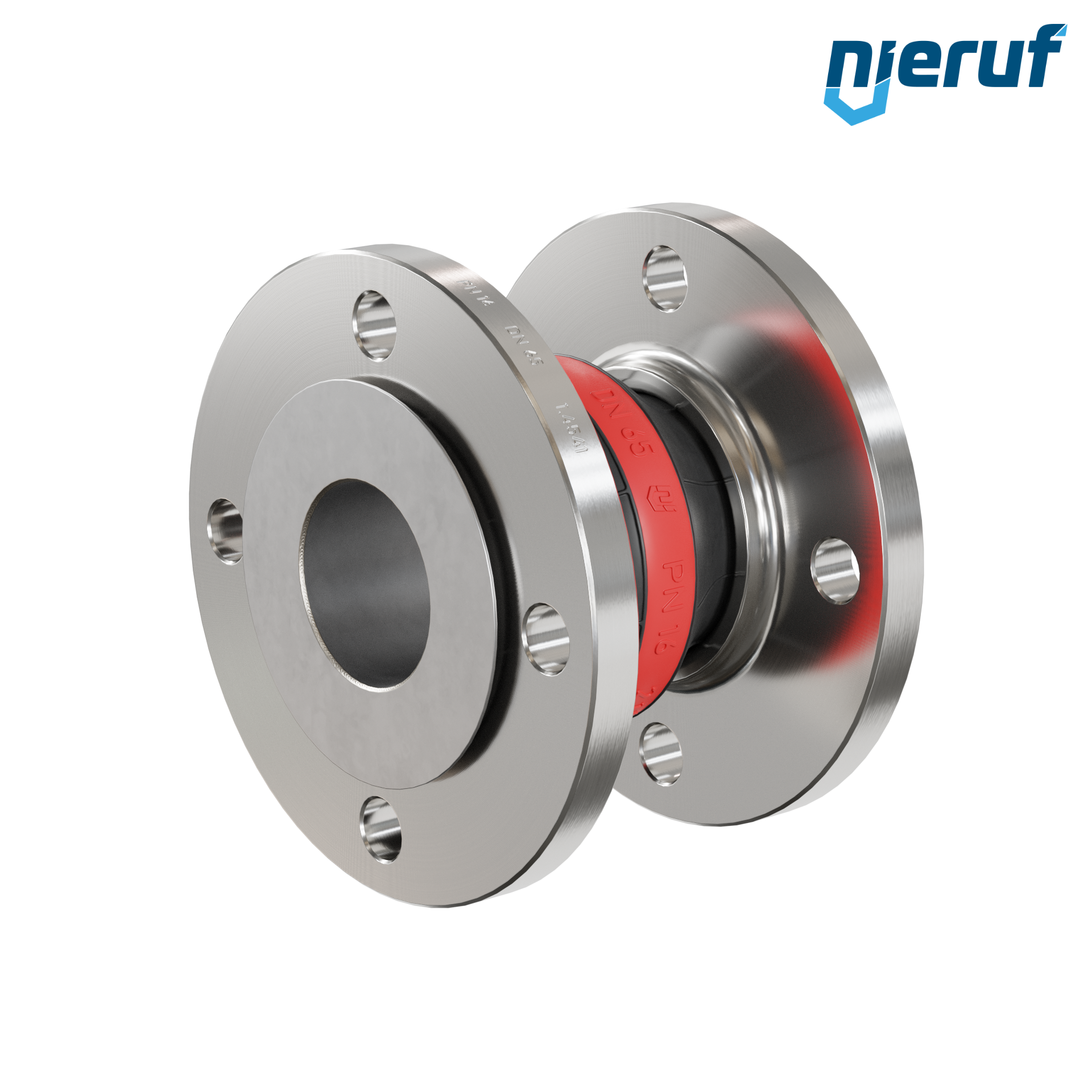

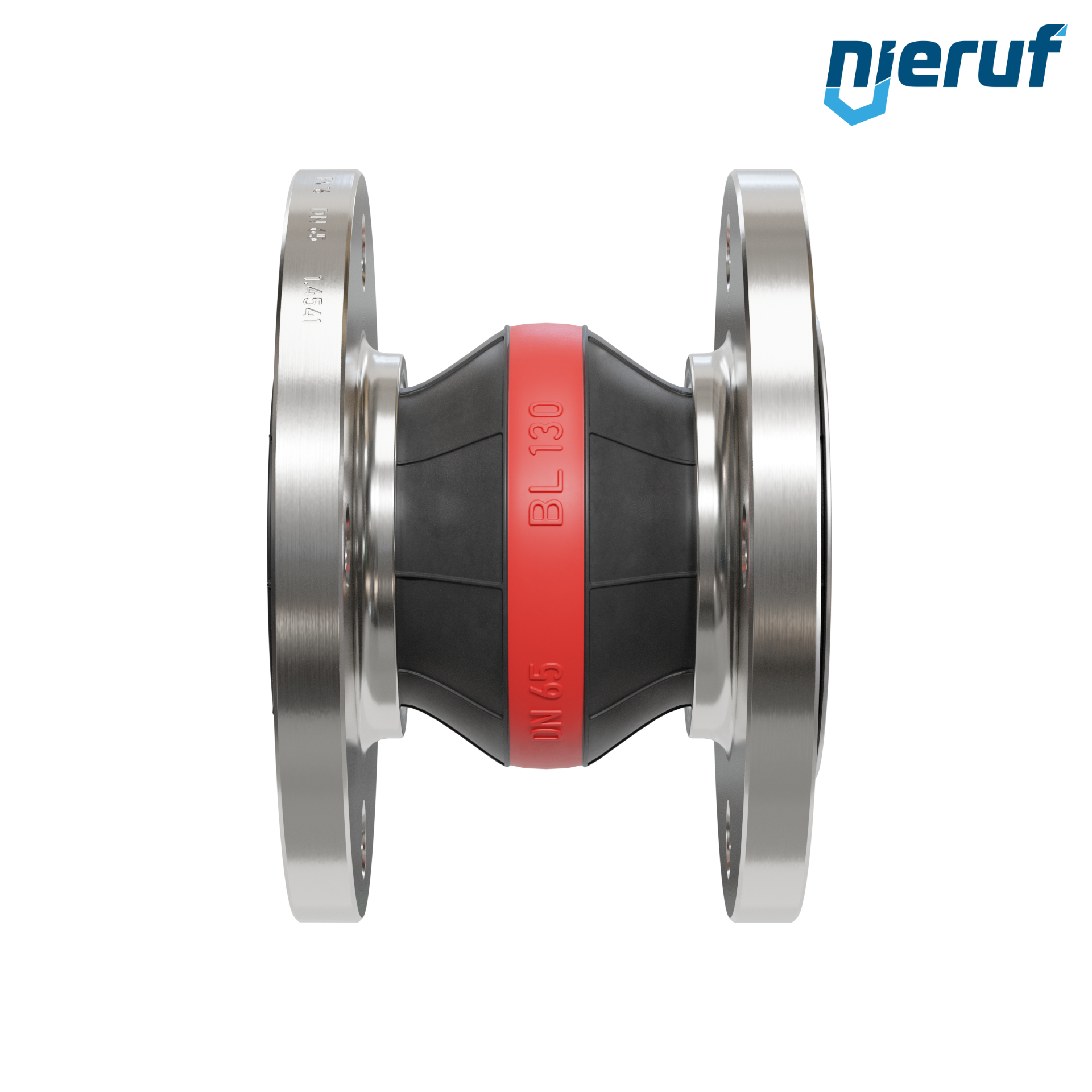

Rubber expansion joint guide pipe DN65 type KP04 stainless steel flanges EPDM
Rubber expansion joint DN65 guide pipe for liquid & gaseous media (no steam) with stainless steel flanges & EPDM seal
| product | Compensators |
|---|---|
| type | KP04 |
| manufacturer | NieRuf |
| diameter | DN65 |
| connection | flange acc. DIN EN 1092-1 PN16 |
| option | guide pipe |
| max. pressure | max. 16 bar (consider pressure-temperature diagram) |
| nominal pressure | PN 16 |
| material | stainless steel 1.4541 / 321 |
| sleeves | EPDM |
| media | liquid media and gases (no steam) |
| temperature | -40°C up to +100°C |
| design | straightway form |
| CE | Directive 2014/68/EU: product excluded from directive (article 4 § 3) |
| product feature | This high quality compensator with EPDM sleeve and stainless steel flanges. In addition, this componesator is equipped with a guide plate to minimize damage to the compensator. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Rubber expansion joint guide pipe DN65 type KP04 stainless steel flanges EPDM
Article no.
: KP04011009
product:
Compensators
type:
KP04
manufacturer:
NieRuf
diameter:
DN65
connection:
flange acc. DIN EN 1092-1 PN16
option:
guide pipe
max. pressure:
max. 16 bar (consider pressure-temperature diagram)
nominal pressure:
PN 16
material:
stainless steel 1.4541 / 321
sleeves:
EPDM
media:
liquid media and gases (no steam)
temperature:
-40°C up to +100°C
design:
straightway form
CE:
Directive 2014/68/EU: product excluded from directive (article 4 § 3)
product feature:
This high quality compensator with EPDM sleeve and stainless steel flanges. In addition, this componesator is equipped with a guide plate to minimize damage to the compensator.
Equipment
flange seal DN65 PN10/16/25/40 77x127x2 Klingersil C 4400
Lead time: in stock
joint set flange/flange DN65 - 2 1/2" Inch for flange PN10/16/25 stainless steel
Lead time: in stock
