KP04011006
Rubber expansion joint guide pipe DN32 type KP04 stainless steel flanges EPDM
- Lead time
- 3 - 5 working days
Equipment
joint set flange/flange DN32 - 1 1/4" Inch for flange PN10/16/25/40 stainless steel
€8.09 VAT included.
flange seal DN32 PN10/16/25/40 43x82x2 Klingersil C 4400
€5.24 VAT included.
Flange DN32 PN10/16/25/40 EN1092-1 11 B1 1.4571
€41.06 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
Downloads

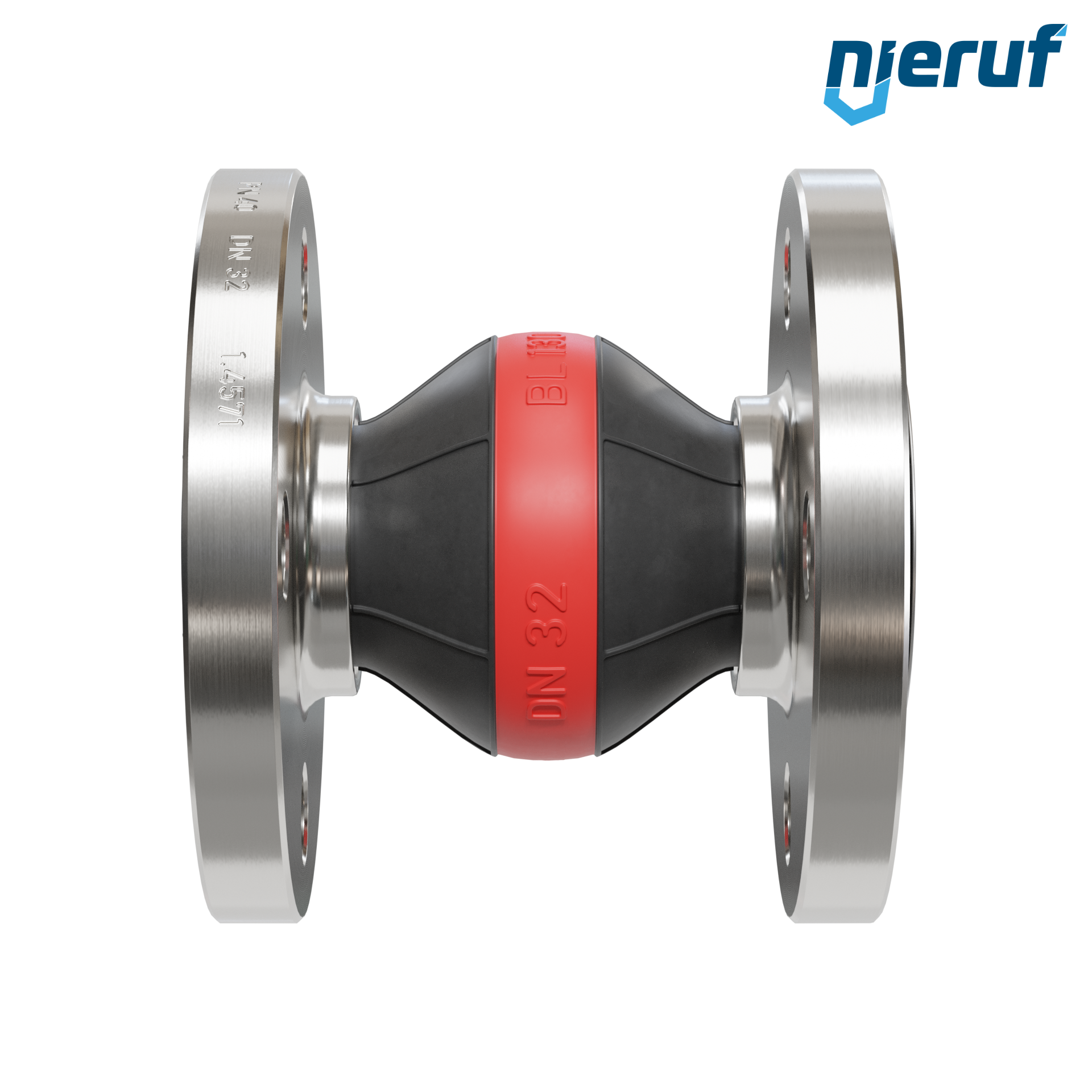

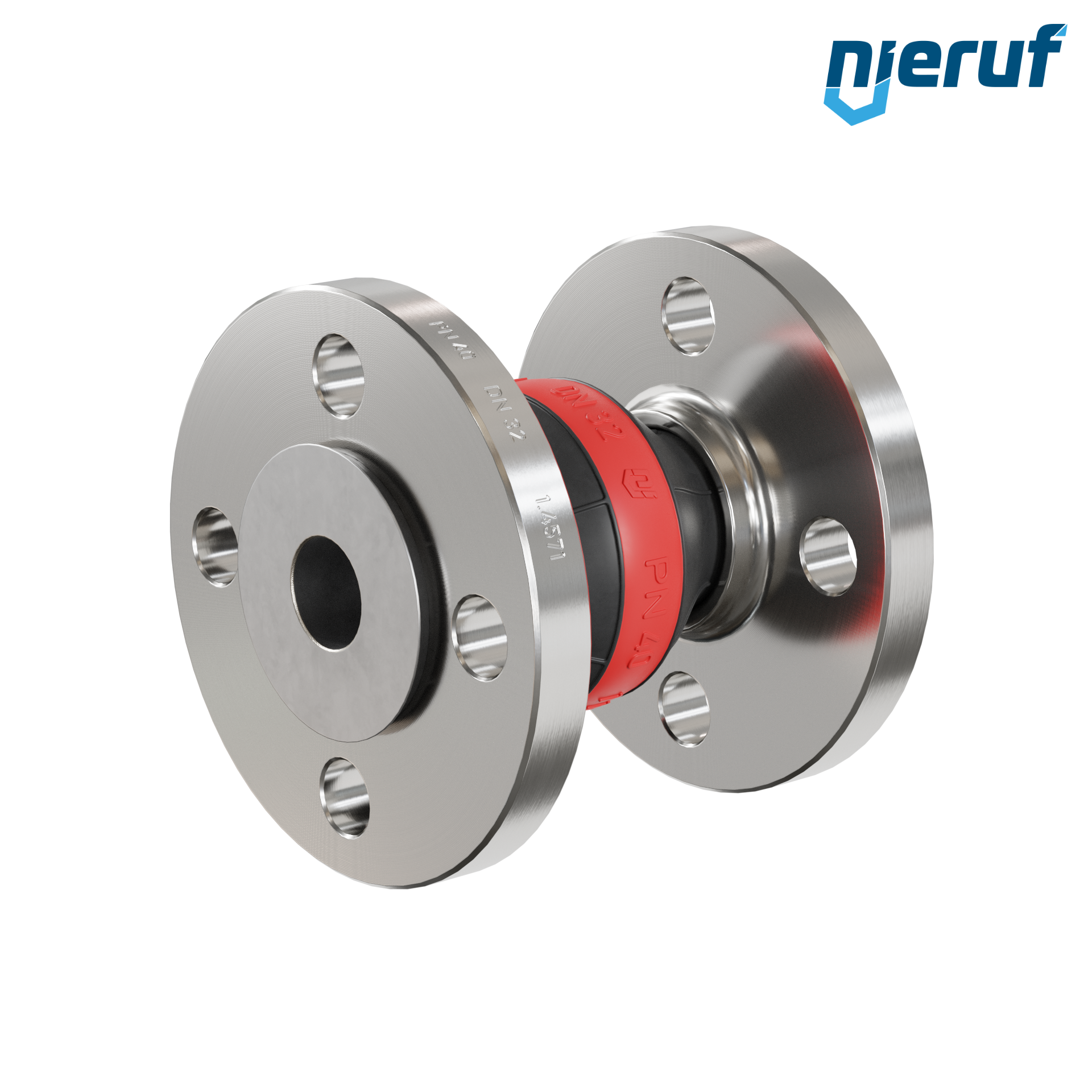

Rubber expansion joint guide pipe DN32 type KP04 stainless steel flanges EPDM
Rubber expansion joint DN32 guide pipe for liquid & gaseous media (no steam) with stainless steel flanges & EPDM seal
| product | Compensators |
|---|---|
| type | KP04 |
| manufacturer | NieRuf |
| diameter | DN32 |
| connection | flange acc. DIN EN 1092-1 PN40 |
| option | guide pipe |
| max. pressure | max. 16 bar (consider pressure-temperature diagram) |
| nominal pressure | PN 16 |
| material | stainless steel 1.4571 / 316 Ti |
| sleeves | EPDM |
| media | liquid media and gases (no steam) |
| temperature | -40°C up to +100°C |
| design | straightway form |
| CE | Directive 2014/68/EU: product excluded from directive (article 4 § 3) |
| product feature | This high quality compensator with EPDM sleeve and stainless steel flanges. In addition, this componesator is equipped with a guide plate to minimize damage to the compensator. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Rubber expansion joint guide pipe DN32 type KP04 stainless steel flanges EPDM
Article no.
: KP04011006
product:
Compensators
type:
KP04
manufacturer:
NieRuf
diameter:
DN32
connection:
flange acc. DIN EN 1092-1 PN40
option:
guide pipe
max. pressure:
max. 16 bar (consider pressure-temperature diagram)
nominal pressure:
PN 16
material:
stainless steel 1.4571 / 316 Ti
sleeves:
EPDM
media:
liquid media and gases (no steam)
temperature:
-40°C up to +100°C
design:
straightway form
CE:
Directive 2014/68/EU: product excluded from directive (article 4 § 3)
product feature:
This high quality compensator with EPDM sleeve and stainless steel flanges. In addition, this componesator is equipped with a guide plate to minimize damage to the compensator.
Equipment
flange seal DN32 PN10/16/25/40 43x82x2 Klingersil C 4400
Lead time: in stock
joint set flange/flange DN32 - 1 1/4" Inch for flange PN10/16/25/40 stainless steel
Lead time: in stock
