KP04011116.1
Rubber expansion joint guide pipe DN300 PN16 type KP04 stainless steel flanges NBR
- Lead time
- 3 - 5 working days
Equipment
flange seal DN300 PN16 324x384x2 Klingersil C 4400
€41.17 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
Downloads

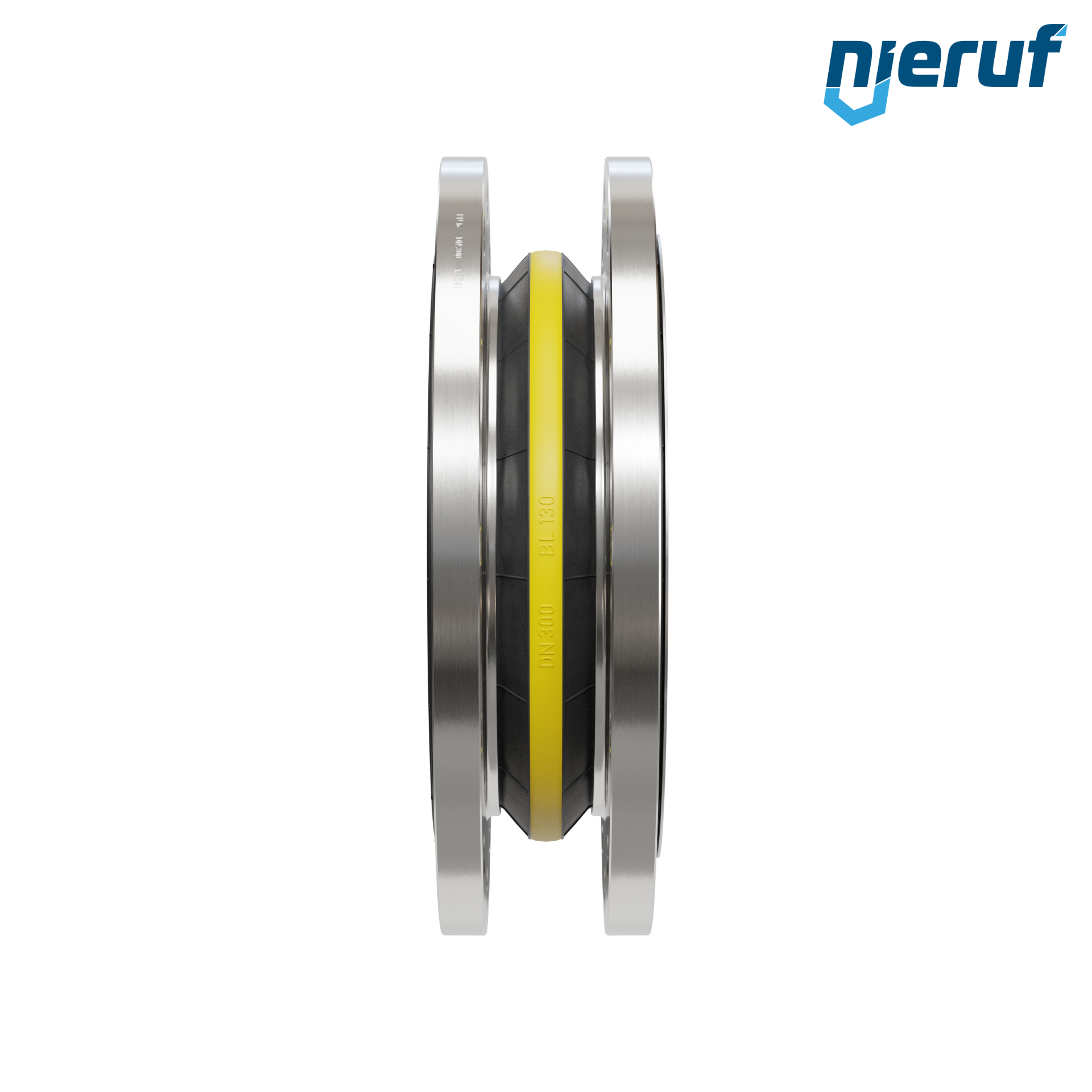

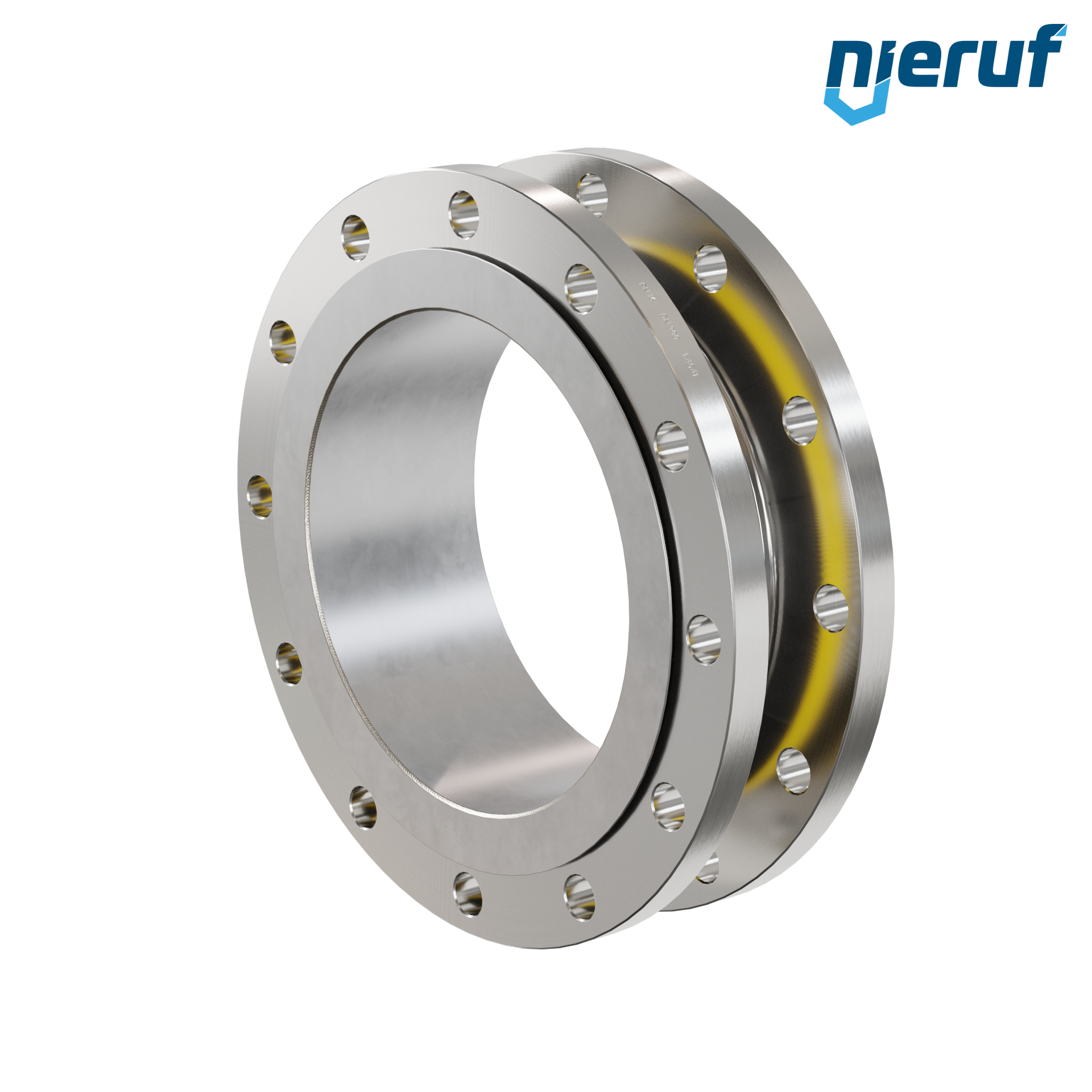

Rubber expansion joint guide pipe DN300 PN16 type KP04 stainless steel flanges NBR
Rubber expansion joint DN300 PN16 guide pipe for liquid & gaseous media (no steam) with stainless steel flanges & NBR seal
| product | Compensators |
|---|---|
| type | KP04 |
| manufacturer | NieRuf |
| diameter | DN300 |
| connection | flange acc. DIN EN 1092-1 PN16 |
| option | guide pipe |
| max. pressure | max. 16 bar (consider pressure-temperature diagram) |
| nominal pressure | PN16 |
| material | stainless steel 1.4571 / 316 Ti |
| sleeves | NBR |
| media | liquid media and gases (no steam) |
| temperature | -20°C up to +90°C |
| design | straightway form |
| CE | Directive 2014/68/EU: product excluded from directive (article 4 § 3) |
| product feature | High quality compensator with NBR sleeve and stainless steel flanges. In addition, this componesator is equipped with a guide plate to minimize damage to the compensator. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Rubber expansion joint guide pipe DN300 PN16 type KP04 stainless steel flanges NBR
Article no.
: KP04011116.1
product:
Compensators
type:
KP04
manufacturer:
NieRuf
diameter:
DN300
connection:
flange acc. DIN EN 1092-1 PN16
option:
guide pipe
max. pressure:
max. 16 bar (consider pressure-temperature diagram)
nominal pressure:
PN16
material:
stainless steel 1.4571 / 316 Ti
sleeves:
NBR
media:
liquid media and gases (no steam)
temperature:
-20°C up to +90°C
design:
straightway form
CE:
Directive 2014/68/EU: product excluded from directive (article 4 § 3)
product feature:
High quality compensator with NBR sleeve and stainless steel flanges. In addition, this componesator is equipped with a guide plate to minimize damage to the compensator.
