KP04001005

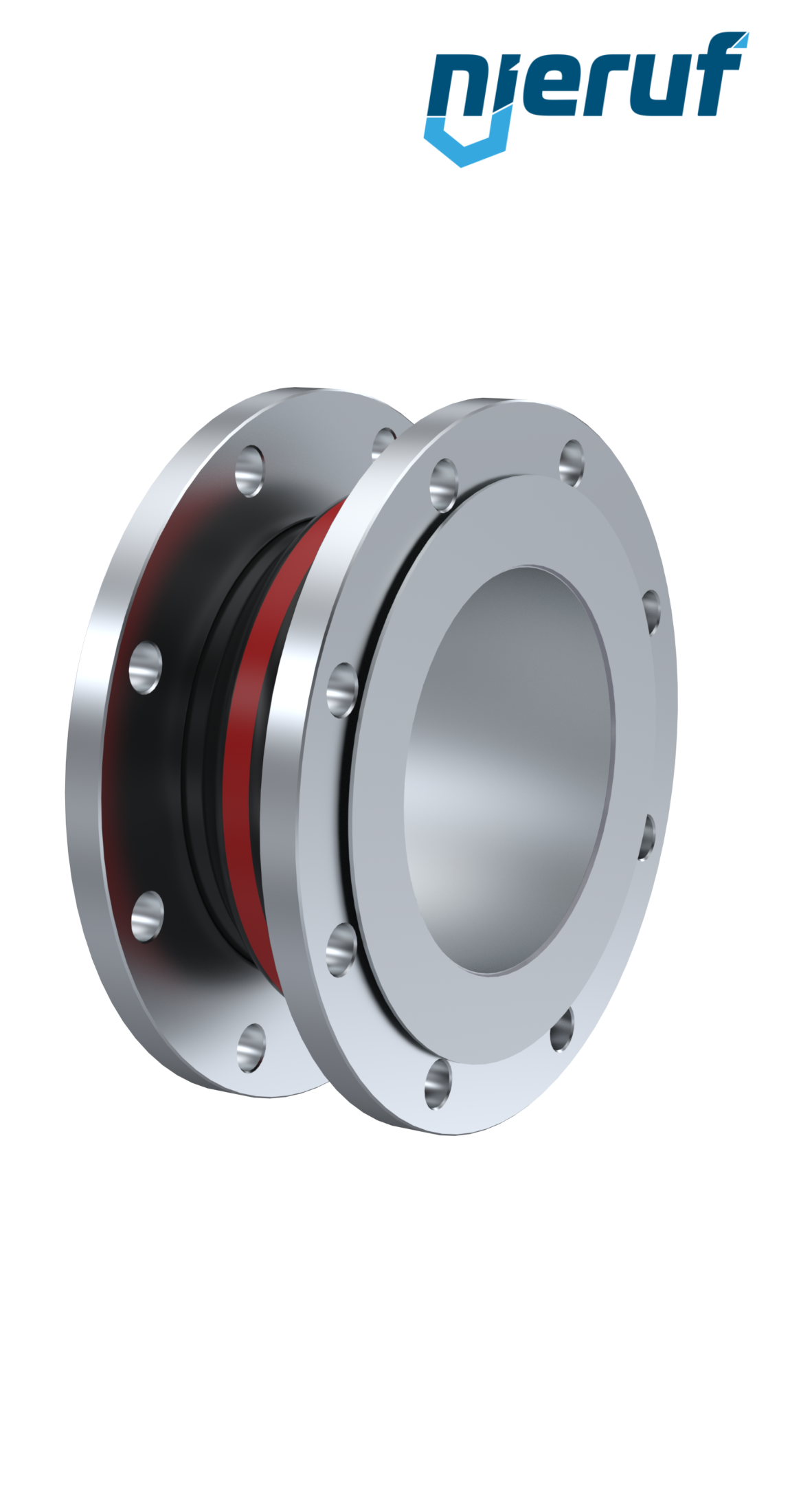

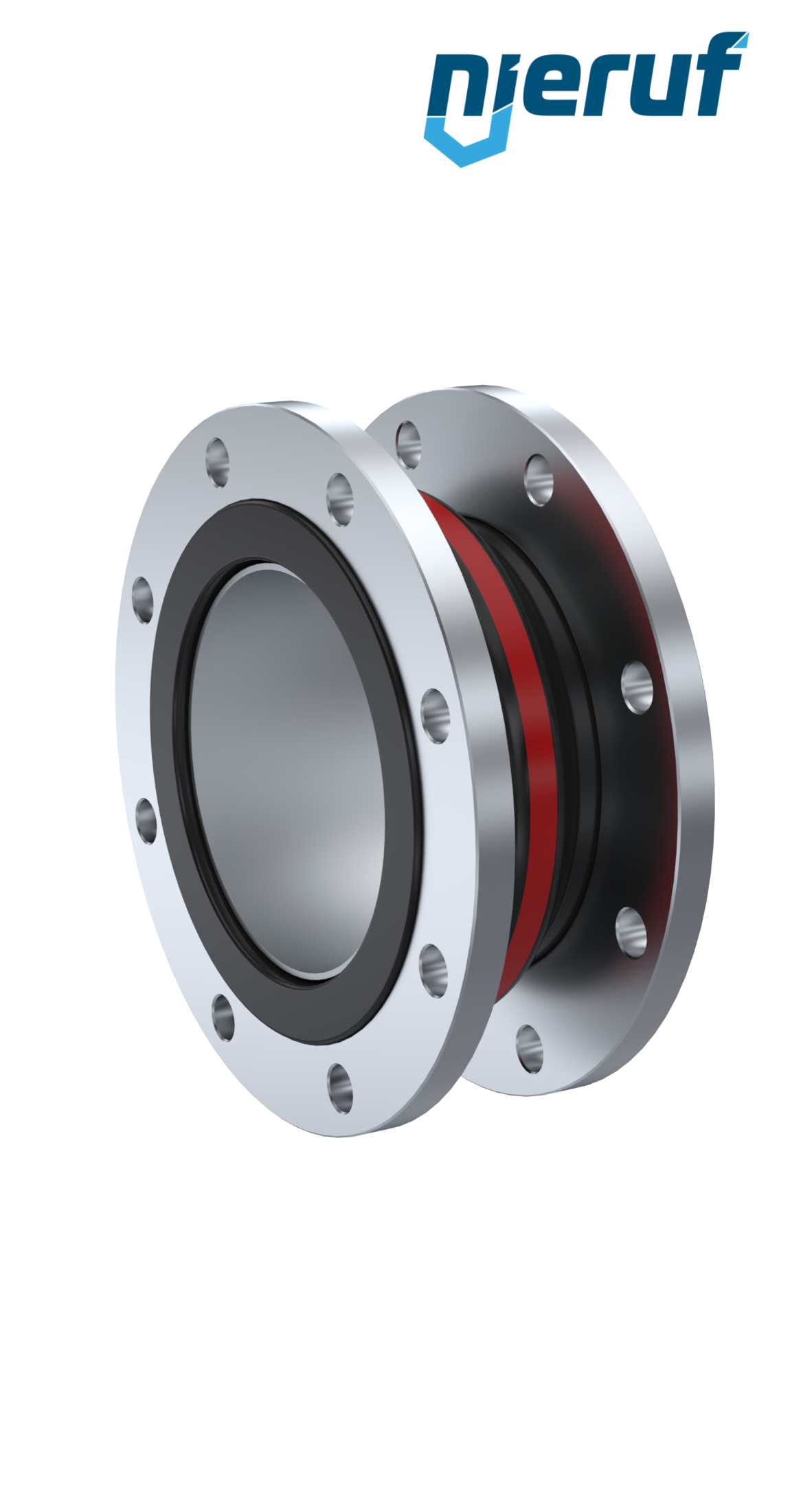

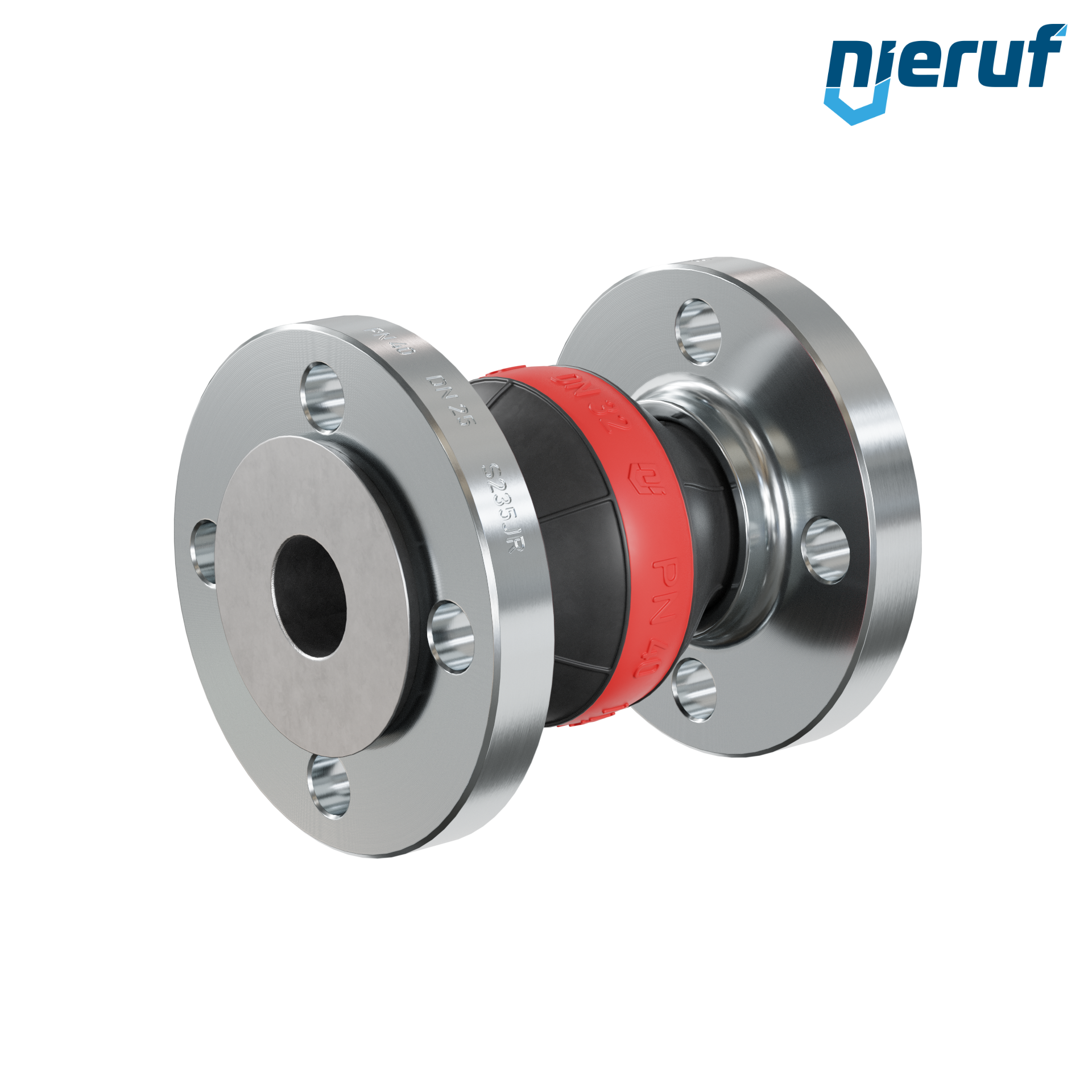

Rubber expansion joint guide pipe DN25 type KP04 steel flanges EPDM
- Lead time
- 3 - 5 working days
Equipment
Flange DN25 PN10/16/25/40 EN1092-1 11 B1 C22.8 / P250GH bare
€16.66 VAT included.
joint set flange/flange DN25 - 1" Inch for flange PN10/16/25/40 steel
€4.28 VAT included.
flange seal DN25 PN10/16/25/40 34x71x2 Klingersil C 4400
€4.88 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
Downloads
Rubber expansion joint guide pipe DN25 type KP04 steel flanges EPDM
Rubber expansion joint DN25 guide pipe for liquid & gaseous media (no steam) with steel flanges & EPDM seal
| product | Compensators |
|---|---|
| type | KP04 |
| manufacturer | NieRuf |
| diameter | DN25 |
| connection | flange acc. DIN EN 1092-1 PN40 |
| option | guide pipe |
| max. pressure | max. 16 bar (consider pressure-temperature diagram) |
| nominal pressure | PN 16 |
| material | steel (electro galvanized) 235JR |
| sleeves | EPDM |
| media | liquid media and gases (no steam) |
| temperature | -40°C up to +100°C |
| design | straightway form |
| CE | Directive 2014/68/EU: product excluded from directive (article 4 § 3) |

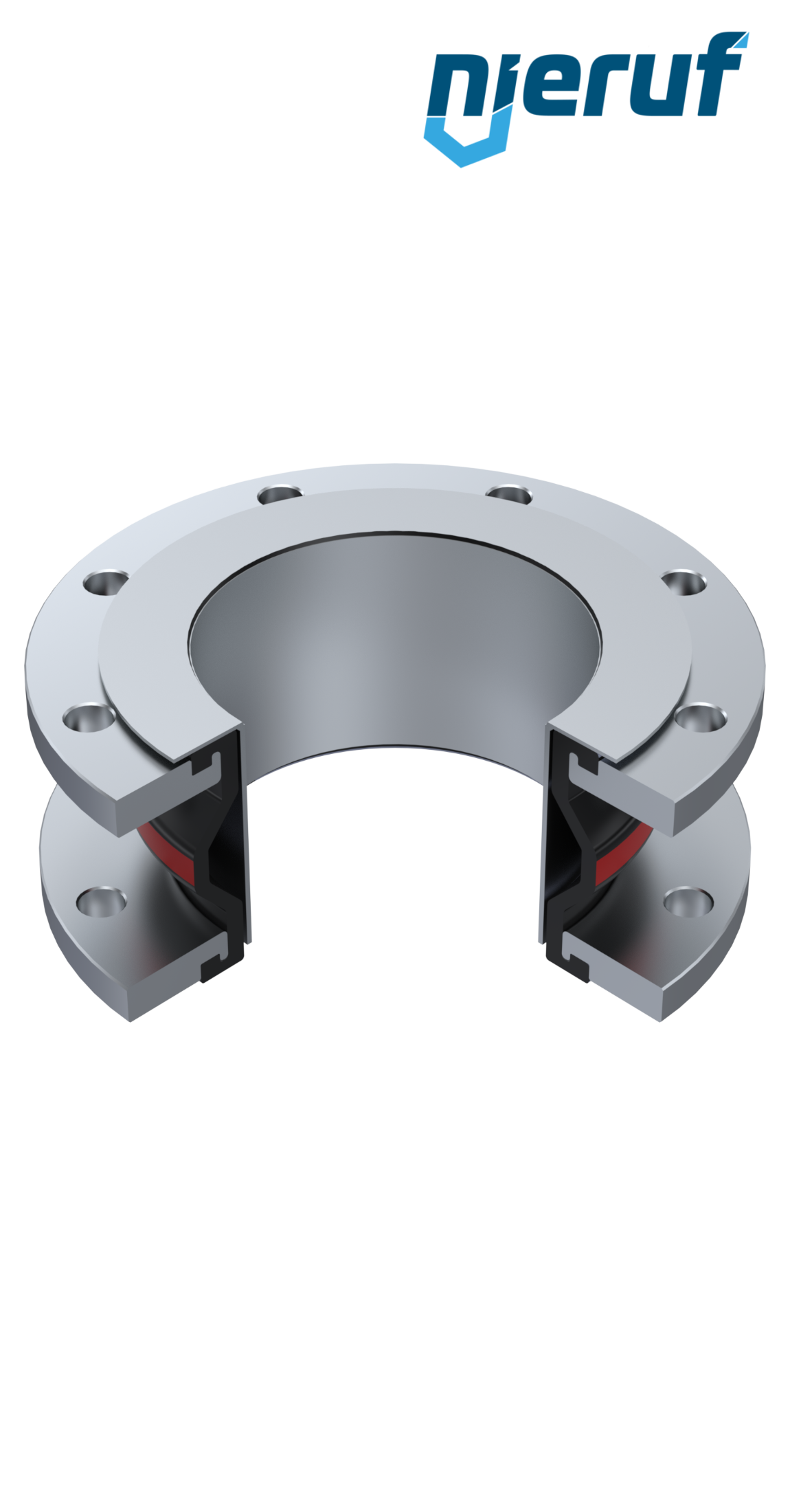

| product feature | This high quality compensator with EPDM sleeve and steel flanges. In addition, this componesator is equipped with a guide plate to minimize damage to the compensator. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Rubber expansion joint guide pipe DN25 type KP04 steel flanges EPDM
Article no.
: KP04001005
product:
Compensators
type:
KP04
manufacturer:
NieRuf
diameter:
DN25
connection:
flange acc. DIN EN 1092-1 PN40
option:
guide pipe
max. pressure:
max. 16 bar (consider pressure-temperature diagram)
nominal pressure:
PN 16
material:
steel (electro galvanized) 235JR
sleeves:
EPDM
media:
liquid media and gases (no steam)
temperature:
-40°C up to +100°C
design:
straightway form
CE:
Directive 2014/68/EU: product excluded from directive (article 4 § 3)
product feature:
This high quality compensator with EPDM sleeve and steel flanges. In addition, this componesator is equipped with a guide plate to minimize damage to the compensator.
Equipment
flange seal DN25 PN10/16/25/40 34x71x2 Klingersil C 4400
Lead time: in stock
Flange DN25 PN10/16/25/40 EN1092-1 11 B1 C22.8 / P250GH bare
Lead time: in stock
joint set flange/flange DN25 - 1" Inch for flange PN10/16/25/40 steel
Lead time: 3 - 5 working days
