KP04010109

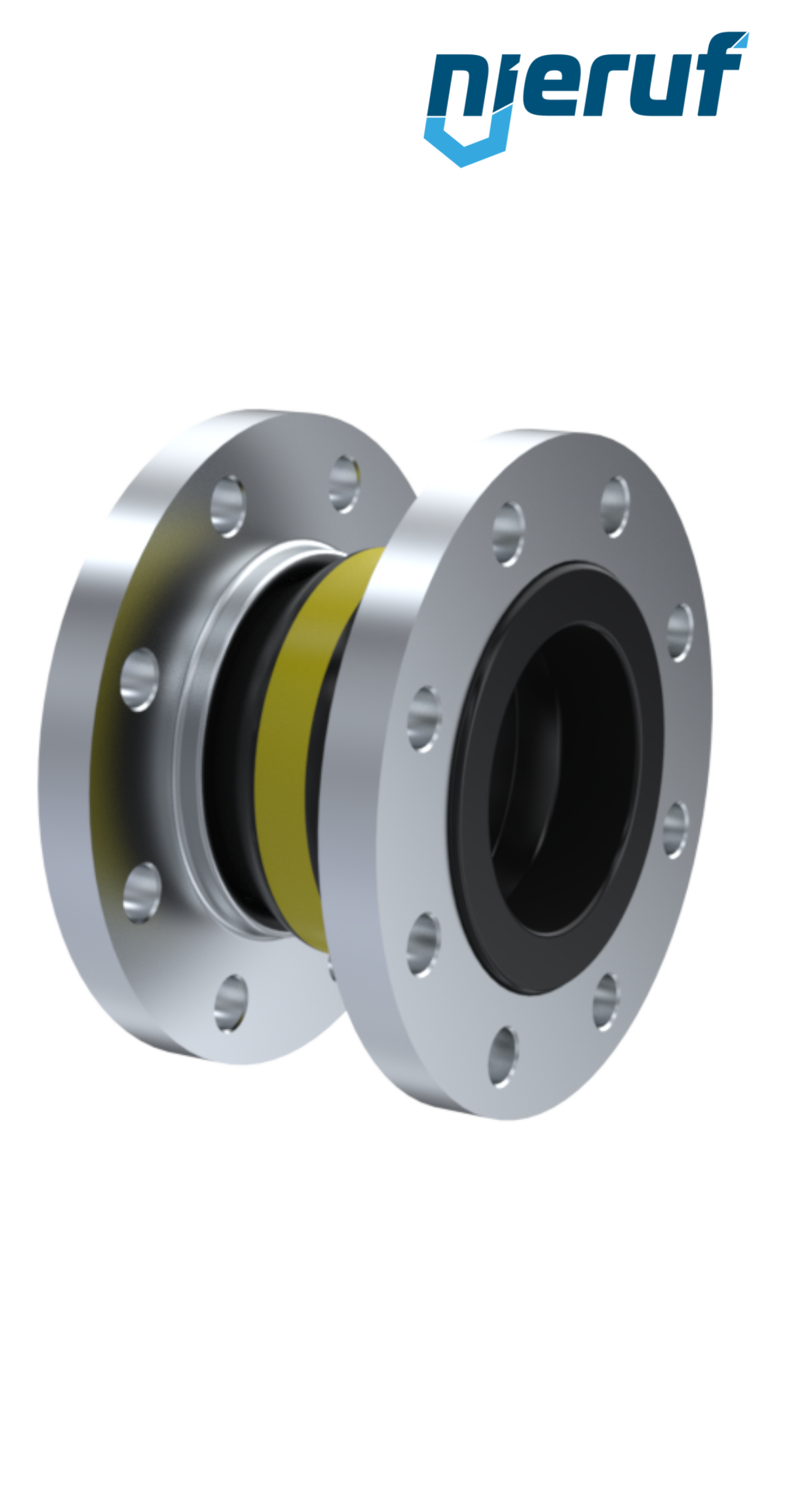

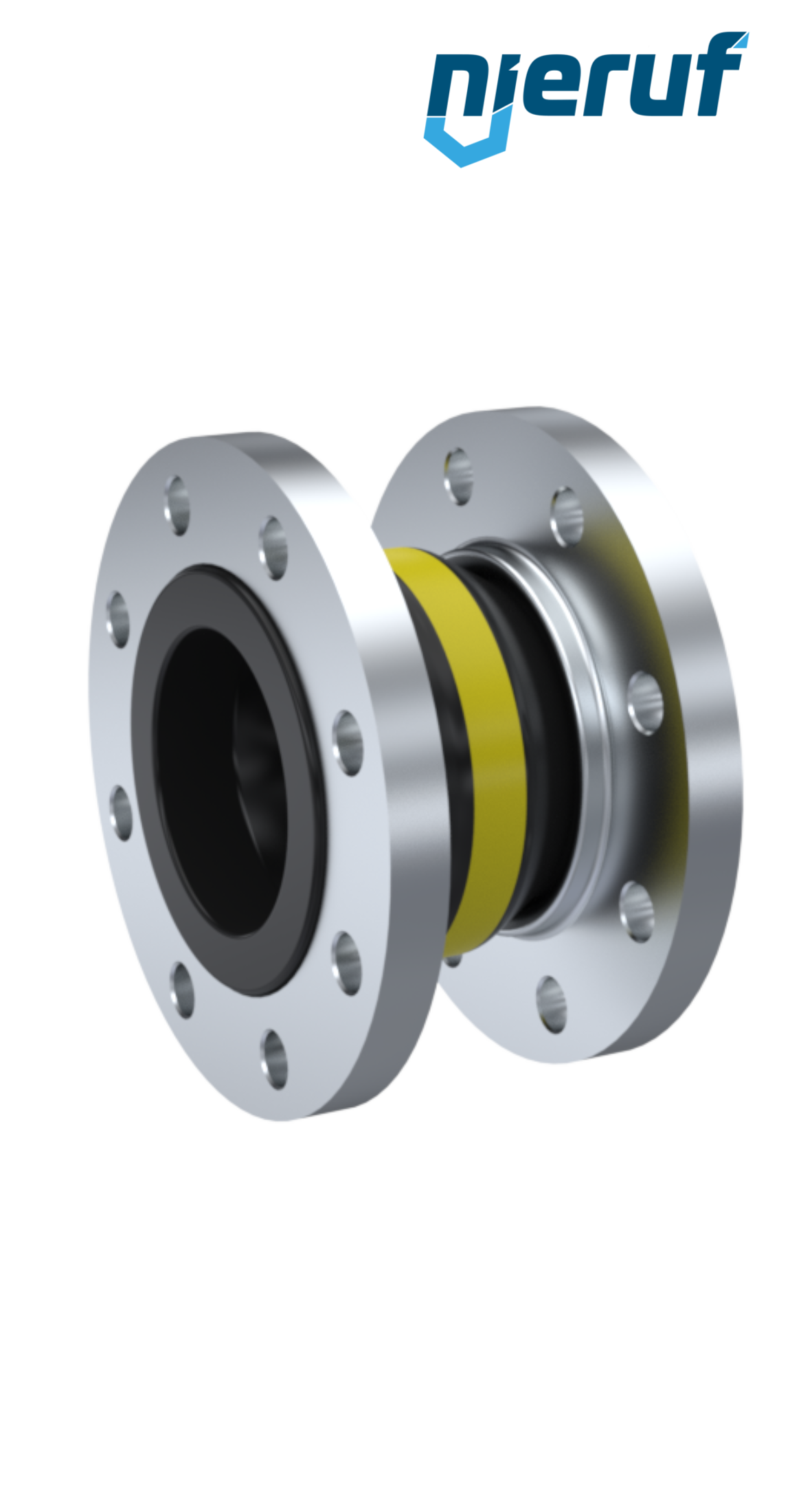

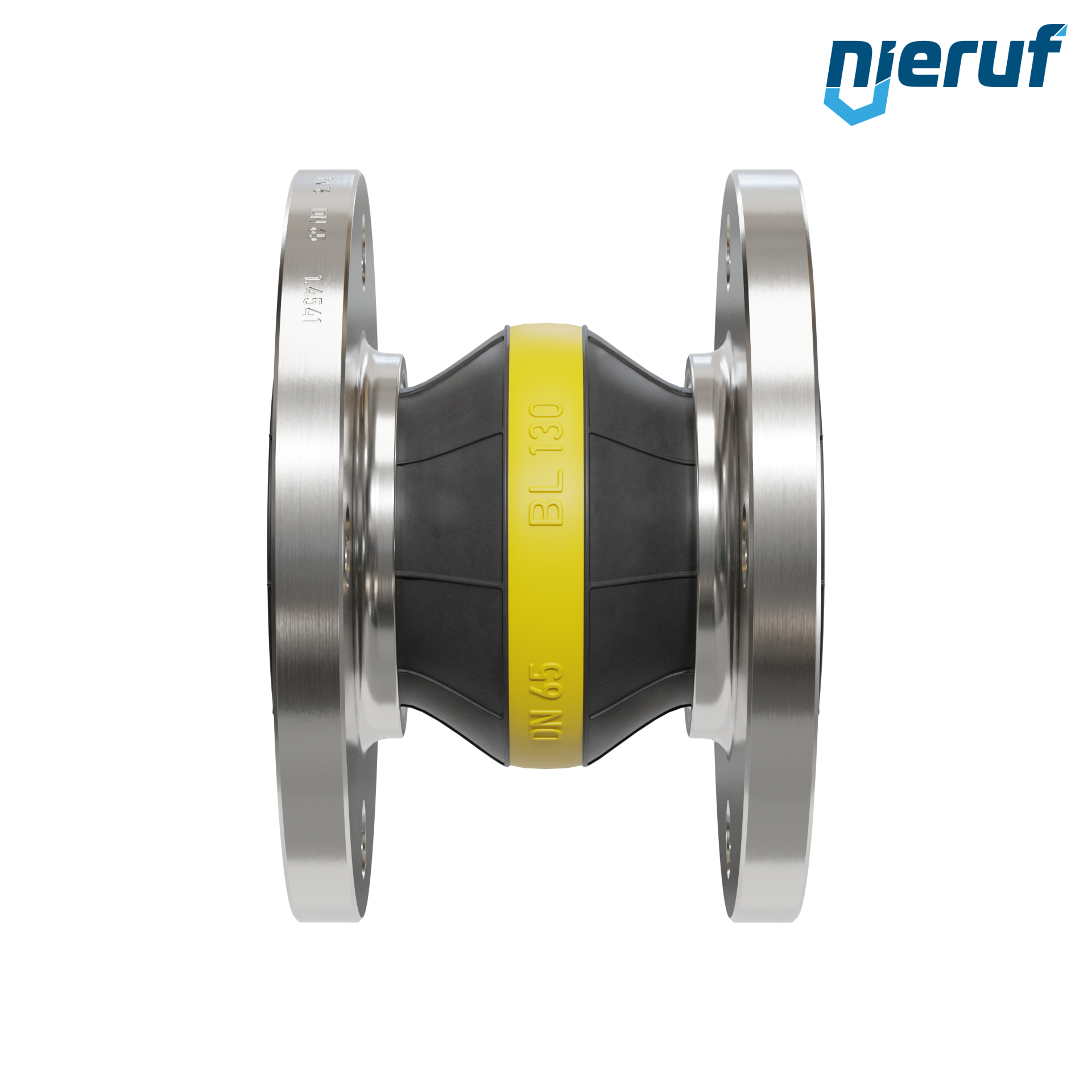

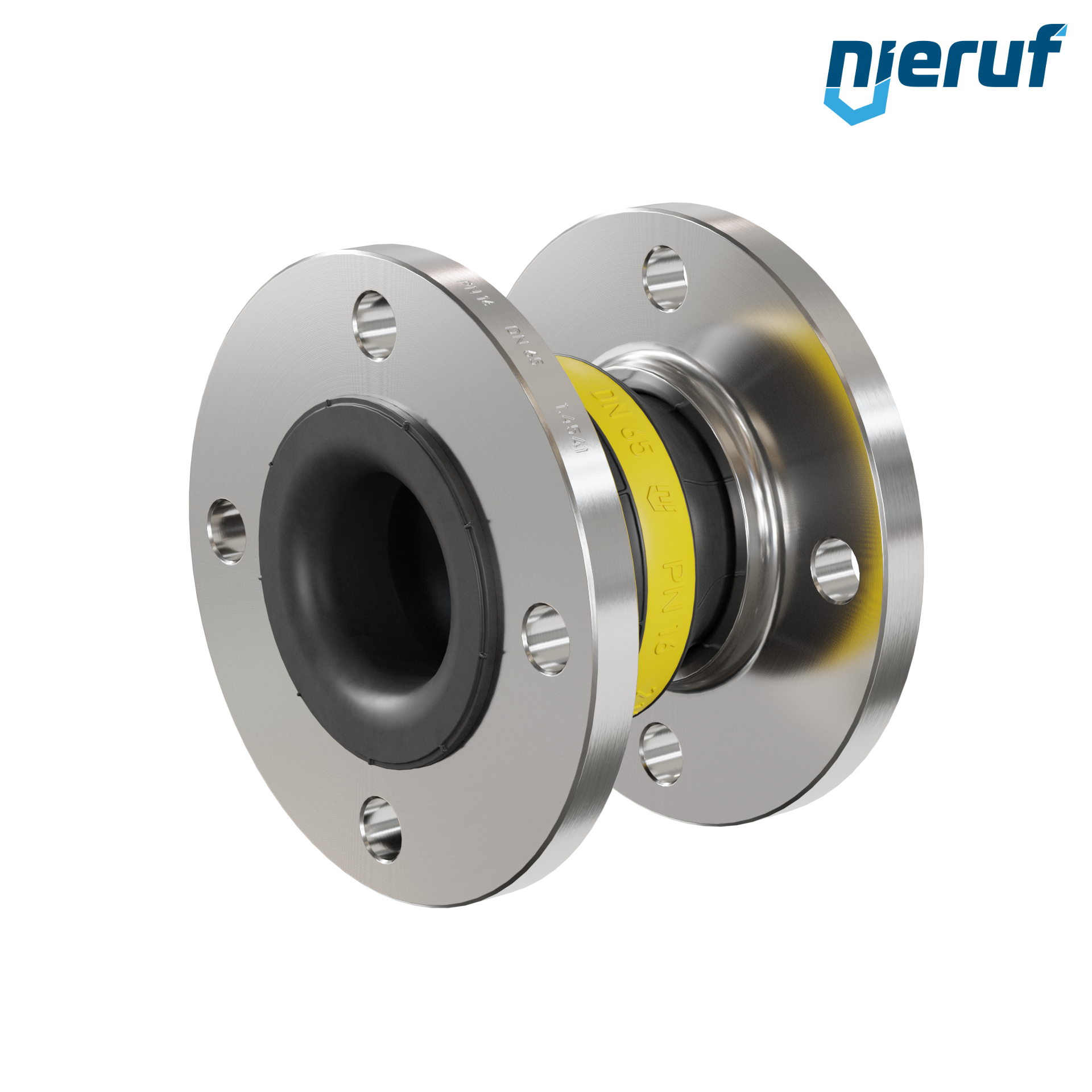

Compensators DN65 type KP04 stainless-steel-flanges NBR

Compensatore DN65 tipo KP04 flange acciaio inox, manicotto NBR

€366.00*

€435.54 VAT included.

*Prices excl. VAT plus shipping costs

Lead time: 3 - 5 working days

Equipment

FL01010109

Flange DN65 PN10/16 EN1092-1 11 B1 1.4571

€56.10*

€66.76 VAT included.

VS01000109

joint set flange/flange DN65 - 2 1/2" Inch for flange PN10/16/25 stainless steel

€6.80*

€8.09 VAT included.

Resistance check

×

Our employee <strong>Richie Rost</strong><br>will be happy to help you

Questions about the article?

Our employee Richie Rost
will be happy to help you

Tel: +49714396669-18

E-Mail: rost@nieruf.com

NIERUF-SERVICE

24 months warranty

Downloads

3D model

Datasheet

Compensators DN65 type KP04 stainless-steel-flanges NBR

Compensators DN65 with NBR-sleeve and stainless steel flange for liquid media and gases (no steam)

product	Compensators
type	KP04
manufacturer	NieRuf
diameter	DN65
connection	flange acc. DIN EN 1092-1 PN16
max. pressure	max. 16 bar (consider pressure-temperature diagram)
nominal pressure	PN 16
material	stainless steel 1.4541 / 321
sleeves	NBR
media	liquid media and gases (no steam)
temperature	-20°C up to +90°C
design	straightway form
CE	Directive 2014/68/EU: product excluded from directive (article 4 § 3)
product feature	High quality compensator with NBR sleeve and stainless steel flanges. This type can be extended by PTFE lining, vacuum support rings and other options on request.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Compensators DN65 type KP04 stainless-steel-flanges NBR

Article no. : KP04010109
product: Compensators
type: KP04
manufacturer: NieRuf
diameter: DN65
connection: flange acc. DIN EN 1092-1 PN16
max. pressure: max. 16 bar (consider pressure-temperature diagram)
nominal pressure: PN 16
material: stainless steel 1.4541 / 321
sleeves: NBR
media: liquid media and gases (no steam)
temperature: -20°C up to +90°C
design: straightway form
CE: Directive 2014/68/EU: product excluded from directive (article 4 § 3)
product feature: High quality compensator with NBR sleeve and stainless steel flanges. This type can be extended by PTFE lining, vacuum support rings and other options on request.
