KP01000008

Compensators DN50 Type KP01 steel (electro galvanized) EPDM

€35.90*

€42.72 VAT included.

Delivery time: 3 - 5 working days

Delivery information

Equipment

FL01020108

Flange DN50 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare

€18.80*

€22.37 VAT included.


VS01010108

joint set flange/flange DN50 - 2" Inch for flange PN10/16/25/40 steel

€6.80*

€8.09 VAT included.


FD01000108

flange seal DN50 PN10/16/25/40 61x107x2 Klingersil C 4400

€3.00*

€3.57 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com


Product number: KP01000008

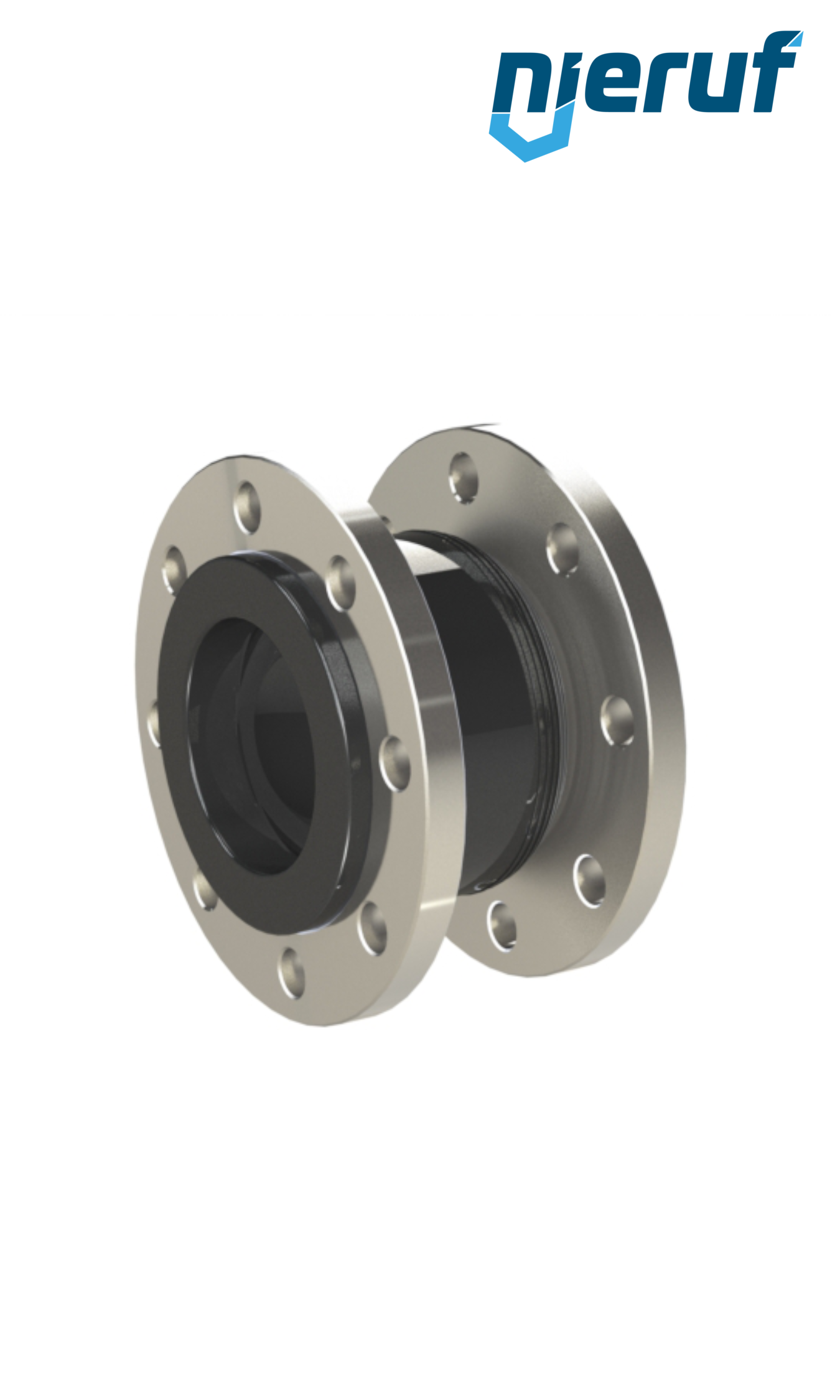

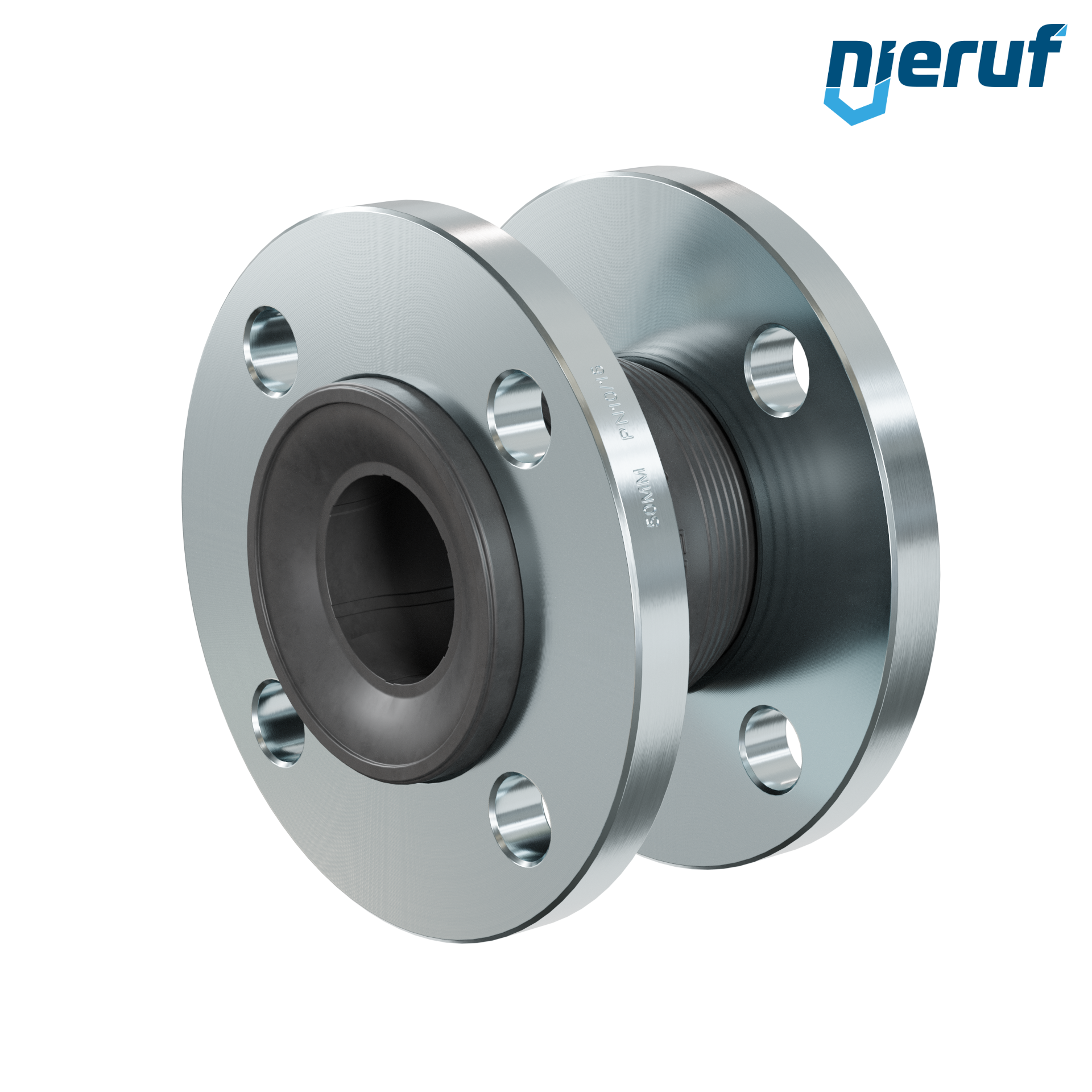

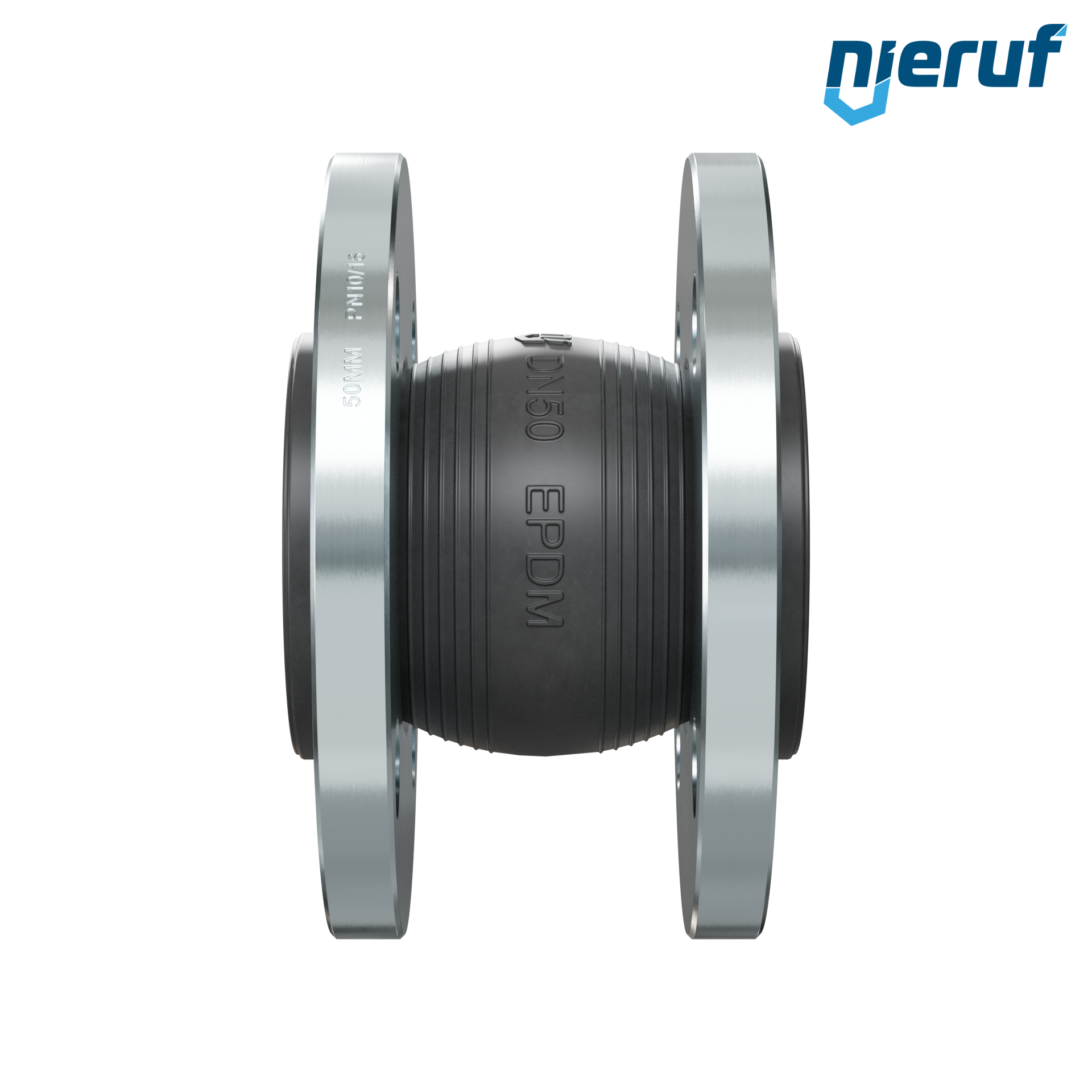

Compensators DN50 Type KP01 steel (electro galvanized) EPDM

Compensators made of steel (electro galvanized) DN50, sleeve EPDM flange acc. DIN EN 1092-1 PN 10/16

product: Compensators
type: KP01
manufacturer: NieRuf
diameter: DN50
connection: flange acc. DIN EN 1092-1
max. pressure: max. 16 bar (consider pressure-temperature diagram)
nominal pressure: PN 10/16
material: steel (electro galvanized)
sleeves: EPDM
media: liquid media and non-hazardous gases (no steam)
temperature: -10°C up to +100°C
design: straightway form
CE: Directive 2014/68/EU: product excluded from directive (article 4 § 3)
product feature: Compensators are used, when vibrations have to be absorbed in a system.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Compensators DN50 Type KP01 steel (electro galvanized) EPDM

Article no. : KP01000008
product: Compensators
type: KP01
manufacturer: NieRuf
diameter: DN50
connection: flange acc. DIN EN 1092-1
max. pressure: max. 16 bar (consider pressure-temperature diagram)
nominal pressure: PN 10/16
material: steel (electro galvanized)
sleeves: EPDM
media: liquid media and non-hazardous gases (no steam)
temperature: -10°C up to +100°C
design: straightway form
CE: Directive 2014/68/EU: product excluded from directive (article 4 § 3)
product feature: Compensators are used, when vibrations have to be absorbed in a system.
