KP04010006

Compensators DN32 type KP04 stainless-steel-flanges EPDM

Compensatore DN32 tipo KP04 flange acciaio inox, manicotto EPDM

€300.00*

€357.00 VAT included.

*Prices excl. VAT plus shipping costs

Lead time: in stock

Express delivery*

Order in within by express delivery

Shipping on: Monday, 05. October

Guaranteed delivery until Tuesday, 06. October, 12 o'clock

* Specified delivery times apply for Mon. - Fri. without consideration of public holidays.

Equipment

VS01000106

joint set flange/flange DN32 - 1 1/4" Inch for flange PN10/16/25/40 stainless steel

€6.80*

€8.09 VAT included.

FL01010106

Flange DN32 PN10/16/25/40 EN1092-1 11 B1 1.4571

€34.50*

€41.06 VAT included.

Resistance check

×

Our employee <strong>Richie Rost</strong><br>will be happy to help you

Questions about the article?

Our employee Richie Rost
will be happy to help you

Tel: +49714396669-18

E-Mail: rost@nieruf.com

NIERUF-SERVICE

24 months warranty

Downloads

3D model

Datasheet

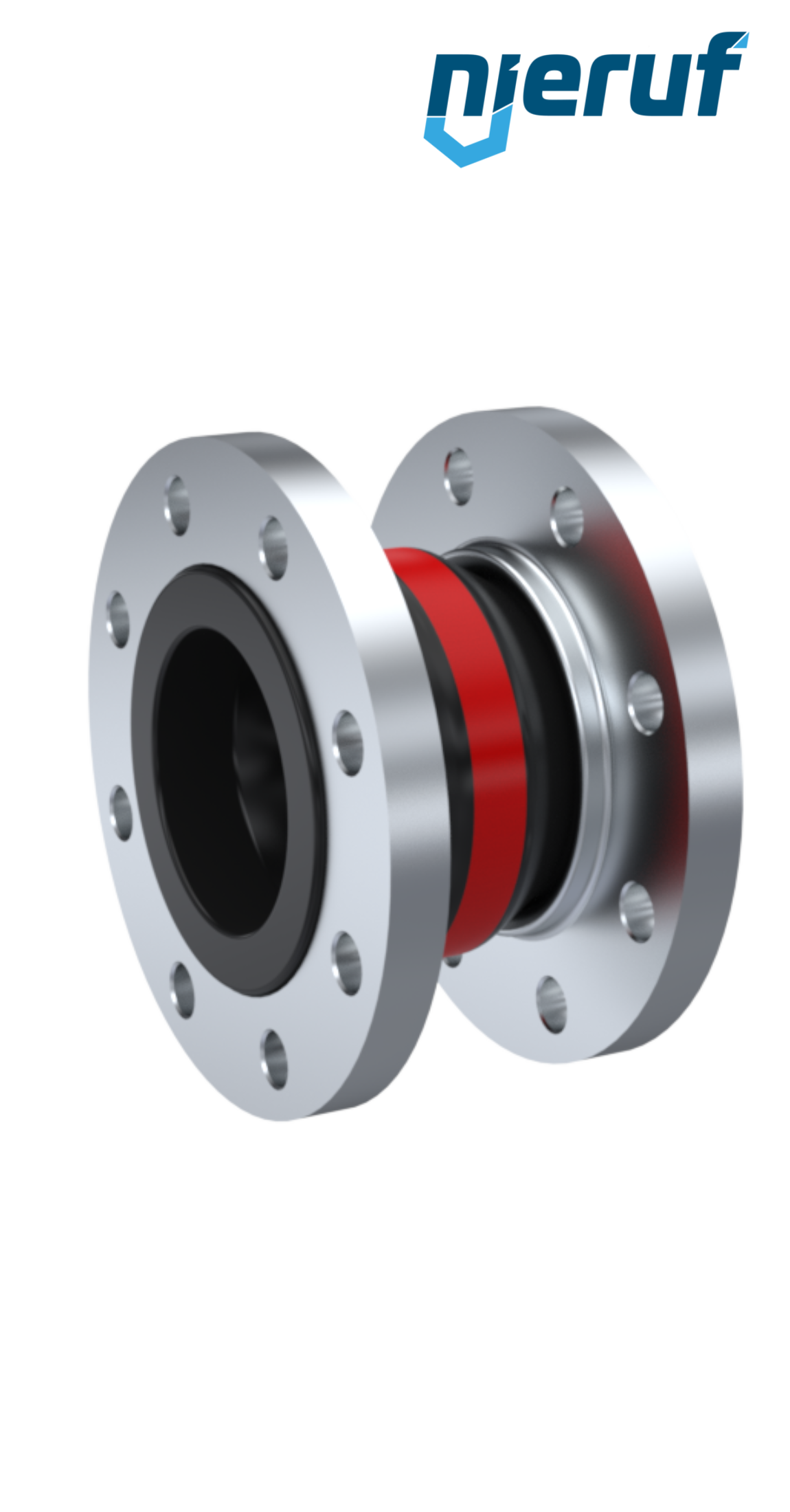

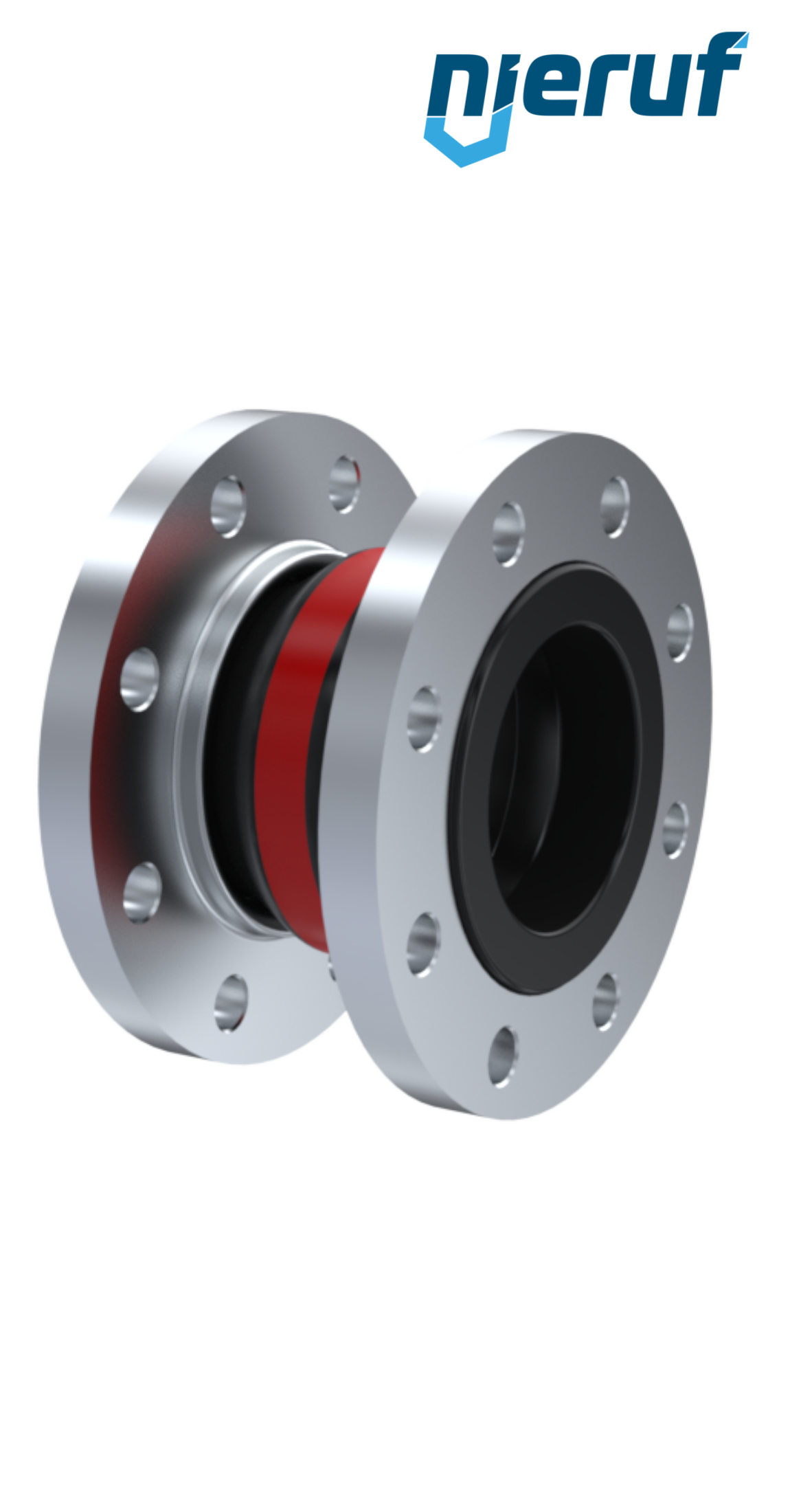

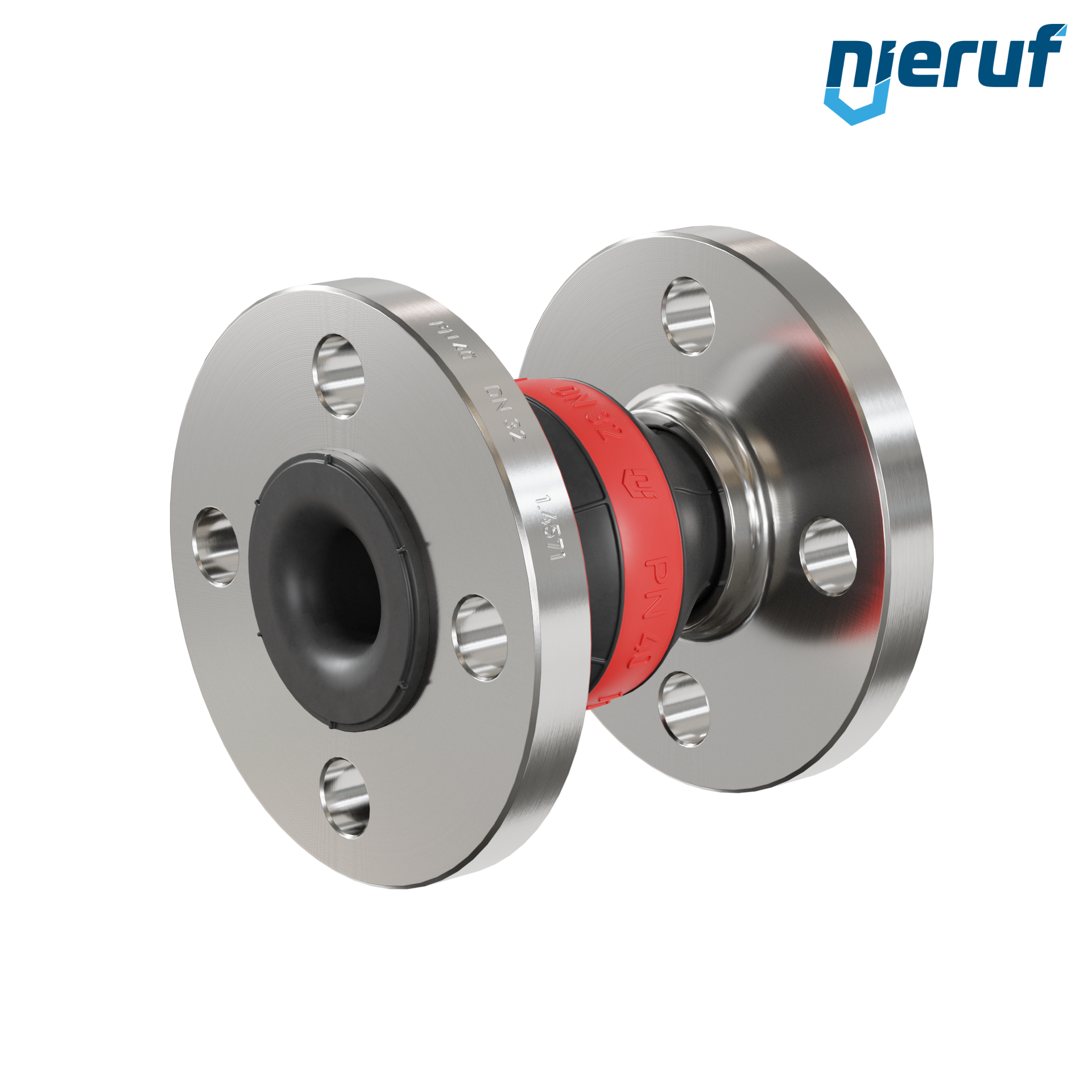

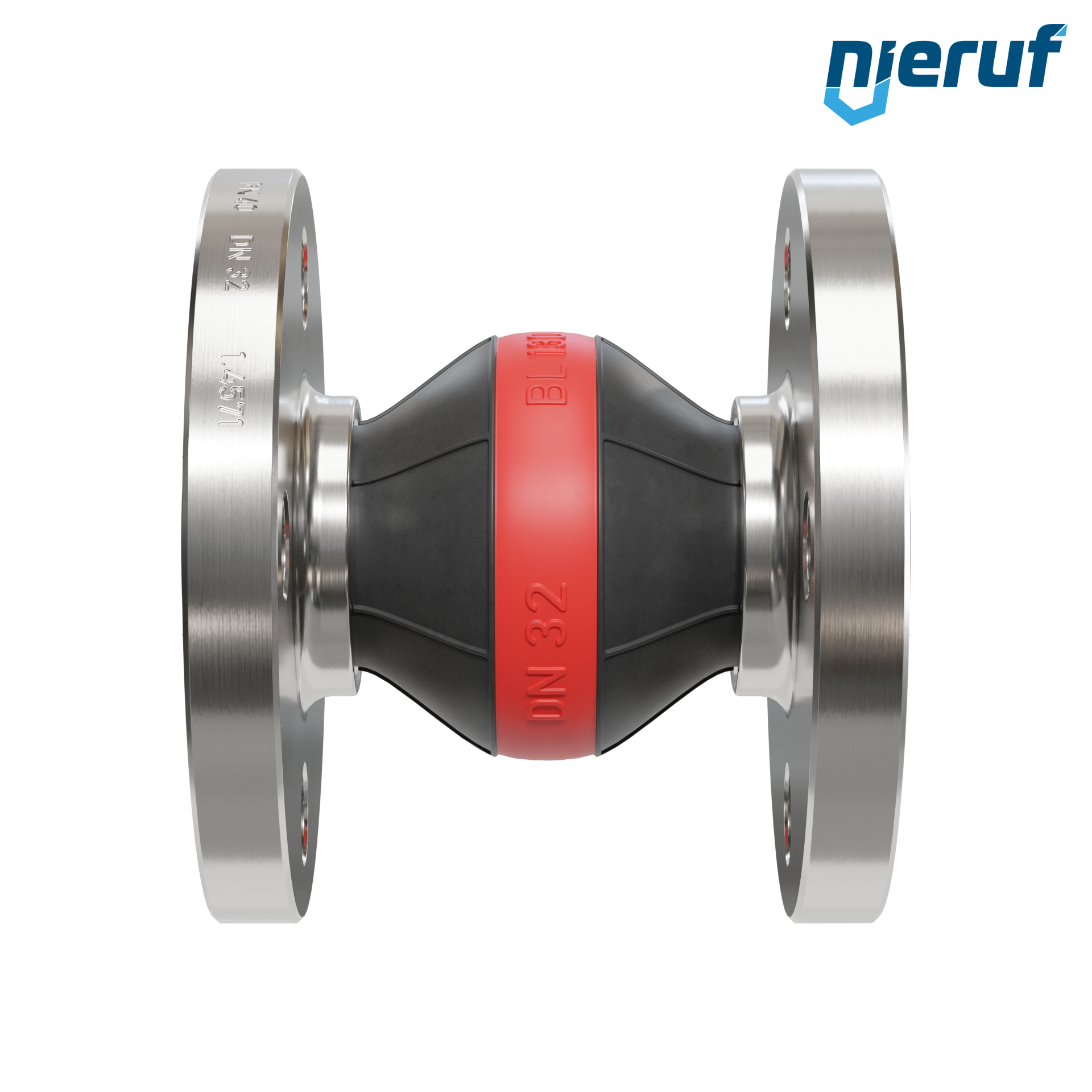

Compensators DN32 type KP04 stainless-steel-flanges EPDM

Compensators DN32 with EPDM-sleeve and stainless steel flange for liquid media and gases (no steam)

product	Compensators
type	KP04
manufacturer	NieRuf
diameter	DN32
connection	flange acc. DIN EN 1092-1 PN40
max. pressure	max. 16 bar (consider pressure-temperature diagram)
nominal pressure	PN 16
material	stainless steel 1.4571 / 316 Ti
sleeves	EPDM
media	liquid media and gases (no steam)
temperature	-40°C up to +100°C
design	straightway form
CE	Directive 2014/68/EU: product excluded from directive (article 4 § 3)
product feature	This high quality compensator with EPDM sleeve and stainless steel flanges. This type can be extended by PTFE lining, vacuum support rings and other options on request.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Compensators DN32 type KP04 stainless-steel-flanges EPDM

Article no. : KP04010006
product: Compensators
type: KP04
manufacturer: NieRuf
diameter: DN32
connection: flange acc. DIN EN 1092-1 PN40
max. pressure: max. 16 bar (consider pressure-temperature diagram)
nominal pressure: PN 16
material: stainless steel 1.4571 / 316 Ti
sleeves: EPDM
media: liquid media and gases (no steam)
temperature: -40°C up to +100°C
design: straightway form
CE: Directive 2014/68/EU: product excluded from directive (article 4 § 3)
product feature: This high quality compensator with EPDM sleeve and stainless steel flanges. This type can be extended by PTFE lining, vacuum support rings and other options on request.
