KP04000016.1

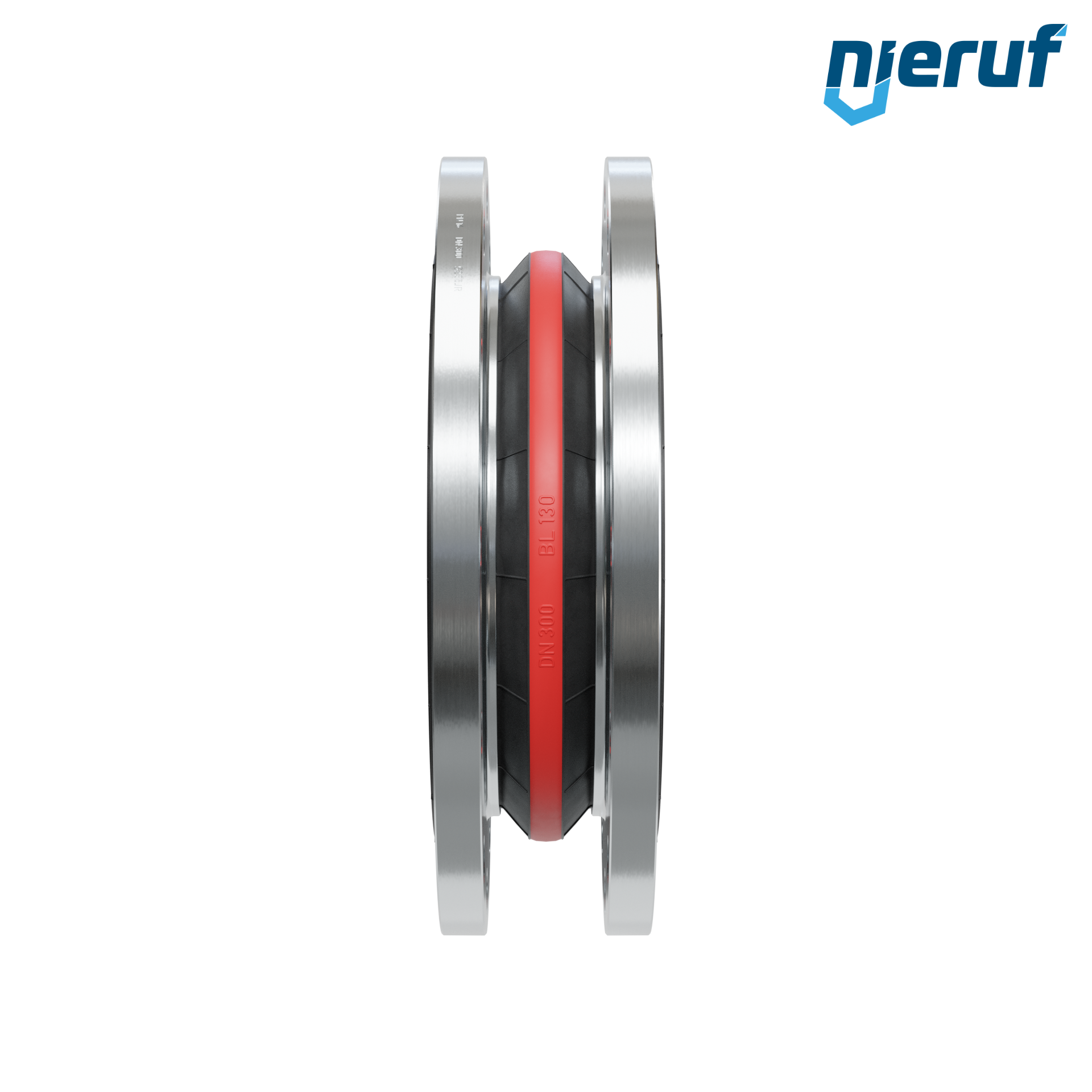

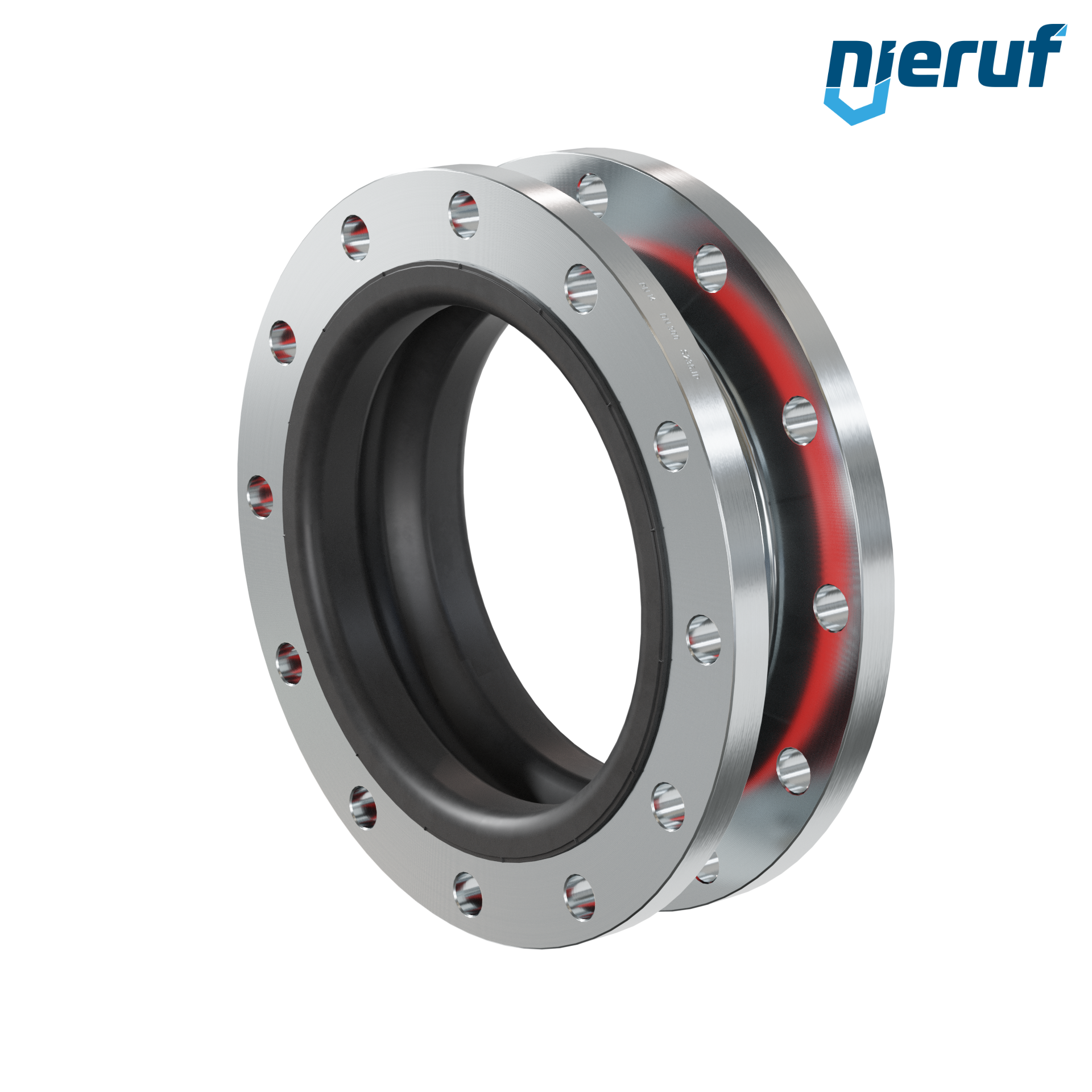

Compensators DN300 PN16 type KP04 steel-flange EPDM

Compensatore DN300 PN16 tipo KP04 flange acciaio, manicotto EPDM

€1,020.00*

€1,213.80 VAT included.

*Prices excl. VAT plus shipping costs

Lead time: 3 - 5 working days

Equipment

VS01010216

joint set flange/flange DN300 - 12" Inch for flange PN16 steel

€79.20*

€94.25 VAT included.

FD01000216

flange seal DN300 PN16 324x384x2 Klingersil C 4400

€34.60*

€41.17 VAT included.

Resistance check

×

Our employee <strong>Richie Rost</strong><br>will be happy to help you

Questions about the article?

Our employee Richie Rost
will be happy to help you

Tel: +49714396669-18

E-Mail: rost@nieruf.com

NIERUF-SERVICE

24 months warranty

Downloads

3D model

Datasheet

Compensators DN300 PN16 type KP04 steel-flange EPDM

Compensators DN300 PN16 with EPDM-sleeve and steel flange for liquid media and gases (no steam)

product	Compensators
type	KP04
manufacturer	NieRuf
diameter	DN300
connection	flange acc. DIN EN 1092-1 PN16
max. pressure	max. 16 bar (consider pressure-temperature diagram)
nominal pressure	PN16
material	steel (electro galvanized) 235JR
sleeves	EPDM
media	liquid media and gases (no steam)
temperature	-40°C up to +100°C
design	straightway form
CE	Directive 2014/68/EU: product excluded from directive (article 4 § 3)
product feature	This high quality compensator with EPDM sleeve and steel flanges. This type can be extended by PTFE lining, vacuum support rings and other options on request.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Compensators DN300 PN16 type KP04 steel-flange EPDM

Article no. : KP04000016.1
product: Compensators
type: KP04
manufacturer: NieRuf
diameter: DN300
connection: flange acc. DIN EN 1092-1 PN16
max. pressure: max. 16 bar (consider pressure-temperature diagram)
nominal pressure: PN16
material: steel (electro galvanized) 235JR
sleeves: EPDM
media: liquid media and gases (no steam)
temperature: -40°C up to +100°C
design: straightway form
CE: Directive 2014/68/EU: product excluded from directive (article 4 § 3)
product feature: This high quality compensator with EPDM sleeve and steel flanges. This type can be extended by PTFE lining, vacuum support rings and other options on request.
