KP04010115.1

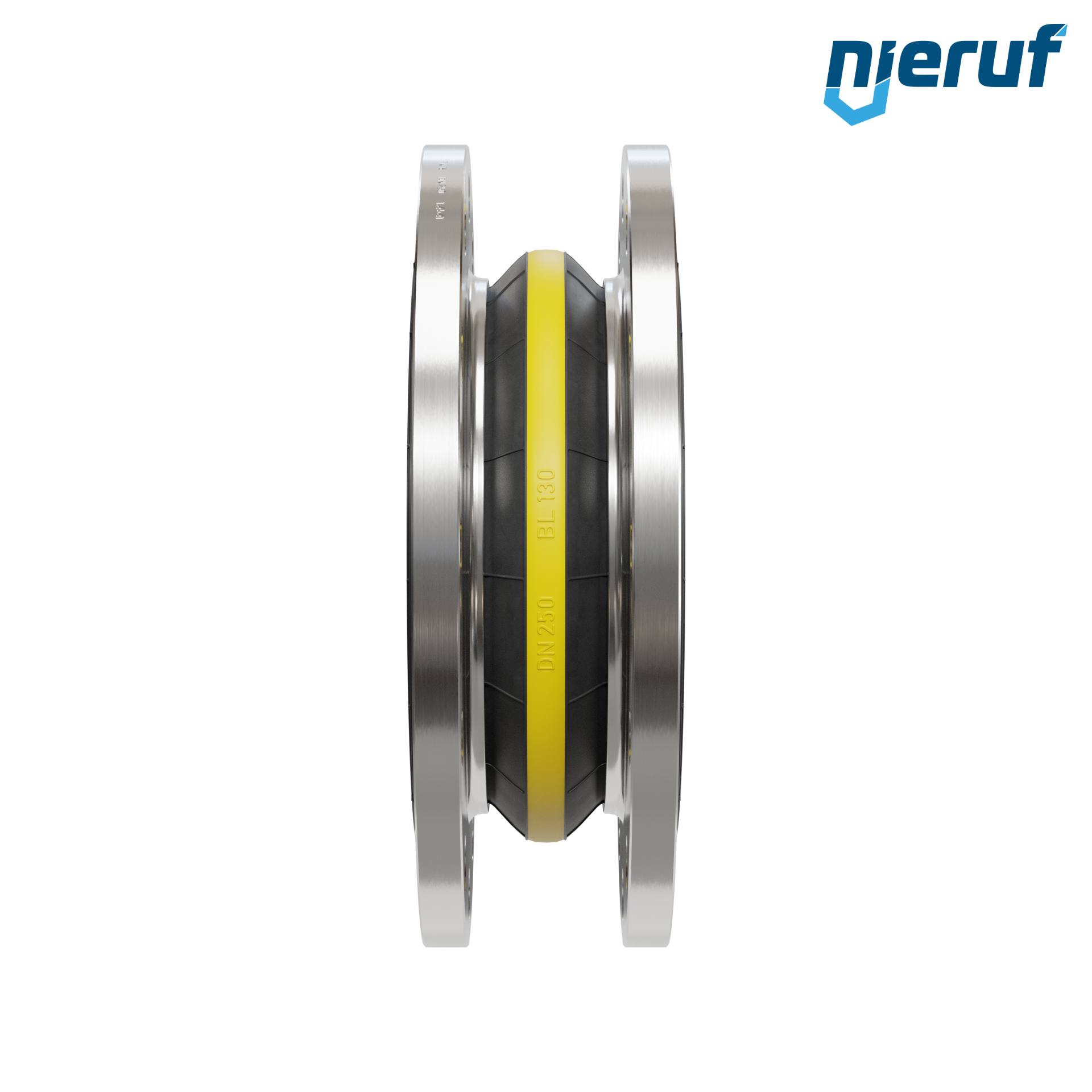

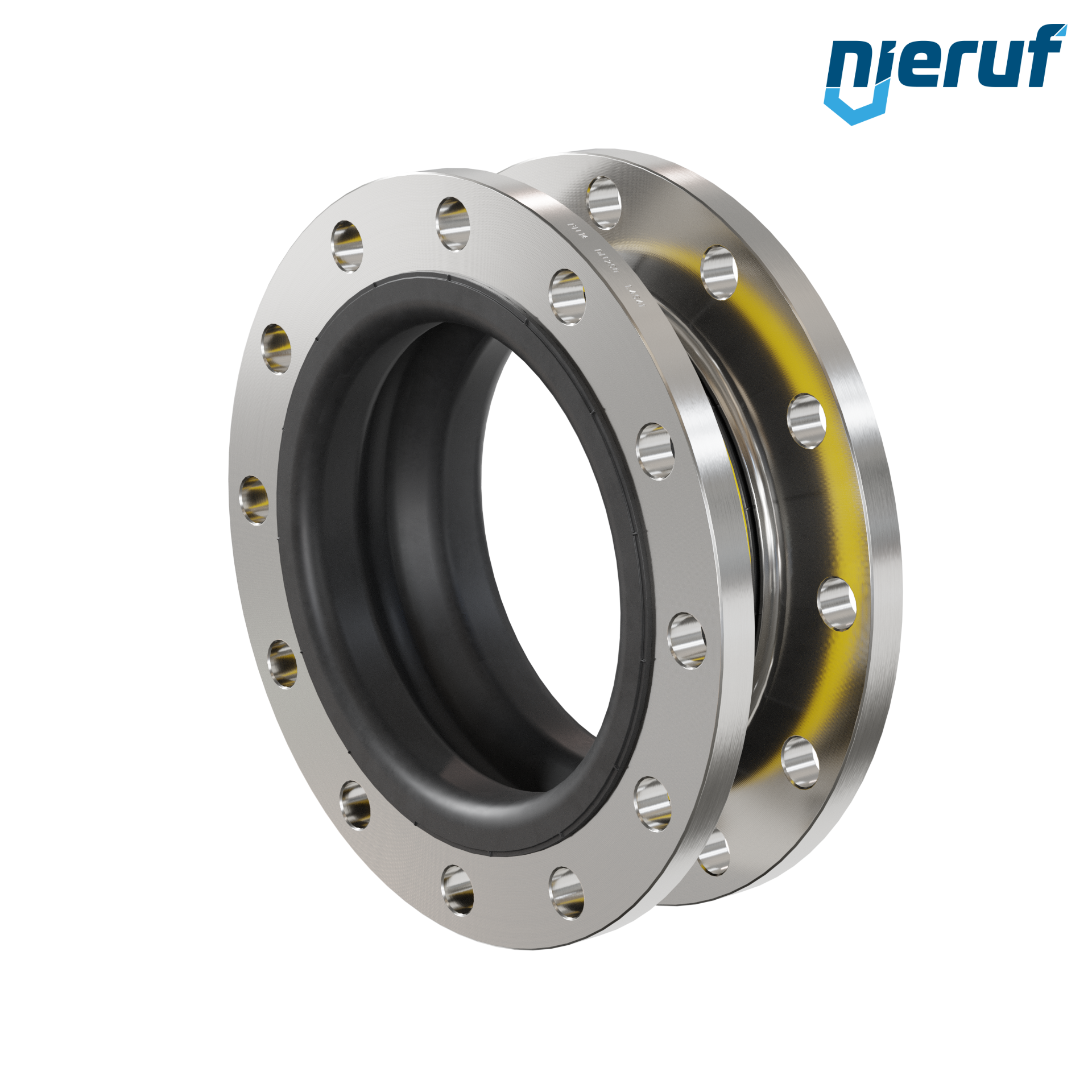

Compensators DN250 PN16 type KP04 stainless-steel-flanges NBR

Compensatore DN250 PN16 tipo KP04 flange acciaio inox, manicotto NBR

€1,118.00*

€1,330.42 VAT included.

*Prices excl. VAT plus shipping costs

Lead time: 3 - 5 working days

Equipment

VS01000215

joint set flange/flange DN250 - 10" Inch for flange PN16 stainless steel

€56.40*

€67.12 VAT included.

FD01000215

flange seal DN250 PN16 273x329x2 Klingersil C 4400

€23.00*

€27.37 VAT included.

FL01010215

Flange DN250 PN16 EN1092-1 11 B1 1.4571

€306.10*

€364.26 VAT included.

Resistance check

×

Our employee <strong>Richie Rost</strong><br>will be happy to help you

Questions about the article?

Our employee Richie Rost
will be happy to help you

Tel: +49714396669-18

E-Mail: rost@nieruf.com

NIERUF-SERVICE

24 months warranty

Downloads

3D model

Datasheet

Compensators DN250 PN16 type KP04 stainless-steel-flanges NBR

Compensators DN250 PN16 with NBR-sleeve and stainless steel flange for liquid media and gases (no steam)

product	Compensators
type	KP04
manufacturer	NieRuf
diameter	DN250
connection	flange acc. DIN EN 1092-1 PN16
max. pressure	max. 16 bar (consider pressure-temperature diagram)
nominal pressure	PN16
material	stainless steel 1.4571 / 316 Ti
sleeves	NBR
media	liquid media and gases (no steam)
temperature	-20°C up to +90°C
design	straightway form
CE	Directive 2014/68/EU: product excluded from directive (article 4 § 3)
product feature	High quality compensator with NBR sleeve and stainless steel flanges. This type can be extended by PTFE lining, vacuum support rings and other options on request.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Compensators DN250 PN16 type KP04 stainless-steel-flanges NBR

Article no. : KP04010115.1
product: Compensators
type: KP04
manufacturer: NieRuf
diameter: DN250
connection: flange acc. DIN EN 1092-1 PN16
max. pressure: max. 16 bar (consider pressure-temperature diagram)
nominal pressure: PN16
material: stainless steel 1.4571 / 316 Ti
sleeves: NBR
media: liquid media and gases (no steam)
temperature: -20°C up to +90°C
design: straightway form
CE: Directive 2014/68/EU: product excluded from directive (article 4 § 3)
product feature: High quality compensator with NBR sleeve and stainless steel flanges. This type can be extended by PTFE lining, vacuum support rings and other options on request.
