AK08130010
Butterfly-valve-stainless-steel DN 80 PN16 AK08 metall notch lever
- Lead time
- 3 - 5 working days
Equipment
joint set butterfly valve/flange DN80 - 3" Inch for flange PN16 stainless steel
€21.90 VAT included.
Flange DN80 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare
€34.51 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

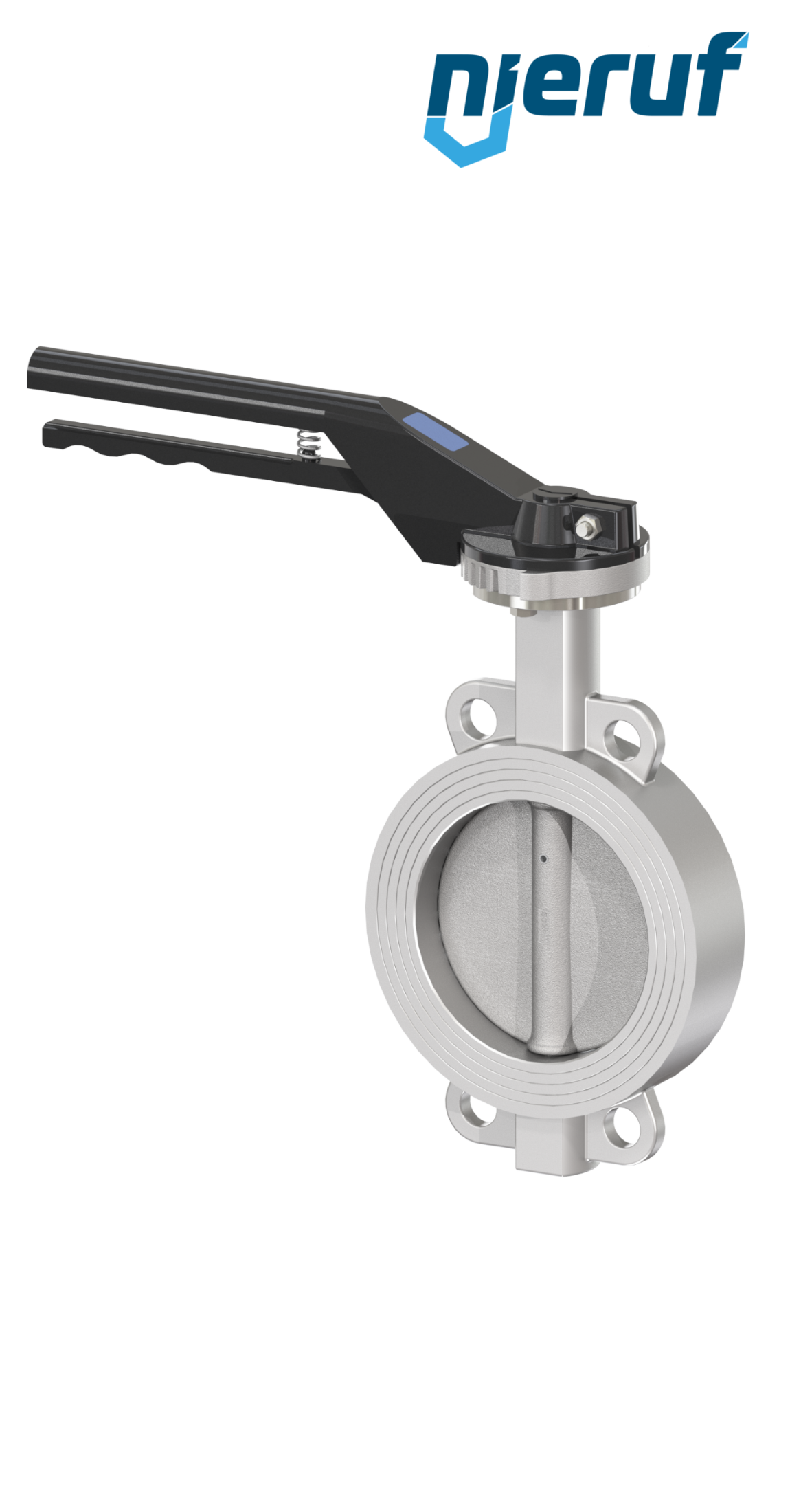

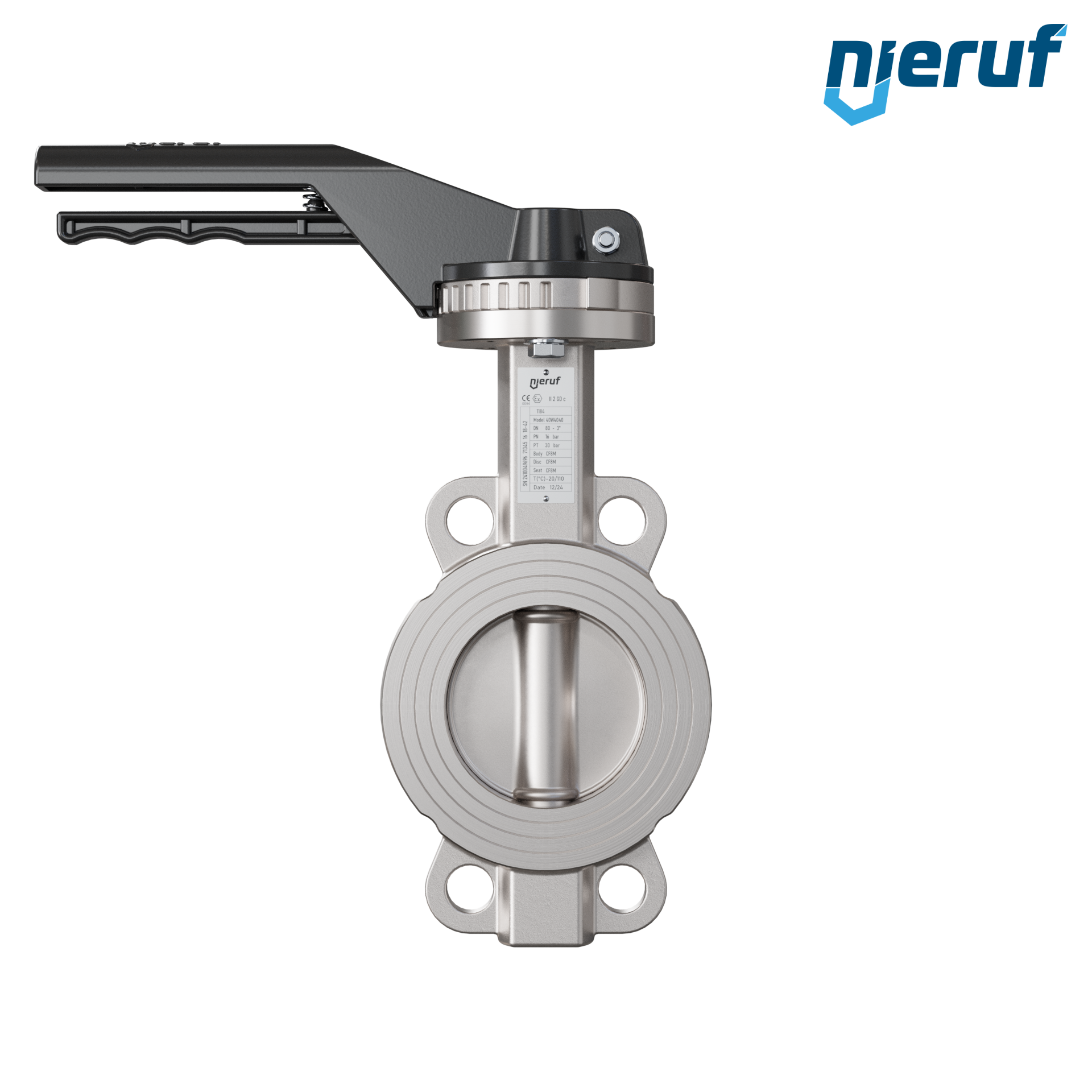

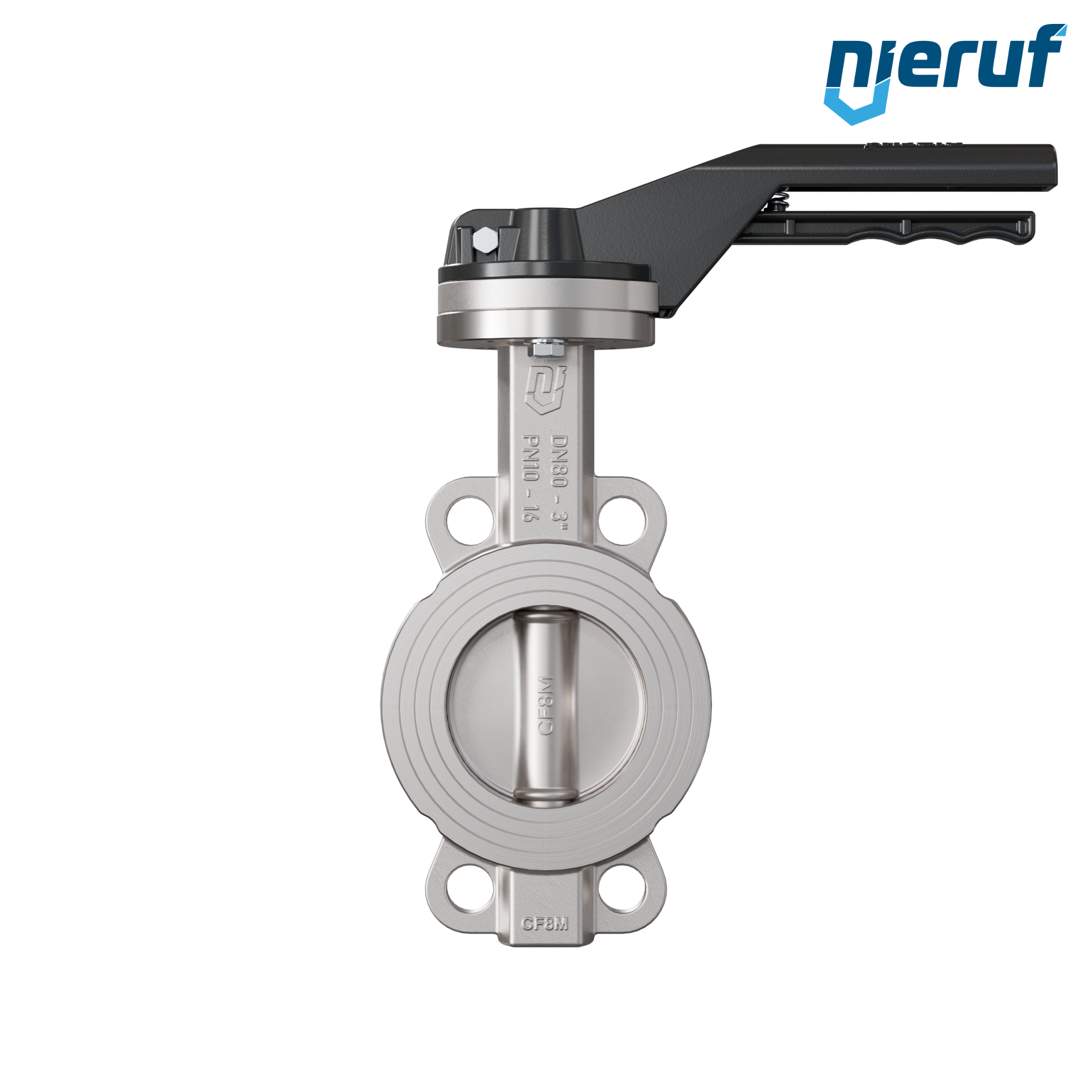

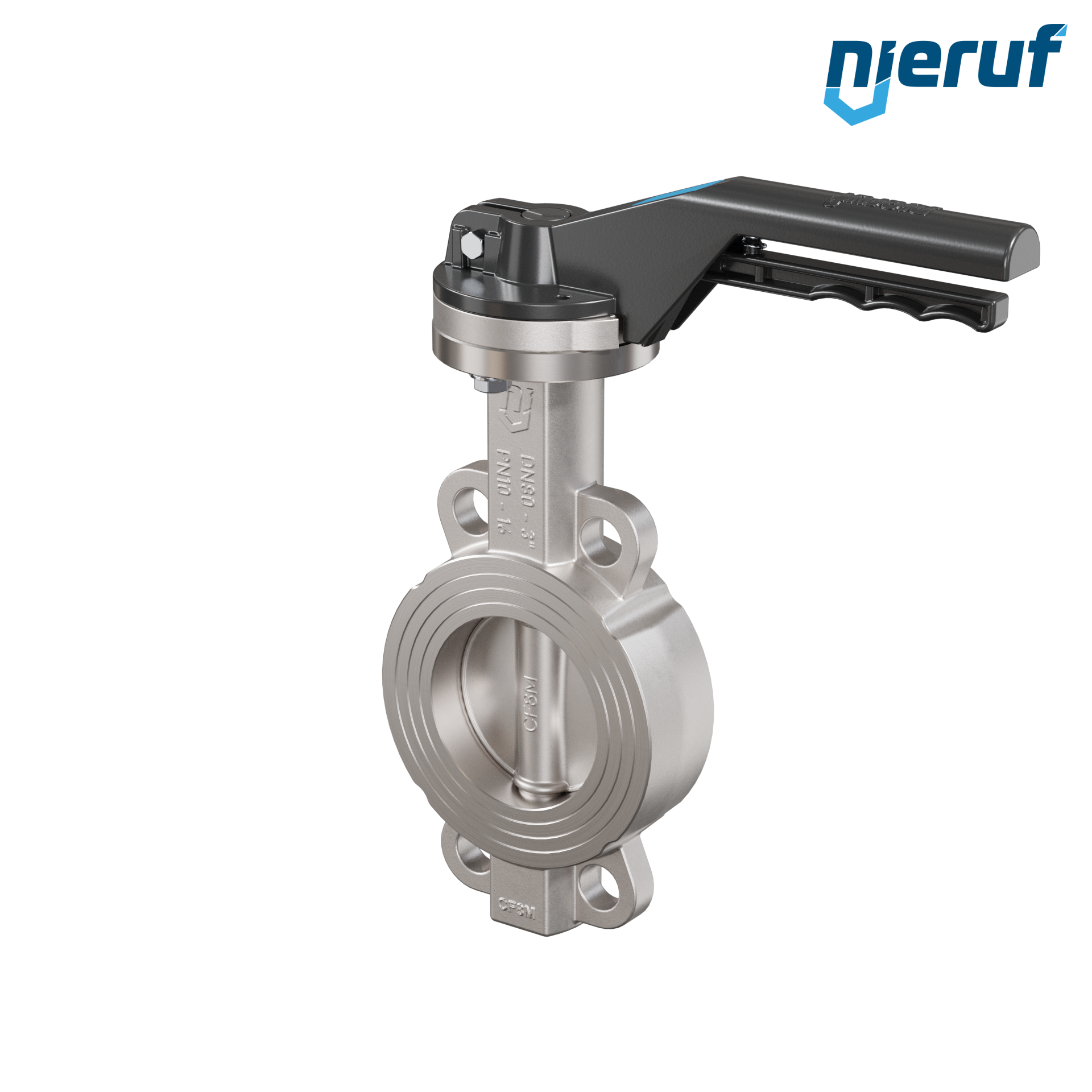

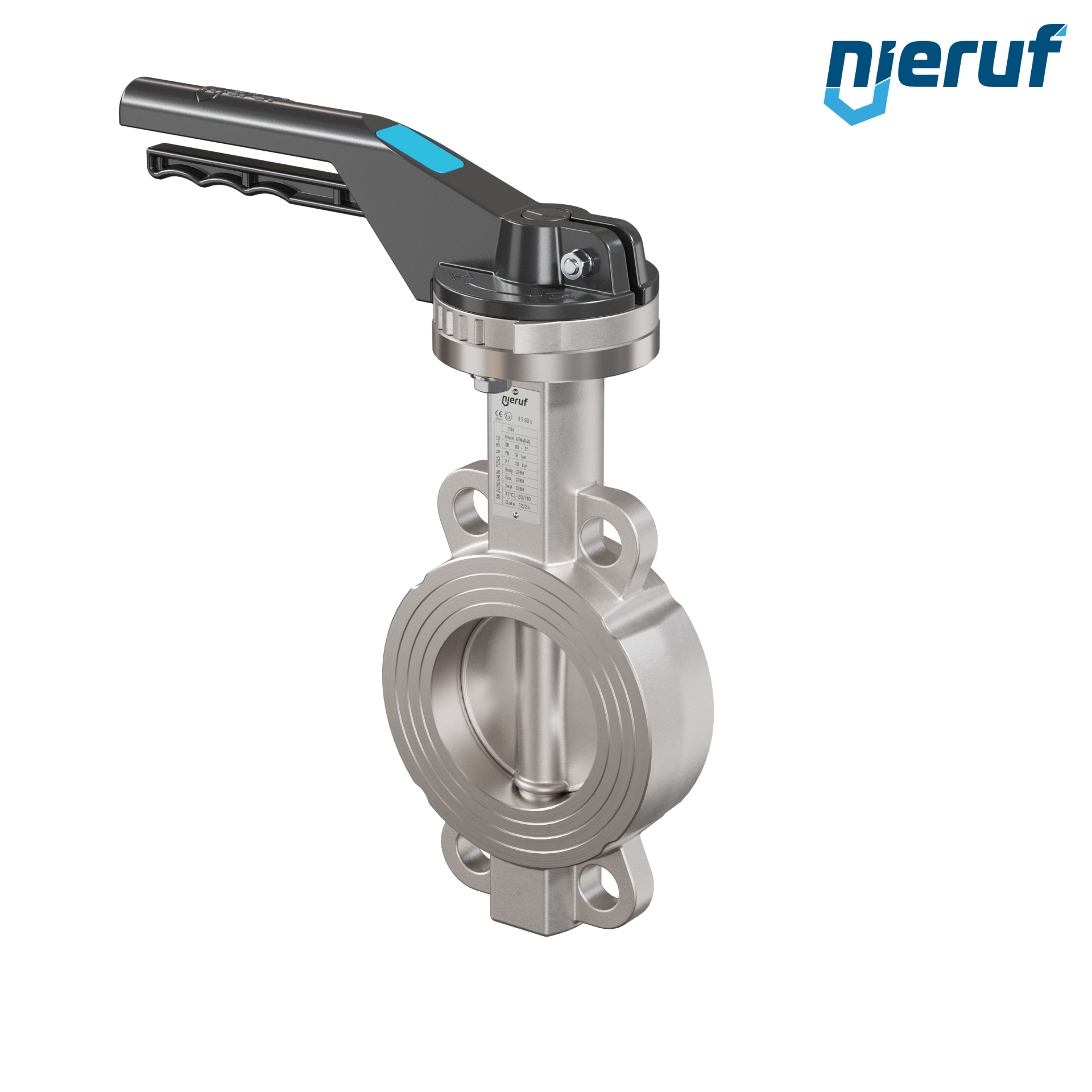

Butterfly-valve-stainless-steel DN 80 PN16 AK08 metall notch lever
stainless-steel butterfly valve DN 80 PN16 Wafer type body made of stainless-steel 1.4408 with notch lever seal made of metall
| product | Butterfly-valve-stainless-steel |
|---|---|
| type | AK08 |
| manufacturer | NieRuf |
| diameter | DN 80 |
| nominal pressure | PN16 |
| max. working pressure | 16 bar |
| sleeves | metall |
| media | liquid, gaseous media and powder |
| temperature | -30°C up to +350°C |
| design | Wafer type |
| body material | stainless-steel 1.4408 |
| disc | stainless steel 1.4408 |
| actuation | notch lever |
| application | for extreme usage |
| installation position | any position |
| product feature | stainless steel butterfly-valve body made of stainless steel and stainless steel butterfly, no seat, no tightness |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Butterfly-valve-stainless-steel DN 80 PN16 AK08 metall notch lever
Article no.
: AK08130010
product:
Butterfly-valve-stainless-steel
type:
AK08
manufacturer:
NieRuf
diameter:
DN 80
nominal pressure:
PN16
max. working pressure:
16 bar
sleeves:
metall
media:
liquid, gaseous media and powder
temperature:
-30°C up to +350°C
design:
Wafer type
body material:
stainless-steel 1.4408
disc:
stainless steel 1.4408
actuation:
notch lever
application:
for extreme usage
installation position:
any position
product feature:
stainless steel butterfly-valve body made of stainless steel and stainless steel butterfly, no seat, no tightness
Equipment
joint set butterfly valve/flange DN80 - 3" Inch for flange PN16 stainless steel
Lead time: in stock
