AK08100108
Butterfly-valve-stainless-steel DN 50 PN16 AK08 EPDM gearbox
- Lead time
- 3 - 5 working days
Equipment
joint set butterfly valve/flange DN50 - 2" Inch for flange PN16 stainless steel
€9.52 VAT included.
Flange DN50 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare
€22.37 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

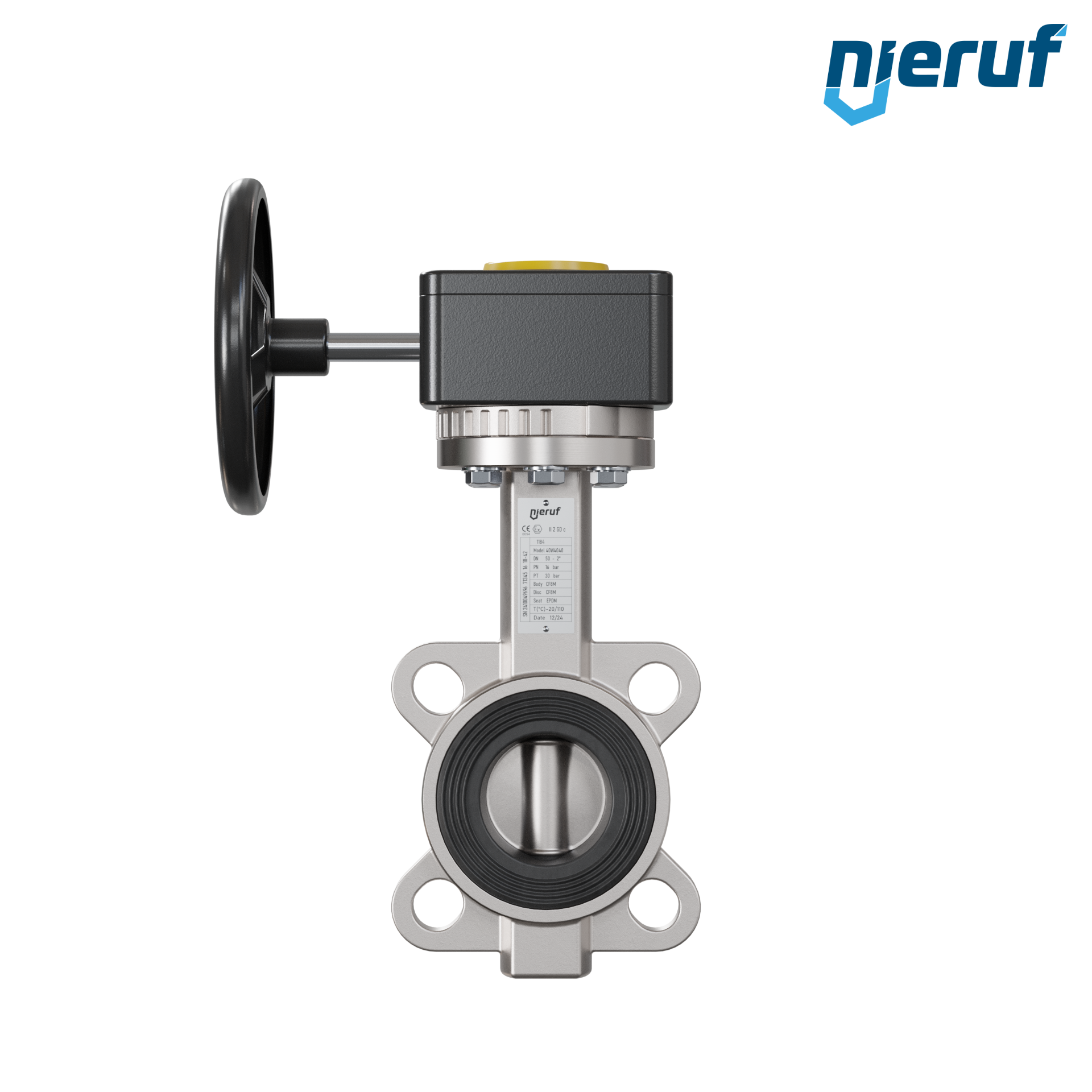

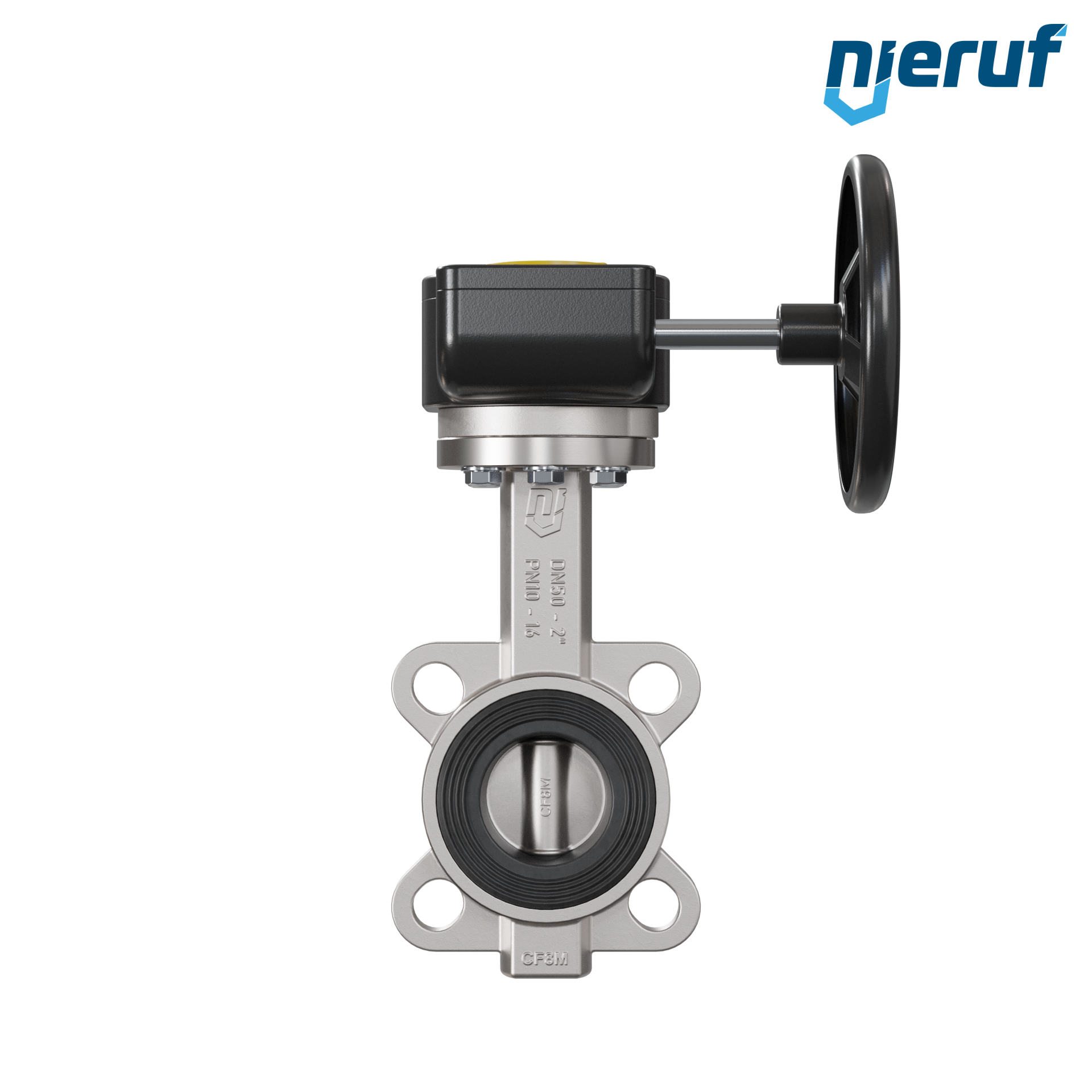

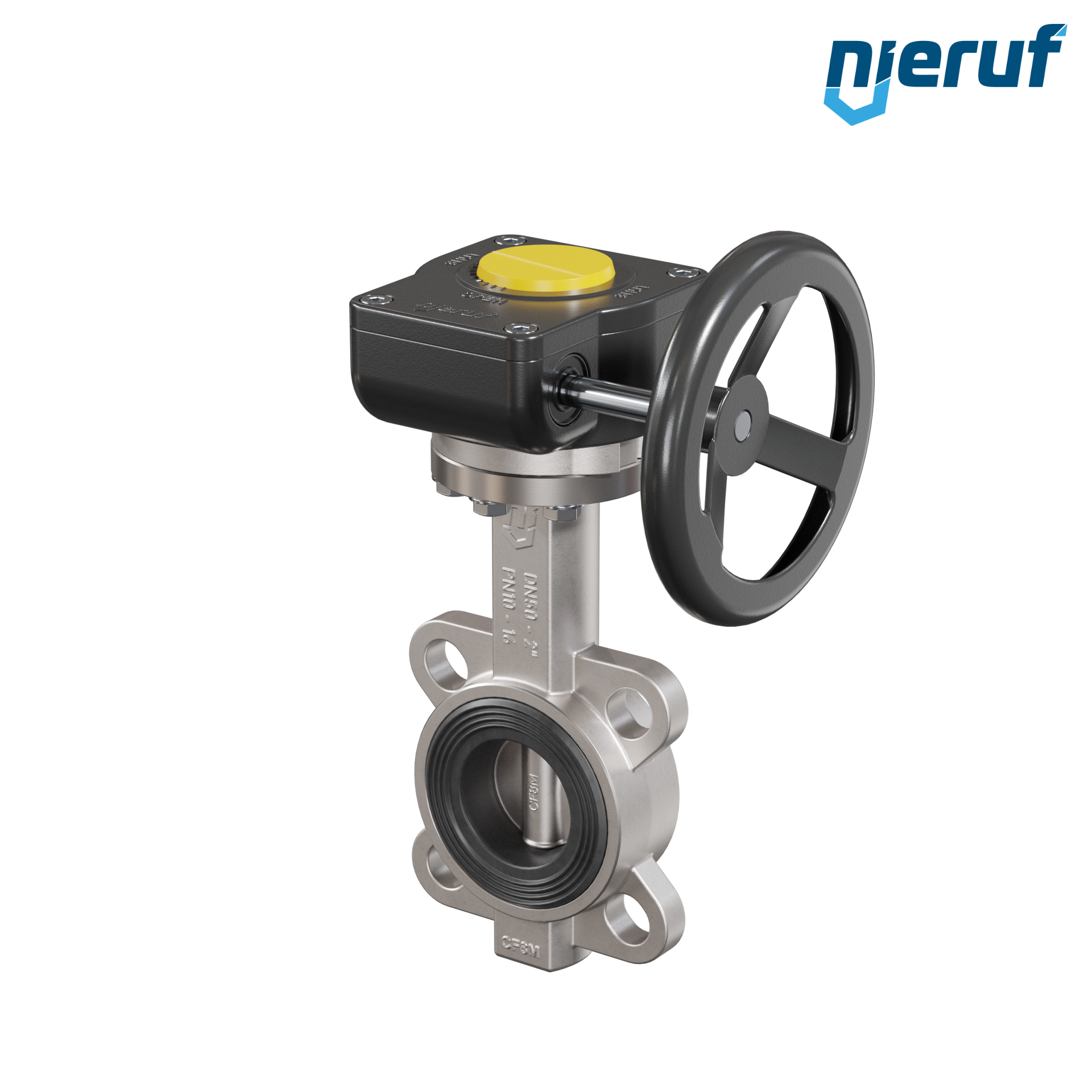

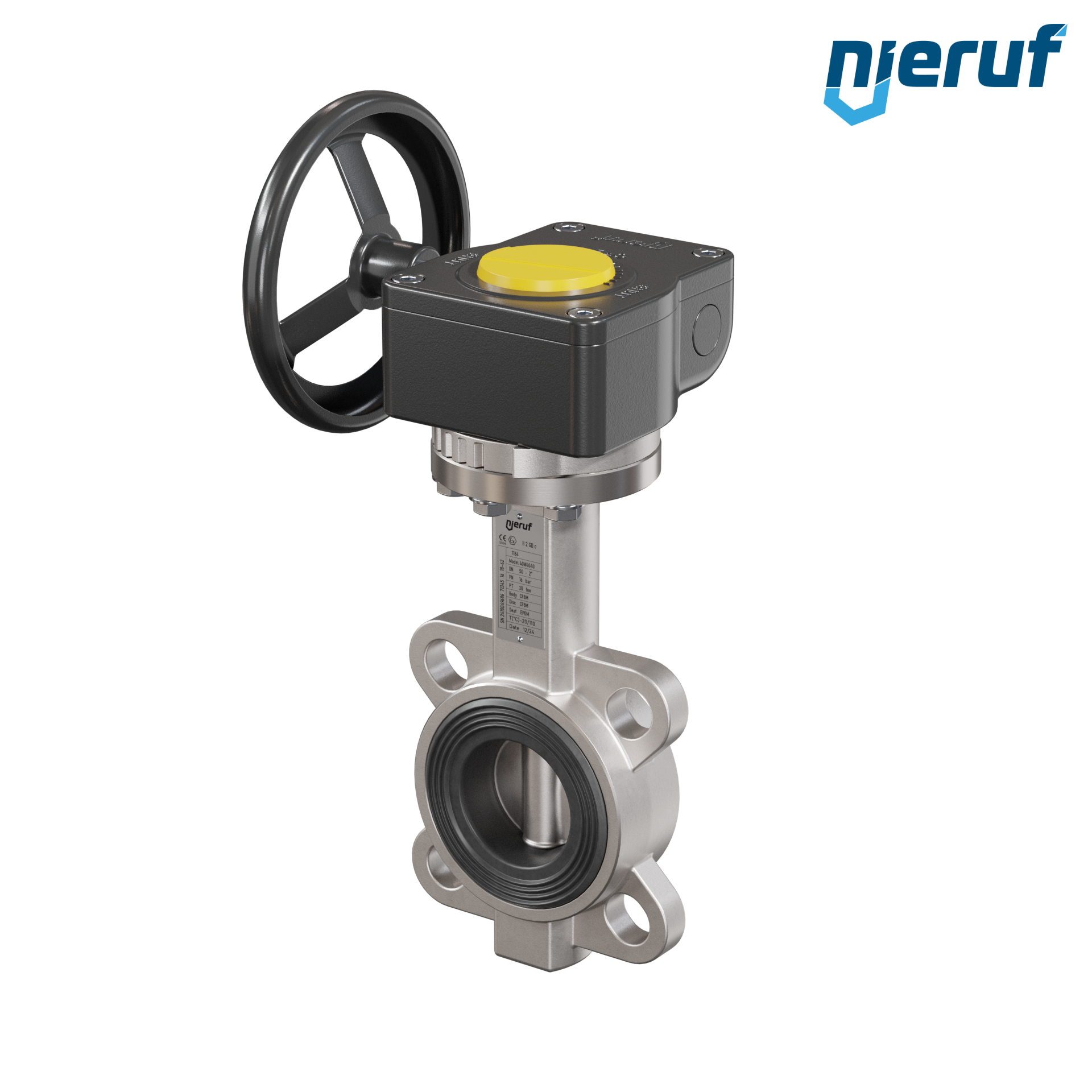

Butterfly-valve-stainless-steel DN 50 PN16 AK08 EPDM gearbox
stainless-steel butterfly valve DN 50 PN16 Wafer type body made of stainless-steel 1.4408 with gearbox seal made of EPDM
| product | Butterfly-valve-stainless-steel |
|---|---|
| type | AK08 |
| manufacturer | NieRuf |
| diameter | DN 50 |
| nominal pressure | PN16 |
| max. working pressure | 16 bar |
| sleeves | EPDM |
| media | liquid and gaseous media |
| temperature | -20°C up to +110°C |
| design | Wafer type |
| body material | stainless-steel 1.4408 |
| disc | stainless steel 1.4408 |
| actuation | gearbox |
| application | for extreme usage |
| installation position | any position |
| product feature | stainless steel butterfly-valve body made of stainless steel and stainless steel butterfly |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Butterfly-valve-stainless-steel DN 50 PN16 AK08 EPDM gearbox
Article no.
: AK08100108
product:
Butterfly-valve-stainless-steel
type:
AK08
manufacturer:
NieRuf
diameter:
DN 50
nominal pressure:
PN16
max. working pressure:
16 bar
sleeves:
EPDM
media:
liquid and gaseous media
temperature:
-20°C up to +110°C
design:
Wafer type
body material:
stainless-steel 1.4408
disc:
stainless steel 1.4408
actuation:
gearbox
application:
for extreme usage
installation position:
any position
product feature:
stainless steel butterfly-valve body made of stainless steel and stainless steel butterfly
Equipment
Flange DN50 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare
Lead time: in stock
joint set butterfly valve/flange DN50 - 2" Inch for flange PN16 stainless steel
Lead time: in stock
