AK02160610
Butterfly valve AK02 DN 80 PN10-PN16 FDA without lever
- Lead time
- 2 - 3 weeks
Equipment
Flange DN80 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare
€34.51 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

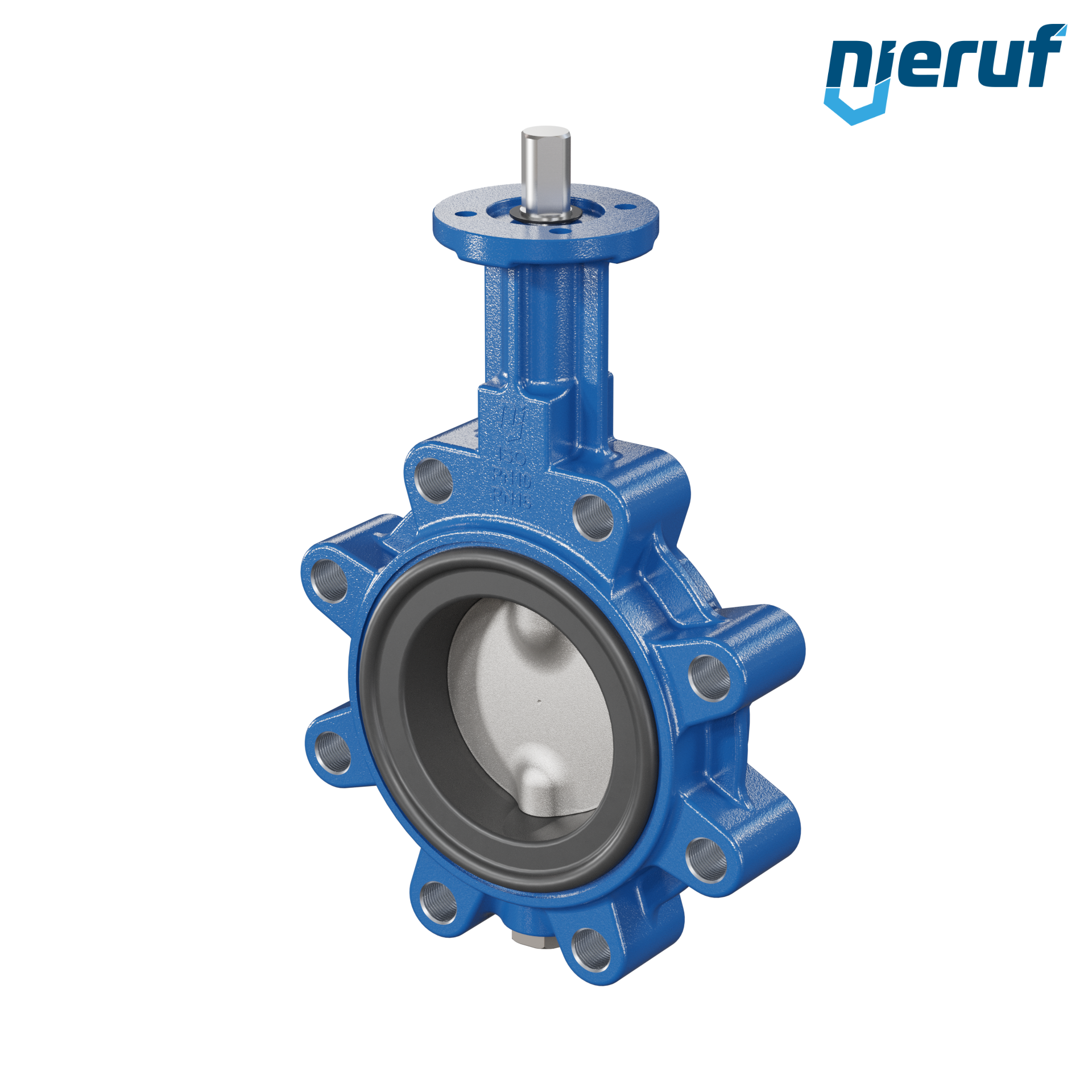

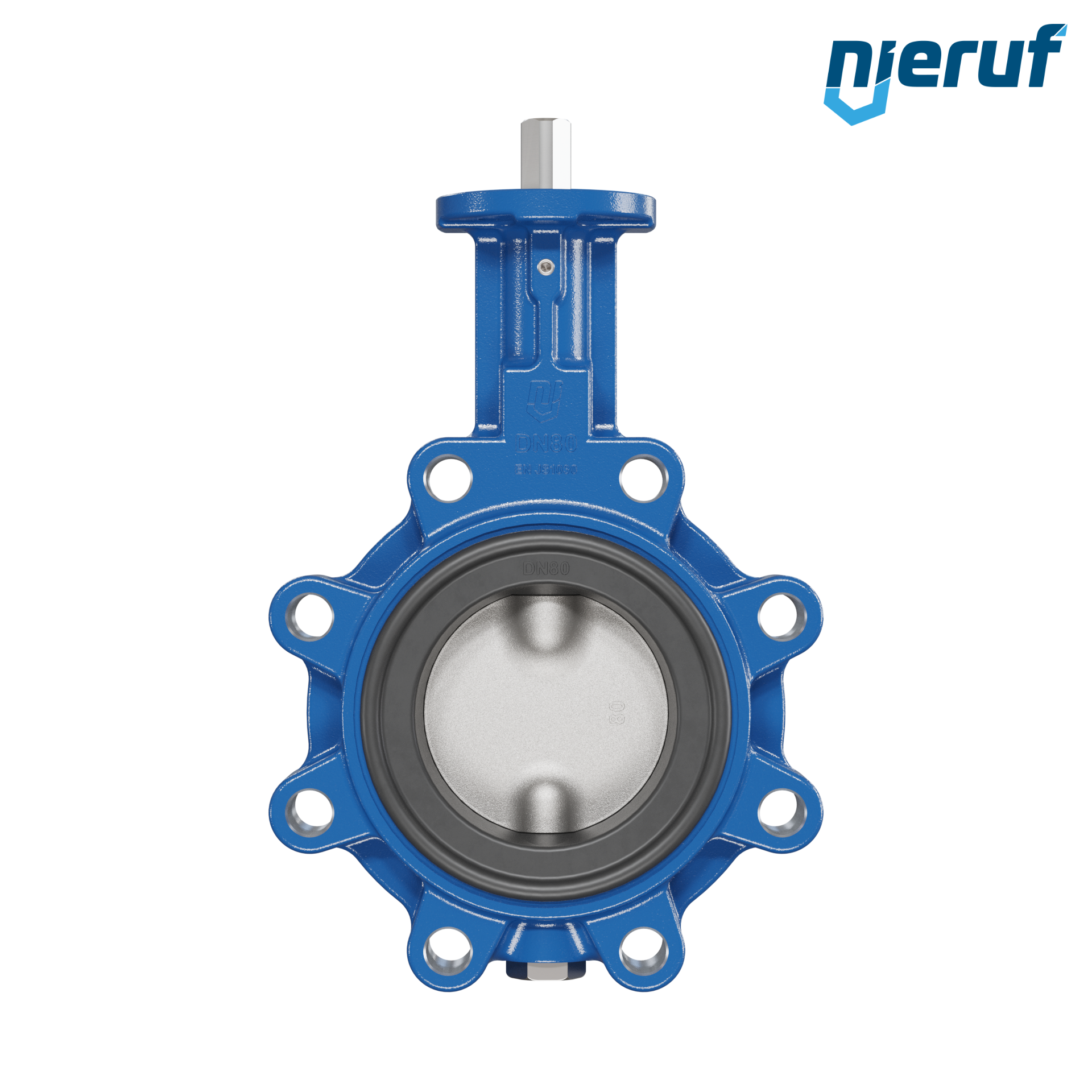

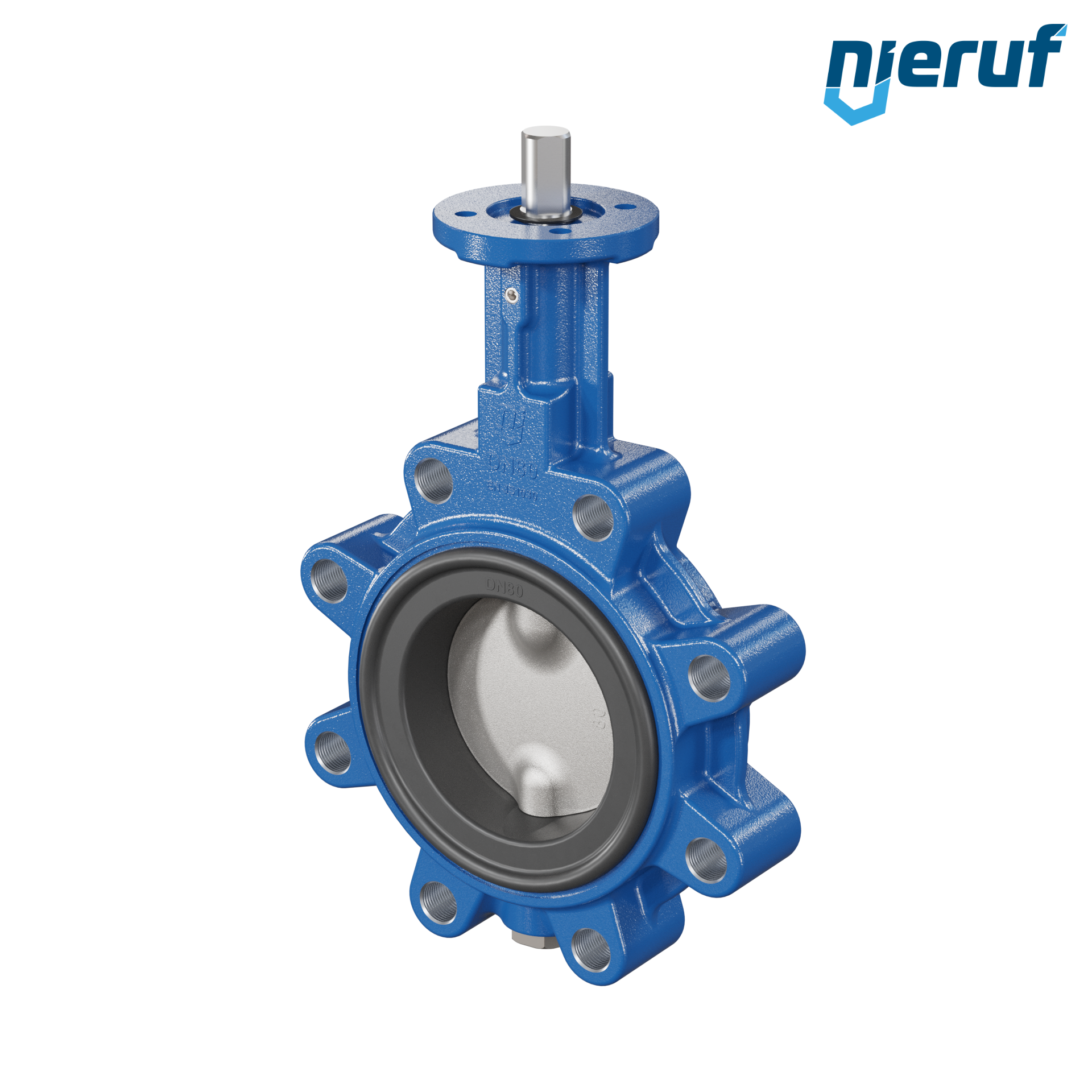

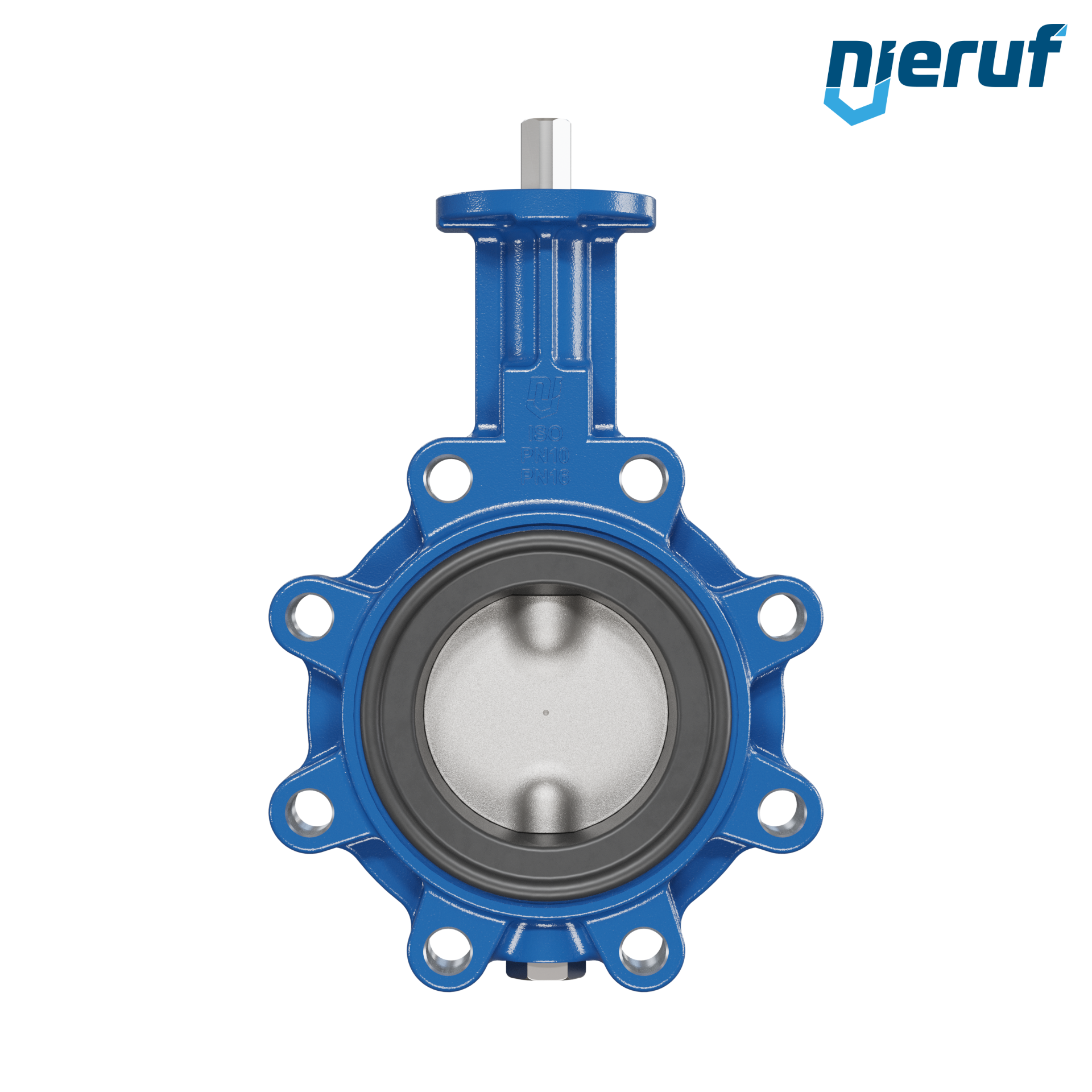

Butterfly valve AK02 DN 80 PN10-PN16 FDA without lever
Butterfly valve DN 80 PN10-PN16 Lug type body made of GGG40 with without lever seal EPDM high temperature & FDA for liquid and gaseous media industry design
| product | Butterfly valve |
|---|---|
| type | AK02 |
| manufacturer | NieRuf |
| diameter | DN 80 |
| nominal pressure | PN10-PN16 |
| max. working pressure | 16 bar |
| sleeves | EPDM high temperature & FDA |
| media | liquid and gaseous media |
| temperature | -5°C up to +130°C |
| design | Lug type |
| body material | SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm |
| disc | stainless steel 1.4408 |
| actuation | without lever |
| approval | EPDM for higher temperatures and FDA food approval (application range -5°C to +130°C) |
| application | industry design |
| installation position | any position |
| product feature | Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. Industrial design. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Butterfly valve AK02 DN 80 PN10-PN16 FDA without lever
Article no.
: AK02160610
product:
Butterfly valve
type:
AK02
manufacturer:
NieRuf
diameter:
DN 80
nominal pressure:
PN10-PN16
max. working pressure:
16 bar
sleeves:
EPDM high temperature & FDA
media:
liquid and gaseous media
temperature:
-5°C up to +130°C
design:
Lug type
body material:
SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm
disc:
stainless steel 1.4408
actuation:
without lever
approval:
EPDM for higher temperatures and FDA food approval (application range -5°C to +130°C)
application:
industry design
installation position:
any position
product feature:
Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. Industrial design.
