AK01100109

Butterfly valve AK01 DN 65 PN6-PN10-PN16 & ANSI150 DVGW-water Worm gear

€170.00*

€202.30 VAT included.

Delivery time: in stock

Delivery information

Express delivery:

Shipping on: Friday, 29. March

Guaranteed delivery until Monday, 01. April, 12 o'clock

Order in within by express delivery


Equipment

VS03010209

joint set butterfly valve/flange DN65 - 2 1/2" Inch for flange PN16 steel

€16.00*

€19.04 VAT included.


FL01020109

Flange DN65 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare

€26.40*

€31.42 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

24 months warranty

24 months warranty

Certified

Certified

Product number: AK01100109

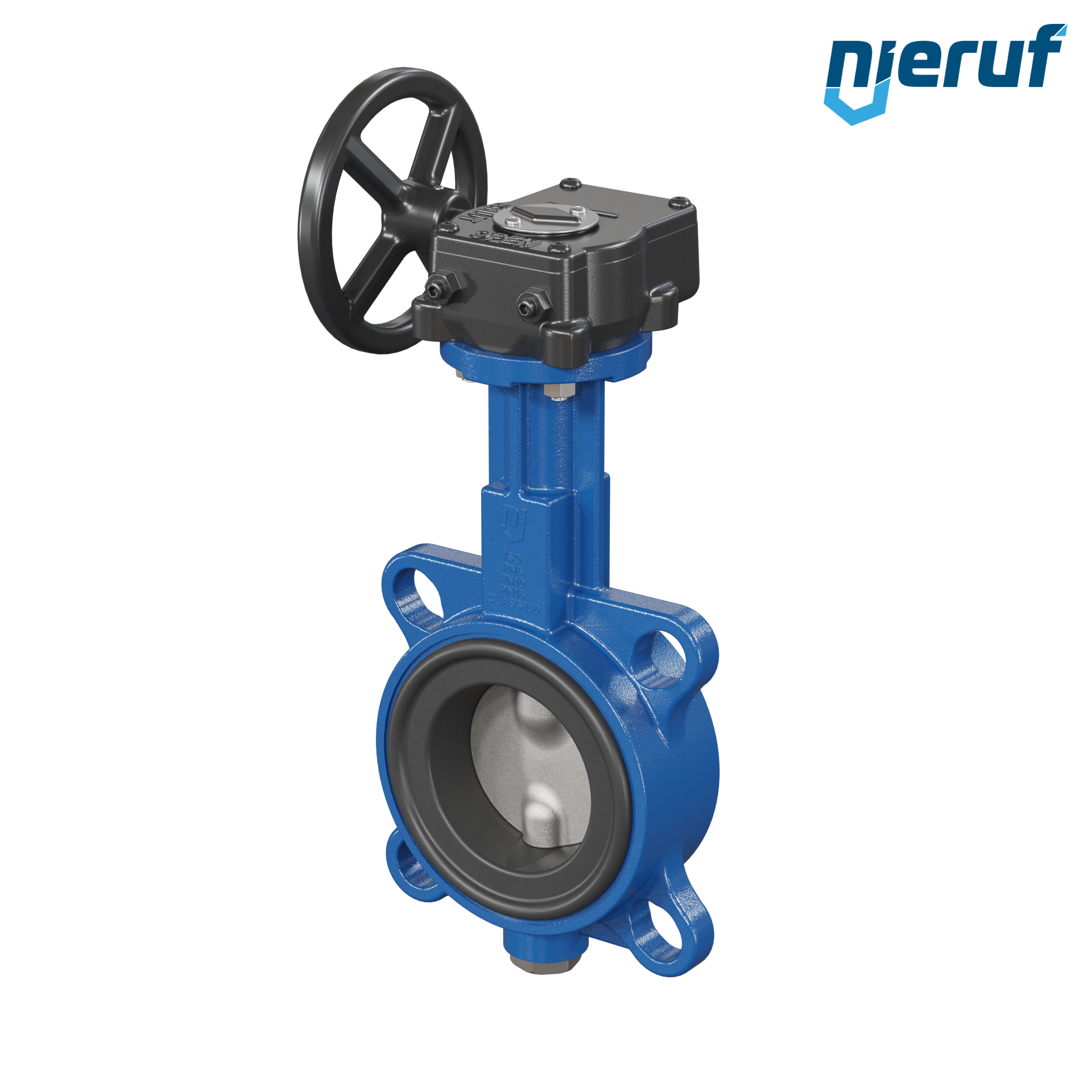

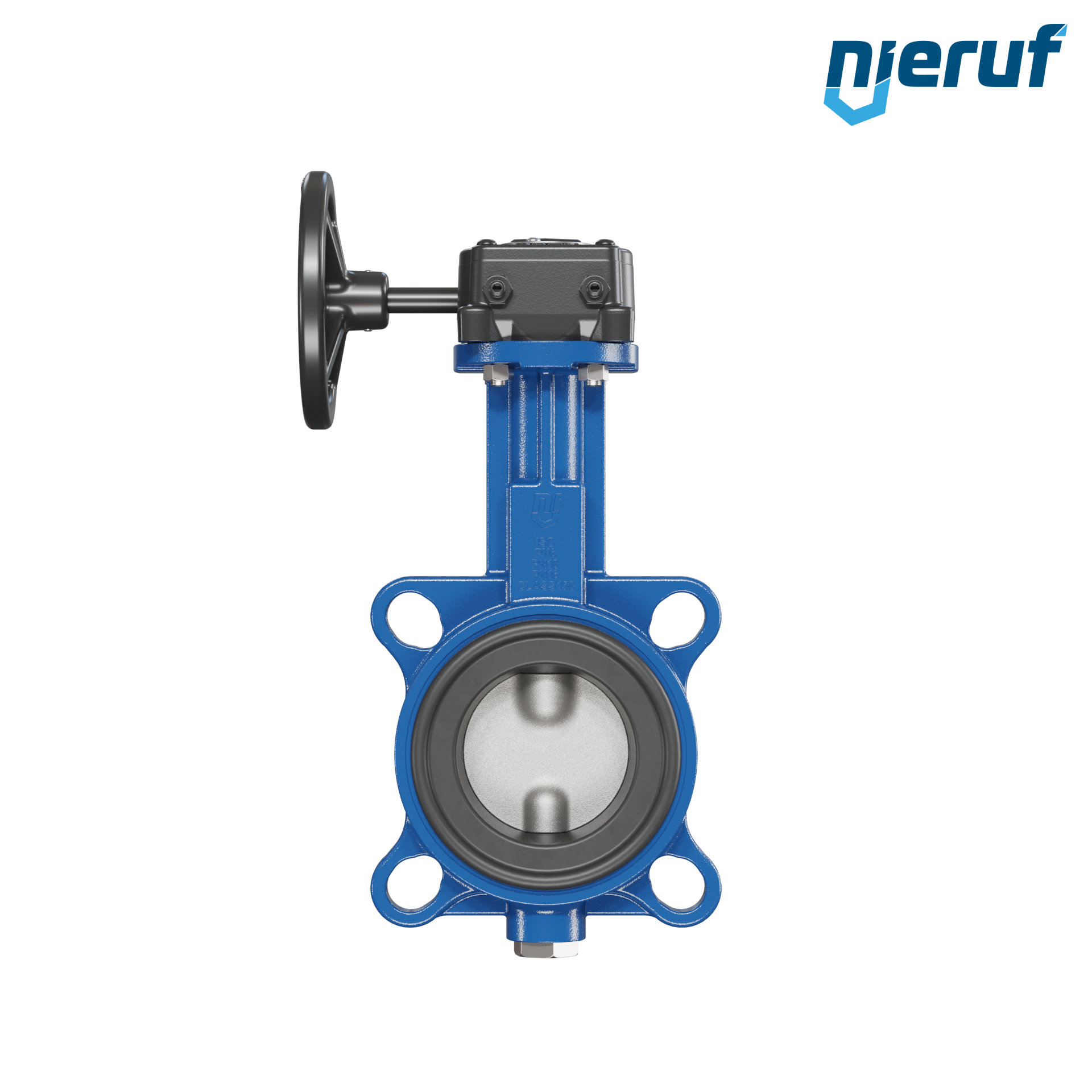

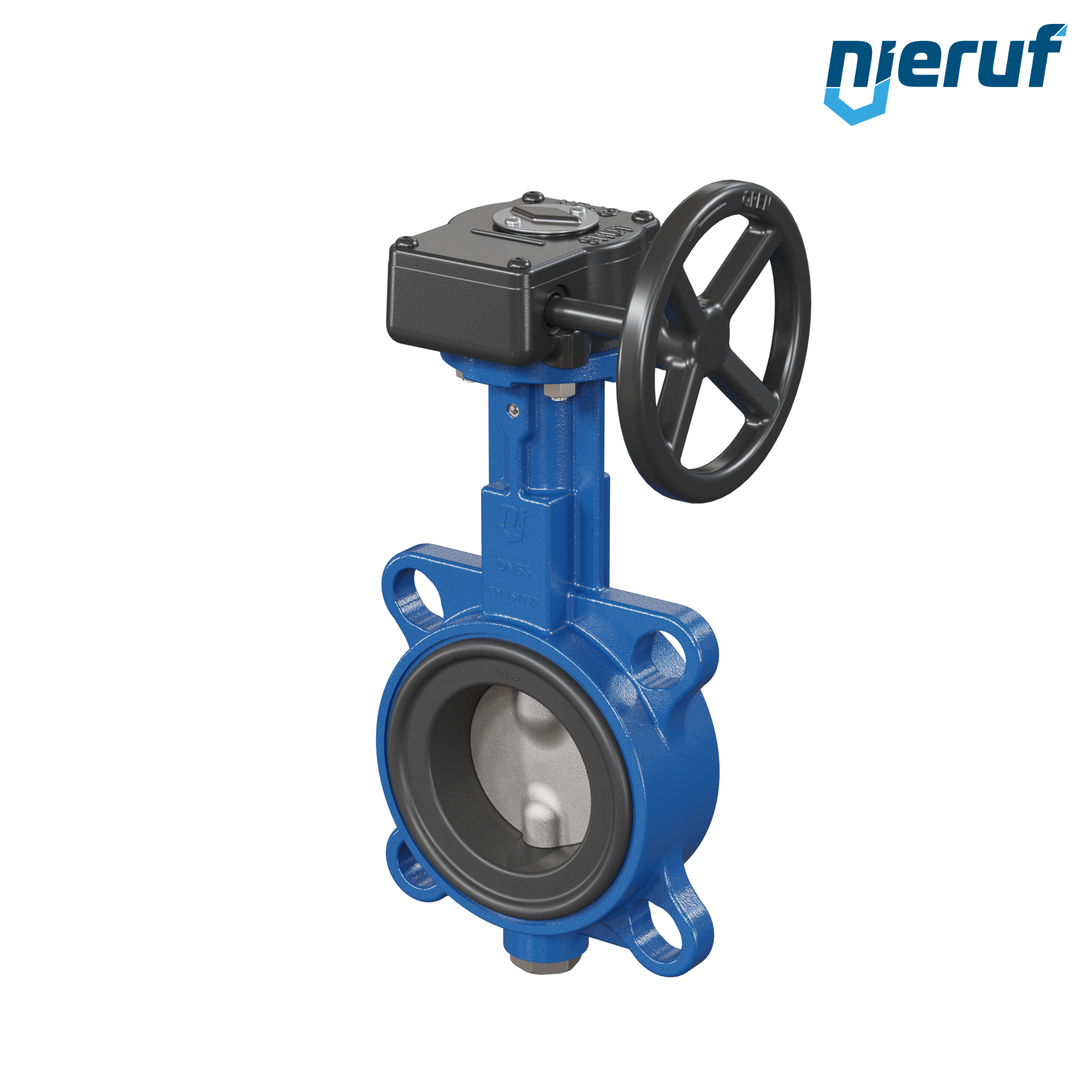

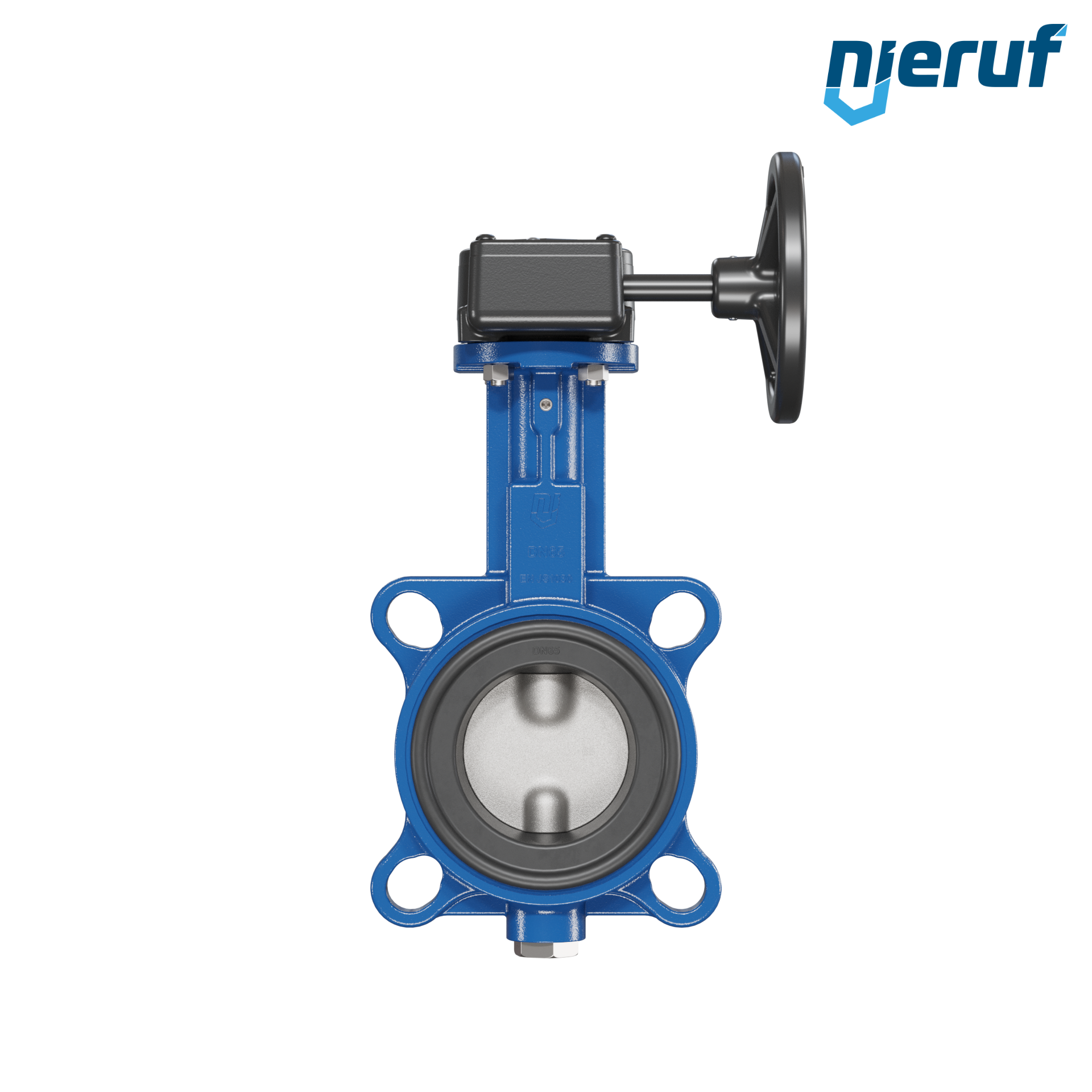

Butterfly valve AK01 DN 65 PN6-PN10-PN16 & ANSI150 DVGW-water Worm gear

Butterfly valve DN 65 PN6-PN10-PN16 & ANSI150 Wafer type GGG40 with Worm gear EPDM DVGW drinking water, WRAS, ACS, W270

product: Butterfly valve
type: AK01
manufacturer: NieRuf
diameter: DN 65
nominal pressure: PN6-PN10-PN16 & ANSI150
max. working pressure: 16 bar
sleeves: EPDM DVGW drinking water, WRAS, ACS, W270
media: liquid and gaseous media
temperature: -20°C up to +90°C
design: Wafer type
body material: SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm
disc: stainless steel 1.4408
actuation: Worm gear
approval: EPDM for water DW-6201CR0174 nach DIN EN 1074-1/-2 (Operating range - 20 °C to +90 °C)
application: industry design
installation position: any position
product feature: Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. Industrial design.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Butterfly valve AK01 DN 65 PN6-PN10-PN16 & ANSI150 DVGW-water Worm gear

Article no. : AK01100109
product: Butterfly valve
type: AK01
manufacturer: NieRuf
diameter: DN 65
nominal pressure: PN6-PN10-PN16 & ANSI150
max. working pressure: 16 bar
sleeves: EPDM DVGW drinking water, WRAS, ACS, W270
media: liquid and gaseous media
temperature: -20°C up to +90°C
design: Wafer type
body material: SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm
disc: stainless steel 1.4408
actuation: Worm gear
approval: EPDM for water DW-6201CR0174 nach DIN EN 1074-1/-2 (Operating range - 20 °C to +90 °C)
application: industry design
installation position: any position
product feature: Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. Industrial design.
